AAI143-S50 Yokogawa CENTUM VP 16-Channel Analog Input Module Stock

Overview

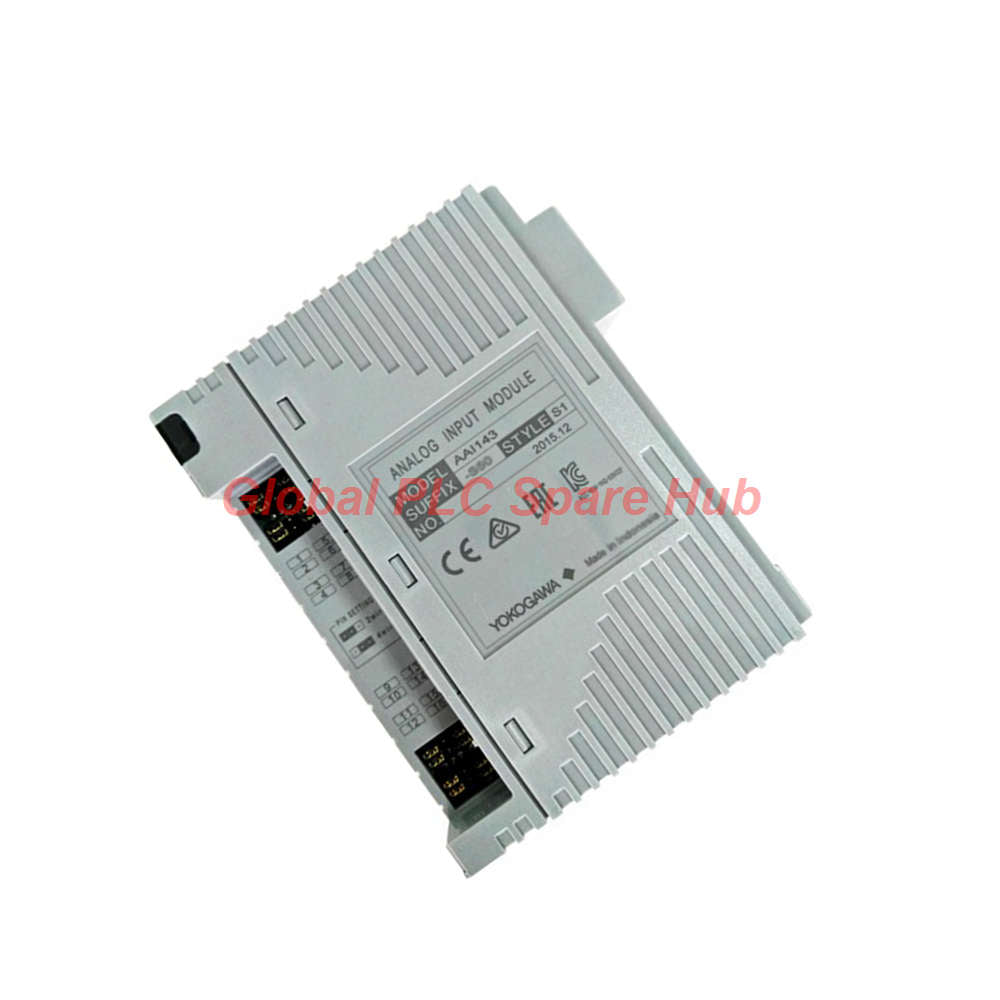

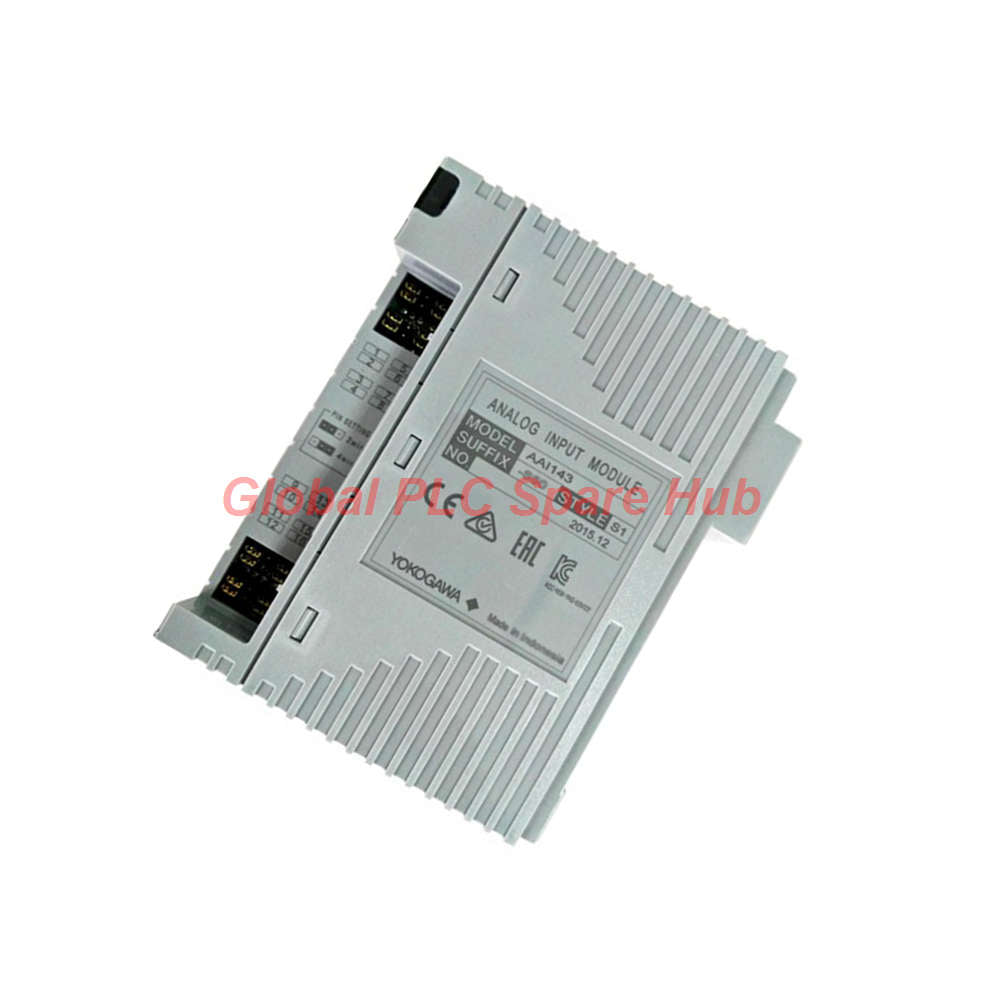

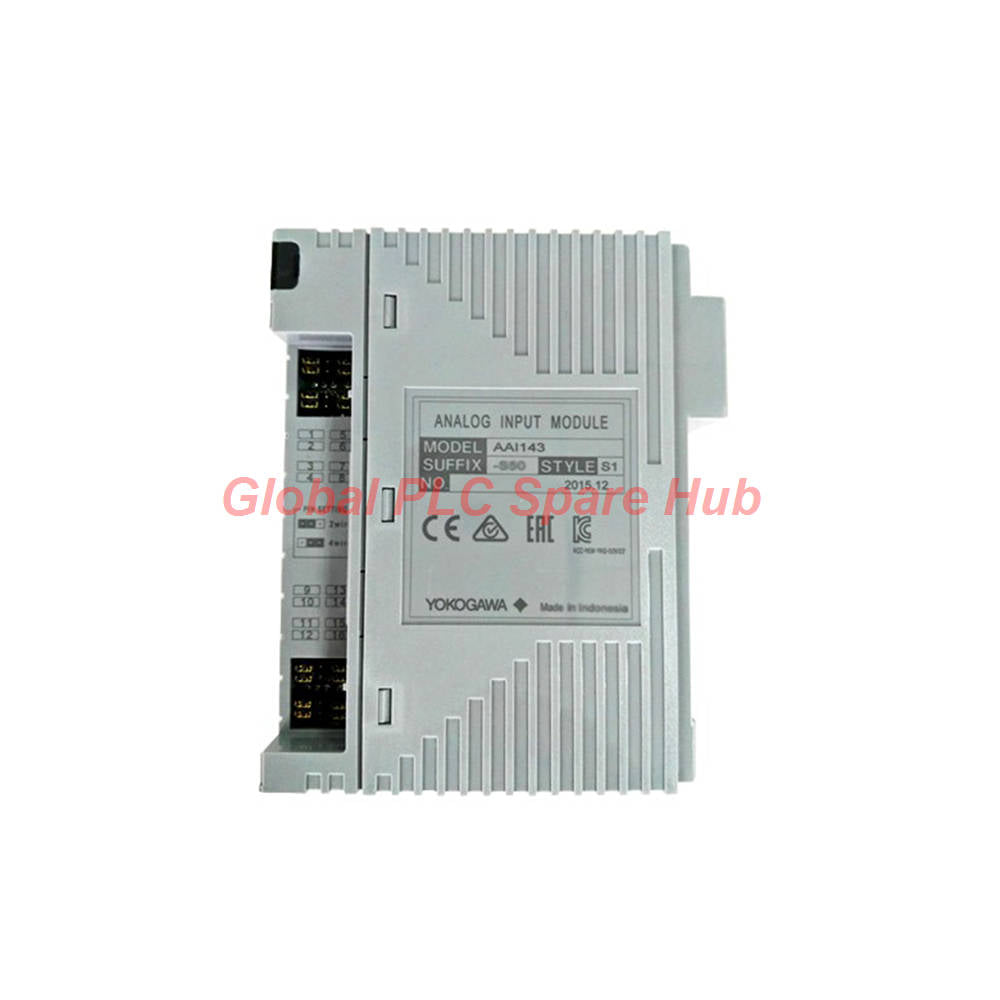

The Yokogawa AAI143-S50 serves as a high-density 16-channel isolated 4 to 20 mA analog input module engineered for CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). It processes process transmitter signals across automated refineries, power stations, and chemical plants. Each channel features individual signal isolation, safeguarding internal system electronics against ground loops, high-voltage surges, and industrial common-mode noise.

Configuration and Suffix Breakdown

• Base Model Designation:
  • AAI143: 16-Channel Isolated 4 to 20 mA Analog Input Module
• Suffix Code Details:
  • -S [Standard Performance Type]:
    • Standard operational speed with 10 ms data update period.
    • Supports both 2-wire and 4-wire transmitter configurations.
  • 5 [Non-Explosion Protection]:
    • Designed for general-purpose, non-hazardous cabinet installations.
    • Eliminates intrinsic safety barrier overhead inside the local I/O node.
  • 0 [Basic Functional Option]:
    • Standard hardware coating without ISA G3 harsh environmental protection.
    • Direct terminal or cable interface for high-density I/O nests.

Technical Specifications

Hardware Architecture and Loop Selection

• Transmitter Wiring Flexibility:
  • Per-channel physical hardware pins allow custom 2-wire loop or 4-wire self-powered selection.
  • 2-wire transmitters utilize onboard 19.0 V DC power directly through field terminals.
  • 4-wire transmitters isolate active loop currents without external dropping resistors.
• External Connection Options:
  • Supports direct pressure-clamp terminal blocks for quick cabinet termination.
  • Interfaces with 40-pin MIL connector cables for marshaling panel integration.
  • Connects via dedicated KS1 multi-core cables to field interface boards.

Target Applications and Compatible Equipment

• Compatible System Racks:
  • Mounts into Yokogawa Field Control Units (FCU) including A2FV10D and A2FV70D.
  • Installs inside standard I/O Nodes (ANB10D, ANB11D, and A2BN3D node units).
• Process Application Scenarios:
  • Continuous pressure, temperature, and differential flow monitoring in boiler control systems.
  • Multi-channel tank farm level telemetry via 4 to 20 mA transmitter loops.
  • Turbine lube-oil auxiliary system monitoring in power generation facilities.

System Diagnostics and Self-Monitoring Capabilities

• Field Loop Fault Detection:
  • Detects open-circuit loop wire breaks when input drops below 3.0 mA.
  • Identifies over-range transmitter conditions exceeding 24.0 mA limit.
  • Triggers system alarms upon localized transmitter short circuits exceeding 25 mA.
• Module Self-Diagnostics:
  • Monitors onboard 24 V DC transmitter power supply line integrity continuously.
  • Verifies internal Analog-to-Digital Converter (ADC) conversion clock cycles.
  • Reports channel hardware failure codes directly to the CENTUM VP system alarm view.

Packaging and Global Logistics

• Packaging Details:
  • Factory sealed anti-static protective enclosure with high-density foam cushioning.
  • Includes factory test cert and hardware jump-pin manual.
• Warranty Policy:
  • Supported by a comprehensive 12-month operational warranty from date of dispatch.
• Global Freight Handling:
  • Standard dispatch timeframe within 24 to 48 hours post-order verification.
  • Worldwide priority air shipping provided via FedEx, UPS, or DHL.

Global PLC Spare HUB's Insight

When commissioning or replacing an AAI143-S50 module in an active CENTUM VP node, engineers frequently encounter input reading anomalies caused by misplaced hardware jumper pins. During a recent retrofit at an ethylene plant, a channel connected to a 4-wire flow meter returned a saturated 24 mA error state. Our field team verified that the module's channel pin header was set to the default 2-wire mode, supplying 19 V DC into an already powered loop. Moving the physical setting pin to 4-wire mode resolved the conflict and restored normal 4 to 20 mA loop scaling.

Before inserting a new AAI143-S50 board, inspect every channel jumper block on the side PCB. Match these physical settings against your loop schematics prior to sliding the card into the backplane, avoiding unnecessary loop power trips during startup.

Frequently Asked Questions (FAQ)

Q: What is the primary functional difference between the AAI143-S50 and the AAI143-H50 variant?

A: The AAI143-S50 is a standard analog module, whereas the -H50 variant includes HART pass-through communication protocol support for digital field device management.

Q: How do I change an input channel on the AAI143-S50 from a 2-wire to a 4-wire transmitter loop?

A: You must physically relocate the shorting pin header located on the module circuit board for that specific channel before wiring the field signal.

Q: What happens to the AAI143-S50 module if a field wire short-circuits during operation?

A: The internal current limiting circuit caps output current at 25 mA to protect internal traces, preventing thermal damage to the board.

Q: Can I plug an AAI143-S50 module directly into an ISA G3 compliant harsh environment cabinet?

A: No. The "0" suffix indicates standard conformal coating. For ISA G3 environmental compliance, select the AAI143-S51 or -S53 revision.

Q: How can I verify if an AAI143-S50 card failure is caused by the module or external loop wiring?

A: Measure loop current using an inline milliammeter. If loop current measures 12 mA but DCS software reads 0 mA or BAD status, replace the AAI143-S50 board.
