E30013 IFM Welding Adapter for Process Sensors | 316L Stainless Steel G1

E30013 IFM Welding Adapter for Process Sensors

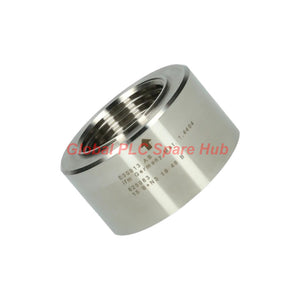

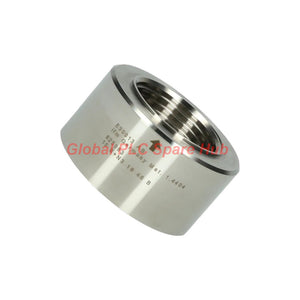

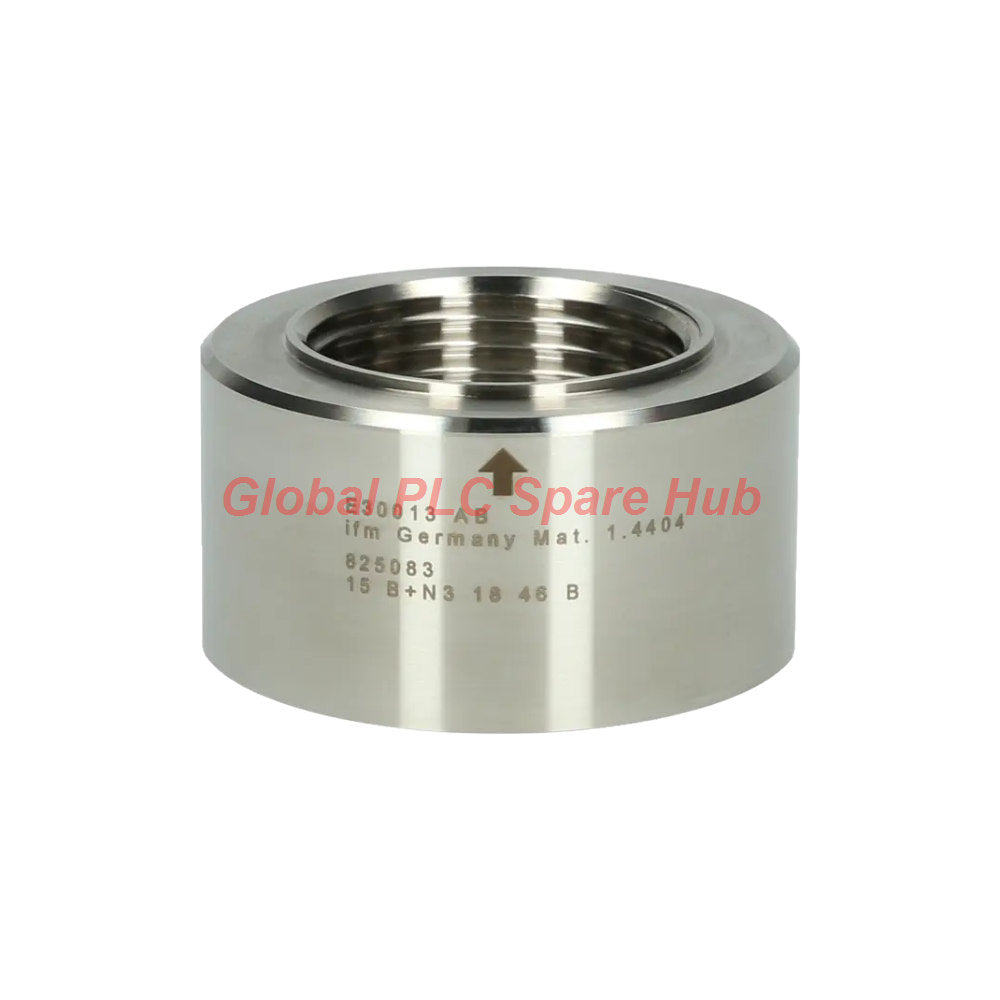

The E30013 from ifm electronic is a stainless steel welding adapter designed to provide a process connection for compatible sensors. It features a G 1 sealing-cone sensor connection and a Ø 50 mm welding connection. Its wetted surfaces use 1.4404 / 316L stainless steel, with a specified surface finish of Ra less than 0.4 and Rz 4.

For process engineers and maintenance teams, the main selection factors are sensor interface geometry, process pressure, material compatibility, and the suitability of the welded installation. The adapter has a stated pressure rating of 150 bar for the sensor-to-adapter connection; this value should not automatically be treated as the pressure rating of the entire process assembly.

Connection Design at a Glance

• Manufacturer: ifm electronic
• Model: E30013
• Product designation: WELDING ADAPT G1 V4A
• Product type: Welding adapter for process sensors
• Sensor connection: G 1 sealing cone
• Process connection: Ø 50 mm welding adapter
• Wetted material: Stainless steel 1.4404 / 316L
• Surface finish: Ra less than 0.4; Rz 4
• Weight: 300 g
• Pack quantity: 1 piece

Pressure Limits and Application Responsibility

The manufacturer specifies a pressure rating of 150 bar for the connection between the sensor and adapter. The maximum allowable working pressure (MAWP) listed for applications according to CRN is also 150 bar.

Before installation, engineers should distinguish the adapter's stated rating from the allowable pressure of the complete assembly. The sensor, adapter interface, weld, process vessel or pipe, and operating conditions must all be suitable for the intended service.

• Verify the pressure requirements for the specific process and operating cycle.
• Confirm that the selected sensor uses the required G 1 sealing-cone connection.
• Assess the welded connection and surrounding process equipment for the intended pressure and temperature conditions.
• For CRN-related applications, review the requirements applicable to the complete installation.

Material and Surface Finish for Process Service

The wetted parts use stainless steel 1.4404 / 316L. The specified surface characteristics are Ra less than 0.4 and Rz 4. These details can be important when selecting process connections for applications that require controlled surface quality or resistance to the process medium.

Material suitability still depends on the actual medium, concentration, temperature, cleaning agents, and operating conditions. The manufacturer specifically requires users to check compatibility between the medium and product material for every application. Do not assume that a stainless steel designation alone establishes suitability for every chemical or cleaning process.

Suitable Equipment and Application Scenarios

The E30013 can be considered for installations using compatible process sensors where a Ø 50 mm welded process connection and G 1 sealing-cone sensor interface meet the mechanical requirements.

• Pressure measurement assemblies: For compatible pressure sensors installed on a suitable welded process connection.
• Industrial process lines: For sensor mounting where the pipework, weld design, and pressure conditions support the intended installation.
• Process vessels and skids: For integrating compatible instruments into engineered process assemblies.
• Maintenance and replacement: For replacing an existing adapter after confirming connection geometry, material, surface finish, and pressure requirements.

These are potential application scenarios based on the adapter's connection and material specifications, not a claim of universal compatibility with every sensor, medium, or process system.

Installation and Engineering Checks

1. Confirm the sensor interface. Check that the sensor connection is G 1 with the required sealing-cone geometry. A matching nominal thread size alone does not prove interface compatibility.
2. Check the process opening. Verify that the Ø 50 mm welding-adapter format suits the installation drawing and process connection design.
3. Review material compatibility. Evaluate the wetted stainless steel against the actual medium, concentration, temperature, and cleaning procedure.
4. Validate pressure suitability. Confirm the sensor-to-adapter connection rating and the allowable pressure of the complete welded assembly.
5. Inspect the welded installation. Use the site's approved welding, inspection, and pressure-test procedures for the process equipment.
6. Document the installation. Record the adapter part number, sensor type, process conditions, and inspection results for future maintenance.

Field Diagnostics: Finding Connection-Related Problems

The E30013 is a mechanical adapter, not an electronic measurement module. It does not provide its own signal diagnostics. Troubleshooting should therefore focus on the mechanical interface, the sensor, and the installed process connection.

• Evidence of leakage: Depressurize and isolate the process according to site procedures, then inspect the sealing interface and installation condition. Do not tighten or remove components under pressure.
• Sensor does not seat correctly: Verify the G 1 sealing-cone interface and inspect for damage, contamination, or mismatched connection geometry.
• Repeated corrosion or surface damage: Review the process medium, cleaning chemicals, and operating conditions against the material specification.
• Pressure-test failure: Evaluate the sensor seal, adapter interface, weld, and surrounding equipment as separate potential leak paths.
• Recurring installation issues: Compare the installed adapter and sensor against the engineering drawing and equipment records before ordering a replacement.

Standards and Regulatory Considerations

The manufacturer's documentation notes that possible classification under the Pressure Equipment Directive (PED) depends on the application and must be determined by the user or operator. The documentation also states that the adapter is intended for use in devices, machines, and installations outside the categories covered by technical rule TR CU 032/2013.

These notes do not establish blanket approval for every installation. The responsible engineer or operator must determine the applicable regulatory requirements for the complete system and intended use.

Global PLC Spare HUB's Insight

When selecting a welding adapter, experienced maintenance teams check more than the nominal connection size. The sealing-cone geometry, welded process opening, wetted material, and pressure boundary all influence whether the adapter is appropriate for a specific sensor installation.

For the E30013, the 150 bar figure applies to the sensor-to-adapter connection, while the CRN-related MAWP is also listed as 150 bar. Engineers should still verify the ratings of the sensor, weld, and process equipment before approving the assembly. Material compatibility must be assessed against the actual medium and operating conditions.

Purchasing Checklist

• Confirm the exact part number: E30013.
• Match the G 1 sealing-cone sensor connection.
• Verify the Ø 50 mm welding-adapter process connection.
• Confirm the 1.4404 / 316L wetted material and specified surface finish.
• Review the 150 bar sensor-to-adapter pressure rating and the requirements of the complete assembly.
• Check medium compatibility and any application-specific regulatory requirements.
• Confirm quantity and delivery destination when requesting a quotation.

Warranty and Shipping

• Warranty: 12-month warranty, subject to the seller's written terms and conditions.
• Shipping methods: FedEx, UPS, or DHL, subject to destination and service availability.
• Dispatch planning: A 24–48-hour dispatch target may be available after order and stock confirmation. Confirm the actual schedule before purchase.
• Quotation support: Provide the part number, required quantity, destination, and intended sensor or process connection details to support order review.

Frequently Asked Questions

Q1: Is a G 1 connection sufficient to confirm that a sensor will fit the E30013?

No. The sensor must match the specified G 1 sealing-cone interface, not just the nominal connection size. Check the sensor documentation and mechanical drawing before ordering.

Q2: Can the 150 bar rating be used as the pressure limit for the entire pipework assembly?

Not by itself. The stated rating applies to the sensor-to-adapter connection, and the CRN-related MAWP is listed as 150 bar. The sensor, weld, pipework or vessel, and other pressure-boundary components must also meet the applicable operating requirements.

Q3: What information is most useful when replacing an adapter in a process line?

Record the existing adapter part number, sensor interface, process connection dimensions, wetted material, operating pressure, and process medium. Photographs and engineering drawings can help identify differences that a nominal thread measurement may miss.

Q4: Does the specified stainless steel guarantee compatibility with aggressive cleaning chemicals?

No. Compatibility depends on the chemical composition, concentration, temperature, exposure time, and operating conditions. Evaluate the actual medium against the 1.4404 / 316L material specification before approving the installation.

Q5: What should be investigated if leakage appears after sensor installation?

First isolate and depressurize the system under the site's safety procedure. Then inspect the sealing-cone interface, sensor compatibility, adapter condition, and welded connection. Use approved inspection and pressure-test methods to identify the leak source before returning the equipment to service.
