FEIP-21 ABB VariMax EtherNet/IP Adapter for Reliable Drive Integration

FEIP-21 | ABB EtherNet/IP Adapter Module for VariMax Drives

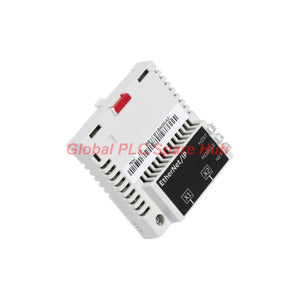

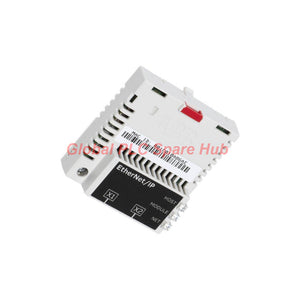

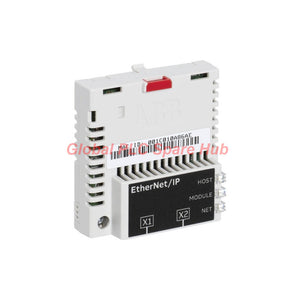

The ABB FEIP-21 is a plug-in communication adapter that connects compatible VariMax drives to an EtherNet/IP industrial network. It enables PLC-based systems to exchange drive commands, reference values, operating status, and supported parameter data.

The module supports 10 Mbps and 100 Mbps Ethernet with automatic transfer-rate detection. Its two RJ-45 ports support network connections and chaining to another adapter module. Three bicolor LEDs help engineers identify drive communication, module status, and network activity.

Product focus: The FEIP-21 provides EtherNet/IP connectivity for compatible VariMax drive installations. Verify the exact drive model and supported option-slot configuration before ordering.

01 | Technical Data at a Glance

02 | Drive Control and Communication Functions

The FEIP-21 transfers supported control and monitoring data between a VariMax drive and an EtherNet/IP controller. The available functions depend on the drive configuration and communication parameters.

• Drive commands: Send supported Start, Stop, and Run Enable commands from the controller.
• Speed references: Transfer motor speed references through configured process data.
• Torque references: Send supported torque commands for compatible drive applications.
• PID integration: Provide process actual values or reference values to the drive's PID controller.
• Status monitoring: Read available drive status information and actual values.
• Fault recovery: Issue supported drive fault-reset commands through the control system.
• Parameter access: Read or write supported drive parameters through the communication interface.
• Engineering connectivity: Connect the Drive Composer pro tool through the supported communication path.

Integration note: Confirm the required data assemblies, process-data mapping, and supported parameter services in the applicable drive documentation.

03 | Ethernet Interface and Network Layout

The adapter supports common industrial Ethernet wiring arrangements. Engineers can select a bus, star, or ring topology according to the controller architecture and installation requirements.

Network planning: The supplied documentation recommends a maximum of 50 nodes in a chain. Larger chains may introduce additional delays and require communication-cycle evaluation.

• Use suitable industrial Ethernet cable for the operating environment.
• Check RJ-45 connectors for secure engagement and damaged contacts.
• Separate Ethernet wiring from motor power cables where practical.
• Confirm that the selected topology matches the controller and network equipment capabilities.
• Verify communication stability after adding nodes or changing the network layout.

04 | Installation Procedure

Install the FEIP-21 into the designated option slot on a compatible VariMax drive control unit.

1. Check compatibility: Confirm the drive model and permitted option-module position.
2. Isolate power: Follow the drive manufacturer's safety procedure before opening the control unit.
3. Prepare the lock: Pull out the module locking mechanism.
4. Insert the adapter: Carefully fit the module into the designated option slot.
5. Secure the lock: Push the locking mechanism back into position.
6. Tighten the screw: Follow the applicable drive instructions for the specified fastening procedure.
7. Connect Ethernet: Attach the network cable to X1 and use X2 when chaining another supported adapter.
8. Verify installation: Check the connectors, module seating, and controller configuration before commissioning.

Important: The supplied information does not specify a fastening torque for the FEIP-21. Follow the relevant drive hardware manual rather than assuming a torque value from another adapter model.

05 | Commissioning and Diagnostic Workflow

Reliable operation requires correct hardware installation, EtherNet/IP configuration, and matching process-data definitions. Use the following checks during initial commissioning or fault investigation.

Field example: A PLC may establish Ethernet communication while the motor fails to respond to a Start command. Engineers should inspect the command mapping, drive control settings, and operating interlocks before replacing the adapter.

Record the controller configuration, drive parameters, and observed symptoms during commissioning. These records help technicians compare normal operation with later communication faults.

06 | Typical Applications and Equipment Integration

• VariMax drive systems: Connect supported drives to EtherNet/IP-based automation networks.
• PLC-controlled machinery: Exchange drive commands, references, and status information with a compatible controller.
• Conveyor systems: Coordinate motor operation and monitor operating feedback.
• Pumping and ventilation equipment: Integrate supported drive references into process-control logic.
• Production machinery: Support network-based drive control and fault-reset functions.
• Industrial process systems: Transfer supported PID process values and references through the drive interface.
• Maintenance operations: Access supported parameters and investigate communication-related operating problems.

The adapter provides communication connectivity rather than independent motor-control capability. Actual operating functions depend on the connected drive, controller logic, and configured parameters.

07 | Compatibility and Spare-Part Selection

The FEIP-21 specifically targets compatible VariMax drives. Do not assume compatibility with every ABB inverter or with other ABB Ethernet adapter families.

Purchasing advice: Provide the drive nameplate details and the installed adapter label when requesting a quotation. This allows compatibility checks before a replacement order.

08 | Environmental and EMC Considerations

• IP20 enclosure rating: Install the module in an environment that meets the rating's limitations. IP20 does not provide water protection.
• Environmental conditions: Follow the operating limits specified in the compatible drive's manual.
• EMC compliance: The supplied specifications state compliance with EN 61800-3:2004.
• PCB protection: Conformal coating helps protect the circuit board against specified environmental influences.
• Signal integrity: Use suitable Ethernet cabling and sound industrial wiring practices to reduce interference risks.

The supplied specifications do not establish a separate operating-temperature range or additional safety approvals. Consult the applicable drive documentation for project-specific requirements.

09 | Global PLC Spare HUB's Insight

For EtherNet/IP drive integration, the FEIP-21 connects the VariMax drive's communication functions with the controller's application logic. Its practical value depends on correct configuration and reliable network installation.

Field scenario: After replacing a controller, a maintenance team may restore network connectivity but still encounter incorrect drive feedback. Engineers should compare the previous and current process-data mappings, reference scaling, and drive control configuration before diagnosing hardware failure.

Another common investigation involves intermittent communication. Check cable condition, RJ-45 connections, network-device status, and controller diagnostics before replacing the adapter. Confirm the root cause with the drive's documentation and available diagnostic records.

For spare-parts planning, record the adapter model, connected drive, controller platform, and required control functions. This information helps engineers and purchasing teams verify the replacement against the actual installation.

10 | Packaging, Shipping, and Warranty

• Product: ABB FEIP-21 EtherNet/IP adapter module.
• Packaging: Cardboard carton with antistatic polyethylene air-bubble wrapping, according to the supplied specification.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch target: Typically within 24–48 hours after order confirmation and stock verification.
• Warranty: 12 months, subject to the seller's written warranty terms.
• Order assistance: Contact Global PLC Spare HUB to confirm availability, drive compatibility, and shipping arrangements.

11 | Frequently Asked Questions

Q1: What should an engineer document before removing an existing FEIP-21?

Record the drive model, controller configuration, network addressing, process-data assignments, and relevant drive parameters. Photograph the installed connections when permitted. These records help restore the original communication setup after replacement.

Q2: How can engineers distinguish a communication fault from a drive-control issue?

First verify the Ethernet connection and controller communication status. Then inspect command delivery, drive status, control permissions, and active interlocks. Successful communication does not guarantee that the drive can execute every requested command.

Q3: What should be checked when a machine loses communication after maintenance?

Inspect disturbed cables, connector seating, module installation, and changes to the controller project. Compare the current network settings with the last verified configuration before replacing hardware.

Q4: Can the FEIP-21 replace another ABB Ethernet adapter directly?

Do not assume direct interchangeability. Confirm the target drive's supported adapter list, connector arrangement, protocol requirements, and configuration procedure. Similar interfaces do not establish equivalent hardware compatibility.

Q5: What details help purchasing teams obtain an accurate quotation?

Provide the FEIP-21 model designation, connected VariMax drive model, required quantity, delivery destination, and intended application. Include a clear label photograph when available. These details support model verification and reduce selection errors.

Request a Quote for ABB FEIP-21

Looking for an ABB FEIP-21 EtherNet/IP adapter module for a VariMax drive installation or maintenance project? Contact Global PLC Spare HUB for pricing, availability confirmation, compatibility assistance, and shipping options.

Share your drive model and application requirements to help our team assess the correct module for your system.
