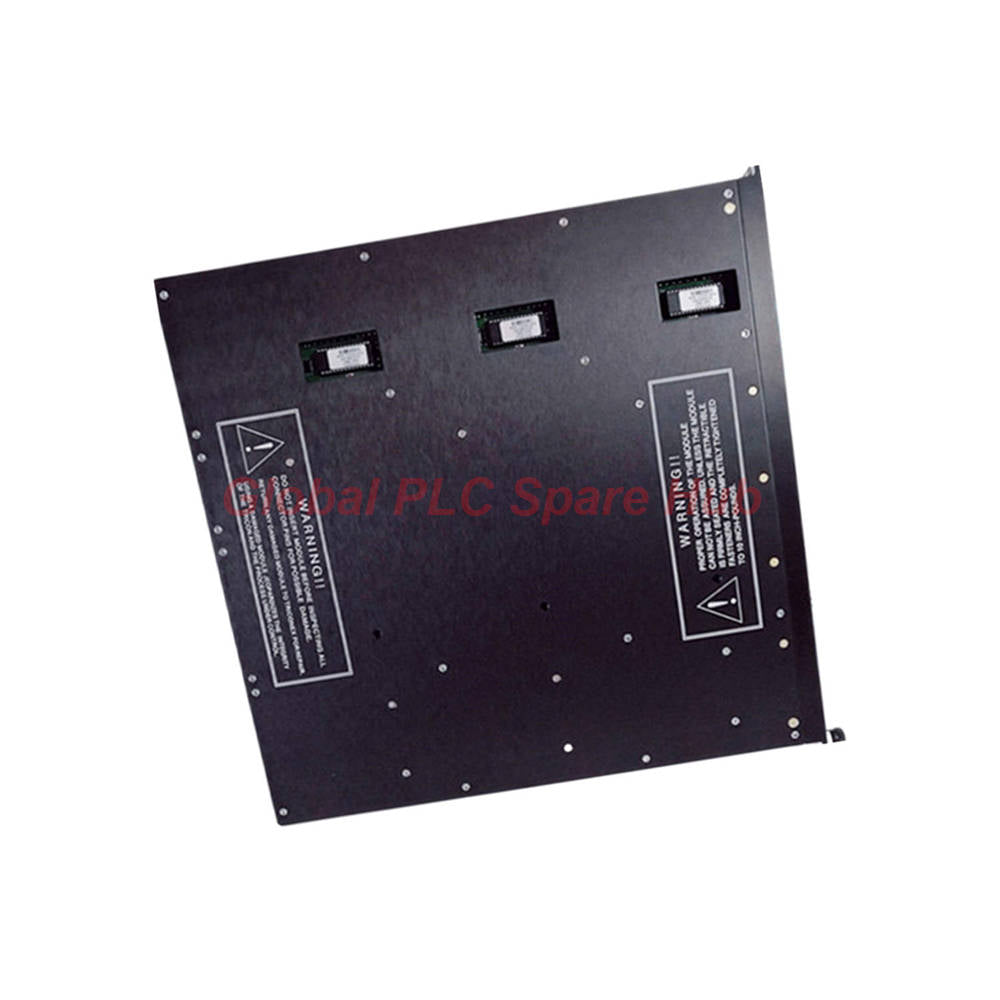

3505E Triconex TMR Digital Input Module 24VDC 32-Point In Stock

Product Introduction

The Triconex 3505E is a high-reliability Triple Modular Redundant (TMR) digital input module designed for safety-critical environments. Operating at a 24 VDC low threshold, this module manages 32 input points arranged in isolated groups of eight. It provides the voting logic necessary to ensure maximum system availability and fault tolerance. We recommend that maintenance engineers verify the compatibility of the External Termination Panel (ETP) before integrating the 3505E into an active Tricon chassis.

Technical Specifications

• Brand: Triconex (by Schneider Electric)
• Model: 3505E
• Module Type: TMR Digital Input (Low Threshold)
• Input Points: 32 Points (Commoned in groups of 8)
• Nominal Voltage: 24 VDC
• Operational Range: 20 to 42.5 VDC
• Switching Threshold (OFF to ON): > 12 VDC
• Switching Threshold (ON to OFF): < 4 VDC
• Input Impedance: > 1.25 KΩ (Nominal)
• Turn-On Current: 3 mA to 5 mA
• Input Delay: < 8 ms (OFF to ON) / < 15 ms (ON to OFF)
• Point Isolation: 1,500 VDC
• Nominal Field Power Load: 0.5 Watts per ON point
• Color Identification: Dark Red (Module Handle)

Configuration Breakdown

• 3505 (Digital Input Series)
  • E (Enhanced Self-Test / Specific Voltage Profile)
    • TMR (Triple Modular Redundant Architecture)
      • 32-Point (High-Density Grouped Interface)

Advanced Diagnostic Capabilities

• Stuck-ON Self-Test: The 3505E features internal circuitry that simulates a zero-input state to verify the optical isolation path. This ensures the module can always detect an "OFF" state in de-energize-to-trip safety loops.
• Status Indicators:
  • PASS: Module has successfully completed internal power-up and runtime diagnostics.
  • FAULT: Indicates internal hardware failure or voting discrepancy.
  • ACTIVE: Confirms the module is currently processing field data.

Global PLC Spare HUB's Insight

The 3505E is a cornerstone for "de-energize-to-trip" safety systems. Our technical review highlights the "Stuck-ON" test as its most vital feature; by freezing the last data reading in the I/O processor during the test, it prevents false trips while ensuring the optical isolators haven't failed in a conductive state. Note that the Dark Red color coding is specific to this 24V profile—never attempt to force this into a high-voltage slot, as the mechanical keying is designed to prevent such hardware mismatches.

Shipping & Service Terms

• Standard Dispatch: Within 24-48 hours of order confirmation.
• Logistics Partners: Express worldwide delivery via FedEx, UPS, and DHL.
• Warranty Period: Full 12-month industrial guarantee on all 3505E units.
• Safety Packaging: Shipped in specialized ESD-safe containers to preserve sensitive TMR circuitry.

Typical Applications & Device Compatibility

• Safety Instrumented Systems (SIS): Emergency Shutdown (ESD) and Fire & Gas (F&G) monitoring.
• System Platform: Designed for use in Tricon version 9.6 and later chassis.
• Field Interfacing: Requires a dedicated External Termination Panel (ETP) and specialized cable interface.

FAQ (Engineering Experience)

How does the Stuck-ON test affect the PLC scan time?

The test runs transparently; the I/O processor freezes the last valid reading during the brief test window to prevent logic disruption.

Can the 3505E be hot-swapped without shutting down the system?

Yes, all TMR digital modules support hot-spare capability when used in a configured chassis with an available slot.

What is the significance of the 2VDC typical hysteresis?

Hysteresis prevents "chattering" of the input signal when the field voltage fluctuates near the 12V switching threshold.

Does this module require external field power for the inputs?

Yes, the field loop must be powered externally as the module acts as a passive sink with a 1.25 KΩ nominal impedance.

Why is the 3505E handle color-coded Dark Red?

In Triconex systems, color coding allows for rapid visual verification of module types (e.g., Low Threshold DC vs. AC modules) during maintenance.

Selection & Purchasing Guide

• Verify that your field voltage remains within the 20-42.5 VDC range to ensure the 3505E correctly registers "ON" states.
• Ensure your backplane has the correct mechanical keying for a 32-point TMR module.
• Check the existing ETP (External Termination Panel) part number to confirm it supports 32-point TMR digital inputs.
• Confirm that your system's "active" and "fault" reporting logic is configured to recognize the 3505E specific diagnostic flags.
