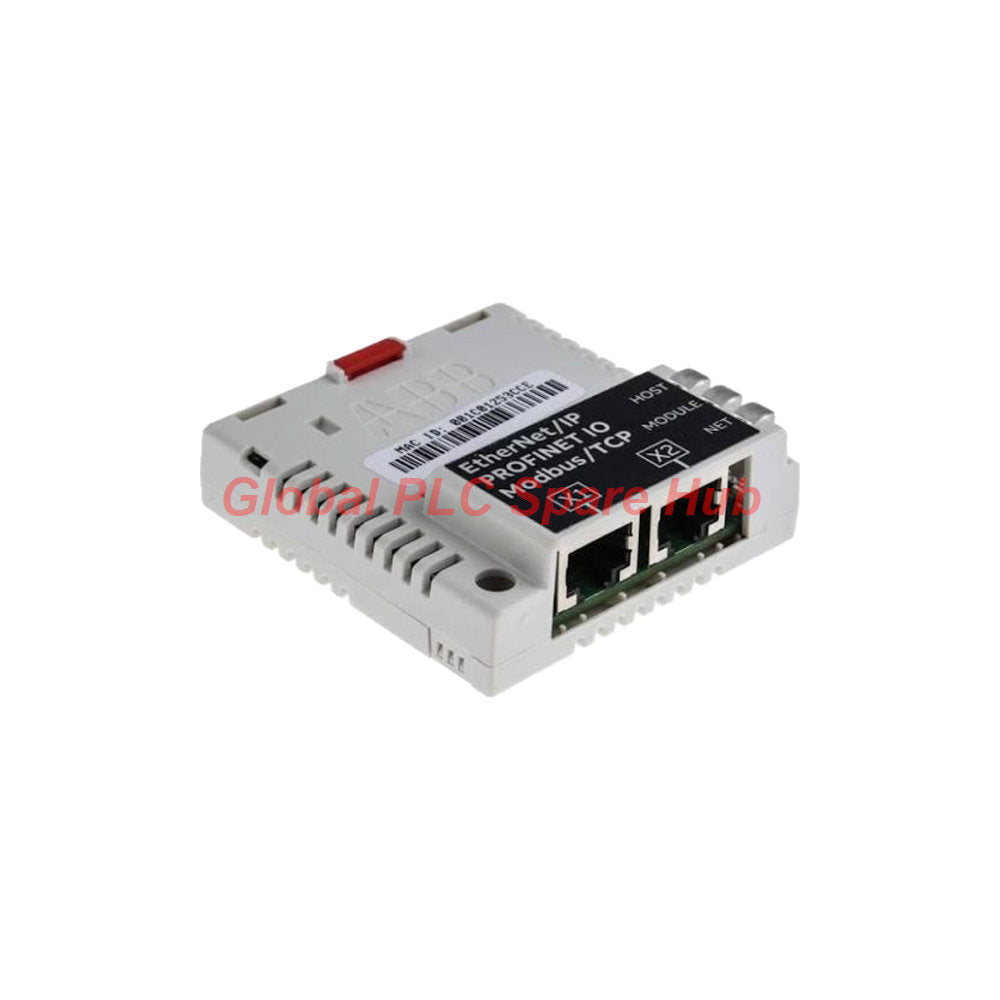

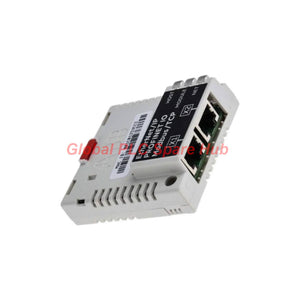

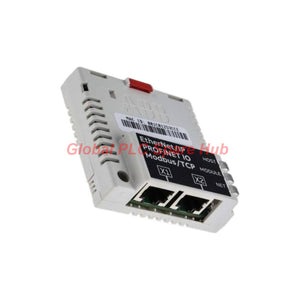

ABB FENA-21 Dual-Port Ethernet Adapter – Multi-Protocol Drive Communication

The ABB FENA-21 is a dual-port Ethernet adapter designed for compatible ABB drives, converters, and inverters. It provides a flexible communication interface between drive systems and industrial automation networks.

Unlike protocol-specific adapters, the FENA-21 supports three major industrial Ethernet protocols: PROFINET IO, EtherNet/IP, and Modbus TCP. Engineers select the required protocol through a parameter in the connected drive. This architecture simplifies integration with different PLC platforms and plant communication standards.

The module belongs to the ABB FENA-01/-11/-21 Ethernet adapter family. Its compact plug-in design supports drive integration, equipment replacement, and industrial communication upgrades.

01 | Product Identity and Technical Specifications

Selection note: Verify the exact drive model and supported option modules before ordering. The FENA family designation alone does not establish compatibility with every ABB drive.

02 | Three Protocols, One Drive Interface

The FENA-21 supports three communication protocols through a configurable Ethernet interface. Engineers can select the appropriate protocol for the controller architecture and drive application.

PROFINET IO integration

• Supports DP-V1 communication for compatible drive configurations.
• Provides PROFIdrive and ABB Drives profile options where supported.
• Offers transparent data modes using 16-bit or 32-bit words.
• Requires matching controller configuration and drive communication parameters.

EtherNet/IP integration

• Operates as an EtherNet/IP server.
• Supports ODVA AC/DC Drive and ABB Drives profiles.
• Provides transparent profile options for application-specific data exchange.
• Supports explicit messaging for individual class attributes and implicit messaging through input and output instances.

Modbus TCP integration

• Operates as a Modbus TCP server.
• Supports the ABB Drives profile.
• Provides single-register and multiple-register read/write functions.
• Requires the controller's register mapping and drive parameter configuration to match.

Engineering consideration: Select the protocol before configuring the PLC project. Confirm the required profile, process-data layout, and parameter settings in the applicable ABB documentation.

03 | Mechanical Installation and Secure Mounting

The FENA-21 uses a plug-in mounting arrangement. Correct installation protects the option interface and supports reliable drive communication.

1. Release the lock. Pull out the module locking mechanism before installation.
2. Insert the adapter. Carefully fit the module into the drive's designated option slot.
3. Secure the module. Push the lock back into its original position.
4. Tighten the screw. Use a Torx TX10 screwdriver and apply a torque of 0.8 N·m.
5. Inspect the installation. Confirm that the module sits correctly and that the locking mechanism holds it securely.
6. Connect Ethernet. Complete the network connections according to the drive manual and selected topology.

Safety requirement: Isolate the drive and follow ABB's electrical safety instructions before accessing the option slot. Do not assume that hot-plug installation is permitted.

04 | Communication Setup and Commissioning

Successful integration requires more than connecting an Ethernet cable. The drive, adapter, and controller must use matching communication settings.

• Confirm hardware compatibility: Check the drive model and supported FENA adapter configuration.
• Select the protocol: Set the appropriate communication protocol through the designated drive parameter.
• Configure the controller: Use the correct device description, profile, and network settings for the selected protocol.
• Map process data: Match control commands, reference values, status information, and actual values across both systems.
• Verify parameter access: Test supported read/write operations before enabling normal production control.
• Test drive commands: Validate Start, Stop, reference handling, and other configured functions under approved operating conditions.
• Record the baseline: Save the protocol selection, drive parameters, controller configuration, and commissioning results.

Practical tip: Save the original drive configuration before replacing an adapter. This helps engineers restore communication settings and process-data mappings after installation.

05 | Diagnostic Capability and Field Troubleshooting

The FENA-21 provides communication access to the drive, but diagnosis also depends on controller status, drive parameters, and network diagnostics.

Field example: A drive may communicate successfully after a controller replacement but respond incorrectly to a speed reference. Engineers should compare reference scaling and profile selection before replacing the adapter.

These checks help distinguish communication-interface problems from drive parameter errors and controller mapping faults. Confirm each diagnosis using the relevant drive and controller diagnostics.

06 | Suitable Equipment and Industrial Applications

The ABB FENA-21 suits applications that require Ethernet communication between compatible ABB drives and industrial controllers.

• Variable-frequency drives: Connect supported ABB drives to PLC-based Ethernet networks.
• Industrial converters and inverters: Integrate compatible equipment into centralized automation systems.
• Conveyor systems: Exchange drive commands and operating feedback with production-line controllers.
• Pump and fan control: Integrate supported speed references and status values into process automation.
• Packaging machinery: Coordinate drive functions through PROFINET IO or EtherNet/IP, where supported.
• Process automation: Exchange supported drive parameters and process data through Modbus TCP.
• Equipment modernization: Support communication integration when the target drive and controller meet compatibility requirements.

Application boundary: The adapter provides communication functions rather than independent motor control. The connected drive and controller determine available control functions and operating limits.

07 | FENA Series Selection Guidance

The FENA series includes FENA-01, FENA-11, and FENA-21. These designations should not be treated as interchangeable without checking the official product documentation.

Purchasing recommendation: Provide the existing adapter label and the connected drive model when requesting a quotation. This allows the supplier to check the requested part number against the intended installation.

08 | Global PLC Spare HUB's Insight

From a drive-integration perspective, the key advantage of the FENA-21 is its support for three industrial Ethernet protocols. This flexibility can simplify spare-parts planning across compatible drive installations.

However, protocol flexibility does not eliminate configuration work. Each controller project must match the selected protocol, drive profile, and process-data structure. A module can be physically installed yet still deliver incorrect control behavior when the mapping differs.

Field scenario: During a PLC migration, an engineer replaces a controller while retaining an existing ABB drive. Network communication becomes available, but the displayed speed feedback differs from the expected value. The engineer should first inspect the selected profile, scaling, and data mapping before concluding that the adapter has failed.

For maintenance teams, recording the adapter model, product ID, protocol selection, and parameter configuration can reduce troubleshooting time. These records also help purchasing teams identify the correct replacement before a planned shutdown.

09 | Packaging, Shipping, and Warranty

• Product: ABB FENA-21 dual-port Ethernet adapter.
• Product ID: 3AUA0000089109.
• Packaging specification: The supplied product data identifies a package level containing one carton. Confirm the actual packing contents when ordering.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch target: Typically within 24–48 hours after order confirmation and stock verification.
• Warranty: 12 months, subject to the seller's written warranty terms.
• Order verification: Contact Global PLC Spare HUB to confirm availability, compatibility, and shipping arrangements.

10 | Frequently Asked Questions

Q1: Can one FENA-21 communicate with PROFINET and EtherNet/IP simultaneously?

The supplied specifications describe protocol selection through a drive parameter. Do not assume simultaneous operation of multiple protocols on one adapter. Confirm the supported operating mode in the applicable ABB documentation.

Q2: What information should engineers preserve before changing the communication protocol?

Record the existing protocol selection, drive parameters, controller configuration, process-data mapping, and network addressing. Check the control logic for protocol-specific assumptions before switching communication methods.

Q3: How should a maintenance team prepare a compatible spare?

Record the full adapter designation, product ID, drive model, installed communication protocol, and required data profile. Verify the replacement against the drive documentation rather than relying on appearance alone.

Q4: What should engineers investigate when feedback values change after a PLC upgrade?

Compare the old and new controller projects. Review data offsets, word lengths, signed or unsigned formats, reference scaling, and drive-profile definitions before changing hardware.

Q5: Which details help a supplier confirm the correct FENA adapter?

Provide the drive model, adapter label, product ID, required protocol, controller platform, and installation objective. Photographs of the existing module and its label can help resolve model-identification uncertainty.

Request a Quote for ABB FENA-21

Looking for the ABB FENA-21 dual-port Ethernet adapter, product ID 3AUA0000089109? Contact Global PLC Spare HUB for a quotation, compatibility verification, availability information, and shipping options.

Share your drive model and preferred communication protocol to help our team assess your requirements.
