RPBA-01 ABB PROFIBUS-DP Adapter | Drive Network Integration

RPBA-01 | ABB PROFIBUS-DP Drive Communication Adapter

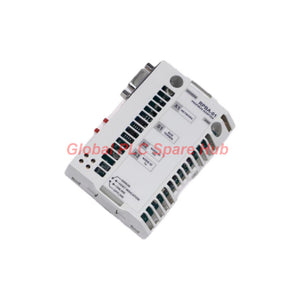

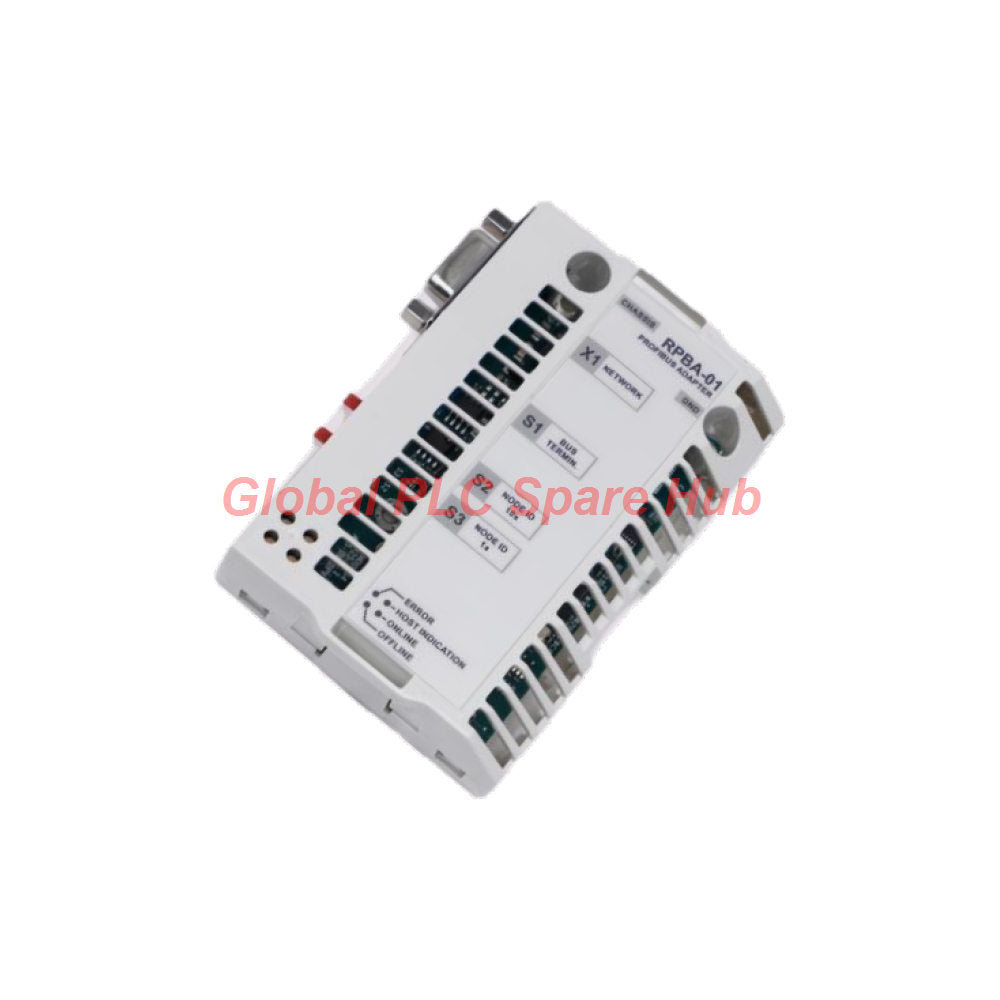

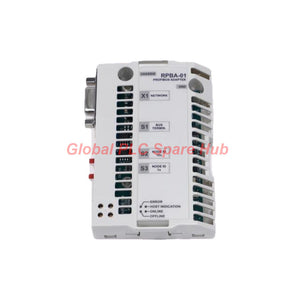

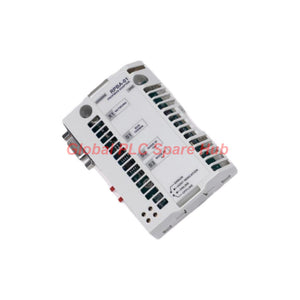

The ABB RPBA-01 connects compatible ABB drives to a PROFIBUS-DP automation network. It makes the drive a slave station controlled by a PROFIBUS master.

This adapter provides a communication path for drive commands, motor references, process values, operating status, and parameter access. It supports coordinated drive control within PLC-based production systems.

For engineering teams, the key selection factors include drive compatibility, network speed, cable topology, node addressing, and process-data configuration. Correct integration helps maintain predictable communication between the PLC and motor drive.

Network Design Brief | PROFIBUS-DP Performance

Engineering distinction: The station limit and cable-length limits describe different network constraints. A network may meet the station count while exceeding the permitted cable length for its selected baud rate.

Physical Layer | Cable and Signal Requirements

The following values reproduce the supplied manual's Line A and Line B cable specifications. Select cable that meets the applicable PROFIBUS installation requirements.

Practical selection: Use shielded, twisted-pair cable designed for PROFIBUS-DP. Check the cable specification, connector compatibility, and installation conditions before commissioning.

Bus-Length Planning | Baud Rate Versus Cable Distance

The supplied RPBA-01 documentation gives the following maximum bus lengths for Line A and Line B. These values support initial network planning; confirm the final design against the applicable PROFIBUS rules.

Design example: A long conveyor network may need a lower baud rate to meet the documented cable-distance limit. A shorter machine network may support a higher rate, provided every segment and device meets the installation requirements.

Repeaters can extend network architecture, but they do not remove cable, segment, or signal-quality constraints. Calculate each segment separately and follow the network manufacturer's design rules.

Drive-Side Interface | Hardware and Electrical Data

The adapter receives its drive-side power and signal connection through the 34-pin interface. It does not require a separate external 5 V supply under the described installation.

PLC Integration | Data Exchange and Configuration

The master configuration defines how the PLC exchanges control and feedback data with the drive. The RPBA-01 supports configurable input, output, user-parameter, and diagnostic data formats.

• Command channel: Transfers supported start, stop, enable, and reset commands.
• Reference channel: Sends a configured motor speed, torque, or process reference.
• Feedback channel: Returns drive status and selected actual values.
• Parameter channel: Supports parameter changes permitted by the drive and selected communication profile.
• Diagnostic channel: Exchanges configured diagnostic information with the master.

Configuration caution: The individual input and output limits do not imply that both can reach their maximum simultaneously. Confirm the permitted combined allocation and selected telegram using the relevant manual and engineering software.

Drive Compatibility | Verify Before Ordering

ABB documents the RPBA-01 for compatible drive families including ACS550, ACH550, and ACS800. Confirm the exact drive type code and supported option configuration before ordering.

• Identify the drive model and control-board revision.
• Check whether the designated option slot supports this adapter.
• Confirm the required communication profile and telegram.
• Check the PLC master configuration and device-description requirements.
• Verify that the application needs the adapter's supported drive functions.

A drive's general PROFIBUS capability does not prove that it accepts this specific adapter. Some ABB drive families use different fieldbus option modules.

Installation Sequence | From Option Slot to Live Bus

1. Isolate the drive: Follow the drive's safety and electrical discharge procedure.
2. Inspect the option slot: Confirm the correct mounting position and connector alignment.
3. Insert the module: Seat the 34-pin connector carefully until the retaining clips engage.
4. Secure the adapter: Install the two supplied M3 × 10 screws.
5. Verify grounding: Confirm the mounting screws provide the intended shield and GND connections.
6. Set the station address: Choose an unused node address within the supported range.
7. Set termination: Enable termination only where the network topology requires it.
8. Connect the cable: Check the DSUB connector, shielding, and cable routing.
9. Configure the master: Apply the correct device description, profile, and data format.
10. Test the drive: Validate communication, references, status feedback, and fault handling.

Field Diagnostics | Interpret the Network Before Replacing Hardware

Communication problems often originate in the network layout or PLC configuration. A structured check helps distinguish adapter faults from installation errors.

Maintenance insight: Capture the network's working configuration before changing address switches, termination, or telegram settings. A known-good record reduces troubleshooting time during drive replacement.

Application Fit | Where This Adapter Adds Value

• Conveyor and material handling: PLC coordination of multiple compatible drives and speed references.
• Pumping systems: Network control and operating feedback for supported ABB drive installations.
• Industrial ventilation: Centralized speed control and status collection for compatible fan drives.
• Production machinery: Drive commands and process feedback within PROFIBUS-based control architectures.
• Plant retrofit projects: Integration of supported ABB drives into an existing PROFIBUS-DP network.

The adapter provides network connectivity and data exchange. Motor power, drive protection, and application control remain functions of the compatible drive and the wider control system.

Global PLC Spare HUB's Insight | Network Reliability in Practice

Field engineers should treat cable distance, baud rate, and termination as one design problem. Increasing network speed without checking segment length can introduce communication instability.

For example, a retrofit may add several drives to a long production line. Before commissioning, engineers should calculate each segment's length, verify the selected cable, and confirm the repeater arrangement.

If communication becomes unstable after adding a station, first inspect the changed segment. Check the address, termination, cable routing, and configuration before replacing the adapter.

During planned maintenance, record the station address, baud rate, telegram, and termination state. This record helps technicians restore the original network behavior after a module replacement.

Package Contents

• 1 × ABB RPBA-01 PROFIBUS-DP Adapter Module
• 2 × M3 × 10 mounting screws

Confirm whether the order includes any additional network cable, connector, or documentation. These items are not listed in the supplied package contents.

12-Month Warranty and Shipping

• Warranty: 12 months, subject to Global PLC Spare HUB's written warranty terms.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch target: 24–48 hours after order confirmation and stock verification.
• Technical support: Request assistance with drive identification and configuration checks before purchase.

Frequently Asked Questions | Engineering Selection

Q1: How do I determine whether the existing PROFIBUS cable can support a higher baud rate?

Compare the installed cable type and total segment length against the documented distance limit for the proposed rate. Also inspect connectors, shielding, and network topology. Validate the change during controlled commissioning.

Q2: When should a PROFIBUS repeater be considered?

Consider a repeater when the network design requires additional segments or stations beyond the permitted segment arrangement. Check repeater limits, segment lengths, and the overall station count before finalizing the architecture.

Q3: Why is correct termination important on a multidrop bus?

Termination helps control signal reflections at the physical ends of the bus. Incorrect termination can degrade communication, especially at higher transfer rates. Set the module's termination according to its actual position in the network.

Q4: What should be included in a replacement adapter compatibility request?

Provide the drive type code, control-board details, existing module label, PLC master, baud rate, telegram, and cable arrangement. These details help assess mechanical fit and communication requirements.

Q5: What should maintenance teams record after successful commissioning?

Record the node address, selected profile, telegram, data allocation, baud rate, termination state, and network segment details. Keep the PLC project and drive parameter backup with the maintenance record.

Request a Quote | ABB RPBA-01

Contact Global PLC Spare HUB for pricing, availability, and technical selection support for the ABB RPBA-01. Share your drive model and PROFIBUS configuration to help verify the required option.
