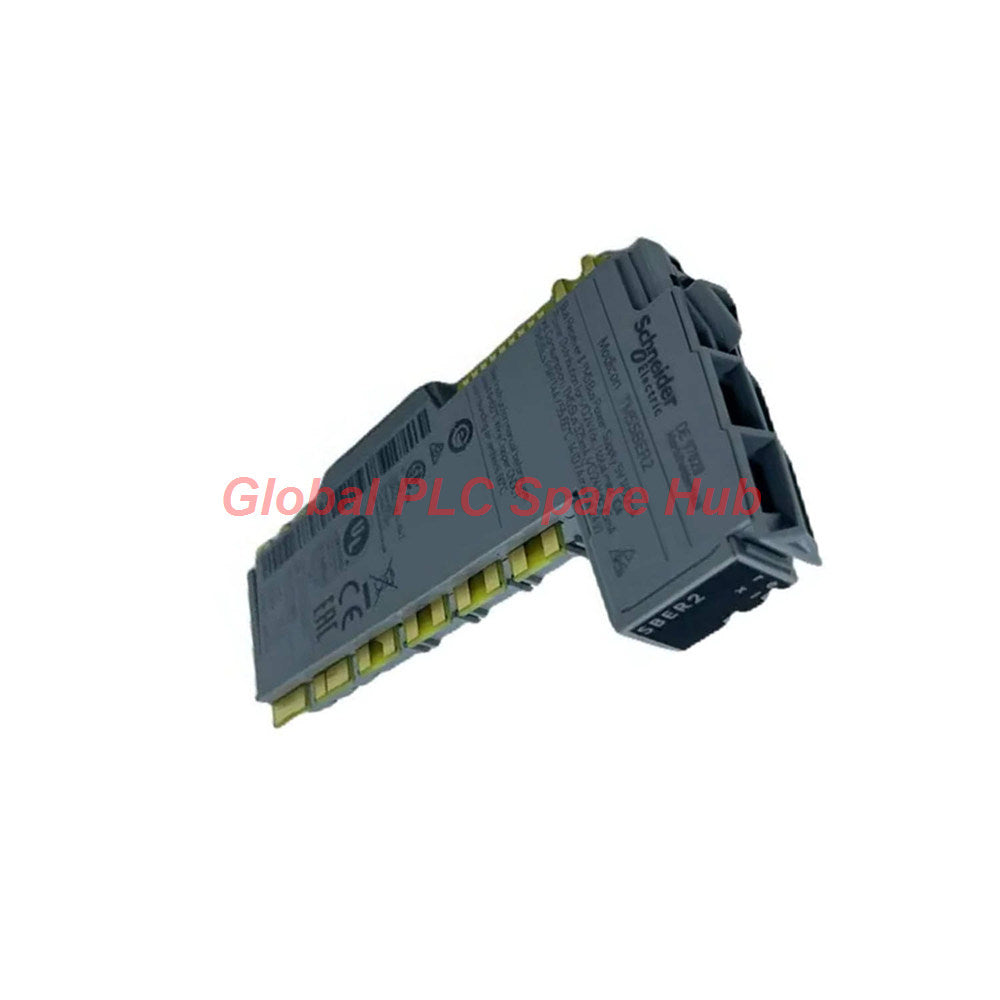

TM5SBER2 Schneider Electric Modicon TM5 Remote Receiver Module

Engineering Overview: TM5SBER2 Remote Receiver

The TM5SBER2 is a mission-critical Remote Receiver Module designed for the Schneider Electric Modicon TM5 series. This compact interface module facilitates robust communication between distributed remote I/O islands, ensuring seamless data exchange while simultaneously handling power distribution to the TM5 bus and I/O slices. Its architecture is specifically tuned for high-performance motion and logic control environments.

Technical Specifications & Operational Data

• Model Number: TM5SBER2
• Series: Modicon TM5
• Device Type: Remote Receiver Module
• Bus Connectivity: Total bus length support up to 2500 meters
• Inter-device Distance: 100 meters (Max cable length)
• Power Dissipation: 2.22 W (Max)
• Current Consumption: 25 mA @ 24 VDC
• Ingress Protection: IP20 / IP67
• Compliance: CE, CSA, cULus, C-tick, GOST-R

Diagnostic Capability & Deployment Scenarios

The TM5SBER2 provides real-time health monitoring through a multi-LED signaling array. Users can instantly verify power supply status, bus current health, and data traffic integrity via the integrated green/red/yellow status indicators. This module is perfectly suited for Modicon M258 and LMC058 controller platforms, particularly in large-scale packaging lines or assembly automation where I/O stations are geographically dispersed across the factory floor.

Global PLC Spare HUB's Insight

Our engineers classify the TM5SBER2 as a high-reliability component for complex architectures. When integrating this module, always ensure that your cable shield is properly grounded at the entry point to mitigate surge transients. We recommend using high-quality shielded twisted-pair cabling to maintain the full 2500m bus capacity without signal degradation.

Logistics & Quality Assurance

• Expedited Shipping: Secure delivery via FedEx, UPS, or DHL
• Dispatch Timeline: 24-48 hour processing for all stock orders
• Guarantee: Professional 12-month hardware performance warranty

Expert Frequently Asked Questions

How should I address a red 'power bus current' LED status on the TM5SBER2?
This indicates a current overload on the TM5 bus. Check your downstream I/O configuration for potential shorts or excessive power draw exceeding the 25 mA consumption limit.

Can the TM5SBER2 operate reliably in high-vibration environments?
Yes, the unit is rated for 1 gn vibration at 8.4-150 Hz and 15 gn shock resistance, making it suitable for mounting on industrial machinery frames.

What is the primary benefit of the TM5SBER2's remote receiver function compared to standard I/O?
It allows for physically separating the I/O cluster from the master controller by up to 100m between nodes, reducing wiring complexity in distributed control layouts.

Selection Guide: Are there specific installation requirements for horizontal vs. vertical mounting?
Yes. Horizontal installation allows operation up to 60°C with a derating factor, whereas vertical mounting is limited to 50°C. Always check your cabinet ventilation before mounting.

Is the module sensitive to electromagnetic interference in dense factory settings?
The module features advanced ESD and electromagnetic field immunity (EN/IEC 61000-4 series), but we advise routing communication lines away from high-voltage power lines to prevent surge coupling.
