PM863K02 ABB AC 800M High Integrity Controller Redundant CPU

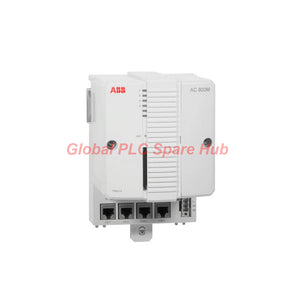

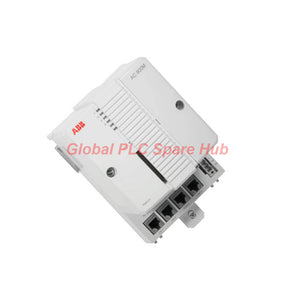

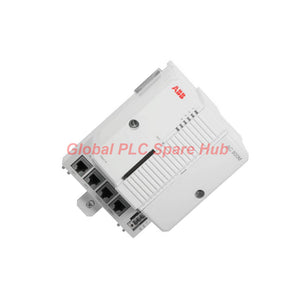

ABB PM863K02 | AC 800M High Integrity Controller

The ABB PM863K02, article number 3BSE088382R1, belongs to the AC 800M controller platform. It combines application processing, Ethernet-based control network communication, serial service interfaces, and Modulebus connectivity for industrial process automation.

The controller uses an MPC866 processor with a 96 MHz clock frequency and 32 MB of memory. It supports redundant controller configurations and can form part of an AC 800M High Integrity solution when the required safety hardware, certified software, and approved configuration are in place.

For maintenance teams, the key selection points are the complete controller kit identity, CPU redundancy arrangement, S800 I/O topology, CEX-Bus loading, and the safety configuration requirements. These details should be checked before a replacement or system expansion.

Controller Architecture: From Processing to Field I/O

Architecture layer	PM863K02 function	Engineering consideration
Application processing	MPC866 processor, 96 MHz clock, 32 MB memory	Check application memory usage and execution requirements before migration.
Control network	Two built-in RJ45 Ethernet ports, CN1 and CN2	Verify network topology, addressing, switch configuration, and redundancy design.
Service and configuration	COM3 and COM4 serial interfaces	Use the correct port, baud rate, cable, and configuration-tool settings.
CEX-Bus	Supports up to 12 communication modules	Keep the total CEX-Bus supply current within the 2.4 A maximum.
Modulebus and S800 I/O	Connects the controller to supported I/O clusters and modules	Capacity depends on whether the CPU operates in a single or redundant configuration.
High-integrity control	Supports designated AC 800M High Integrity configurations	Requires the appropriate SM81x module, certified software, and Safety Manual configuration.

Performance and Capacity Profile

Specification	Value
Manufacturer	ABB
Product family	AC 800M
Model	PM863K02
Article number	3BSE088382R1
Processor type	MPC866
Clock frequency	96 MHz
Performance reference	1,000 Boolean operations in 0.17 ms
Memory	32 MB
RAM available for applications	22.184 MB
Firmware storage	18 MB Flash PROM
Flash memory for application storage	Listed as unavailable in the supplied specifications
Maximum applications per controller	32
Maximum programs per application	64
Maximum diagrams per application	128
Maximum tasks per controller	32
Different cycle times	32
Application program cycle time	10 ms, as listed in the supplied specifications
Redundancy	Supported
Maximum switchover time in redundant configuration	10 ms

Performance interpretation: The 0.17 ms Boolean-operation figure is a stated benchmark, not a guarantee that every application executes within that interval. Actual scan and response times depend on program structure, task scheduling, communication load, and the configured I/O system.

Power and Electrical Requirements

Power parameter	Specification	Commissioning check
Supply voltage	24 VDC, operating range 19.2–30 VDC	Measure supply voltage at the controller terminals under operating load.
Typical supply current	210 mA at +24 VDC	Use the typical figure for reference, not for maximum power budgeting.
Maximum supply current	360 mA at +24 VDC	Allow for the stated maximum when sizing the controller supply circuit.
Typical power dissipation	5.1 W	Consider cabinet heat load and ventilation.
Maximum power dissipation	8.6 W	Use the maximum value when assessing thermal margin.
Redundant power supply status input	Supported	Verify status wiring and alarm handling in the installed design.
Backup battery	Lithium, 3.6 V	Follow the applicable ABB service procedure for battery inspection and replacement.
Rated isolation voltage	500 V AC	Observe the manufacturer’s electrical installation instructions.

Communication Interfaces and Network Design

Ethernet: CN1 and CN2

The controller base plate provides two RJ45 Ethernet ports for Control Network connections. The listed interface supports IEEE 802.3 Ethernet at 10 Mbit/s, while the recommended Control Network backbone is 100 Mbit/s switched Ethernet.

• Protocols: MMS (Manufacturing Message Service) and IAC (Inter-Application Communication).
• Clock synchronization: 1 ms between AC 800M controllers using the CNCP protocol.
• Real-time clock stability: 100 ppm, approximately one hour per year as listed.
• Event queue: Up to 3,000 events per OPC client in the controller.
• Reported OPC communication performance: 36–86 events per second and 113–143 data messages per second, depending on operating conditions.

Two Ethernet connectors do not, by themselves, establish a complete redundant network. Confirm port roles, controller configuration, network switching, and the intended redundancy topology against the project documentation.

Serial Service Interfaces: COM3 and COM4

Port	Interface characteristics	Typical use
COM3	RS-232C, 75–19,200 baud, RJ45, not optically isolated, full RTS/CTS support	General serial communication where supported by the system configuration.
COM4	RS-232C, 9,600 baud, RJ45, optically isolated, no RTS/CTS support	Connection to a configuration or service tool.

The supplied specifications identify these serial interfaces as applicable to non-redundant configurations. Verify interface availability and behavior for the actual controller arrangement before planning a service connection.

Redundancy and S800 I/O Capacity

The AC 800M platform supports CPU redundancy to improve availability. A redundant arrangement can include the CPU, CEX-Bus, communication interfaces, and S800 I/O, subject to the supported system design.

Capacity item	Single CPU configuration	Redundant CPU configuration
Modulebus I/O clusters	1 electrical and up to 7 optical	0 electrical and up to 7 optical
Maximum Modulebus I/O modules	96	84
Maximum CEX-Bus communication modules	Up to 12	Confirm total configuration limits for the selected redundant design.
Maximum CEX-Bus supply current	2.4 A	2.4 A maximum stated for the controller specification; validate the complete configuration.
Electrical Modulebus supply current	24 V: max. 1.0 A; 5 V: max. 1.5 A	Electrical Modulebus availability differs in the stated redundant arrangement.
Modulebus scan interval	0–100 ms	Actual timing depends on the number of connected I/O modules and system configuration.

Selection guidance: Do not assume that a redundant controller can support the same Modulebus I/O count as a single-CPU installation. Confirm the optical and electrical cluster requirements before changing the controller architecture.

High Integrity: Safety Configuration Requirements

The AC 800M High Integrity solution combines the appropriate controller hardware, an SM81x safety module, and SIL-certified software. The supplied information identifies PM863 with SM812 as one of the supported combinations for a configuration certified up to SIL 3.

• Safety hardware: Verify the required SM812 module and its compatibility with the controller configuration.
• Certified software: Use the software version and safety configuration approved for the intended application.
• Safety lifecycle: Follow the applicable Safety Manual, including configuration, validation, testing, and change-control requirements.
• System certification: Do not interpret a controller model or the presence of a safety module alone as proof that a complete application achieves SIL 2 or SIL 3.
• Control Builder: The supplied information identifies 800xA Control Builder as a supported configuration environment; confirm the specific software release and project compatibility.

High-integrity functions must be implemented and validated as part of the complete safety-related system. Non-critical control logic cannot be treated as safety-certified simply because it runs on an AC 800M controller.

Industrial Applications and Suitable Equipment

• Distributed process control: Controller applications coordinating multiple process units, control tasks, and field I/O.
• Oil and gas facilities: Suitable AC 800M architectures for process monitoring, utility control, and approved safety-related functions.
• Chemical and petrochemical plants: Process sequencing, interlocks, and control tasks when implemented within the appropriate certified architecture.
• Power and utility systems: Auxiliary process control and distributed I/O management in compatible installations.
• S800 I/O installations: Systems requiring Modulebus-connected I/O, with cluster layout and module capacity verified for single or redundant operation.
• High-availability control systems: Applications where controller redundancy and planned switchover behavior are part of the approved system design.

Application suitability depends on the installed hardware, firmware and software versions, I/O configuration, communication topology, and required safety integrity. These examples do not establish universal compatibility with every ABB system or field device.

Environmental Limits and Mechanical Data

Parameter	Specification
Operating temperature	+5°C to +55°C
Storage temperature	-40°C to +70°C
Temperature change	3°C per minute according to IEC/EN 61131-2
Relative humidity	5–95%, non-condensing
Pollution degree	Degree 2 according to IEC/EN 61131-2
Corrosion protection	G3 compliant with ISA 71.04, as supplied
Vibration	10–50 Hz: 0.0375 mm amplitude; 50–150 Hz: 0.5 g; 5–500 Hz: 0.2 g, as listed
Protection class	IP20 according to EN 60529 / IEC 529
Maximum altitude	2,000 m according to IEC/EN 61131-2
Emitted noise	Less than 55 dB(A)
Dimensions (W × H × D)	119 × 186 × 135 mm
Weight including base	2,700 g for the K02 configuration, as listed

Certification and Compliance References

• ISA Secure certified, as listed in the supplied product information.
• TÜV approval listed for the relevant AC 800M High Integrity configuration.
• EMC standards: EN 61000-6-4 and EN 61000-6-2.
• Electrical safety references: EN 50178, IEC 61131-2, UL 61010-1, and UL 61010-2-201.
• Hazardous-location marking listed: cULus Class I, Zone 2, AEx nA IIC T4, Ex nA IIC T4 Gc X.
• RoHS reference: EN 50581:2012.
• WEEE reference: Directive 2012/19/EU.
• Marine approvals listed: ABS, BV, DNV-GL, LR, and Lloyd; the source identifies Lloyd as pending.

Verify the current certificate, exact hardware combination, and approval status before using these references for a regulated project. Certification may apply to a configured system or particular hardware combination rather than to the controller board alone.

Engineering Diagnostic Matrix

Symptom	Potential cause	Diagnostic approach
Controller does not start or remains unavailable	Supply voltage outside limits, hardware seating issue, startup configuration problem, or controller fault.	Measure the 24 VDC supply at the unit, review controller status indications, and follow the approved startup diagnostic procedure.
Control Network communication is interrupted	Ethernet cabling, switch configuration, network addressing, or topology mismatch.	Check CN1/CN2 connections, switch link status, addressing, and the configured MMS/IAC communication path.
Serial configuration tool cannot connect	Wrong COM port, incorrect baud rate, unsupported handshaking, or unsuitable cable.	Confirm COM3 versus COM4, the specified baud rate, RTS/CTS requirements, and the approved service cable.
S800 I/O modules are missing or intermittently unavailable	Modulebus connection, cluster topology, power distribution, or configuration mismatch.	Review the configured I/O tree, cluster type, electrical and optical connections, and supply-current limits.
Redundant CPU switchover does not meet expectations	Redundancy configuration issue, communication path problem, or mismatch between the installed hardware and project design.	Check the redundancy configuration, controller status records, network paths, and documented switchover acceptance criteria.
Safety application cannot be validated	Missing or incompatible safety module, incorrect certified software, or incomplete safety configuration.	Verify the approved PM863/SM812 combination, software version, Safety Manual requirements, and validation records.
Controller reports timing or performance issues	Task scheduling, application complexity, communication load, or excessive I/O scan requirements.	Review task cycle settings, application load, I/O scan behavior, and communication statistics before changing cycle times.

Field practice: Before replacing a controller, capture the active alarms, firmware and software versions, controller configuration, I/O mapping, and redundancy status. These records help distinguish hardware failure from configuration, network, or field-I/O issues.

Global PLC Spare HUB's Insight

The PM863K02 should be selected as part of a defined AC 800M architecture rather than as an isolated CPU replacement. Redundancy changes the available Modulebus topology and maximum I/O count, while CEX-Bus loading places a separate constraint on communication-module expansion.

When troubleshooting a controller that has lost communication or field-I/O access, engineers should first separate the fault into power, controller processing, network communication, and I/O connectivity. For safety-related applications, configuration and validation records are equally important: a successful CPU startup does not establish that the safety function has passed its required tests.

Global PLC Spare HUB Review

The ABB PM863K02 offers a combination of application processing, dual Ethernet connectivity, serial service access, and support for single or redundant AC 800M architectures. Its stated memory capacity, task limits, and Modulebus support make it relevant to maintenance and expansion projects using compatible controller configurations.

The main purchasing consideration is configuration accuracy. Buyers should confirm the article number, kit contents, required safety module, software compatibility, and existing I/O topology before ordering. For redundant systems, verify the permitted I/O layout and communication-module loading instead of assuming the single-CPU capacity remains unchanged.

Package Contents and Ordering Checks

The supplied package information lists the following items. Confirm the final kit configuration and exact part numbers with the seller before placing an order.

• 2 × PM863K01 Safety Processor unit, as listed in the supplied package information.
• 1 × TK850 CEX-Bus expansion cable.
• 1 × TK851 RCU-Link cable.

Important part-number check: The product is identified as PM863K02 / 3BSE088382R1, but the package list names two PM863K01 units. Confirm whether the package description is correct for the actual item being sold. Do not assume PM863K01 and PM863K02 are interchangeable based on naming alone.

Warranty, Shipping, and Enquiries

• Product: ABB PM863K02 AC 800M controller.
• Warranty: 12-month warranty, subject to the seller's applicable warranty terms and conditions.
• Shipping methods: FedEx, UPS, or DHL, subject to destination, carrier availability, and shipment requirements.
• Technical enquiry: Provide the controller article number, current system configuration, redundancy requirement, and required package contents for a more accurate compatibility review.

Contact Global PLC Spare HUB for pricing and assistance reviewing your AC 800M controller requirements.

Frequently Asked Questions

FAQ 1: What should I compare when selecting a controller for an existing AC 800M project?

Compare the complete article number, controller configuration, firmware and software requirements, I/O topology, and any associated safety hardware. Also review the existing project backup and hardware inventory. Matching the processor family alone does not confirm that the replacement will load or run the existing application without further engineering work.

FAQ 2: How can I estimate whether the available application memory is sufficient?

Use the actual project diagnostics and memory report rather than the nominal 32 MB figure alone. The supplied data lists 22.184 MB of RAM available for applications. Check current usage, growth from planned logic changes, and the memory demands of communication and application components before approving an expansion.

FAQ 3: What information helps diagnose slow control response after adding I/O modules?

Record the I/O count, Modulebus topology, scan interval, application task cycles, and communication load before and after the change. The listed Modulebus scan range is 0–100 ms, with actual timing depending on the number of I/O modules. Compare these values with the process response requirement rather than changing cycle times without measurement.

FAQ 4: Should I order the controller, safety module, and cables as one package?

That depends on the installed configuration and the supplier's confirmed kit contents. For a standard controller replacement, first identify which accessories are already installed and reusable. For a High Integrity application, verify the required safety module and certified software separately. Always reconcile the quoted bill of materials with the exact model and article number.

FAQ 5: What evidence should be available before returning a repaired or replacement controller to service?

Prepare the approved configuration backup, controller status records, communication checks, I/O verification results, and documented functional tests. For safety-related applications, complete the required safety validation and proof-test activities under the applicable procedures. Do not treat normal communication or a successful startup as sufficient evidence that all control and safety functions operate correctly.
