KJ3221X1-BA2 Emerson DeltaV Analog Output Module | 8-Channel HART

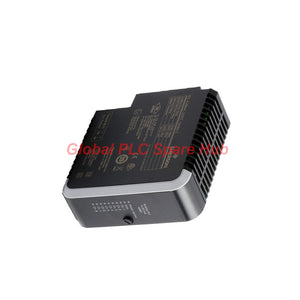

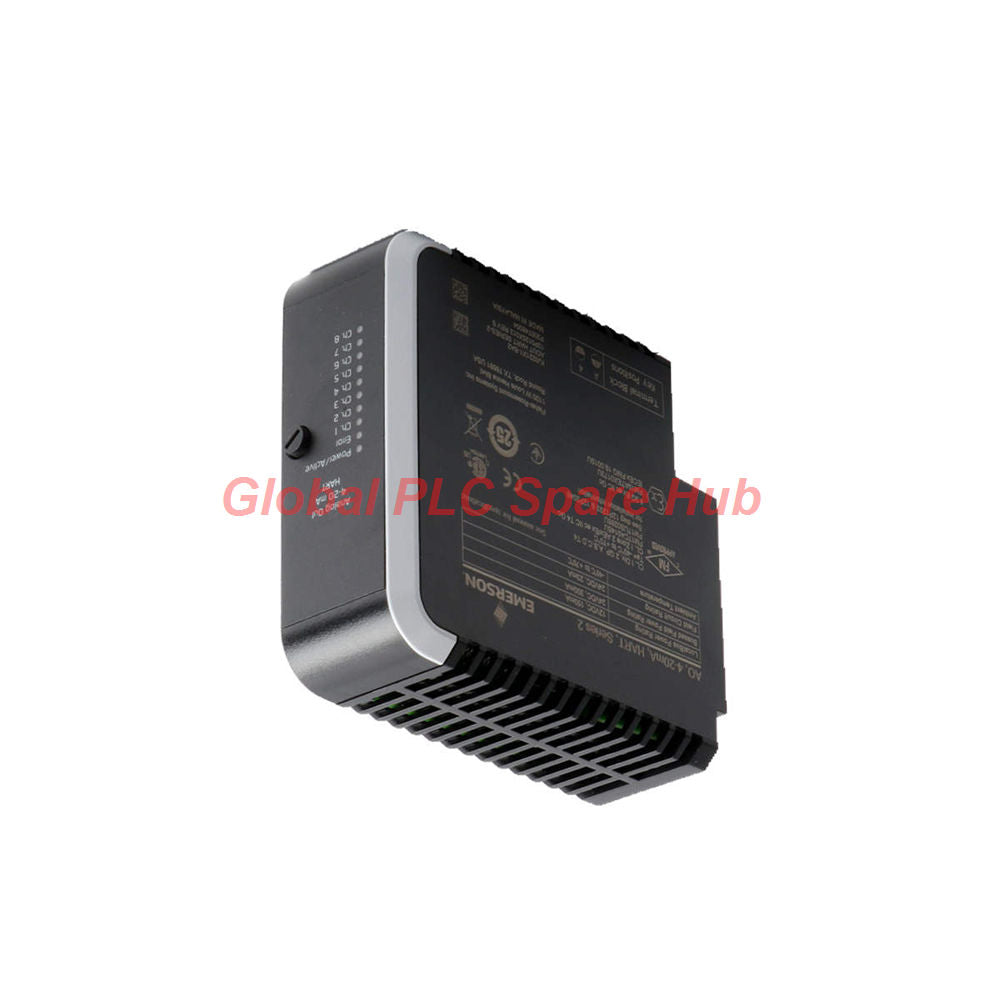

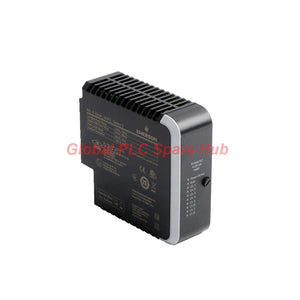

Emerson KJ3221X1-BA2 | 8-Channel 4–20 mA HART Analog Output Module

The KJ3221X1-BA2 is an Emerson analog output module designed for compatible DeltaV distributed control system configurations. It provides eight output channels using a 4–20 mA current signal with HART support, allowing a control system to interface with supported field instruments and final control elements.

For process engineers, the main selection considerations are output signal requirements, field power distribution, terminal block keying, environmental conditions, and hazardous-area installation rules. Confirm these items against the installed DeltaV hardware configuration before ordering or replacing the module.

01 | Engineering Data at a Glance

Parameter	Specification	Engineering Relevance
Manufacturer	Emerson	Identifies the automation equipment manufacturer.
Model	KJ3221X1-BA2	Use the complete model code when checking replacement suitability.
Module type	Analog Output (AO)	Provides analog command signals to compatible field devices.
Output channels	8 channels	Supports multiple analog control loops within the configured I/O architecture.
Output signal	4–20 mA with HART	For compatible current-loop actuators and HART-capable instruments.
Local bus power	12 VDC at 150 mA	Check the carrier and system power budget against the applicable hardware documentation.
Bussed field power	24 VDC at 300 mA	Verify the available field-power supply and distribution arrangement.
Field circuit	24 VDC at 23 mA per channel	Use this rating when reviewing the specified field-circuit requirements.
Ambient temperature	-40°C to +70°C	Confirm the actual cabinet temperature remains within the stated range.
Relative humidity	5% to 95%, non-condensing	Prevent condensation and moisture accumulation inside the enclosure.
Terminal block key position	A4	Match the terminal block keying to the module before installation.
Airborne contaminants	ISA-S71.04-1985, Class G3	Consider corrosive airborne contaminants when assessing cabinet protection.
Shock resistance	10 g, half-sine wave, 11 ms	Relevant to equipment installation and mechanical exposure.
Vibration resistance	1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz	Compare the installation environment with the stated vibration limits.

02 | Where This Module Fits in a Control Loop

An analog output module converts a controller's configured output command into a current signal for a compatible field device. The KJ3221X1-BA2 is intended for applications that require eight 4–20 mA output channels with HART support.

Control-loop element	Typical role	Selection check
DeltaV controller and I/O configuration	Calculates and assigns the output command.	Confirm the installed system supports the exact module and configuration.
KJ3221X1-BA2	Provides the configured analog output signal.	Check the full model code, channel count, and HART requirement.
Terminal block and field wiring	Connects the I/O channel to the field circuit.	Verify A4 keying, wiring assignments, and the applicable terminal-block type.
Final control element	Receives the current command to adjust a process variable.	Confirm input range, loop power arrangement, and HART compatibility where required.

Important distinction: HART support does not automatically establish compatibility with every HART instrument, host configuration, or asset-management tool. Verify the complete communication path and the field device's requirements before commissioning.

03 | Application Fit: Equipment and Process Scenarios

• Control valve positioners: Supply a configured current command to compatible valve positioners in flow, pressure, temperature, or level control loops.
• Process transmitters and field interfaces: Support compatible field devices that accept an analog current output, provided their electrical requirements match the installed loop design.
• Oil and gas facilities: Use in suitable process-control cabinets for flow regulation, pressure control, and other continuous process functions.
• Chemical and petrochemical plants: Apply to compatible dosing, temperature-control, and flow-control loops where an analog command is required.
• Power and utility systems: Support configured analog control signals for compatible auxiliary process equipment.
• HART-enabled maintenance workflows: Consider where the instrument, wiring, host configuration, and maintenance tools collectively support the intended HART functions.

These are application examples, not a guarantee of compatibility with every device in the listed industries. Confirm the field instrument, system revision, channel configuration, and installation requirements before use.

04 | Installation Controls: Verify Before Energizing

1. Confirm hardware identity. Match the complete KJ3221X1-BA2 part number to the system bill of materials and approved I/O configuration.
2. Check terminal block keying. The stated key position is A4. Confirm the installed terminal block is correctly keyed for the selected I/O card.
3. Review field-power loading. Check the 24 VDC bussed field-power rating and the specified field-circuit requirement against the actual supply and wiring design.
4. Verify the signal path. Check channel assignment, polarity, field wiring, the receiving device's input requirements, and HART support where applicable.
5. Isolate power before handling. Remove field power supplied through the field terminals or carrier before removing or connecting the device.
6. Follow the system shutdown procedure. This unit must not be inserted or removed with system power energized. Non-sparking field circuits must also be de-energized before removal or insertion, including the fused terminal block.
7. Inspect environmental suitability. Confirm cabinet temperature, non-condensing humidity, vibration exposure, and protection against airborne contaminants.

Safety note: Follow the applicable Emerson installation manual, site isolation procedure, and hazardous-area work permit. Do not rely on a software command alone to establish electrical isolation.

05 | Field Diagnostic Guide

The following checks provide a practical fault-isolation sequence for an output loop. They are troubleshooting steps, not a claim that the module provides every listed diagnostic function internally.

Observed symptom	Possible causes	Recommended checks
Field device does not respond to an output command	Incorrect channel assignment, wiring fault, incompatible field device, or missing field power.	Compare the controller command with the configured channel, approved wiring diagram, and field-device requirements.
Measured current differs from the expected command	Incorrect loop wiring, load conditions, configuration mismatch, or a field-device issue.	Use an approved meter and site procedure to verify loop current, connections, and the configured output range.
Several output loops show abnormal behavior	Shared field-power or carrier-related issue, common wiring problem, or configuration fault.	Check common power distribution and related channels before assuming multiple module failures.
Analog control works but HART communication fails	HART configuration mismatch, unsupported instrument setup, wiring conditions, or a communication-path issue.	Confirm HART support at each point in the path, then review instrument configuration and approved loop requirements.
Output becomes unstable after maintenance	Loose connections, incorrect terminal-block keying, disturbed wiring, or an incorrect replacement.	With the equipment safely isolated, verify the module identity, terminal block, wiring, and configuration before recommissioning.
Replacement module cannot be installed as expected	Incorrect keying, part-number mismatch, or incompatible hardware configuration.	Stop installation and compare the full module code, terminal-block key position, carrier, and system documentation.

Diagnostic discipline: Record the commanded value, measured loop current, affected channel, field-device status, and recent maintenance activity. These observations help distinguish a controller configuration problem from a field wiring or instrument fault.

06 | Hazardous-Area and Compliance Information

The supplied product information lists the following hazardous-atmosphere markings and reference numbers. Verify their applicability to the exact unit, installation jurisdiction, protection concept, and current certificate documentation before installation.

• ATEX marking: II 3G Ex ec IIC Gc
• ATEX reference: FM19ATEX0173U
• IECEx reference: IECEx FMG 19.0019U
• UKEX reference: FM21UKEX0017U
• North American marking: Class I, Division 2, Groups A, B, C, D
• Zone marking: Class I, Zone 2, AEx/Ex ec IIC Gc
• Additional references: FM17CA0145U and FM17US0286U

Certification applicability can depend on the complete installation, associated equipment, terminal block, wiring method, and local requirements. Check the current manufacturer documentation rather than relying on a model description alone.

07 | Maintenance and Replacement Planning

• No routine calibration required: The supplied specifications state that calibration is not required for this unit.
• No user-serviceable parts: Do not disassemble the module or attempt component-level repairs.
• Plan replacement work: Confirm the correct spare, terminal-block keying, power isolation, and channel configuration before beginning the change.
• Preserve commissioning records: Record the installed part number, channel mapping, loop readings, field-device details, and test results after replacement.

08 | Global PLC Spare HUB's Insight

For an eight-channel HART analog output application, selecting the correct module is only the first step. The engineering risk often lies in the surrounding installation: terminal-block keying, field-power distribution, controller configuration, and the receiving device's electrical requirements.

Before approving a replacement, compare the complete part number with the installed hardware list. Then verify the A4 terminal-block key position, field wiring, and intended HART communication path. If a loop fails after replacement, test one channel at a time and document the commanded output alongside the measured current. This approach helps isolate configuration, wiring, and field-device problems without prematurely condemning the module.

09 | Global PLC Spare HUB Review

The KJ3221X1-BA2 is a candidate for compatible DeltaV applications requiring eight 4–20 mA analog output channels with HART support. Its specified operating temperature range and stated environmental ratings may suit demanding industrial control cabinets when the installation remains within the applicable limits.

Its suitability should be assessed against the actual I/O architecture, terminal block, field-power arrangement, field-device requirements, and hazardous-area documentation. Buyers maintaining an installed control system should prioritize exact part-number matching and configuration verification over visual similarity alone.

10 | Ordering, Warranty, and Shipping

• Part number: Emerson KJ3221X1-BA2
• Product type: 8-channel 4–20 mA HART analog output module
• Compatibility check: Provide the installed module number and relevant system or terminal-block details when requesting a quotation.
• Warranty: 12-month warranty, subject to the seller's applicable warranty terms and conditions.
• Shipping methods: FedEx, UPS, or DHL, subject to destination, carrier availability, and shipment requirements.

Contact Global PLC Spare HUB for pricing and assistance checking the model code against your application requirements.

11 | Frequently Asked Questions

FAQ 1: What information should I provide when requesting a replacement quotation?

Provide the complete KJ3221X1-BA2 code, the installed system or I/O configuration, the terminal-block part number if available, and the required quantity. A clear photograph of the existing label can help identify discrepancies, but the written part number should remain the primary reference.

FAQ 2: Can I replace this module based only on its eight-channel output rating?

No. Channel count and signal type do not establish full interchangeability. Check the hardware revision requirements, terminal-block keying, carrier arrangement, system configuration, and field-device interface before approving the replacement.

FAQ 3: What should I document before removing a module from an operating plant?

Record the affected loops, controller assignments, output behavior, wiring references, and any relevant instrument or HART configuration details. Follow the site's approved isolation and change-control process. Do not remove or insert this unit while system power is energized.

FAQ 4: If a valve does not move, should I assume the analog output module has failed?

No. First determine whether the controller is issuing the intended command. Then, using an approved test procedure, check the loop current, field power, wiring, and positioner's input requirements. If current is correct at the relevant test point, investigate the positioner and mechanical control path before replacing the module.

FAQ 5: What should I verify when HART communication is needed for maintenance?

Confirm that the field instrument supports HART and that the installed I/O configuration, wiring, and maintenance interface support the intended communication method. An analog output signal alone does not prove that end-to-end HART communication is available. Check the applicable manufacturer documentation before commissioning.
