KJ3221X1-BA1 Emerson DeltaV 8-Channel Analog Output Module 4–20 mA HART

KJ3221X1-BA1 | Emerson DeltaV 8-Channel Analog Output Module

4–20 mA HART output • Eight field channels • DeltaV distributed control system

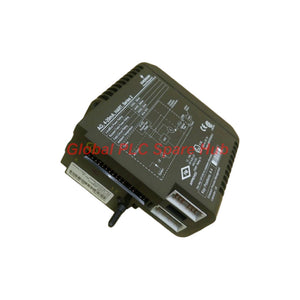

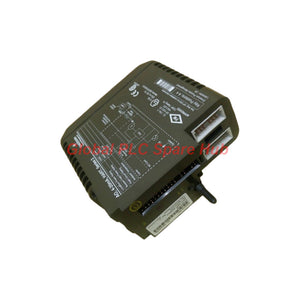

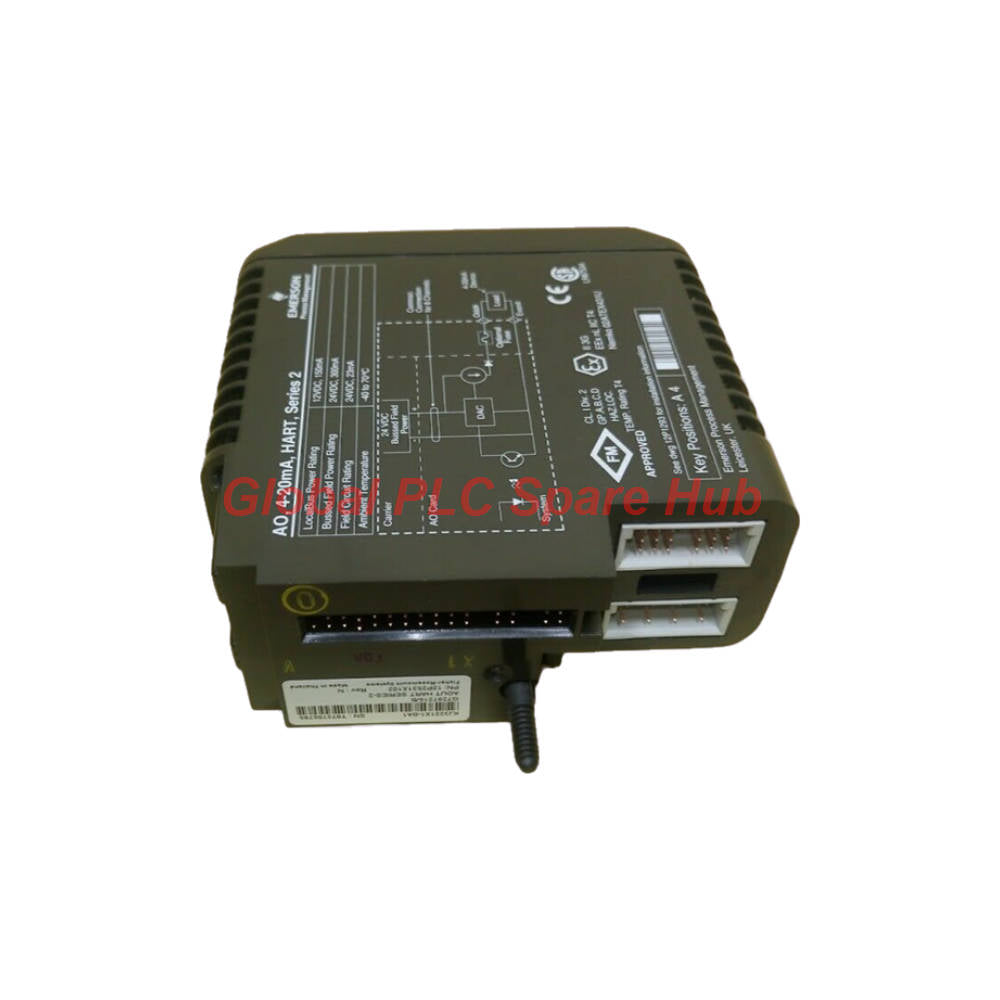

The Emerson KJ3221X1-BA1 is an eight-channel analog output (AO) module for DeltaV control-system applications. It provides 4–20 mA output signals with HART capability for interfacing controller outputs with compatible field devices such as control-valve positioners and other current-loop actuators.

For controls engineers, selection and commissioning depend on the intended field-device interface, available field power, terminal-block keying and the installation’s hazardous-area requirements. Confirm the full module and terminal-block configuration against the DeltaV hardware documentation before replacement or integration.

Signal path at a glance

DeltaV control strategy → AO module channel → 4–20 mA field loop → compatible HART field instrument

• Control output: analog current signal for command or setpoint transmission.
• Channel count: eight outputs, as identified in the supplied product description.
• HART: supports HART communication in the specified AO application; verify the field instrument, loop design and DeltaV configuration support the required HART functions.
• System role: converts controller output commands into field current signals; it is not a standalone controller or field instrument.

Power and electrical requirements

Check the power budget for the installed I/O assembly and the field-loop requirements of each connected instrument. The listed field-circuit value is a module specification; it should not be interpreted as confirmation that every external load or loop arrangement is supported.

Environmental operating envelope

Maintain the module and associated terminal block within the stated environmental limits. The IP20 rating does not provide protection against water ingress or direct exposure to conductive dust; the installed enclosure must provide the protection required by the site.

Terminal-block matching and installation safeguards

A rotary keying system is used to maintain compatibility between I/O cards and terminal blocks after installation. The terminal block must be keyed for the specific I/O card used. The supplied terminal-block key position for this unit is A4.

• Verify the card and terminal-block part numbers and key position before fitting.
• Do not force a mismatched card or terminal block into place.
• Follow the applicable DeltaV installation and system procedures for field wiring, loop checks and module handling.

Removal and insertion: observe the stated restrictions

The supplied instructions specify that this unit must not be removed or inserted with system power energized unless the area is known to be non-hazardous. Only one unit may be removed or inserted at a time.

Non-sparking field circuits must be de-energized before removal or insertion, including the fused terminal block. For an “nL” installation, an I/O loop assessment must be completed for all energy-limited nodes. Apply the site’s approved isolation and hazardous-area procedures; do not rely on general hot-swap assumptions.

Hazardous-area markings and documentation

These markings and certificate references are reproduced from the supplied information. Confirm the applicable certificate, installation conditions, protection concept and jurisdictional requirements for the actual site and system revision before use in a hazardous area.

Typical equipment and application areas

• Control valves and positioners: provide current commands to compatible 4–20 mA/HART valve positioners.
• Process actuators: transmit analog setpoints to supported current-input field devices.
• DeltaV process-control cabinets: implement controller output signals in an installed DeltaV I/O assembly.
• Continuous process plants: support control loops in applications such as flow, pressure, level or temperature control when the final control element accepts the required signal.
• Maintenance and retrofit work: replace a matching AO module after confirming the terminal-block key, field-loop design, system configuration and hazardous-area conditions.

These are typical interface examples, not confirmation that a particular valve, actuator or DeltaV revision is compatible. Check the field instrument’s input requirements and the system’s hardware documentation.

Commissioning and loop-check workflow

1. Confirm hardware pairing. Match the AO card to its terminal block and verify the A4 key position and applicable DeltaV hardware configuration.
2. Review loop wiring. Check polarity, field supply, load requirements, shielding and the wiring arrangement against the field-device and system documentation.
3. Verify channel assignment. Confirm the configured controller output is mapped to the intended physical channel and field instrument.
4. Perform a controlled output test. Using the approved commissioning procedure, verify expected current at representative command values across the configured operating range.
5. Check HART communication. If HART functions are required, verify communication with the field instrument using the approved DeltaV and instrument tools.
6. Record the loop baseline. Document channel assignment, observed output, field-device response and any commissioning deviations.

Diagnostics: isolate the signal path

The supplied information does not include a module-specific LED legend, diagnostic bit list or fault-code table. For card-level alarms and diagnostic status, consult the applicable Emerson DeltaV hardware and system documentation.

Global PLC Spare HUB's Insight

When replacing an analog output card, engineers should validate the complete channel interface—not just the card’s model number. For this unit, the terminal-block key position, field power, output-loop requirements and hazardous-area installation conditions are important procurement and commissioning checks.

Before ordering, identify the installed DeltaV hardware assembly, confirm that the existing terminal block is keyed for the intended card, and establish whether HART communication is required by the field device. During commissioning, compare commanded output with measured loop current and field response to distinguish configuration issues from wiring or instrument problems.

Warranty and shipping

• Warranty: 12 months, subject to supplier warranty terms.
• Shipping options: FedEx, UPS and DHL, subject to destination and shipment arrangements.
• Quotation information: provide the complete model, quantity, installed DeltaV system details, terminal-block information and delivery destination for a compatibility and shipping review.

Frequently Asked Questions

Q1. What is the most important compatibility check when sourcing this AO module?

Confirm the exact DeltaV I/O card identity and its required terminal-block pairing, including the stated A4 key position. Also verify the system revision, field-loop requirements and any hazardous-area conditions relevant to the installation.

Q2. Does an 8-channel rating mean all eight loops can use any 4–20 mA field device?

No. Channel count describes the module’s output capacity, but each loop must still meet the device’s electrical, load, wiring and HART requirements. Review the field instrument and system documentation for the supported loop arrangement.

Q3. How can a technician check an output loop without changing the process unsafely?

Use the plant’s approved commissioning or maintenance procedure, including required process permissions and isolation. Verify the controller command and measure loop current at an approved point; do not force outputs or disconnect live circuits without authorization.

Q4. What does the “nL” installation note mean for maintenance planning?

The supplied instructions require an I/O loop assessment for all energy-limited nodes in an “nL” installation. Maintenance personnel should review the applicable hazardous-area documentation and de-energize non-sparking field circuits, including the fused terminal block, before removal or insertion as specified.

Q5. What details should be included in a purchase inquiry for a replacement?

Include the complete model, quantity, DeltaV system or I/O assembly details, terminal-block identity and key position, intended field-device type, HART requirement and site/destination information. These details help assess the correct hardware pairing and application requirements before shipment.
