PK6524 ifm Pressure Switch PK Series 0–10 bar

PK6524 | ifm PK Pressure Switch

Mechanical setpoint adjustment • Stainless-steel measuring cell • Dual PNP switching outputs

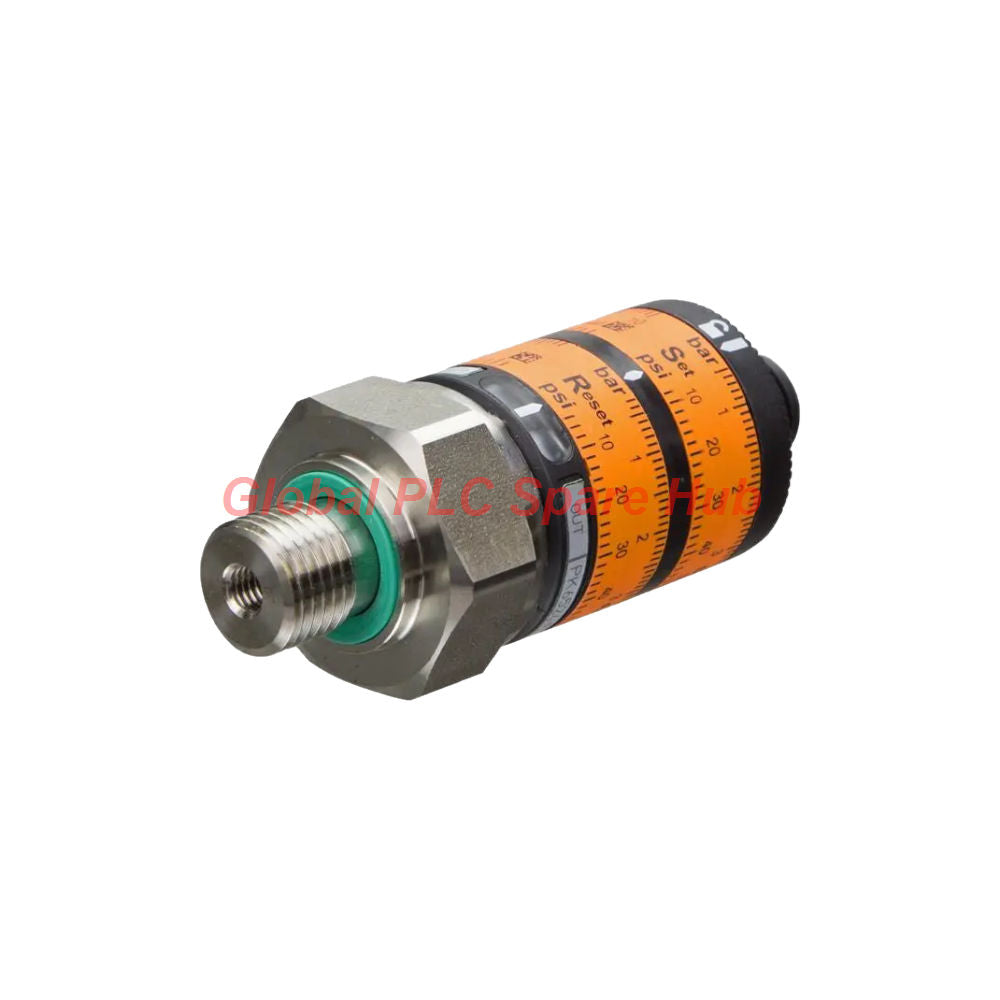

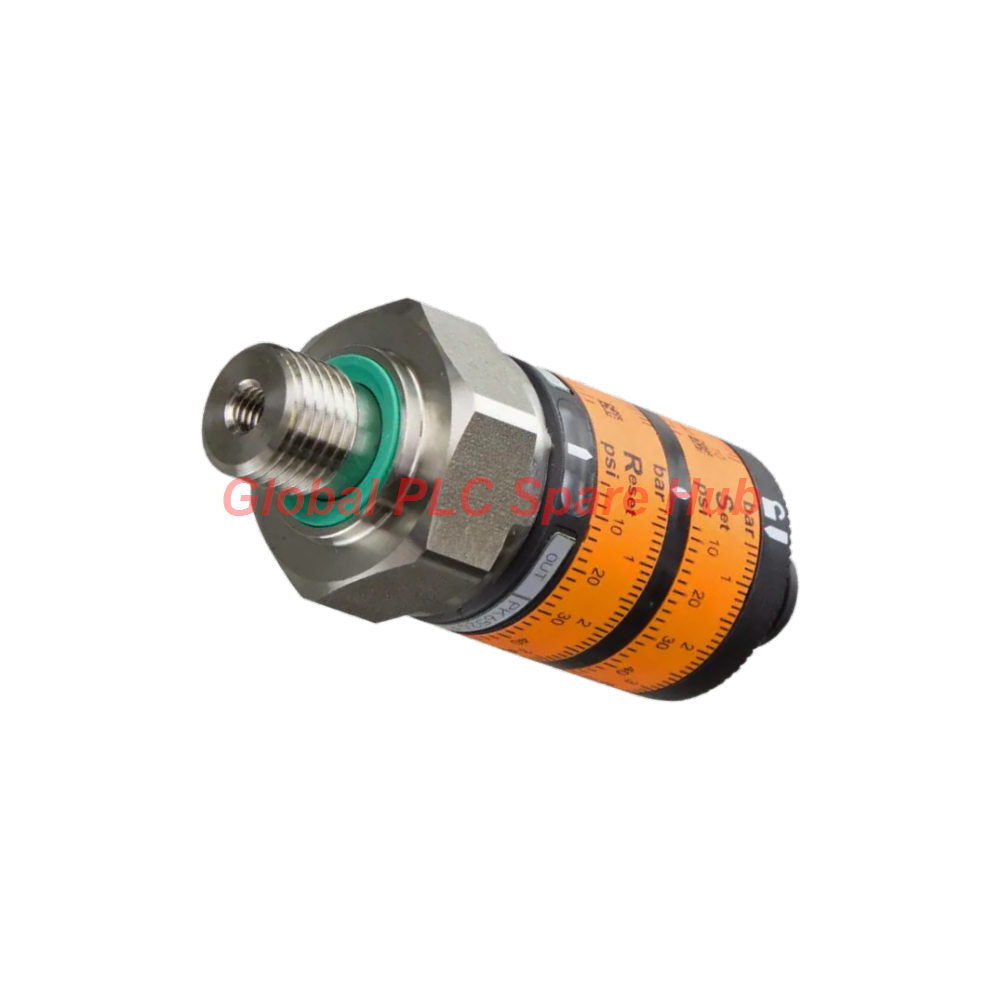

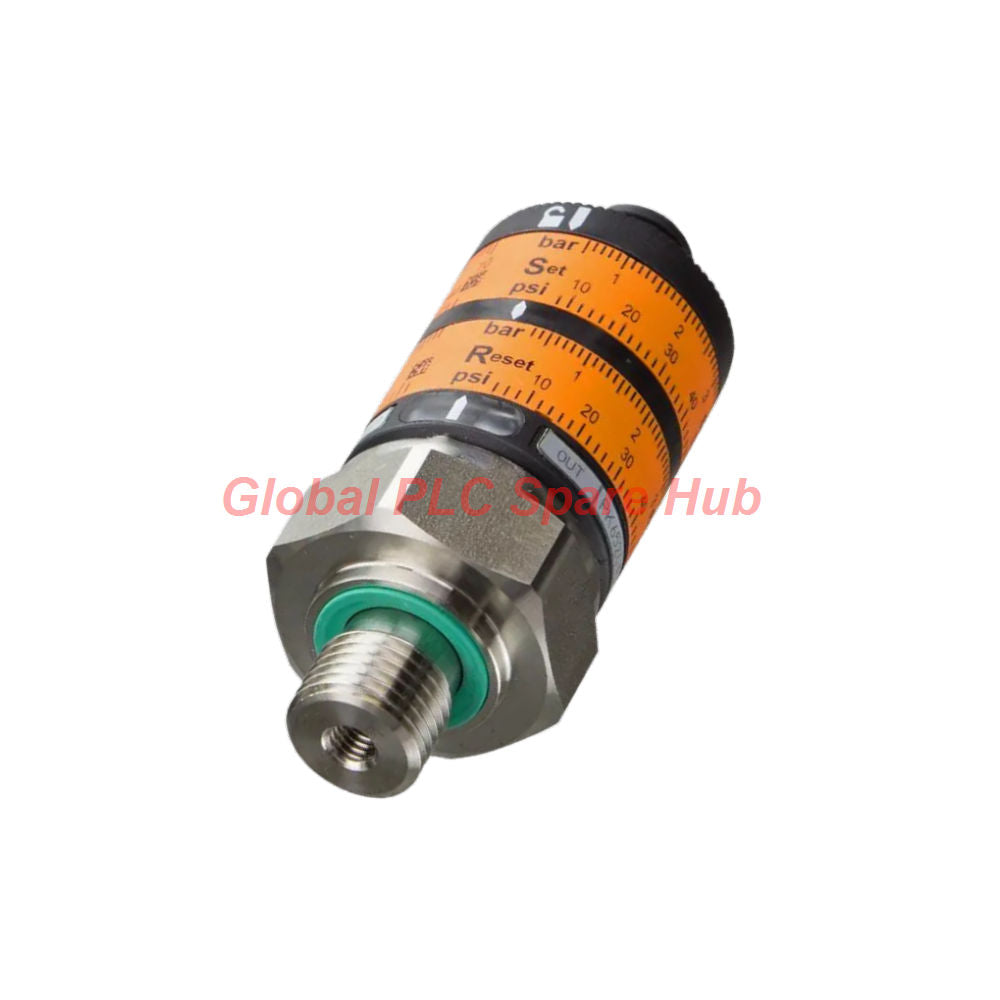

The ifm PK6524 is a compact pressure switch for relative-pressure monitoring in liquid and gas systems. Two mechanical setting rings allow the switching and reset points to be adjusted without relying on a digital parameter interface. Its 316L stainless-steel wetted components, FKM sealing and IP67 housing make it suitable for pressure-control tasks in hydraulic, pneumatic, air-conditioning and refrigeration equipment.

The device measures from 0 to 10 bar and provides two complementary PNP outputs. A green LED indicates operation, while a yellow LED indicates switching status. A graduated scale supports local setpoint adjustment.

At a glance: operating envelope

Setpoint architecture and switching behavior

PK6524 uses mechanical setting rings to establish the switching point (SP) and reset point (rP). The specified adjustment ranges are 0.5…10 bar for SP and 0.3…9.8 bar for rP. The available differential between switching and reset thresholds supports pressure hysteresis in control or alarm circuits. Confirm the required threshold and reset behavior against the machine’s control sequence before installation.

• Switch-point setting accuracy: less than ±2.5% of final value.
• Repeatability: less than ±0.5% of final value when temperature fluctuations are below 10 K.
• Temperature drift: less than ±0.5% per 10 K.
• Switching frequency: up to 100 Hz.
• Output current: permanent rating up to 500 mA per output.
• Voltage drop: up to 2 V DC.

The outputs are complementary PNP types. Check the PLC input type, load current and intended normal/fault state before wiring; do not assume the outputs are interchangeable with NPN or relay contacts.

Construction, connection and environmental limits

Relative humidity: A specific %RH value is not published in the supplied PK6524 technical data. Verify any humidity-related installation requirement with the manufacturer before specifying the device for a condensation-prone location.

Pressure equipment classification: The supplied specification states “sound engineering practice” for Group 2 fluids under the Pressure Equipment Directive. Confirm the applicable regulatory requirements for the complete installation and destination market.

Equipment fit and application examples

• Hydraulic power units: pressure threshold monitoring, pump-control interlocks and low/high pressure signalling within the rated operating envelope.
• Pneumatic machinery: monitoring supply pressure, pressure-ready status and pressure loss in compressed-air circuits.
• HVAC and refrigeration equipment: pressure-state detection in compatible liquid or gas circuits, subject to medium compatibility and system pressure limits.
• Machine skids and process auxiliaries: local pressure switching where a mechanical setpoint adjustment and discrete PLC signal are preferred.
• Automation panels: PNP status signals for PLC digital inputs, alarms or sequence permissives, provided the input and load ratings are compatible.

These are application examples, not a declaration of suitability for every fluid or refrigerant. Confirm chemical compatibility, pressure transients, operating temperature and the machine’s required safety function before selection.

Installation and commissioning checklist

1. Verify that the system’s normal pressure, transient peaks and required trip threshold remain within the applicable limits. The 300 bar burst value is not an operating-pressure allowance; the stated pressure rating and MAWP are 25 bar.
2. Confirm that the G 1/4 process port and M5 internal thread match the intended fitting arrangement. Apply the specified 25 Nm tightening torque without transferring excessive load to the housing.
3. Check the process medium against the 316L and FKM wetted materials, and confirm the temperature remains within −25…80 °C.
4. Set SP and rP using the mechanical rings and scale. Validate both the switching threshold and reset behavior with a calibrated pressure source or the machine’s approved commissioning procedure.
5. Wire the A-coded, 4-contact M12 connector according to the manufacturer’s pin assignment. Confirm 9.6…32 V DC supply, PNP input compatibility, output load and common reference.
6. Verify the green operating LED and yellow switching-status LED, then test the complete PLC or control-system response under expected operating conditions.

Diagnostics and troubleshooting

The supplied data lists reverse-polarity, pulsed short-circuit and overload protection. These protections do not replace correct wiring, suitable circuit protection or verification of the connected PLC input.

Global PLC Spare HUB's Insight

For this type of mechanical pressure switch, the key selection question is not simply whether the system operates below 10 bar. Engineers should compare the normal pressure band, transient peaks, required trip point and reset point, then confirm that the chosen PNP output arrangement matches the control input.

PK6524 is a practical choice when local mechanical adjustment and discrete pressure-state signals are sufficient. For procurement, verify the exact model and order code, port arrangement, connector mating cable, fluid compatibility and required setpoint before ordering. The manufacturer’s product line is identified as active in the supplied information; availability and lead time should still be confirmed at quotation.

Supply, warranty and shipping

• Product: ifm PK6524 pressure switch
• Warranty: 12 months, subject to supplier warranty terms
• Shipping options: FedEx, UPS or DHL, subject to destination and shipment arrangements
• Before ordering: provide the model, required quantity, destination and any application-specific requirements for quotation and compatibility review

Frequently Asked Questions

Q1. How should the SP and rP settings be selected for a pressure-control sequence?

Define the intended switching threshold and the pressure at which the signal should reset. Check both values against the specified SP and rP adjustment ranges, then validate the resulting behavior during commissioning. The correct settings depend on the process pressure band and control logic.

Q2. Can PK6524 connect directly to a PLC digital input?

It can provide PNP digital signals, but direct connection depends on the PLC input type, supply arrangement and electrical ratings. Confirm the input is designed for PNP sourcing signals and that the connected load does not exceed the output’s permanent current rating.

Q3. Is the 300 bar burst pressure suitable as a design or operating limit?

No. Burst pressure describes a failure-related limit and must not be treated as an allowable operating pressure. The supplied pressure rating and MAWP are 25 bar. Account for pressure spikes and applicable system standards when sizing and selecting the switch.

Q4. What should be checked when replacing an installed pressure switch with PK6524?

Compare the process thread and sealing arrangement, pressure range, medium compatibility, setpoint and reset requirements, output type, connector pinout, supply voltage and physical clearance. A matching pressure range alone does not establish drop-in compatibility.

Q5. What information should be included in an RFQ to reduce selection errors?

Include the PK6524 model or complete order code, quantity, fluid or gas, normal and maximum pressure, required trip/reset thresholds, process connection, PLC input type, operating temperature and delivery destination. This helps confirm application fit and shipping options before purchase.
