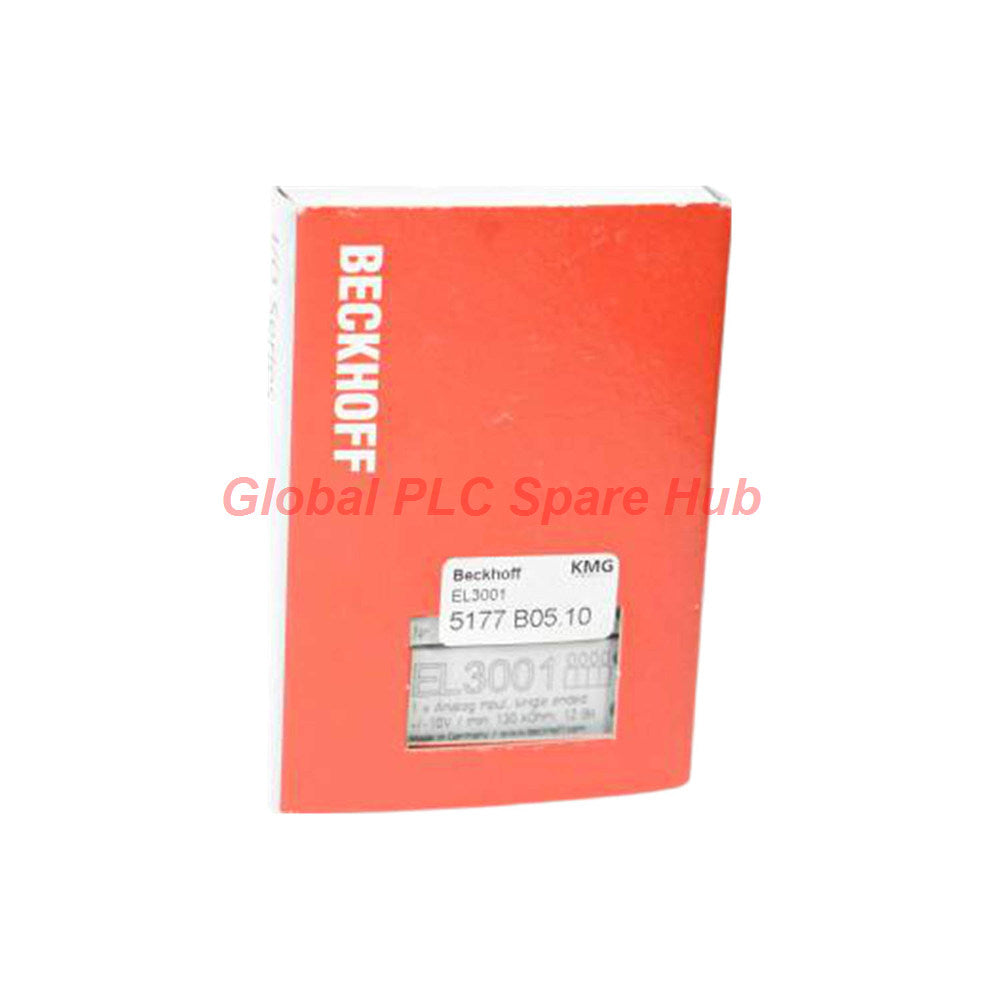

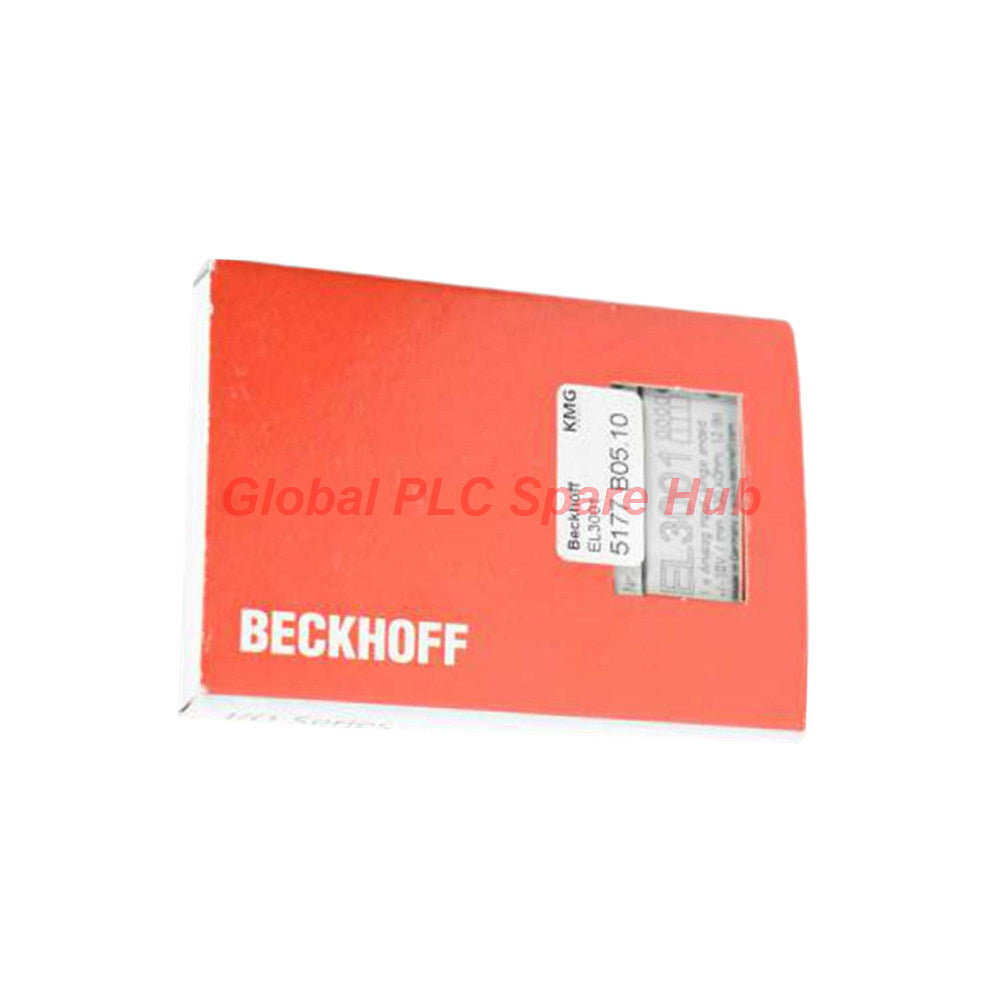

Beckhoff EL3001 12-Bit Analog Voltage Input Module EtherCAT

Product Overview

The Beckhoff EL3001 represents a high-precision solution for industrial voltage signal acquisition. This single-channel analog input terminal captures signals in the range of ±10 V. It digitizes these inputs with 12-bit resolution and transmits data via the EtherCAT bus. Its electrical isolation ensures signal integrity in complex automation environments.

Technical Specifications

The Beckhoff EL3001 offers specialized performance metrics designed for high-density industrial control systems:

• Brand: Beckhoff
• Series: EL3001 EtherCAT Terminal
• Measuring Range: -10 V to +10 V
• Frequency Response: 1 kHz input filter limit
• Resolution: 12-bit (16-bit internal presentation)
• Linearity/Accuracy: < ±0.3 % relative to full scale
• Input Impedance: > 130 kΩ
• Operating Temperature: -25 °C to +60 °C
• Protection Rating: IP20
• Communication Interface: EtherCAT (E-bus)

Configuration and Model Variants

Choosing the correct terminal depends on your wiring requirements:

• EL3001: Compact terminal housing with direct spring-actuated wiring.
• ES3001: Terminal housing with pluggable wiring interface for rapid maintenance.

Installation and Compatibility

• Mounting: Direct installation on 35 mm DIN rails (EN 60715).
• Mechanical: Side-by-side mounting using an integrated double-slot system.
• Compatibility: Fully compatible with all EtherCAT-capable master controllers.

Diagnostic Capabilities

• Integrated LEDs provide immediate signal state indication.
• Supports overload display directly within the process image data.
• Limit value monitoring allows for proactive system error detection.

Typical Application Scenarios

Engineers frequently deploy the EL3001 in:

• Precision voltage monitoring in laboratory equipment.
• Feedback loops for hydraulic and pneumatic pressure sensors.
• Positioning control systems requiring single-ended input validation.

Selection Guide and Comparison

• EL3001: Optimal for single-channel ±10V voltage applications.
• EL3051: Select this if your application requires 4-20mA current sensing.
• EL2889: Choose this for high-density 24V DC digital output control.

Logistics and Warranty

• Logistics: Secure shipping via FedEx, UPS, or DHL.
• Speed: Guaranteed dispatch within 24-48 hours.
• Warranty: Comprehensive 12-month quality assurance on all units.

Frequently Asked Questions

What is the primary benefit of the high input resistance?
The input resistance of > 130 kΩ minimizes signal loading effects, ensuring high measurement accuracy for connected sensors.

Can I use the EL3001 in high-vibration areas?
Yes, the terminal conforms to EN 60068-2-6 and EN 60068-2-27 shock/vibration standards, ensuring reliability in industrial settings.

What is the main advantage of the ES3001 version?
The ES3001 features pluggable wiring, which significantly reduces downtime during hardware replacement or scheduled maintenance.

Global PLC Spare HUB Insight

Our technical team identifies the Beckhoff EL3001 as a benchmark for reliable, high-speed analog acquisition. It is an essential component for modular machine designs where space is constrained but signal accuracy is paramount. This module is ideally suited for PLC-based motion control and process automation platforms using TwinCAT software, integrating seamlessly into high-speed EtherCAT networks with minimal jitter.
