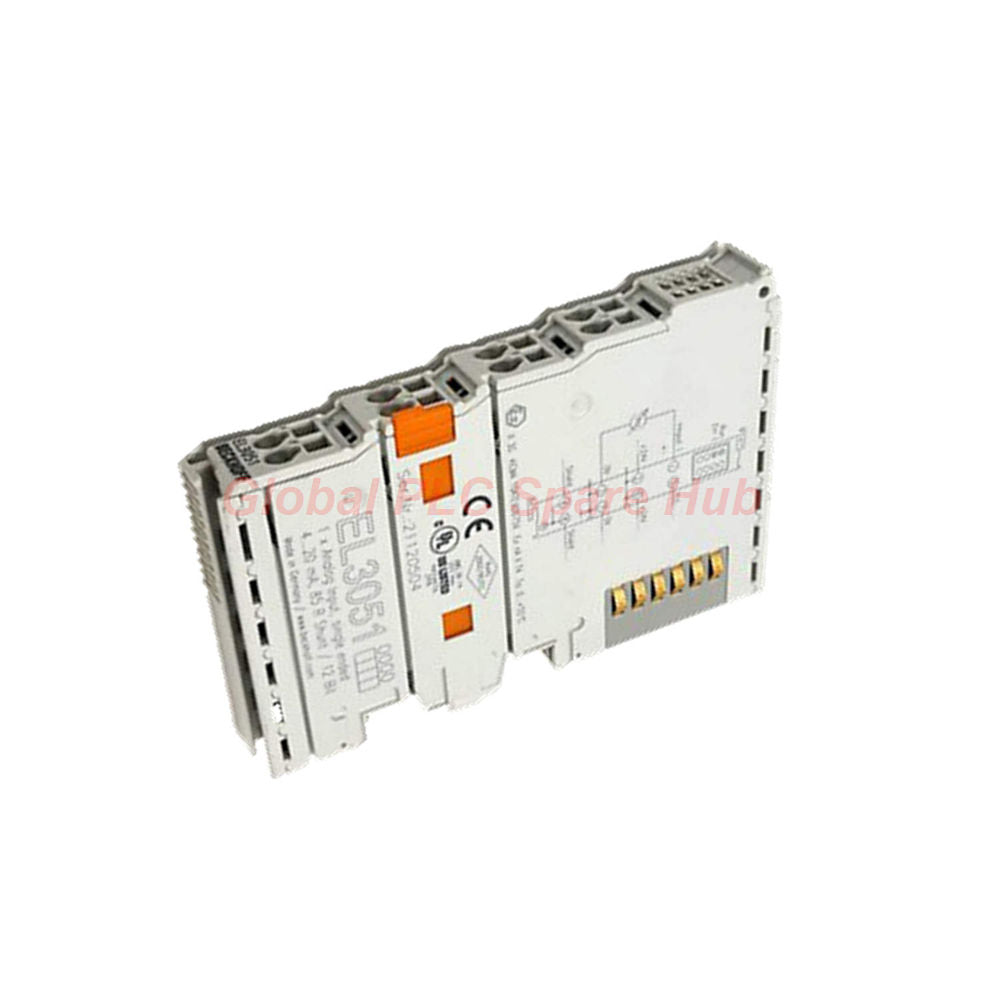

EL3051 Beckhoff EtherCAT Terminal: 4-20mA Analog Input Module

Product Profile

The EL3051 is a high-precision EtherCAT terminal engineered for single-ended 4…20 mA analog signal acquisition. This unit provides localized power to field-side measuring transducers while maintaining 500 V electrical isolation between the E-bus and signal electronics. Designed for demanding industrial environments, the EL3051 ensures deterministic signal transmission and superior noise immunity within distributed automation networks.

Engineering Specifications

• Brand/Model: Beckhoff EL3051 (Terminal) / ES3051 (Pluggable Version)
• Signal Range: 4…20 mA current loop
• Resolution: 12-bit (16-bit internal representation)
• Conversion Rate: 0.625 ms default (user-configurable)
• Input Resistance: 85 Ω (typical)
• Frequency Response: 1 kHz filter limit frequency
• Accuracy: < ±0.3 % relative to full scale
• Dielectric Strength: Max 30 V input / 500 V isolation
• Environmental Rating: IP20, operating range -25 °C to +60 °C
• Compliance: CE, UL, ATEX (II 3 G Ex nA IIC T4 Gc), IECEx

Diagnostic & Operational Capabilities

• Onboard Monitoring: Integrated LED array provides instant visual status of channel health.
• Fault Detection: Dedicated error circuitry identifies overload conditions and broken wire loops.
• Process Image: Supports compact or standard process image maps for bandwidth optimization.
• Filtering: Features activatable FIR/IIR digital filtering for signal conditioning in electrically noisy environments.
• Limit Monitoring: Integrated threshold alerts prevent upstream system stress during sensor failure.

Integration & Deployment

• System Compatibility: Ideal for process automation, flow monitoring, pressure sensing, and chemical measurement systems.
• Mounting: 35 mm DIN rail (EN 60715) with secure double-slot locking.
• Wiring Versatility: Supports solid, stranded, or ferruled conductors (0.08–2.5 mm²) with intuitive spring-actuated terminals.
• Shipping & Warranty: Rapid 24-48 hour dispatch via FedEx, UPS, or DHL. 12-month performance guarantee included.

Global PLC Spare HUB's Insight

In our experience at Global PLC Spare HUB, the EL3051 excels in "fit-and-forget" sensing applications. It is particularly suited for legacy-to-digital plant retrofits where standard 4-20mA loops remain the industry standard. Because the EL3051 sources power for the transducer directly through the power contacts, it eliminates the need for auxiliary external power supplies, drastically reducing cabinet wiring density. This module is the preferred choice for engineers managing high-density analog arrays in modular factory floor architectures.

Technical FAQ & Selection Guide

How do I resolve a "broken wire" diagnostic error on the EL3051?
First, verify your loop continuity using a multimeter. If the loop is intact, inspect the terminal spring contact to ensure the conductor is fully seated and the wire jacket was stripped to the required 8-10 mm length.

Is the ES3051 necessary for my application?
Select the ES3051 if your maintenance workflow requires rapid hot-swapping of terminals. The ES-series utilizes pluggable wiring connectors that allow you to remove the module without disconnecting the field wiring.

Can the EL3051 handle signal bursts above 1 kHz?
The hardware limit is 1 kHz. If your sensors operate at higher frequencies, we recommend using a higher-bandwidth analog terminal to avoid significant signal aliasing.

How do I maximize signal accuracy in high-EMI zones?
Utilize the activatable IIR/FIR filters in the terminal's configuration settings. Additionally, ensure your cable shields are correctly bonded to the earth terminal to mitigate induction.

Should I use a separate supply terminal (EL9xxx) for this module?
If you are operating in an environment with high power fluctuations or if you need to create a dedicated, galvanically isolated segment for sensors, using an EL9xxx supply terminal is best practice to protect your primary E-bus segment.
