RCAN-01 ABB Drive Communication Interface CANopen

ABB RCAN-01 | CANopen Drive Communication Interface

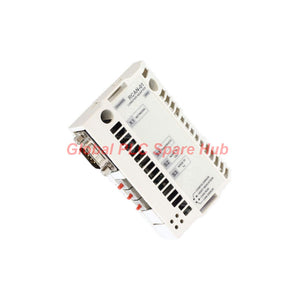

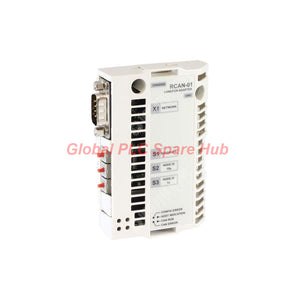

The ABB RCAN-01 is a CANopen adapter module designed for installation inside a compatible ABB drive. It connects the drive control platform to a CANopen fieldbus network for industrial automation communication.

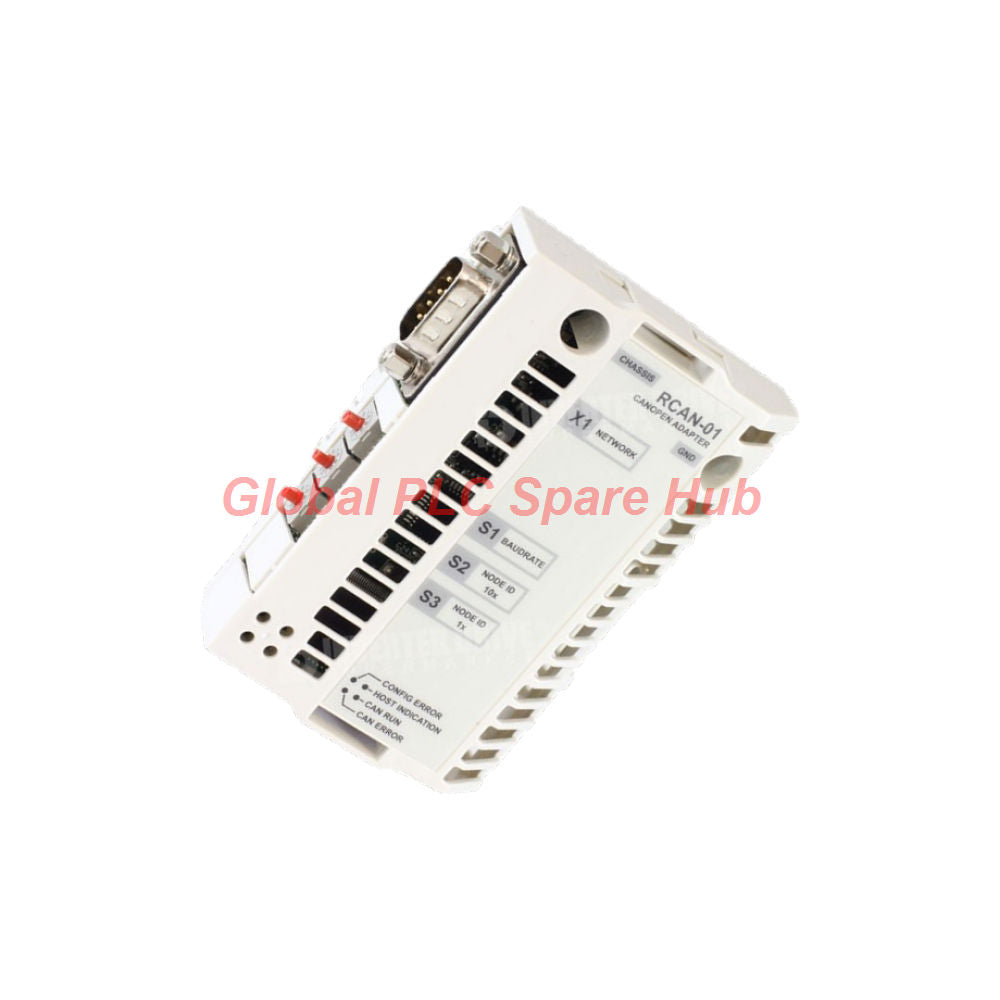

The module uses a dedicated 34-pin parallel bus connector and a 9-pin male D-sub connector designated X1. Engineers can configure communication settings through drive parameters and onboard rotary switches.

• Primary function: CANopen communication between a compatible drive and the automation network.
• Installation: Internal drive option slot.
• Node addressing: Rotary switch selection from 00 to 99.
• Communication speed: Eight selectable rates from 10 kbit/s to 1 Mbit/s.
• Protection rating: IP20.
• Power source: Drive control board, with a maximum stated consumption of 250 mA at 5 V.

01 | Hardware and Electrical Specifications

Specification	Details
Manufacturer	ABB
Model	RCAN-01
Module Type	CANopen communication adapter
Installation Position	Option slot inside a compatible drive
Degree of Protection	IP20
Parallel Bus Connector	34-pin
Network Connector	9-pin male D-sub, X1
Supply Source	Drive control board
Current Consumption	250 mA maximum at 5 V
Estimated Minimum Lifetime	100,000 hours
Ambient Conditions	Follow the applicable drive hardware manual
Materials	Materials are stated as UL/CSA approved
EMC Standards	EN 50081-2 and EN 50082-2, as specified in the supplied information

Engineering note: The 100,000-hour figure represents an estimated minimum lifetime, not a guaranteed service interval. Actual service life depends on operating conditions and installation quality.

02 | CANopen Network Configuration

The RCAN-01 supports asynchronous, half-duplex serial communication using the CANopen protocol. Its multi-drop network topology allows multiple compatible devices to share the communication bus.

Network Parameter	Specification
Communication Protocol	CANopen
Communication Type	Asynchronous, half duplex
Network Topology	Multi-drop
Selectable Baud Rates	1 Mbit/s, 500 kbit/s, 250 kbit/s, 125 kbit/s, 100 kbit/s, 50 kbit/s, 20 kbit/s, 10 kbit/s
Rotary Node Address Range	00–99
Maximum Network Size	Up to 128 nodes, depending on the CAN controller
Termination Reference	121 Ω, 1% tolerance, metal film, 1/4 W
Cable Medium	Screened, twisted-pair cable, as specified in the supplied information
Configuration Methods	Drive parameters and rotary switches

Network design consideration: The 128-node figure depends on the CAN controller and complete network design. Confirm supported node counts, cable specifications, and termination requirements against the applicable ABB documentation.

03 | Addressing and Communication Setup

Correct configuration is essential for reliable drive communication. The following sequence provides a practical starting point for commissioning.

1. Confirm the drive platform. Check that the host drive supports the RCAN-01 option.
2. Install the adapter. Isolate the drive and follow its hardware manual before accessing the option slot.
3. Connect the network. Use the designated X1 connector and an appropriate screened communication cable.
4. Set the node address. Select an address from 00 to 99 and ensure it does not conflict with another node.
5. Select the baud rate. Match the adapter configuration to the CANopen master and other network devices.
6. Review drive parameters. Apply the settings required by the drive and network configuration.
7. Verify termination. Check the network topology and termination against the approved design.
8. Test communication. Confirm that the master recognizes the node and exchanges the expected process data.

Always follow the manufacturer's prescribed installation and power-isolation procedures. Confirm the exact rotary-switch functions and parameter settings in the relevant hardware and firmware documentation.

04 | Drive Integration and Application Scenarios

Application	Integration Purpose	Engineering Benefit
Motor speed control	Connects a compatible drive to a CANopen control network.	Supports network-based drive commands and status exchange when configured.
PLC-based automation	Provides a communication path between the drive and a CANopen master.	Reduces reliance on separate hardwired signals for supported data.
Conveyor systems	Integrates compatible drive units into a coordinated control architecture.	Supports centralized coordination of motor drives.
Pump and fan systems	Connects supported drive equipment to a plant communication network.	Enables network-based monitoring and control of supported drive parameters.
Machine automation	Connects drive control with compatible CANopen devices.	Supports consistent communication across the machine control architecture.

Compatibility limitation: These applications describe typical CANopen drive integration. Confirm the exact ABB drive model, control-board revision, firmware, and supported communication functions before selecting the adapter.

05 | Global PLC Spare HUB's Insight

In practical commissioning, communication faults often originate from configuration mismatches rather than immediate hardware failure. Engineers should verify addressing, baud rate, wiring, and termination before replacing the adapter.

Field example: The PLC cannot recognize a newly installed drive.

First, compare the RCAN-01 node address with the master configuration. Next, confirm that both devices use the same baud rate. Inspect the X1 connection and network cable, then verify the termination arrangement. Finally, check the drive's option recognition and communication parameters.

Field example: Communication becomes unstable after adding another node.

Review the updated bus topology, cable routing, node addressing, and termination. Check whether the expanded network remains within the CAN controller's supported limits. Record communication errors before and after each change to isolate the cause.

Diagnostic capability: The RCAN-01 provides the communication interface required for network-based drive monitoring and control. Engineers can investigate communication availability, node recognition, parameter consistency, and process-data exchange through the connected control system and applicable diagnostic tools.

The supplied specifications do not confirm dedicated onboard diagnostic indicators or independent fault-recording functions. Verify those capabilities in the relevant product documentation.

06 | Compatibility and Selection Checklist

• Host drive: Verify explicit support for the RCAN-01 option module.
• Control board: Confirm the option slot and electrical interface match the module.
• Communication master: Check CANopen compatibility and supported communication functions.
• Addressing: Ensure the selected node address fits the network plan.
• Baud rate: Confirm a common supported rate across the network.
• Cabling: Verify cable type, shielding, routing, and network length requirements.
• Termination: Confirm resistor placement and network topology against the manufacturer's guidance.
• Environmental conditions: Apply the host drive's specified operating limits.

Do not select a replacement based on connector appearance alone. Different communication adapters may use similar connectors while supporting different protocols or drive platforms.

07 | Standards and Compliance

• EMC: The supplied specifications list EN 50081-2 and EN 50082-2.
• Material approvals: The supplied information states that all materials are UL/CSA approved.
• Protection rating: IP20.

Verify applicable declarations, certification records, and approval scope for the exact product revision. The information provided does not establish a separate safety-integrity rating or hazardous-area approval.

08 | Supply, Shipping, and Warranty

Product	ABB RCAN-01 CANopen Adapter Module
Packaging	Protective packaging suitable for industrial electronic equipment
Package Contents	One RCAN-01 adapter module; additional accessories depend on the confirmed order
Warranty	12 months, subject to the seller's applicable warranty terms
Shipping Options	FedEx, UPS, or DHL, subject to destination and service availability
Dispatch Arrangement	Confirm stock status and estimated dispatch time with our sales team

Contact Global PLC Spare HUB for current availability, product verification, shipping estimates, and a quotation tailored to your drive configuration.

09 | Frequently Asked Questions

Q1: What information should maintenance teams record before replacing an RCAN-01?

Record the drive model, control-board revision, adapter address, baud rate, master configuration, and existing network connections. This information helps technicians restore the original communication setup and avoid introducing new configuration faults.

Q2: How should engineers evaluate CANopen communication performance after commissioning?

Verify stable node recognition and consistent process-data exchange under normal operating conditions. Review available master diagnostics and communication error records. Compare results against the system's defined acceptance criteria rather than assuming that initial connectivity proves reliable operation.

Q3: What should buyers check when the existing adapter's label is difficult to read?

Use the drive's hardware documentation, maintenance records, and existing option configuration to identify the required module. Request confirmation using clear photographs and the host drive's complete type designation. Do not identify the adapter solely by its connector layout.

Q4: Can a CANopen adapter be selected solely by matching its baud rate and node address?

No. The host drive must support the adapter's hardware interface and firmware requirements. Buyers should also verify the protocol implementation, supported process data, and configuration tools before ordering a replacement.

Q5: What details help suppliers confirm the correct replacement module?

Provide the adapter's full model number, the drive's complete type code, control-board details, photographs of the nameplate, and the required quantity. Include the intended network configuration when available. These details help suppliers assess compatibility before quotation and shipment.

Request a Quote for ABB RCAN-01

Need an ABB RCAN-01 CANopen adapter for drive integration or maintenance? Contact Global PLC Spare HUB with your drive model and quantity requirements.

• Request pricing and current availability.
• Confirm drive compatibility before ordering.
• Discuss FedEx, UPS, and DHL shipping options.
• Receive support with product identification and replacement planning.
