Engineering Overview: The Delta VFD4A2MS43ANSAA

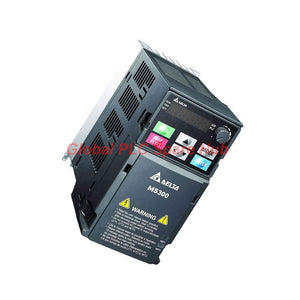

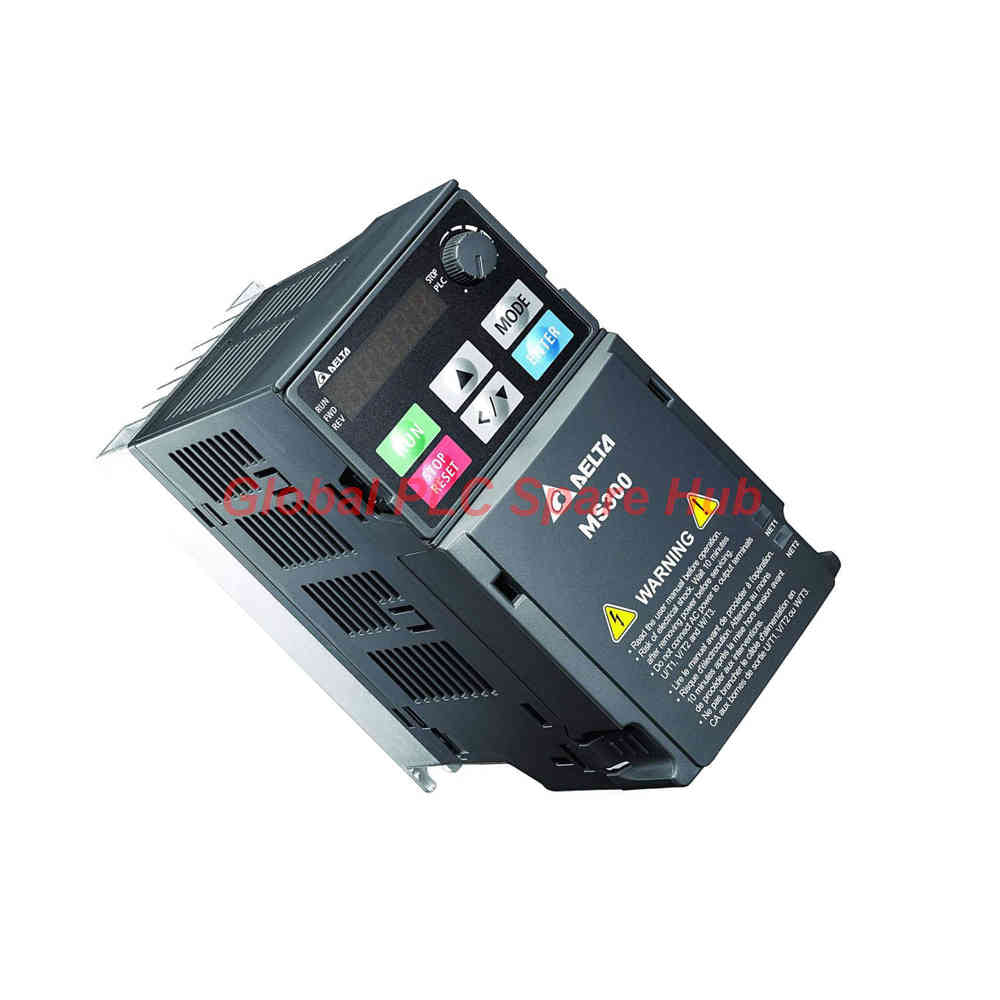

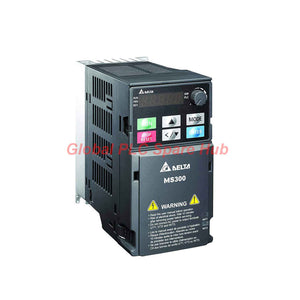

The VFD4A2MS43ANSAA belongs to the MS300 Series, a compact, high-efficiency vector control solution engineered for space-constrained industrial environments. This VFD4A2MS43ANSAA unit delivers robust performance for both Induction Motors (IM) and Permanent Magnet (PM) motors. With a power rating of 1.5 kW (2 HP) and a wide output frequency range up to 599 Hz, it serves as an agile backbone for complex motion control tasks.

Technical Performance Specs

• Model Identification: VFD4A2MS43ANSAA (MS300 Series)
• Power Capacity: 2 HP (1.5 kW) at 460V 3-Phase input
• Output Current: 4.2A (Heavy Duty) / 4.6A (Normal Duty)
• Control Architecture: Advanced Vector Control with high-starting torque
• Physical Footprint: Frame Size B1 (2.83" x 5.59" x 5.63")
• Environmental Protection: IP20 rated enclosure
• Braking Logic: Integrated brake chopper for high-inertia deceleration
• Operational Flexibility: Supports PLC functions and multi-motor control

Integration and Diagnostic Intelligence

• Communication Suite: Native RS-485 Modbus; optional fieldbus cards for EtherCAT, PROFINET, and EtherNet/IP.
• Diagnostic Capability: Onboard keypad tracks real-time fault logs and thermal status; prevents downtime via Deceleration Energy Backup (DEB).
• System Maintenance: Side-by-side mounting reduces cabinet footprint; removable keypad simplifies local diagnostics and parameter migration.
• Service Commitment: We provide a 12-month quality warranty on all units; global shipping via FedEx, UPS, and DHL with 24-48 hour dispatch.

Global PLC Spare HUB Insight

In our technical assessment, the VFD4A2MS43ANSAA stands out for its high power density. Engineers often select this for machine tools and winding applications where rapid response to load impacts is critical. Its ability to manage both IM and PM motor profiles provides exceptional versatility for retrofitting legacy systems or optimizing new OEM machinery.

Expert FAQ

Q: How does the MS300 handle high-inertia stops without an external brake resistor?
A: The drive utilizes Deceleration Energy Backup (DEB) to manage bus voltage, though for high-inertia cycles, we strongly recommend utilizing the internal brake chopper with a matched resistive load.

Q: Can I daisy-chain the RS-485 communication for multiple drives?
A: Yes, the MS300 supports multi-drop Modbus connectivity. Ensure you implement proper 120-ohm termination at both ends of the segment to minimize signal reflection.

Q: What is the primary benefit of PM motor support in this specific model?
A: It allows for precise speed control in high-efficiency motor setups without needing an external encoder, significantly reducing hardware costs.

Q: Is the drive field-repairable if a cooling fan fails?
A: The cooling fans in the MS300 series are modular and field-replaceable, allowing for maintenance without requiring a full drive replacement.

Q: Selection advice: How do I choose between the Heavy Duty and Normal Duty ratings?
A: Choose the Heavy Duty (4.2A) rating for applications with high start-up torque, such as extruders or conveyors. Use Normal Duty (4.6A) for fan or pump applications with quadratic load profiles.

Typical Applications

• Precision CNC machining and spindle control
• Synchronized coil winding and tension management
• Textile fiber processing machinery
• Automated slitting and printing lines
