UMC22-FBP ABB Motor Controller & Protection Device FieldBusPlug Starter

Engineered Motor Management Architecture

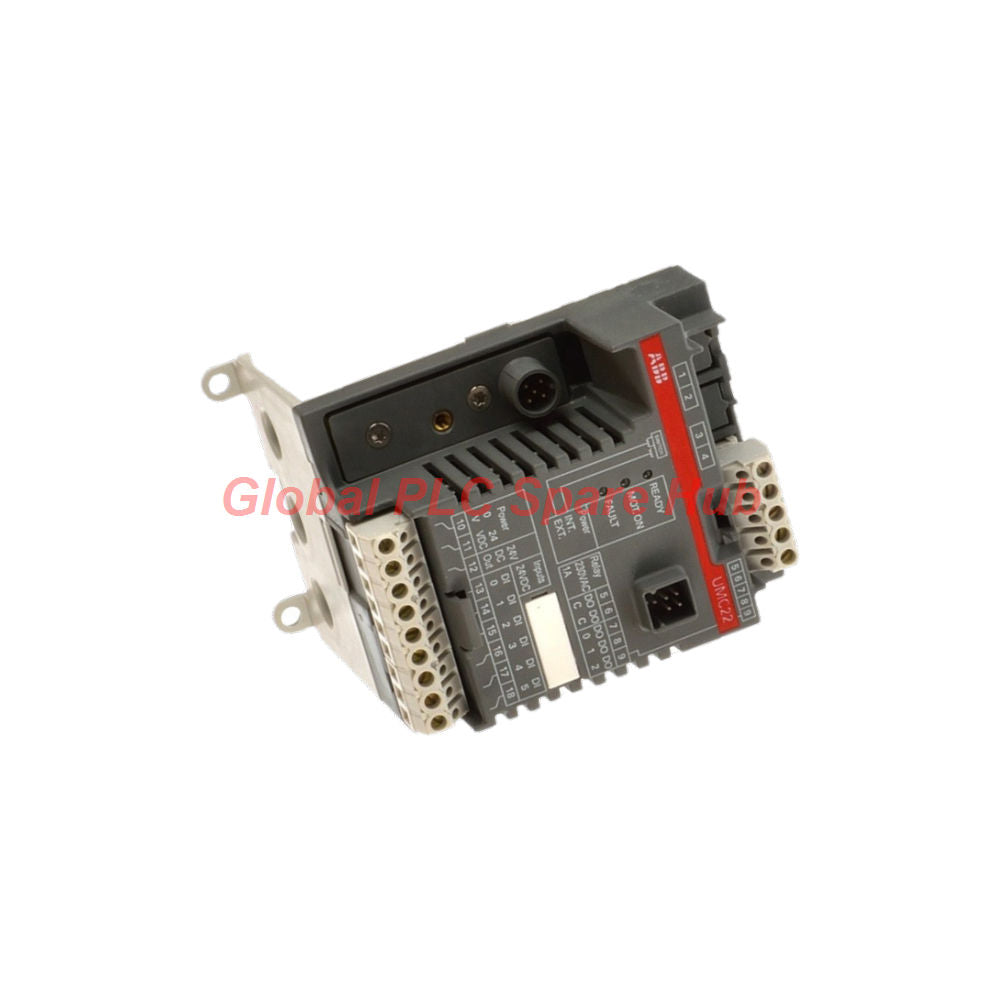

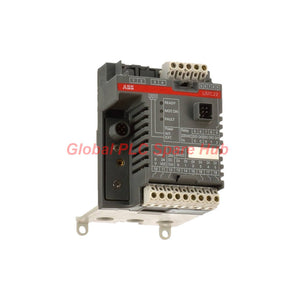

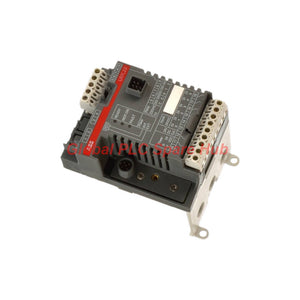

The UMC22-FBP ABB Universal Motor Controller integrates current transformer modules and digital controller logic into a single compact housing. Designed for three-phase AC induction motors, it delivers advanced electronic thermal overload protection, flexible fieldbus connectivity, and decentralized motor management for industrial automation systems.

Technical Specification Matrix

Logistics, Fulfillment & Warranty Assurance

• Rapid Dispatch: Orders are processed and shipped globally within 24 to 48 hours to minimize downtime.
• Global Couriers: Secure, trackable international freight delivered via FedEx, UPS, and DHL.
• Commercial Protection: Backed fully by a comprehensive 12-month quality and operational warranty.

Target Equipment & Industrial Application Scenarios

• Process Automation Motors: Protects continuous-duty pumps, centrifugal compressors, and agitators in chemical and water treatment plants.
• Heavy Industrial Drives: Deployed in conveyor systems, mining crushers, and ventilation fan arrays requiring precise thermal monitoring.
• Fieldbus Integration: Interfaces seamlessly with PLC networks via interchangeable FieldBusPlug adapters for real-time remote telemetry.

Built-in Diagnostics & Fault Analysis

• Thermal Memory Tracking: Continuously computes motor stator heating and cooling curves to prevent premature insulation degradation.
• Phase Imbalance Detection: Identifies voltage asymmetry and single-phase conditions instantly, triggering protective trips before rotor damage occurs.

Global PLC Spare HUB's Insight

When commissioning the UMC22-FBP, always match the adjustable current range precisely to the motor's full load amps (FLA) rating on the nameplate. Verifying proper FieldBusPlug termination and address assignment during setup prevents intermittent network timeout faults on high-noise industrial bus lines.

Technical Frequently Asked Questions

Q: How does the FieldBusPlug (FBP) mechanism simplify controller networking?

A: It allows the controller to connect directly to various industrial fieldbus protocols without requiring internal hardware replacements.

Q: What factors determine the selection of trip classes 5 through 30?

A: Trip classes are chosen based on the motor starting time and heavy inertia loads; Class 10 is standard, while 20 and 30 suit high-inertia drives.

Q: What troubleshooting steps resolve communication drops on the FBP interface?

A: Inspect bus cable shielding, verify terminal resistor placement, and check 24V supply stability across the communication connector.

Q: What criteria should guide engineers when replacing legacy thermal overloads with this electronic unit?

A: Ensure the motor FLA falls within the 0.24A–63A range and verify that your control architecture supports digital bus parameter storage.

Q: How does internal parameter storage assist during sudden device replacements?

A: Configuration data stored directly on the unit ensures rapid restoration of trip profiles and operational settings upon swapping modules.
