3BSE031155R1 ABB BC810K02 CEX-bus Interconnection Unit

Engineering Architecture & System Overview

Engineered by ABB within the System 800xA ecosystem, the 3BSE031155R1 (BC810K02) functions as a high-integrity CEX-bus interconnection unit. It manages internal module communication links between controller backplanes and expansion racks, ensuring fault-tolerant data exchange in mission-critical industrial automation environments.

Technical Parameters & Hardware Specs

• Manufacturer & Brand: ABB
• Part Number & Type: 3BSE031155R1 | BC810K02 CEX-bus Module
• Operating Voltage: 24 V DC nominal (19.2 to 30 V DC range)
• Power Consumption: 50 mA typical, 70 mA maximum (1.2 W typical dissipation)
• Physical Dimensions: 59 mm x 185 mm x 127.5 mm (with baseplate)
• Net Weight: 1.55 kg (package weight approx. 1.5 kg)
• Environmental Rating: IP20 protection, 0 °C to +55 °C operating temperature range
• Global Compliance: CE, UL 61010, cULus Class 1 Zone 2, marine certified (ABS, DNV, LR, BV)

Package Contents & Kit Configuration

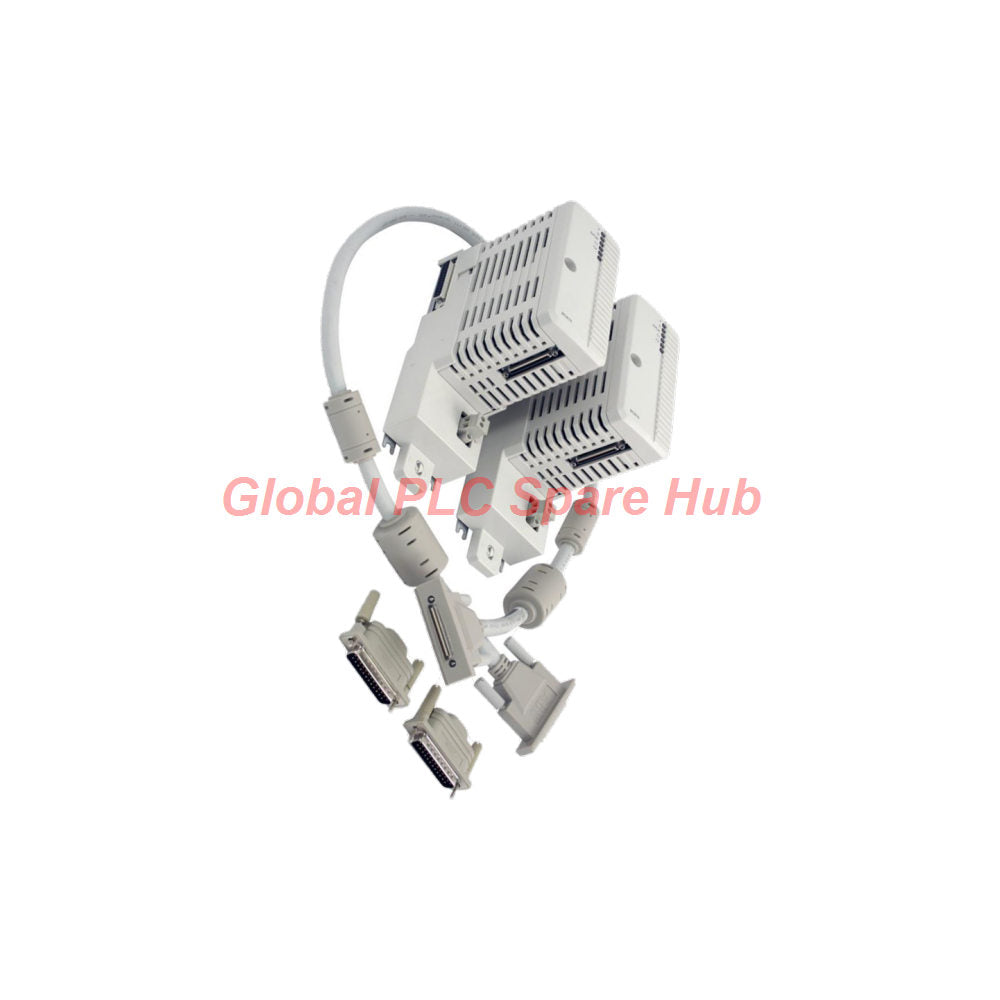

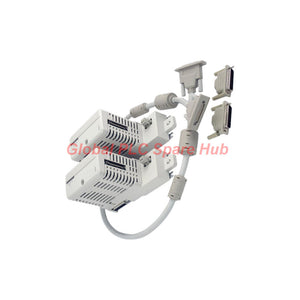

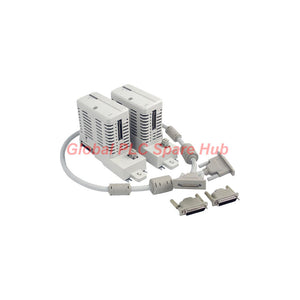

• Two (2) units of BC810 Interconnection Units
• Two (2) units of TP857 Baseplates
• One (1) unit of TK851 Interconnection Cable
• Two (2) units of TB850 CEX-Bus Terminators

Installation & Rack Commissioning Protocols

• Mount the TP857 baseplates securely to standard DIN rails inside the control enclosure before snapping in the active modules.
• Verify that both ends of the CEX-bus line are terminated correctly using the supplied TB850 terminators to prevent signal reflection.
• Check 24 V DC power supply stability prior to energizing to prevent internal logic fault triggers.

Diagnostic Telemetry & System Monitoring

The BC810K02 features onboard diagnostic LEDs that monitor link activity, power status, and redundancy health. Control Builder software polls these modules continuously, logging transmission errors or bus packet drops to isolate hardware degradation before control loops fail.

Industrial Equipment and Application Deployments

• System 800xA Racks: Expands controller node capacity across distributed process automation nodes.
• Oil & Gas Refineries: Manages redundant signal routing in hazardous zone-rated petrochemical skids.
• Power Generation Plants: Coordinates high-availability turbine control and boiler interlocks.

Fulfillment, Logistics, and Warranty Protection

• Shipping Partners: Secure, tracked global delivery through FedEx, UPS, and DHL.
• Dispatch Timeline: Fast order processing and shipping within 24 to 48 hours.
• Warranty Terms: Backed by a full 12-month replacement warranty.

Global PLC Spare HUB's Insight

Our automation engineering team at Global PLC Spare HUB frequently deploys the 3BSE031155R1 kit during controller migration projects. In a recent offshore platform upgrade, maintaining correct CEX-bus termination with the included hardware eliminated intermittent node dropouts, ensuring seamless redundant synchronization across dual CPU racks.

Frequently Asked Questions & Selection Guide

Q: What is included in the complete 3BSE031155R1 factory package?

A: The complete kit contains two BC810 modules, two TP857 baseplates, one TK851 interconnection cable, and two TB850 bus terminators.

Q: How do I troubleshoot a communication fault indicated by the module LEDs?

A: Inspect the TK851 cable seating, confirm proper seating on the TP857 baseplate, and check that both ends feature functional TB850 terminators.

Q: Can these interconnection units be hot-swapped during active plant operations?

A: Yes, when configured in a redundant System 800xA architecture, the hot-swappable design allows replacement without tripping active controllers.

Q: Why is proper grounding critical when mounting these units on DIN rails?

A: Proper chassis grounding drains induced electrical noise, protecting sensitive internal transceivers from industrial electromagnetic interference (EMI).

Q: What selection factors matter most when replacing legacy ABB bus units?

A: Always verify exact catalog numbers, revision codes, and firmware compatibility with your existing controller node rack configuration.
