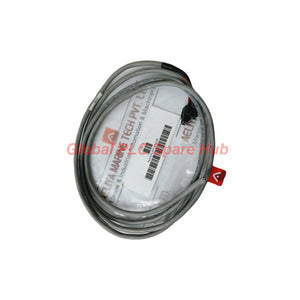

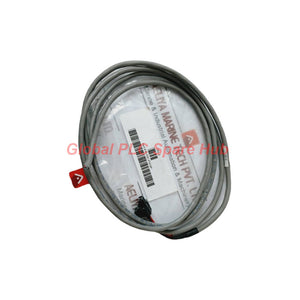

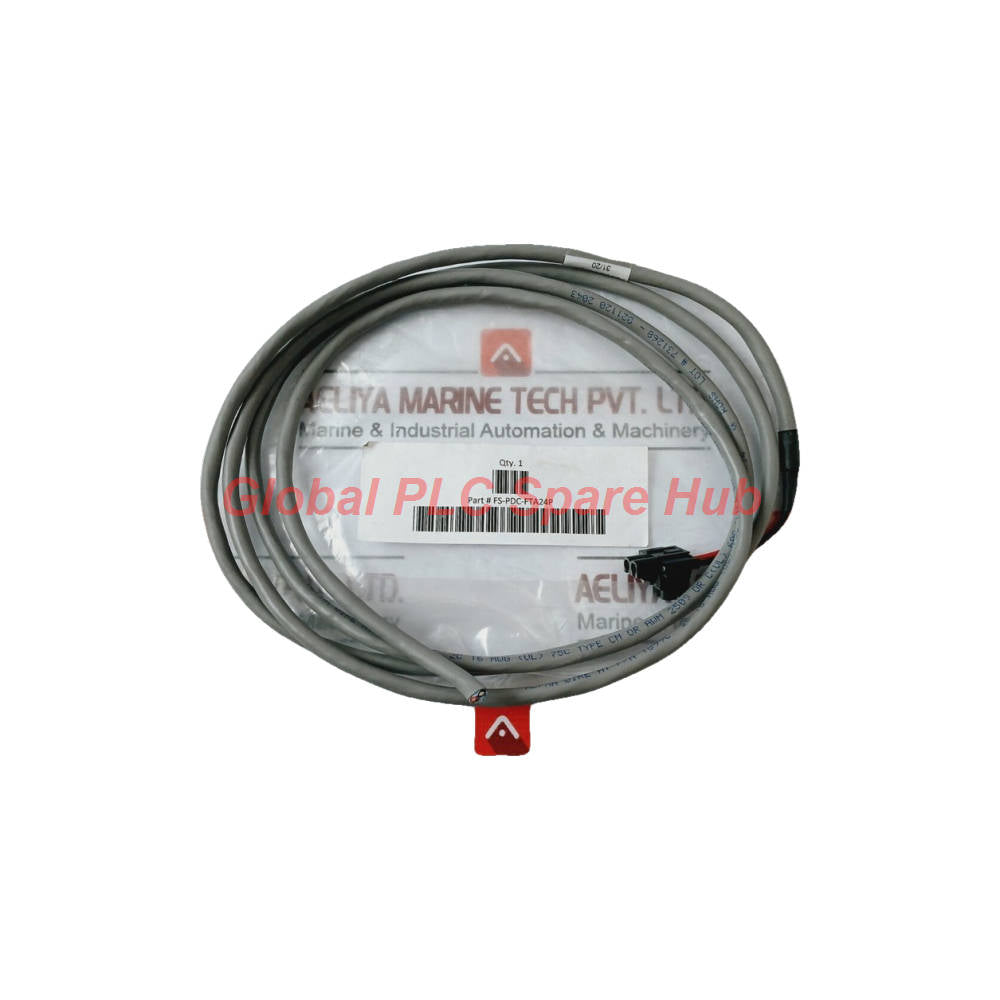

Honeywell FS-PDC-FTA24P Distribution Cable Accessory

Engineering Overview & Architecture

Manufactured by Honeywell, the FS-PDC-FTA24P power distribution cable serves as the direct evolutionary successor to the obsolete FS-PDC-FTA24 model. Engineered specifically to bridge power distribution boards like the PDB-0824 and PDB-0824P with field termination assemblies (FTAs), this cable ensures reliable 24Vdc energy transfer inside industrial control enclosures.

Technical Specifications & Physical Properties

• Manufacturer & Brand: Honeywell
• Catalog Part Number: FS-PDC-FTA24P
• Product Type: Power Distribution Cable (PDB-0824 to FTA 24V 2A)
• Conductor Specification: 2 x 1.31 mm² (AWG 16) tri-rated wire
• Cable Length: 2 meters (78.74 inches)
• Connector Housing: 2-pole socket block (Weidmüller BLC 5.08/2BR OR style with connection screws)
• Crimp Pin Standard: Weidmüller DFFC 1.5-2.5 SN E
• Certifications & Approvals: UL listed, CSA approved, FM pending

Field Termination & Installation Guidelines

• Connect the factory-terminated socket block directly to the PDB-0824/PDB-0824P power distribution board interface.
• Measure and cut the un-terminated device side to your specific cabinet routing length prior to termination.
• Maintain polarity discipline during hookup: verify the red conductor carries +24Vdc and the black conductor manages 0Vdc return.

Diagnostic Characteristics & System Reliability

The FS-PDC-FTA24P facilitates stable voltage delivery, mitigating line drop across cabinet internal runs. While passive, its low-resistance AWG 16 tri-rated copper core prevents excessive thermal buildup, allowing upstream power supplies to reliably detect downstream short circuits or over-current conditions.

Target Hardware and Operational Application Scenarios

• Cabinet Cooling Units: Powers internal 24Vdc equipment cooling fans to prevent hot spots in dense DCS racks.
• Field Termination Assemblies: Delivers clean auxiliary control voltage to analog and digital FTA modules.
• Distributed Control Enclosures: Interconnects modular power distribution blocks across multi-tier industrial control cabinets.

Logistics, Fulfillment, and Warranty Terms

• Shipping Methods: Secure, tracked transit via global carriers including FedEx, UPS, and DHL.
• Dispatch Window: Fast order processing and fulfillment within 24 to 48 hours.
• Warranty Coverage: Fully protected by a standard 12-month replacement warranty.

Global PLC Spare HUB's Insight

Our integration specialists at Global PLC Spare HUB frequently utilize the FS-PDC-FTA24P during legacy system modernizations. Because the older FS-PDC-FTA24 is obsolete, retrofitting this screw-secured variant ensures superior mechanical retention under high-vibration plant conditions, successfully eliminating intermittent power dropouts on sensitive I/O cards.

Frequently Asked Questions & Selection Guide

Q: Can the FS-PDC-FTA24P be used directly as a drop-in replacement for the discontinued FS-PDC-FTA24?

A: Yes, both cables are fully interchangeable on PDB-0824 and PDB-0824P boards, though the newer version includes connection screws and requires field-cutting the device end.

Q: What wire preparation steps are required before attaching the un-terminated end to a device?

A: Trim the cable to the exact required enclosure length, strip the outer jacket carefully, and crimp compatible ferrules or pins onto the AWG 16 conductors.

Q: How does the inclusion of connection screws on the housing improve panel reliability?

A: The integrated screws mechanically lock the socket block to the header, preventing connector dislodgement caused by industrial plant vibration.

Q: What precautions should be taken to prevent polarity reversal during installation?

A: Always verify that the red conductor is routed to the positive 24Vdc terminal and the black conductor connects to the 0Vdc common rail.

Q: What selection criteria should guide my choice of power distribution cables for high-density cabinets?

A: Evaluate the current draw of your connected devices, ensure wire gauge compatibility (such as AWG 16), and verify board connector pitch (such as Weidmüller 5.08mm).
