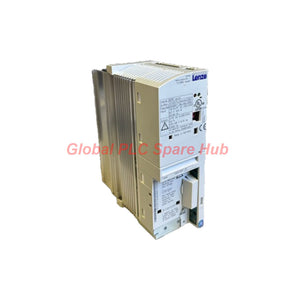

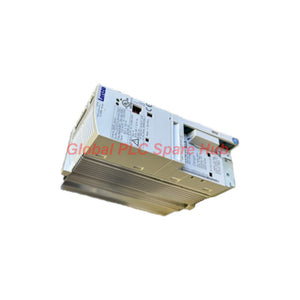

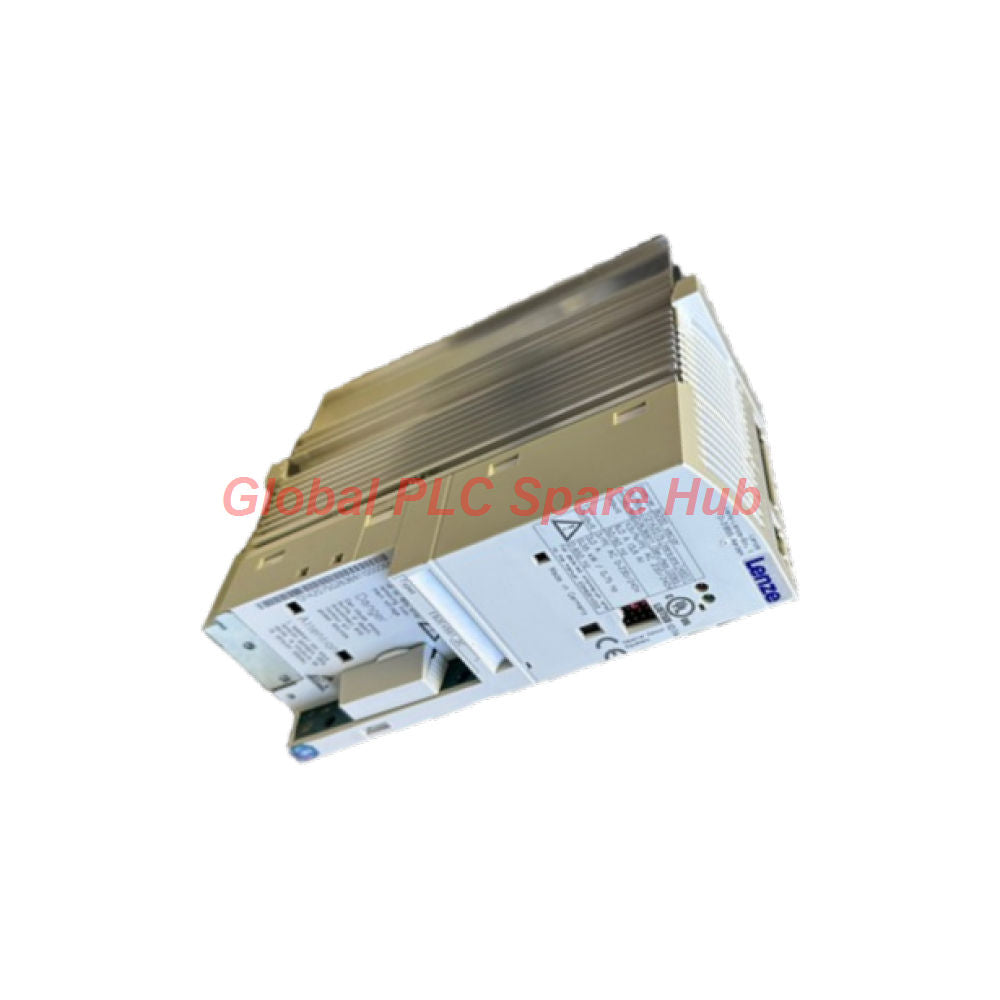

E82EV551K2C Lenze 8200 Vector Frequency Inverter Controller

E82EV551K2C Lenze 8200 Vector Frequency Inverter Base Controller

The Lenze E82EV551K2C is a compact built-in frequency inverter engineered for precise speed and torque regulation of asynchronous 4-pole motors. Delivering an output power rating of 0.55 kW (0.75 HP), this vector-controlled base unit operates across 1-phase or 3-phase 230V mains networks, as well as an alternative DC bus supply (140 VDC to 370 VDC). Featuring an integrated brake chopper, low thermal resistance (≤1.0 K/W), and low power dissipation, it delivers reliable dynamics for space-constrained industrial control cabinets.

Global PLC Spare HUB's Insight & Field Experience

Operating compact drives in high-duty cycle applications frequently leads to nuisance overtemperature trips if panel thermal dissipation is underestimated. During an overhaul of a bottling plant conveyor line, our field engineers replaced a damaged motor controller with the E82EV551K2C vector drive. By installing an external mains choke, we successfully reduced line input current from 6.0A to 5.6A on 1-phase AC operation, which mitigated harmonics and lowered ambient cabinet heat generation. Utilizing the drive's built-in brake chopper also allowed for rapid deceleration without triggering intermediate circuit overvoltage faults during frequent start-stop cycles.

Technical Specifications Table

Target Equipment & Field Application Scenarios

• Conveyor System Drives: Provides controlled acceleration curves and precise speed matching for material handling belts.
• Dosing & Centrifugal Pumps: Maintains steady volumetric fluid flow rates using closed-loop vector speed control.
• Industrial Ventilation Fans: Regulates airflow output in HVAC units while optimizing energy consumption.
• Packaging Machinery Feeders: Manages rapid indexing and dynamic stop cycles via the integrated brake chopper.
• DC Bus Group Systems: Operates efficiently within multi-drive DC bus sharing layouts (140 VDC to 370 VDC).

Hardware Diagnostics & Status Interpretation

• Overvoltage Fault Tracing: Monitor intermediate DC bus voltage when stopping high-inertia loads; attach an external brake resistor to the chopper terminals if bus levels exceed 370 VDC.
• Mains Harmonics & Line Current: Install a line choke if input AC current exceeds nominal ratings or to protect front-end bridge rectifiers from supply spikes.
• Thermal Management: Verify cabinet airflow clearance around the heatsink to maintain thermal resistance below 1.0 K/W and prevent thermal cutout trips.
• Motor Current Unbalance Check: Inspect motor terminal wiring and parameter tuning if output current exceeds 3.0A during continuous 8 kHz carrier frequency operation.

Commercial Guarantees & Global Shipping

• Protected by a comprehensive 12-Month Warranty covering all hardware performance.
• Fast dispatch window within 24 to 48 hours following order verification.
• Worldwide priority courier delivery via FedEx, UPS, and DHL.
• Fully bench-tested for vector control stability and power stage integrity prior to dispatch.

Engineering Selection Guide & Technical FAQ

Question: How do I determine if my motor application requires an optional line choke with this drive module?

Answer: Check your supply current and line quality. Adding a line choke lowers 3-phase input draw from 3.9A to 2.7A, extends capacitor lifespan, and suppresses power line harmonics.

Question: Can this frequency unit operate from a common DC bus power configuration?

Answer: Yes, the unit accepts direct intermediate DC voltage input between 140 VDC and 370 VDC, bypassing the AC rectifier stage.

Question: What causes intermediate circuit overvoltage faults during rapid deceleration cycles?

Answer: Regenerative energy from the motor charges the internal DC capacitor bank. Connecting a braking resistor to the built-in chopper dissipates this excess energy as heat.

Question: Is this base controller suitable for single-phase 230V industrial power grids?

Answer: Yes, it supports both 1-phase AC input (rated at 6.0A) and 3-phase AC input (rated at 3.9A) without hardware modifications.

Question: How does changing the switching frequency affect the output current rating?

Answer: The drive delivers its nominal 3.0A output rating at an 8 kHz switching frequency. Operating at higher carrier frequencies may require power derating to keep thermal losses within safe limits.
