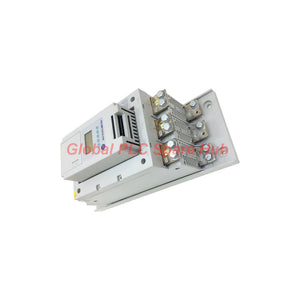

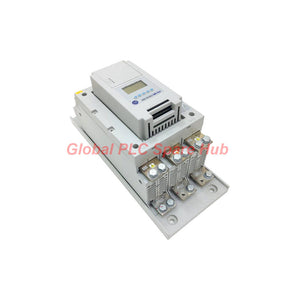

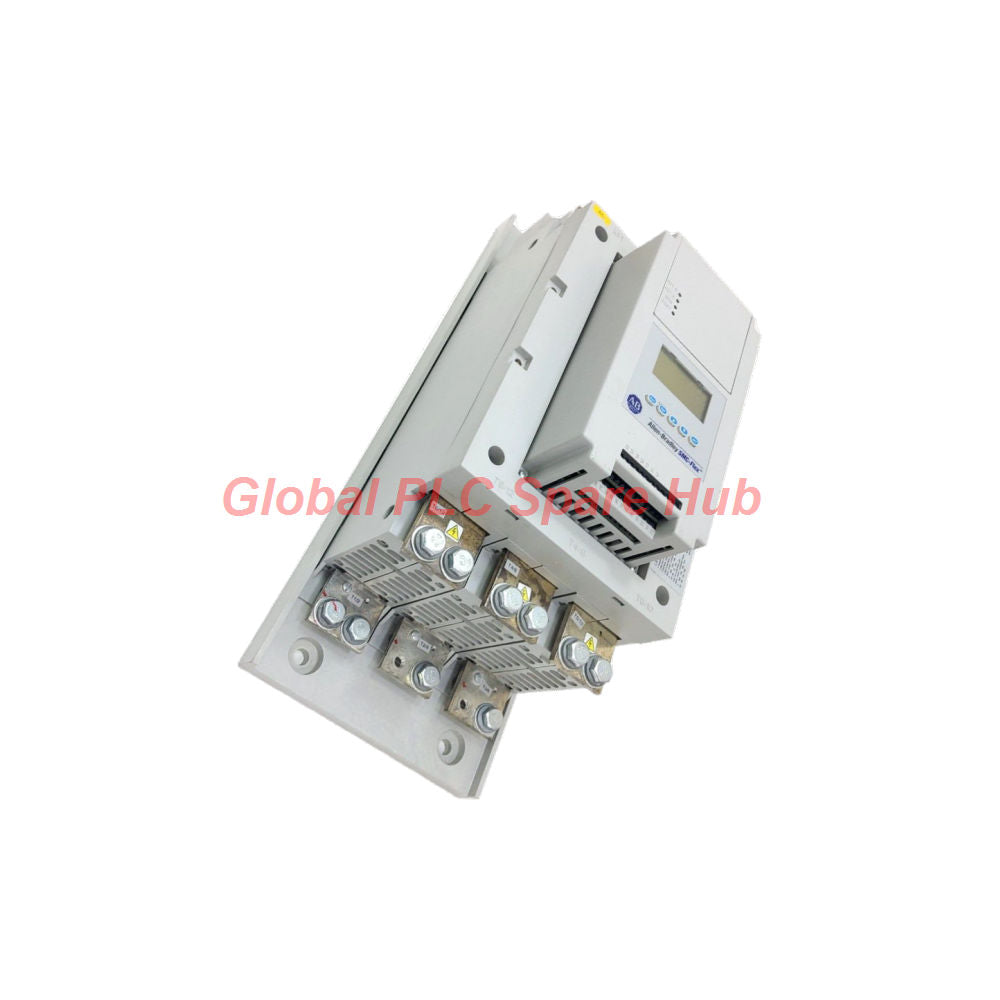

150-F201NBDB Allen-Bradley SMC Flex Smart Motor Controller

Engineering Architecture & Product Overview

The 150-F201NBDB Allen-Bradley SMC Flex Smart Motor Controller represents a robust solid-state soft-starter architecture engineered to replace conventional electromechanical motor starters. Operating across a 208 to 460 V AC line voltage spectrum at 50/60 Hz, this 201 A, 150 HP controller delivers precise torque and current profile management for heavy-duty industrial machinery, ensuring reduced mechanical shock and optimal energy conservation.

Configuration Blueprint & Electrical Specifications

• Manufacturer & Series: Allen-Bradley SMC-Flex Product Family
• Primary Part Number: 150-F201NBDB (UPC: 662073059950)
• Current & Power Ratings: 201 Amperes output current, 150 HP output power at 460 VAC
• Line & Operating Voltage: 200 – 460 V AC, 3-Phase, 47–63 Hz frequency
• Control Voltage Range: 100 – 240 V AC control power supply
• Supported Motor Topologies: Standard squirrel-cage induction motors; Wye-Delta six-lead motor configurations
• Enclosure & Mounting: Open Style construction intended for secure panel-mounted enclosure integration
• Physical Dimensions & Mass: Net weight 60.06 lbs (27.24 kg)

Core Operating Modes & Soft-Start Profiles

• Acceleration Control: Soft Start, Current Limit Start, Selectable Kickstart, Dual Ramp Start, Full Voltage Start, and Linear Speed Acceleration via external tachometer.
• Deceleration & Stopping: Coast-to-rest, Soft Stop, Pump Stop, Accu-Stop, and Smart Motor Braking.
• Specialized Profiles: Preset Slow Speed, Slow Speed with Braking, and dedicated Pump Control modes to eliminate fluid hammer in hydraulic circuits.

Advanced Diagnostics & Metering Capabilities

• Real-Time Parameter Metering: Continuously tracks Amperes, Volts, kW, kWh, MW, MWH, elapsed run time, power factor, and real-time motor thermal capacity.
• Status Indication & Relays: Features integrated LEDs for stopped, starting, stopping, at-speed, alarm, and fault conditions, paired with dedicated auxiliary contact relays (1 N.O. and 1 N.C.).
• Fault Protection Triggers: Programmable trip classes (Trip Class 10, 15, or 20) with active monitoring for overloads, underloads, voltage imbalances, phase loss, stalled rotors, and ground faults.

Global PLC Spare HUB's Insight

From an industrial control system engineering perspective, retrofitting legacy electromechanical contactors with the 150-F201NBDB significantly mitigates mechanical wear on gearbox teeth and drive belts. When deploying this unit in high-inertia applications such as large industrial fans or centrifugal pumps, engineers must verify that the acceleration ramp time and initial torque settings are tuned correctly to prevent premature thermal overload trips during prolonged startup sequences. Additionally, ensuring a minimum 250V/µs dv/dt protection buffer helps safeguard the solid-state thyristors against line-side transient spikes.

Logistics, Warranty & Fulfillment

• Rapid Dispatch: Order fulfillment and global shipping completed within 24 to 48 hours.
• Logistics Partners: Secure international transit managed through enterprise carriers including FedEx, UPS, and DHL.
• Quality Assurance: Backed by a comprehensive 12-month factory warranty ensuring absolute operational reliability.

Target Equipment & Application Scenarios

• Fluid Transfer Systems: High-capacity centrifugal pumps, municipal water boosters, and industrial compressors requiring water-hammer suppression.
• Material Handling Networks: Heavy industrial belt conveyors, overhead bridge cranes, trolleys, and automated sorting monorails.
• Mechanical Actuation: Large automated overhead doors, high-tonnage shrink-wrap packaging machinery, and vertical material lifts.

Frequently Asked Questions (FAQ)

Q: What specific protective device is mandatory ahead of the 150-F201NBDB for short-circuit clearance?

A: Because solid-state controllers primarily handle switching and soft-starting rather than fault interruption, a properly sized motor circuit breaker or high-speed semiconductor fuse must be installed upstream for short-circuit protection.

Q: Engineering Tip: How do the dual DPI communication interfaces enhance system integration?

A: The two built-in DPI ports allow simultaneous connection to a handheld Human Interface Module (HIM) for local parameter configuration and an external communication adapter module for plant-wide PLC network integration.

Q: Purchasing Guidance: Can this open-style controller be mounted directly inside a dusty manufacturing floor environment?

A: No. The unit features an open-style construction and must be housed inside a suitably rated protective enclosure (such as NEMA 12 or IP54) to shield internal electronics from ambient moisture, conductive dust, and extreme temperature fluctuations.

Q: Troubleshooting Guide: What is the primary cause if the soft-starter triggers a stall fault during acceleration?

A: A stall trip usually indicates that the initial torque or current limit settings are insufficient to overcome the breakaway load of the driven machinery, or the ramp time is set too short for high-inertia loads.

Q: Maintenance Insight: How does the Smart Motor Braking feature operate on a standard induction motor?

A: The controller injects a controlled DC braking current into the motor windings upon stop command, creating a stationary magnetic field that brings high-inertia loads to a controlled stop without requiring mechanical friction brakes.
