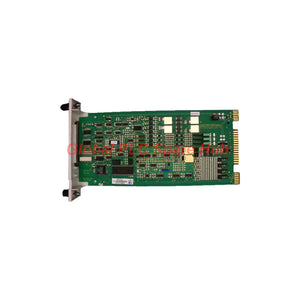

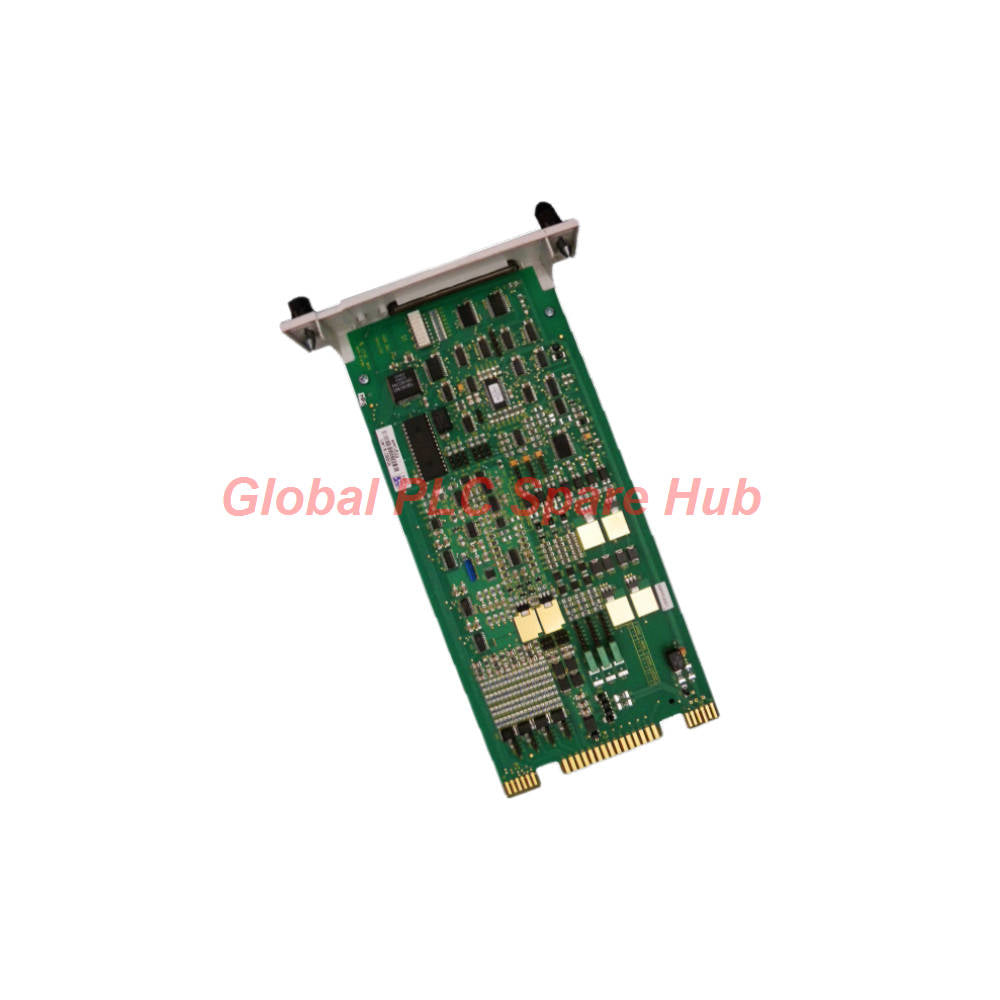

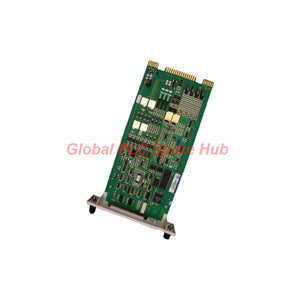

SPCIS22 ABB Bailey Control Input Output Module Symphony Plus

Product Overview

The ABB SPCIS22 (frequently designated as CIS22 or IMCIS22) serves as a high-density Control Input Output Module within legacy and modern process control architectures. Engineers integrate this unit into ABB Symphony Plus, INFI 90, and NET 90 distributed control systems (DCS). The module converts field signal data into real-time processor instructions with high operational stability.

This unit executes precise signal conditioning across discrete and analog loops. Plant technicians utilize the module to interface field instrumentation directly with central processing units. Its modular construction reduces rack space consumption while maintaining isolated signal integrity across severe industrial environments.

Technical Specifications

System Compatibility & Architecture

• Integrates seamlessly into existing ABB Harmony and INFI 90 module mounting units (MMU).
• Supports drop-in operation with legacy NET 90 controller racks without hardware backplane modification.
• Communicates via standard ABB control networks through Ethernet Router Services or Modbus gateways.
• Operates alongside standard power module units supplying regulated 24 V DC bus power.

Installation Guidelines

• Disconnect system cabinet power before inserting or removing the SPCIS22 module.
• Align the circuit card edges carefully with the rack guide rails in the cabinet.
• Slide the card firmly until the backplane connector seats completely into the socket.
• Tighten top and bottom retaining screws to secure grounding chassis connections.
• Verify field transmitter wiring polarity before energizing the 24 V DC loop supply.

Commissioning, Maintenance & Diagnostics

Engineers perform commissioning through standard ABB Composer or S+ Engineering software tools. Front panel LED indicators provide real-time diagnostic status for field loop monitoring. Diagnostic hardware automatically detects open-circuit analog loops, field power loss, and internal communication faults. Technicians replace failed channels rapidly due to hot-swappable module retention architecture within powered rack systems.

Certifications & Quality Compliance

• CE Mark certified for European industrial equipment compatibility.
• ISO 9001 quality manufacturing processes strictly implemented during assembly.
• RoHS directive compliant regarding hazardous substance restrictions.
• UL Listed for hazardous location installation standards.

Global PLC Spare HUB's Insight & Field Experience

Our control engineers frequently analyze field performance data for the ABB SPCIS22 across power generation and petrochemical facilities. During a recent turbine control retrofitting project, a client experienced intermittent signal spikes on a boiler feed pump feedback line. The client suspected field transmitter failure.

Our technical team advised inspecting the CIS22 analog channel isolation barriers. We identified common-mode ground potential differences exceeding 50 V DC caused by degraded field cable shielding. Replacing the module and re-establishing proper backplane grounding resolved the noise issue immediately without replacing expensive field transmitters. We recommend verifying shield grounding bus integrity during every scheduled turnaround to prevent premature input channel drift.

Typical Industry Applications

• Power Plant Boiler & Turbine Control Loops in Symphony Plus DCS environments.
• Chemical Process Batch Reactor Monitoring via INFI 90 control architectures.
• Water and Wastewater Flow Valve Actuation with mixed AI/AO requirements.
• Oil Refining Distillation Column Pressure Regulation and digital interlocking.

Selection & Procurement Guide

• Verify your existing DCS rack backplane type (Harmony MMU vs NET 90 legacy rack).
• Calculate total channel requirements to ensure 4 AI, 2 AO, 3 DI, and 4 DO meet loop counts.
• Confirm field power supply voltage matches the required nominal 24 V DC specifications.
• Check software revision levels in Composer or Engineering Workbench for module driver support.

Packaging & Commercial Terms

• Package List: 1 x ABB SPCIS22 Control I/O Module, factory ESD protective packaging, verification card.
• Warranty Terms: Complete 12-month full coverage warranty starting from the date of dispatch.
• Dispatch Lead Time: Fast dispatch within 24–48 hours upon order confirmation.
• Global Express Shipping: Secure worldwide delivery via FedEx, UPS, and DHL express carriers.

Frequently Asked Questions (FAQ)

Question: Is the SPCIS22 directly interchangeable with IMCIS22 hardware?

Answer: Yes. The SPCIS22, CIS22, and IMCIS22 designate identical functional control hardware across different generation nomenclatures of the ABB system family.

Question: How do I troubleshoot a solid red status LED on the front panel?

Answer: A solid red status LED indicates an internal self-test failure or backplane power drop. First, reseat the module in the slot. If the fault remains, check the 24 V DC bus power levels on the rack.

Question: Can I wire 4-wire transmitters directly to the analog input channels?

Answer: Yes. The analog inputs accommodate self-powered 4-wire transmitters within the -10 V to +10 V or equivalent converted current range using external precision resistors.

Question: What shipping options do you offer for urgent factory downtime situations?

Answer: We dispatch orders within 24 to 48 hours. Express options through DHL, FedEx, and UPS ensure emergency delivery to international job sites.
