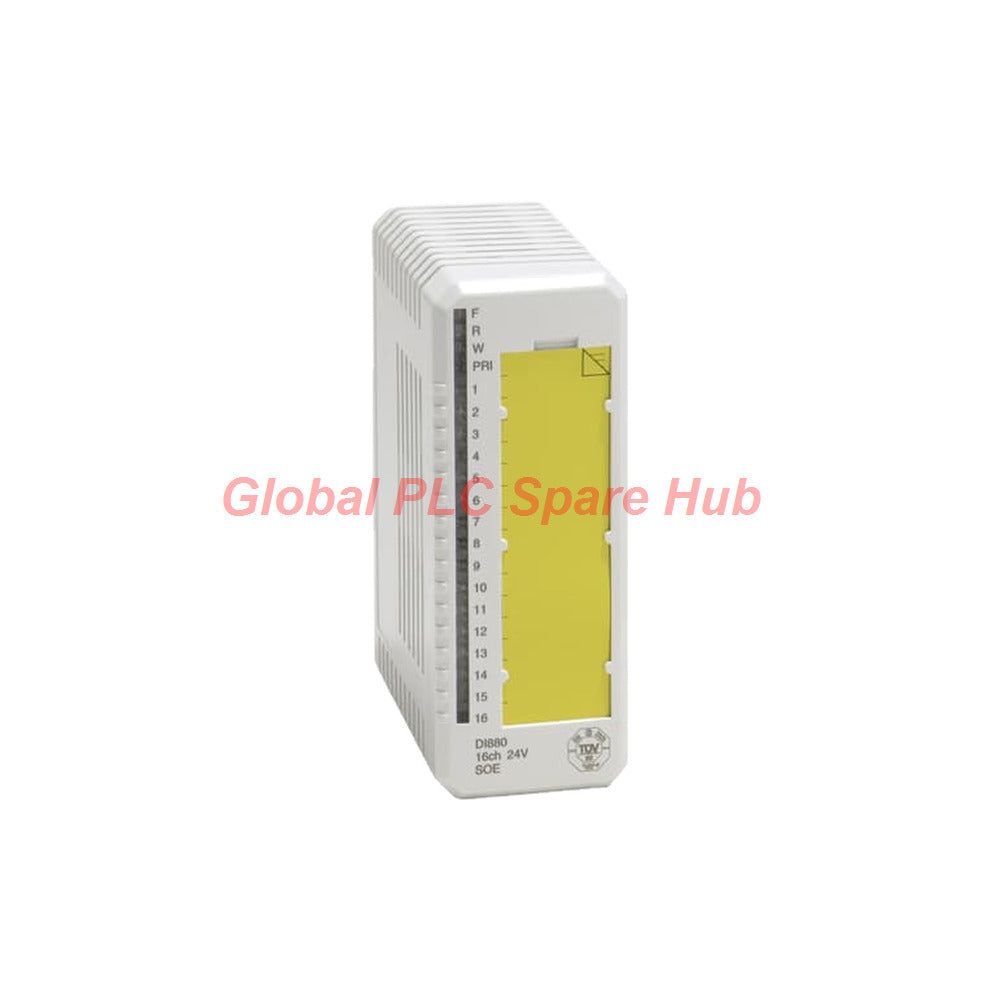

DI880 ABB S800 16-Channel SIL3 Safety Digital Input Module

System Architecture and Functional Overview

The DI880 (Article Number: 3BSE028586R1) functions as a high-integrity 16-channel digital input module designed for the ABB S800 I/O platform. Certified for SIL3 safety applications (IEC 61508) and Category 4 (EN 954-1), this module supports both single and redundant configurations while providing individual current-limited sensor power supplies for every input channel.

Technical Parameters and Specifications

Physical Mounting and Installation Guidelines

• Mount the DI880 safety module onto certified S800 Module Termination Units (MTUs) matching the FF keying code designation.
• Ensure proper vertical orientation, keeping operating temperatures between 0°C and 55°C (or capped at 40°C when using compact MTUs).
• Run field cabling up to 600 meters (656 yards) while utilizing proper shielding for high-integrity safety loops.
• Verify that external 24V d.c. sensor power supplies remain stable within the 18V to 30V operational window.

Advanced Diagnostics and Shutter Filter Capabilities

• On-board Sequence of Events (SOE) engine captures rapid state changes with 1 ms resolution and stores up to 512 events per channel.
• Integrated Shutter Filter suppresses chatter and unwanted rapid-fire event triggers in noisy industrial environments.
• Extensive front-panel LED indicators display Fault (F), Run (R), Warning (W), Primary status (P), and individual channel states (1-16).

Compatibility and Environmental Hardening

• Fully compatible with single or redundant S800 ModuleBus controller configurations.
• Conformal coated to meet ISA-S71.04 G3 harsh environmental corrosion standards.
• Certified for hazardous locations including cULus Class I Div 2, Class I Zone 2, and ATEX Zone 2.

Logistics and Warranty Terms

• Backed by a reliable 12-month warranty covering manufacturing defects and hardware calibration.
• Expedited global delivery coordinated through premier logistics carriers including FedEx, UPS, and DHL.
• Guaranteed order preparation and rapid dispatch within 24-48 hours of verification.

Target Equipment and Typical Application Scenarios

• Emergency Shutdown Systems (ESD) and Fire & Gas (F&G) safety instrumented loops in petrochemical refineries.
• High-integrity turbine safety interlocks and critical nuclear or power generation trip systems.
• Complex chemical reactor safeguard systems requiring SIL3 compliance and redundant IO architecture.

Global PLC Spare HUB's Insight and Field Experience

Safety engineers deploying the DI880 module in redundant configurations must ensure that both primary and back-up slots utilize matching FF keying MTUs to prevent synchronization faults across the ModuleBus. Field experience indicates that configuring the on-board shutter filter correctly is essential when dealing with mechanical limit switches prone to contact bounce, preventing false SOE queue overflows during plant trips.

Frequently Asked Questions

Q: What specific safety certifications does the DI880 digital input module hold for critical shutdown loops?
A: The DI880 is certified for SIL3 according to IEC 61508 and Category 4 according to EN 954-1 standards.

Q: Can the DI880 module be deployed in a redundant S800 I/O hardware architecture?
A: Yes, the module fully supports both single and redundant physical configurations using compatible dual-slot MTUs.

Q: What troubleshooting steps apply if the SOE event queue reports synchronization jitter or uncertain time flags?
A: Check controller clock synchronization over the bus, verify ModuleBus scan rates, and inspect network termination health.

Q: What is the primary purpose of the built-in Shutter Filter feature?
A: The shutter filter suppresses unwanted chattering and transient noise on digital inputs, preventing the SOE queue from filling up with false trip events.

Q: What selection guidance applies when matching terminal blocks to this module?
A: Ensure the chosen S800 MTU (such as TU810 or TU852) features the matching FF keying code to align with the module mechanical pins.
