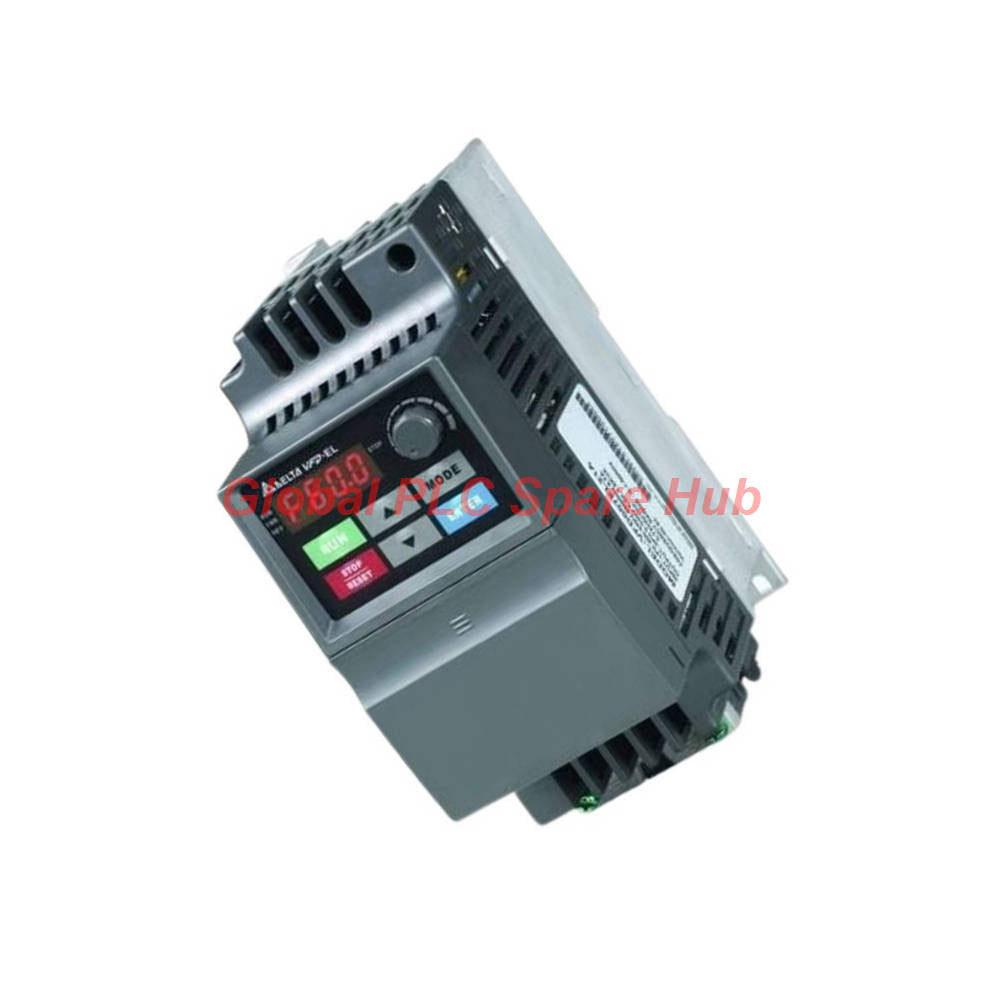

Delta Electronics VFD007EL23A Micro AC Drive 1HP 230V

Product Introduction

The Delta VFD007EL23A belongs to the high-performance VFD-EL series. This compact AC drive provides efficient motor control for demanding industrial environments. It excels in applications requiring reliable V/Hz and sensorless vector control. Engineers utilize this drive for precise speed regulation and energy efficiency. The unit integrates seamlessly into existing automation systems via standard Modbus protocols. Its robust construction ensures longevity in diverse manufacturing settings.

Technical Specifications

• Brand: Delta Electronics
• Model: VFD007EL23A
• Series: VFD-EL
• Power Rating: 1 HP (0.75 kW)
• Input Voltage: 200–240 VAC, 3-Phase
• Output Current: 4.2 A
• Frequency Range: 0.1 to 600 Hz
• Control Mode: V/Hz and Sensorless Vector Control
• Enclosure Rating: IP20
• Frame Size: NEMA Frame A
• Dimensions: 6.86" (H) x 2.83" (W) x 5.36" (D)
• Braking: Built-in dynamic braking transistor and DC injection
• Communication: Standard Modbus (RS-485)

Installation, Maintenance, and Compatibility

• Mount the unit vertically on a DIN rail or wall to ensure heat dissipation.
• Allow 50mm of clearance on all sides for optimal thermal management.
• The VFD007EL23A features a removable keypad for easy parameter setting and local diagnostics.
• Maintenance requires periodic cleaning of cooling fans and verifying terminal torque.
• This drive is compatible with standard 3-phase induction motors.
• Integration supports connection with PLCs and HMIs via Modbus RTU.
• Global certifications include CE, UL, and cUL standards.

Global PLC Spare HUB’s Insight

The VFD007EL23A is a workhorse in our inventory. We recommend this drive for conveyor systems, packaging machines, and small pump applications. Its sensorless vector control provides excellent torque response at low speeds. The VFD-EL series is ideal for replacing older scalar drives to improve energy consumption. It performs exceptionally well in dusty environments when mounted inside a properly ventilated control cabinet.

Shipping and Warranty

• We ship via FedEx, UPS, and DHL.
• All orders process within 24 to 48 hours.
• This product includes a 12-month quality warranty.
• Packaging includes the drive, mounting hardware, and quick-start manual.

Frequently Asked Questions

What is the primary benefit of the VFD-EL series?
The VFD-EL series offers a compact footprint with high-end features like sensorless vector control. This makes it perfect for space-constrained machine designs.

Can I monitor the VFD007EL23A remotely?
Yes, the integrated RS-485 port allows for full remote monitoring and control via Modbus protocol.

How do I troubleshoot an Overcurrent (OC) fault?
First, check for mechanical binding in the motor or load. Next, verify that the acceleration time is not too short for the load inertia.

What is your advice for selecting this drive?
Always size the drive based on the full-load amperage (FLA) of your motor rather than just the horsepower. Ensure your line voltage matches the 200-240V range specified.
