CC-PEIM01 Honeywell Experion PKS Series C Ethernet Interface Module

Engineered Architecture Overview

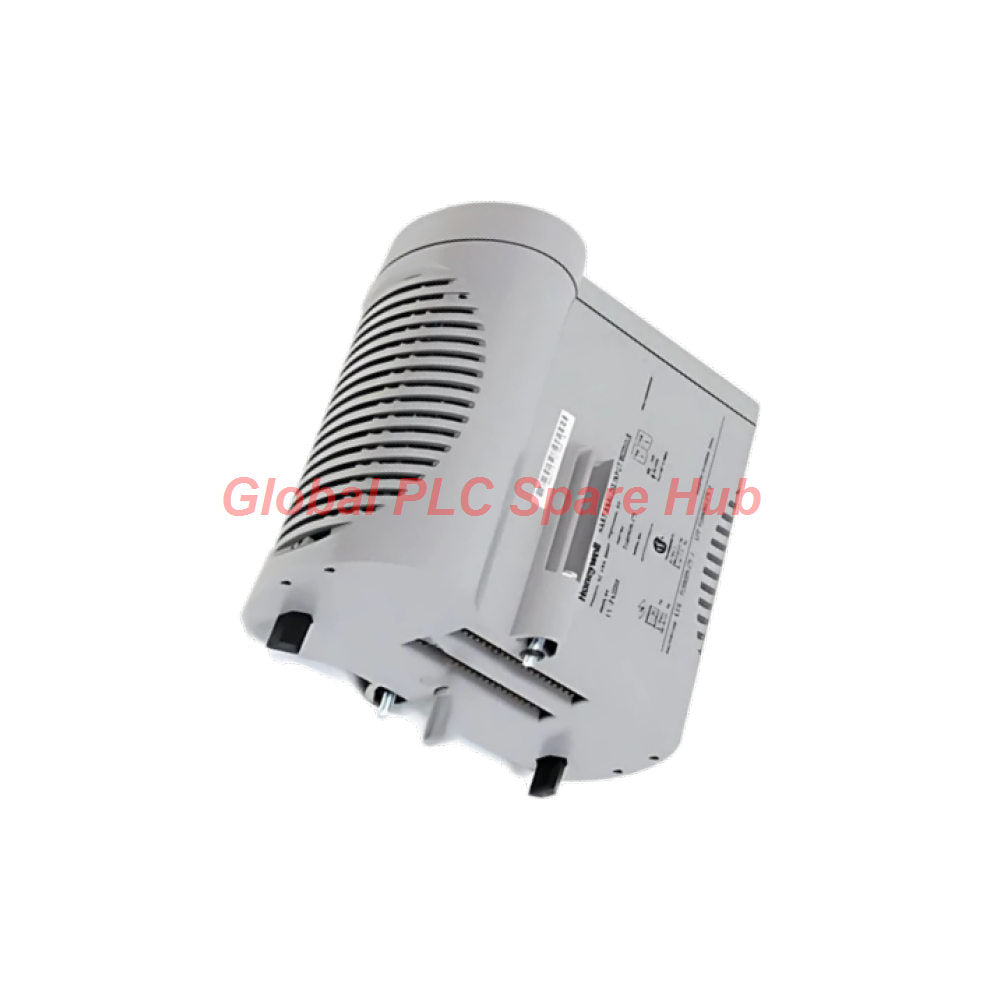

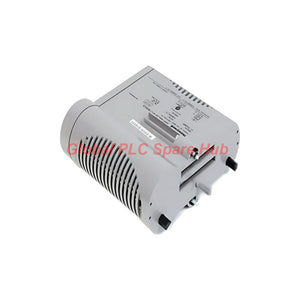

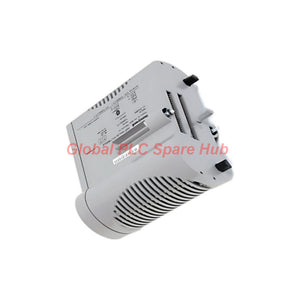

The CC-PEIM01 Honeywell Series C Ethernet Interface Module (EIM) functions as a high-performance networking bridge within the Experion PKS distributed control architecture. Part number 51454270-176 integrates seamlessly onto dedicated I/O terminal assemblies (IOTA), providing robust protocol translation and data backplane connectivity for advanced industrial control networks.

Technical Specification Matrix

Logistics, Fulfillment & Warranty Protection

• Rapid Dispatch: Orders are processed and dispatched globally within 24 to 48 hours.
• Global Express Freight: Secure, trackable delivery expedited via FedEx, UPS, and DHL.
• Commercial Assurance: Fully backed by a comprehensive 12-month quality and operational warranty.

Target Equipment & Industrial Application Scenarios

• DCS Integration: Connects legacy proprietary subsystems and third-party controllers to Honeywell C300 controller loops.
• Subsystem Bridging: Interfaces smart field instruments, variable frequency drives, and remote PLCs with the plant-wide Ethernet network.
• Data Aggregation: Facilitates real-time SCADA integration and plant historian data collection across critical oil, gas, and chemical processing units.

Built-in Diagnostics & Health Monitoring

• Link Status LEDs: Board-mounted visual indicators provide immediate verification of network traffic, port activity, and module health.
• Self-Monitoring: Continuously tracks internal bus communication integrity and power supply stability to preempt unexpected network degradation.

Global PLC Spare HUB's Insight

When deploying the CC-PEIM01 in high-availability control cabinets, ensure proper grounding of the Series C IOTA DIN rail to mitigate electromagnetic interference. Verifying firmware revision compatibility with your existing C300 controller nodes during pre-commissioning eliminates handshake delays on industrial Ethernet loops.

Technical Frequently Asked Questions

Q: What is the primary function of the CC-PEIM01 within the Series C architecture?

A: It acts as an Ethernet interface module that bridges proprietary or third-party device protocols into the Experion PKS control network.

Q: How does the module receive its operating power?

A: It draws 24 VDC power directly through the dedicated IOTA terminal base backplane connection.

Q: What steps are recommended when troubleshooting intermittent Modbus TCP timeouts?

A: Inspect the diagnostic LED indicators for link activity, verify IP address assignments, and check physical coaxial or twisted-pair shielding integrity.

Q: What criteria should guide my selection when replacing older interface cards?

A: Always cross-reference the exact part number (51454270-176) and check your Series C chassis slot physical constraints before ordering.

Q: How can the board-level diagnostic LEDs assist field technicians during system startups?

A: They provide instant visual feedback on network packet transmission and hardware fault status without requiring an engineering workstation connection.
