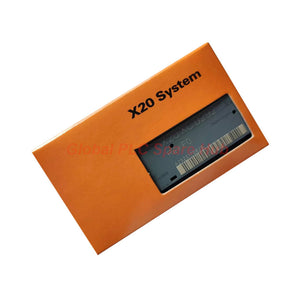

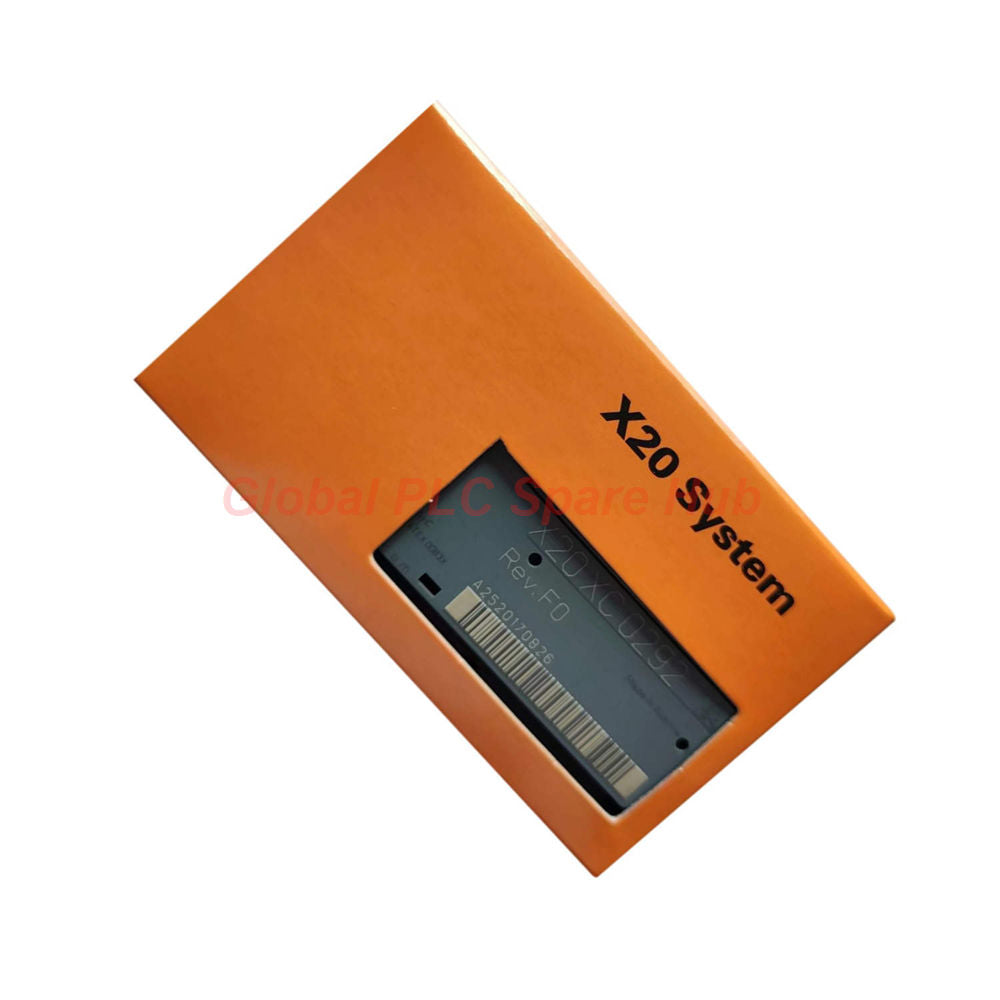

B&R X20XC0292 X20 Series Fieldbus CPU 100 Base-T Ethernet Module

Product Overview

• The B&R X20XC0292 delivers high-performance processing within the X20 Series architecture.
• This Fieldbus CPU ensures seamless connectivity for demanding industrial automation tasks.
• It provides robust reliability through specialized coated electronics for extreme environments.

Global PLC Spare HUB's Insight

• Our engineering team identifies the B&R X20XC0292 as a versatile networking powerhouse.
• The "XC" designation confirms its suitability for harsh ambient conditions.
• The integrated 100 Base-T Ethernet interface supports high-speed data exchange protocols.
• This module bridges the gap between field-level CAN devices and supervisory systems.
• It is a preferred choice for modular machine designs requiring localized intelligence.

Technical Specifications

• Brand: B&R Industrial Automation
• Model: X20XC0292
• Series: X20 Series
• Processor Logic: Fieldbus CPU P 25
• Memory Capacity: 750 KB SRAM for high-speed data access
• Storage Media: 3 MB FlashPROM for reliable firmware retention
• Communication Port A: RS232 Serial Interface
• Communication Port B: CAN Bus Interface
• Communication Port C: 100 Base-T Ethernet port
• Operating Temperature: -25°C to +60°C
• Environmental Protection: Coated PCB for enhanced moisture and dust resistance
• Interference Immunity: Advanced EMC shielding for stable industrial operation

Configuration Breakdown

• X20 System Platform
  • XC Variants (Extreme Conditions)
    • X20XC0292 Specific Chipset
      • P25 Processor Logic Engine
      • Multi-Protocol Communication Stack

Installation, Commissioning & Maintenance

• Mounting: Use the standard X20 Series backplane for secure DIN rail installation.
• Commissioning: Configure communication parameters via B&R Automation Studio software environments.
• Diagnostic Features: Utilize onboard LED indicators for CPU status and network link activity.
• Serviceability: Modular construction allows for rapid component replacement without disrupting wiring.
• Optimization: Regular firmware updates through the FlashPROM ensure long-term system stability.

Compatibility & Device Integration

• The B&R X20XC0292 integrates perfectly with all X20 Series digital and analog I/O.
• It supports standard CANopen sensors and actuator networks.
• This module communicates effectively with industrial PCs via TCP/IP protocols.
• Compatible with legacy serial devices through the integrated RS232 interface.

Typical Application Scenarios

• High-speed packaging machinery requiring distributed control logic.
• Food and beverage production lines operating in humid conditions.
• Mobile automation units utilizing robust CAN bus communication.
• Energy management systems for real-time monitoring via Ethernet.

Shipping & Warranty Terms

• Packaging List: 1 x B&R X20XC0292 Module, Industrial Grade Protection.
• Warranty Period: 12-month comprehensive warranty included.
• Dispatch Time: Orders processed and shipped within 24-48 hours.
• Courier Services: Rapid global delivery via FedEx, UPS, and DHL.

FAQ & Selection Guide

• Question: Does the X20XC0292 require a specific base module?
• Answer: Yes, it must be paired with an appropriate X20 Series bus module for power.

• Question: How do I identify if I need the XC version instead of standard?
• Answer: Choose the X20XC0292 if your cabinet faces condensation or corrosive gases.

• Question: Is the Ethernet interface compatible with POWERLINK?
• Answer: This specific module focuses on standard 100 Base-T Ethernet communication.

• Question: Can I expand the memory if my program exceeds 750 KB?
• Answer: Program logic resides in the 3 MB FlashPROM; SRAM is for runtime variables.

• Question: What is the primary benefit of the P25 processor?
• Answer: It provides a balanced ratio of power consumption to processing speed for fieldbus tasks.
