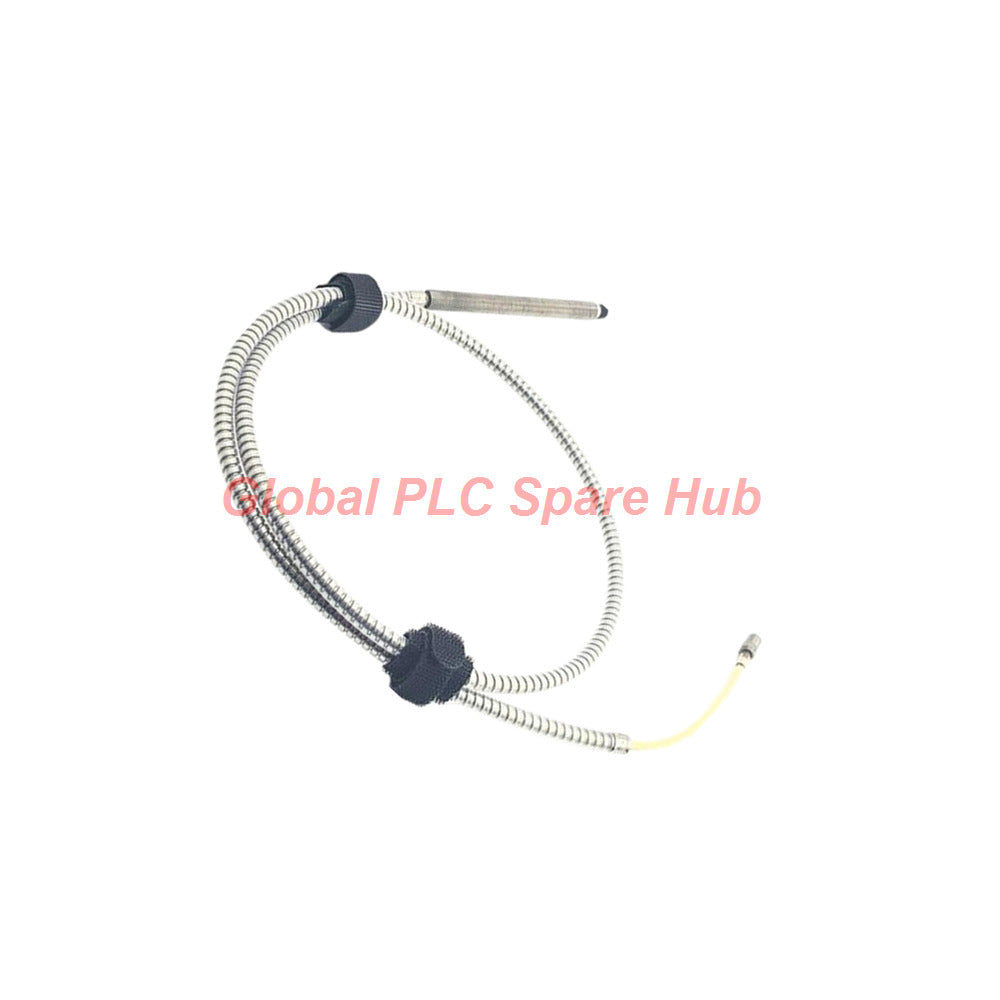

200151-XX-XX-XX Bently Nevada Accelerometer Interface Standard Cable

Product Overview

The 200151-XX-XX-XX (part number 323357-15-03-00) is a heavy-duty Accelerometer Interface Standard Cable designed by Bently Nevada for industrial vibration monitoring systems. Featuring factory-molded connectors on both ends, this assembly provides secure, low-noise signal transmission between acceleration transducers and monitoring hardware in severe operating environments.

Constructed with a 4-conductor 22 AWG wiring arrangement, a minimum 85% coverage braided shield, and a dedicated drain wire, the 200151 prevents electromagnetic interference (EMI) and radio frequency interference (RFI) from corrupting dynamic signal lines. The molded connectors deliver IP67 ingress protection, ensuring water-tight reliability even during thermal shock conditions when treated with DC4 electrical insulating compound.

Cable Construction & Technical Attributes

• Conductor Architecture & Shielding
  • Four 22 AWG stranded conductors engineered for low-capacitance dynamic signal transfer.
  • Tinned copper braided shield delivering a minimum of 85% coverage to isolate low-amplitude AC signal frequencies.
  • Integrated drain wire for continuous electrostatic charge dissipation and grounding.
• Environmental Sealing & Jacket Specifications
  • Flexible oil-resistant and chemical-resistant PVC outer jacket.
  • Factory-molded IP67-rated connector boot providing sealed strain relief against moisture ingress.
  • Nickel-plated coupling nuts resistant to corrosive industrial atmospheres.
  • DC4 electrical insulating compound integration inside connectors for thermal shock moisture protection.
• Ordering Option Structure (200151-AA-BB-CC)
  • Option A (XX): Defines custom Cable Length parameters.
  • Option B (XX): Specifies stainless steel or flexible Armor Options for mechanical protection.
  • Option C (XX): Selects specialized Coupling Nut threads and material configurations.

Technical Specifications

Diagnostic Capabilities & Signal Integrity Features

• Phase Loss & Ground Loop Isolation: High-density braided shielding prevents stray ground current loops from corrupting high-frequency FFT spectra.
• Thermal Shock Resistance: Internal DC4 compound prevents internal condensation during rapid ambient temperature shifts, avoiding spurious bias voltage shifts.
• Strain Relief Visual Inspection: Molded boot strain reliefs allow field engineers to quickly verify mechanical tension fatigue and prevent internal conductor breaks.

Target Application Scenarios & Monitoring Equipment

• Rotating Machinery Protection: Transmits high-frequency vibration signals from casing accelerometers on gas turbines, high-speed gearboxes, and boiler feed pumps.
• Bently Nevada 3500 System Integration: Connects acceleration sensors directly to 3500/42M or 3500/40M monitor channels without signal degradation.
• Severe Outdoor Environments: Used in offshore oil platforms, cooling towers, and petrochemical units where exposure to washdown and moisture is continuous.

Installation & Cable Routing Guidelines

• Observe Minimum Bend Radius: Never route the assembly tighter than the 63.5 mm (2.5 in) bend radius threshold to avoid damaging internal shielding.
• Low-Temperature Handling Warning: Avoid flexing or pulling cables at temperatures below -20°C (-4°F), as cold PVC jackets become brittle and risk cracking.
• Coupling Torque & Compound Application: Ensure coupling nuts are hand-tightened and apply DC4 compound when mating in high-humidity zones.

Packaging, Logistics & Warranty Terms

• Dispatch Lead Time: In-stock inventory processed and prepared for dispatch within 24 to 48 hours.
• Express Global Carriers: Priority international transport via DHL Express, FedEx, and UPS.
• Original Packaging: Delivered 100% Brand New and Original in sealed factory packaging.
• 12-Month Coverage: Covered by a full 12-month quality replacement warranty against manufacturing defects.

Engineering Procurement Guide

• Verify Armor Requirements: Specify Option B (Armor) for runs through exposed cable trays where falling debris or foot traffic could crush bare PVC jackets.
• Check Total Cable Distance: Verify line capacitance across extended lengths to confirm dynamic vibration high-frequency response remains unattenuated.
• Match Sensor Interface: Confirm the coupling nut thread type matches the target accelerometer header style before installation.

Frequently Asked Questions (FAQ)

Q: What happens if this cable assembly is flexed in freezing environments below -20°C?

A: Bending the assembly below -20°C causes mechanical stress that can fracture the hardened outer PVC jacket and break internal 22 AWG strands.

Q: Is the DC4 electrical insulating compound pre-applied inside the connector boots?

A: Yes, DC4 compound is applied during factory assembly to fill micro-voids, providing an IP67 barrier against thermal shock condensation.

Q: Can I trim this molded assembly in the field to adjust length?

A: Trimming removes the factory-molded IP67 connector; for custom lengths, always select the exact AA length option when placing orders.

Q: Why is an 85% minimum braided shield coverage required for accelerometer runs?

A: High-coverage braiding blocks ambient high-frequency EMI generated by nearby variable frequency drives (VFDs) from entering the signal path.

Q: Does this cable assembly require external conduit when installed outdoors?

A: While the PVC jacket resists weather and moisture, selecting Option B stainless steel armor provides essential protection against UV radiation and physical crushing.

Global PLC Spare HUB's Insight

A petrochemical processing plant experienced persistent high-frequency noise spikes on their induced draft fan vibration channels, triggering false alarms on their 3500 rack system. Field technicians had used generic non-shielded cabling during a quick turnaround, exposing the millivolt accelerometer outputs to neighboring motor drive interference.

Our technical team supplied factory-original 200151 armored cable assemblies featuring 85% braided shielding and IP67 molded boots. Once installed, the high-frequency floor noise dropped instantly by over 90%, eliminating false trips and securing stable, long-term vibration monitoring across the entire compressor deck.
