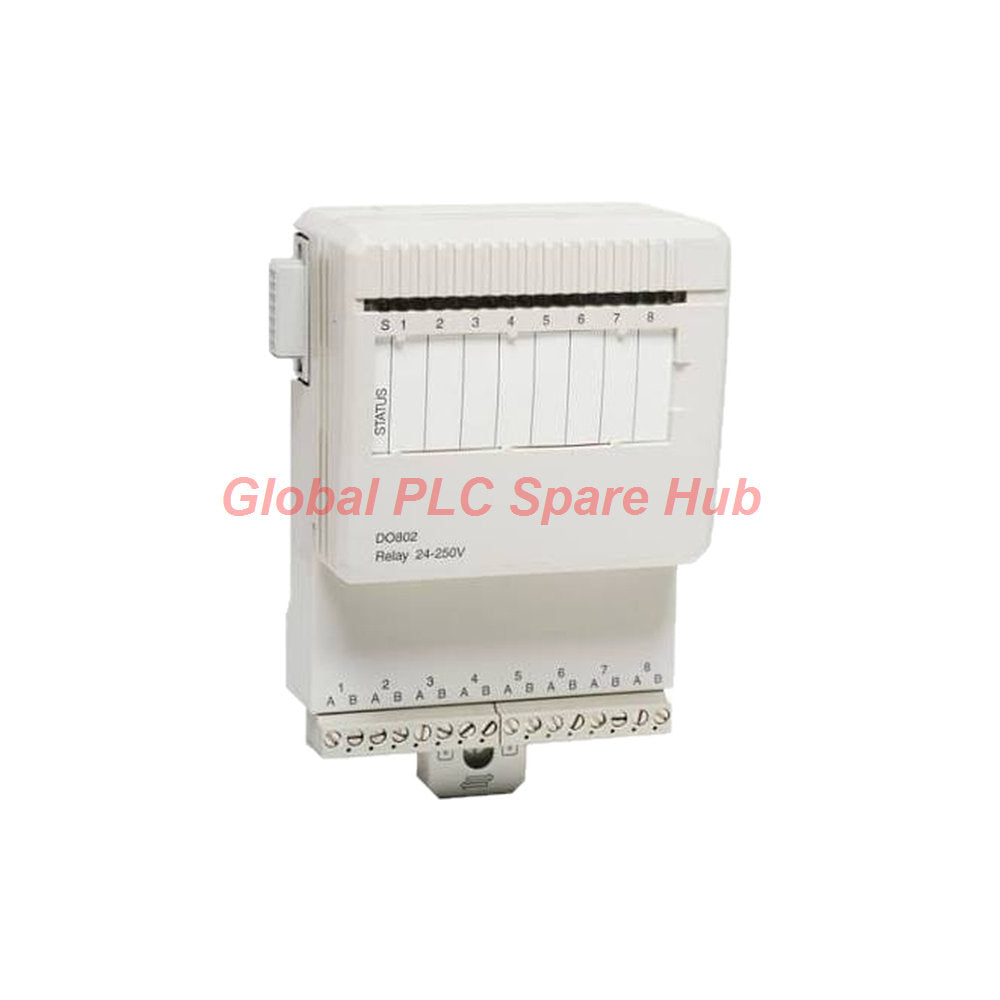

DO802 3BSE022364R1 ABB Digital Output Module Stock
Manufacturer: ABB
Product No.: 3BSE022364R1
Condition： In stock
Product Type: Digital Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Module Architecture & Core Identity
- Brand: ABB
- Model: DO802 (Article Number: 3BSE022364R1)
- Series: S800L I/O
- Product Type: 8-Channel Relay Normally Open (NO) Output Module
- Built with fully isolated channel-to-channel architecture and detachable process connectors.
Technical Specification Matrix
| Engineering Parameter | Operational Standard |
|---|---|
| Brand & Model | ABB DO802 (3BSE022364R1) |
| Signal Specification | 24 to 110 V d.c. / 250 V a.c. (maximum continuous current: 2 A) |
| Channel Isolation | Individually isolated between channels and circuit common |
| Dielectric Test Voltage | 2000 V a.c. isolation test standard |
| Wire Size Compatibility | Solid: 0.05-2.5 mm² (30-12 AWG); Stranded: 0.05-1.5 mm² |
| Physical Dimensions | 86.1 mm width x 110 mm height x 58.5 mm depth (Weight: 0.24 kg) |
Target Equipment & Heavy Industrial Applications
- High-voltage actuator and heavy-duty solenoid valve switching nodes.
- Power plant auxiliary motor control circuits requiring galvanic isolation.
- Marine propulsion and onboard automation systems holding ABS, BV, DNV, and LR certifications.
- Industrial burner management and heavy relay interlocking panels.
Global PLC Spare HUB Insight, Diagnostics & Field Experience
- Our instrumentation group deployed the DO802 module into a high-capacity boiler interlock control cabinet.
- Field Experience: The system experienced a relay power converter drop due to a fluctuating ModuleBus 24V supply.
- The built-in relay supply supervision instantly detected the voltage loss, triggering a module warning and channel error flag via the bus.
- Front-panel status LEDs allowed maintenance technicians to pinpoint the faulty power loop without interrupting surrounding automation processes.
Logistics, Fulfillment & Warranty Terms
- Packaging: Anti-static factory-sealed industrial packaging for safe global transit.
- Dispatch: Express 24-48 hour worldwide delivery via FedEx, UPS, or DHL.
- Warranty: Fully backed by a comprehensive 12-month quality assurance guarantee.
Frequently Asked Questions (FAQ)
-
Q: How does the module supervise internal relay supply voltages during runtime?
A: It monitors the 24/12V relay power converter derived from the ModuleBus, generating warning flags if power disappears. -
Q: Can I enable or disable the relay supply voltage supervision feature?
A: Yes, this supervision mechanism can be dynamically enabled or disabled using a configuration parameter. -
Q: What is the maximum continuous current capacity per output channel?
A: Each relay normally open (NO) channel supports up to 2 A continuous current across its maximum voltage rating. -
Q: What selection factors should guide my wiring torque and stripping guidelines?
A: Ensure solid or stranded wires are stripped to 6-7.5 mm and tightened using a recommended torque between 0.5 and 0.6 Nm. -
Q: How should I troubleshoot a sudden channel error indicated by the front status LEDs?
A: Verify your external load currents do not exceed 2 A and inspect the ModuleBus power converter supervision status for voltage drops.
