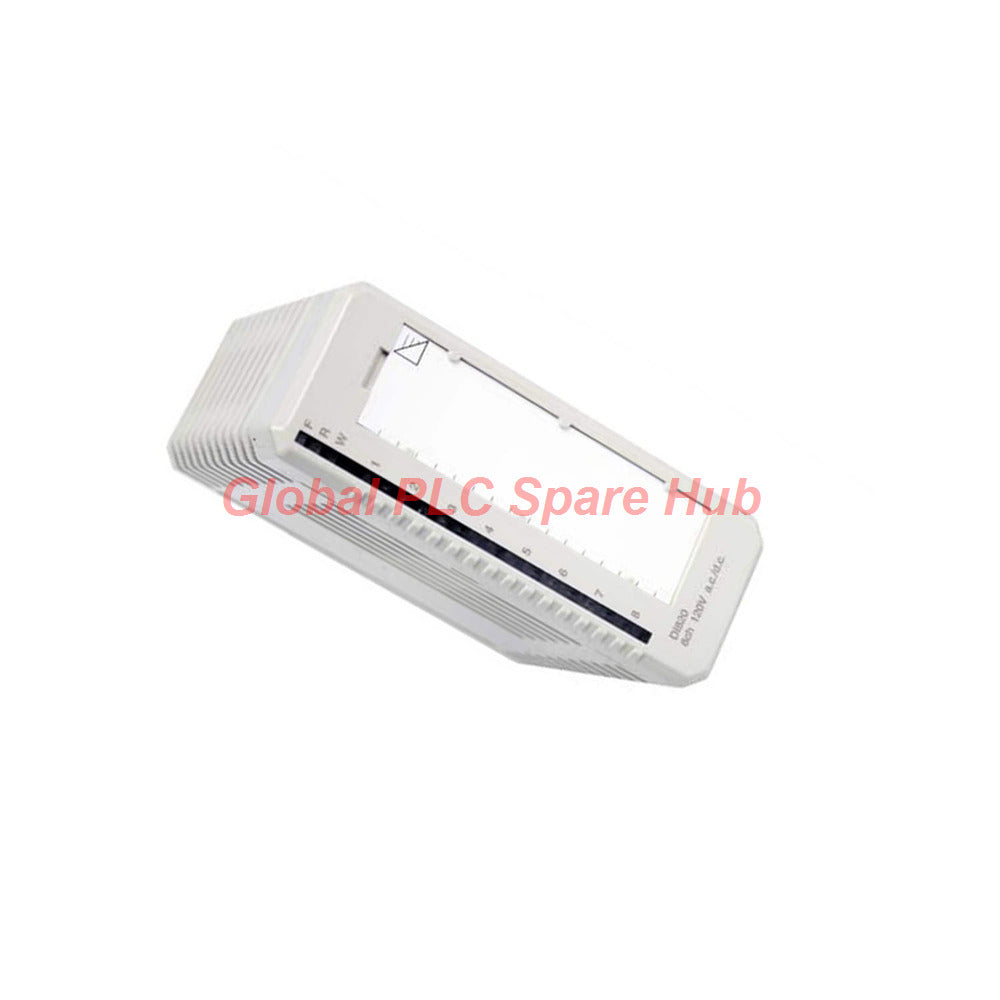

DI820 3BSE008512R1 ABB S800 I/O Digital Input Module - 120V AC/DC

Product Overview

The DI820 (Article Number 3BSE008512R1) is a high-voltage, channel-isolated Digital Input Module designed by ABB for the S800 I/O expansion family. Engineered for harsh industrial environments, this 8-channel current-sinking module handles wide-spectrum high-voltage inputs spanning 77 to 130 V a.c. and 75 to 145 V d.c. without external dropping resistors.

Every individual input channel features galvanic optical isolation, current-limiting circuitry, transient EMC suppression, and a hardware analog filter (6 ms). Crucially, channels 1 and 8 can be configured as field process voltage supervision inputs for their respective channel groups (2–4 and 5–7), broadcasting system-level warning status across the backplane ModuleBus and illuminating front-panel fault LEDs upon line voltage drop.

System Architecture & Channel Engineering

• Galvanic Channel-to-Channel Isolation
  • Individually isolated input channels rated for 250V insulation voltage and tested up to 2000V a.c. dielectric withstand voltage.
  • Prevents cross-channel noise propagation and ground loops between disparate field power sources.
• Integrated Field Voltage Supervision
  • Group 1 Supervision: Channel 1 continuously monitors field input power for channels 2 through 4.
  • Group 2 Supervision: Channel 8 continuously monitors field input power for channels 5 through 7.
  • In the event of supply voltage loss, internal error flags activate, lighting the front Warning LED and reporting telemetry over ModuleBus.
• Advanced Filtering & Cable Capabilities
  • Hardware analog filter providing fixed 5 ms ON delay and 18 ms OFF delay.
  • Selectable digital filtering configurable for 2, 4, 8, or 16 ms scan intervals.
  • Extended field wiring limits supporting up to 200 meters (a.c. runs @ 100 pF/m) and 600 meters (d.c. runs).

Technical Specifications

Diagnostic Capabilities & Front Panel Telemetry

• Front Panel LED Array: Features individual status LEDs for Fault (F), Run (R), Warning (W), and individual input channels for instant visual verification.
• ModuleBus Error Messaging: Distinguishes between Module Error, Module Warning, and individual Channel Errors directly to the 800xA / Compact Products 800 controller.
• Process Voltage Drop Alert: Triggers automatic software alerts when auxiliary field power supplies drop below minimum operating thresholds.

Target Application Scenarios & Systems

• Substation Control & MCC Feedback: Monitors 110 V d.c. trip coil status, breaker auxiliary contacts, and disconnect switches in power utility installations.
• High-Voltage Plant Interlocks: Direct connection to 120 V a.c. motor starters, safety limit switches, and control relays without interposing isolation relays.
• Chemical & Refining Facilities: Installed in severe atmospheric conditions with G3 harsh environment coating (ISA-S71.04) compliance.

Installation & Module Termination Guidelines

• Mechanical Mounting Orientation: Operates up to 55°C in horizontal configurations; maximum ambient rating is 40°C when vertically mounted in compact MTUs.
• Keying Pin Alignment: Align the mechanical keying switches on the target Module Termination Unit (MTU) to position 'AB' prior to insertion.
• Supervision Wiring Configuration: Connect group field power feeds to channel 1 (for channels 2–4) and channel 8 (for channels 5–7) to leverage automatic voltage monitoring.

Packaging, Logistics & Warranty Terms

• Dispatch Lead Time: In-stock original factory inventory dispatched within 24 to 48 hours.
• Priority Global Logistics: Rapid air express shipping via FedEx, UPS, and DHL.
• Factory Sealed Quality: Delivered 100% Brand New and Original in protective industrial packaging.
• 12-Month Coverage: Fully supported by a 12-month quality replacement warranty.

Engineering Procurement Guide

• Confirm Field Voltage Levels: Ensure field signals fall strictly within 77–130 V a.c. or 75–145 V d.c. to guarantee proper logic state transitions.
• Verify Baseplate Selection: Pair with the TU811V1 or compatible MTUs based on field wiring type and terminal screw requirements.
• Calculate Thermal Loading: Budget for a maximum module dissipation of 2.8 W per card when calculating cabinet heat load and ventilation.

Frequently Asked Questions (FAQ)

Q: What happens if field power to channel 1 drops while channels 2 through 4 remain active?

A: The supervision circuit flags a process voltage error, lights the front Warning LED, and sends a warning telemetry packet over the ModuleBus.

Q: Is an external interposing relay required to connect 120V AC limit switches to this card?

A: No, the input channels natively accept up to 130V AC signals directly due to built-in optical isolation barriers and voltage limiters.

Q: Can this module be installed onto a standard compact MTU in vertical orientation?

A: Yes, but the maximum allowable operating ambient temperature decreases from 55°C down to 40°C due to vertical convection flow limits.

Q: What is the main functional difference between the digital filter and the analog filter settings?

A: The hardware analog filter provides fixed physical signal smoothing (5ms/18ms), whereas the selectable digital filter offers configurable software scan delays (2 to 16ms).

Q: How does individual channel isolation protect the main host controller?

A: Each input channel maintains galvanic isolation up to 2000V AC, preventing field surges or short circuits from damaging adjacent channels or the backplane.

Global PLC Spare HUB's Insight

In a thermal power station retrofit, engineers were experiencing intermittent control faults caused by ground potential differences between far-apart motor control centers and the central DCS. Standard non-isolated digital input cards were frequently damaged by high-voltage field spikes originating from 110 V d.c. trip circuits.

Our technical team advised replacing the legacy input cards with the DI820 3BSE008512R1 module. Featuring 2000V dielectric channel-to-channel isolation and integrated process voltage supervision on channels 1 and 8, the module instantly eliminated ground loop issues. Field technicians were also able to pinpoint blown field fuses immediately thanks to the front Warning LED and ModuleBus alerts, reducing diagnostic downtime by more than 80%.
