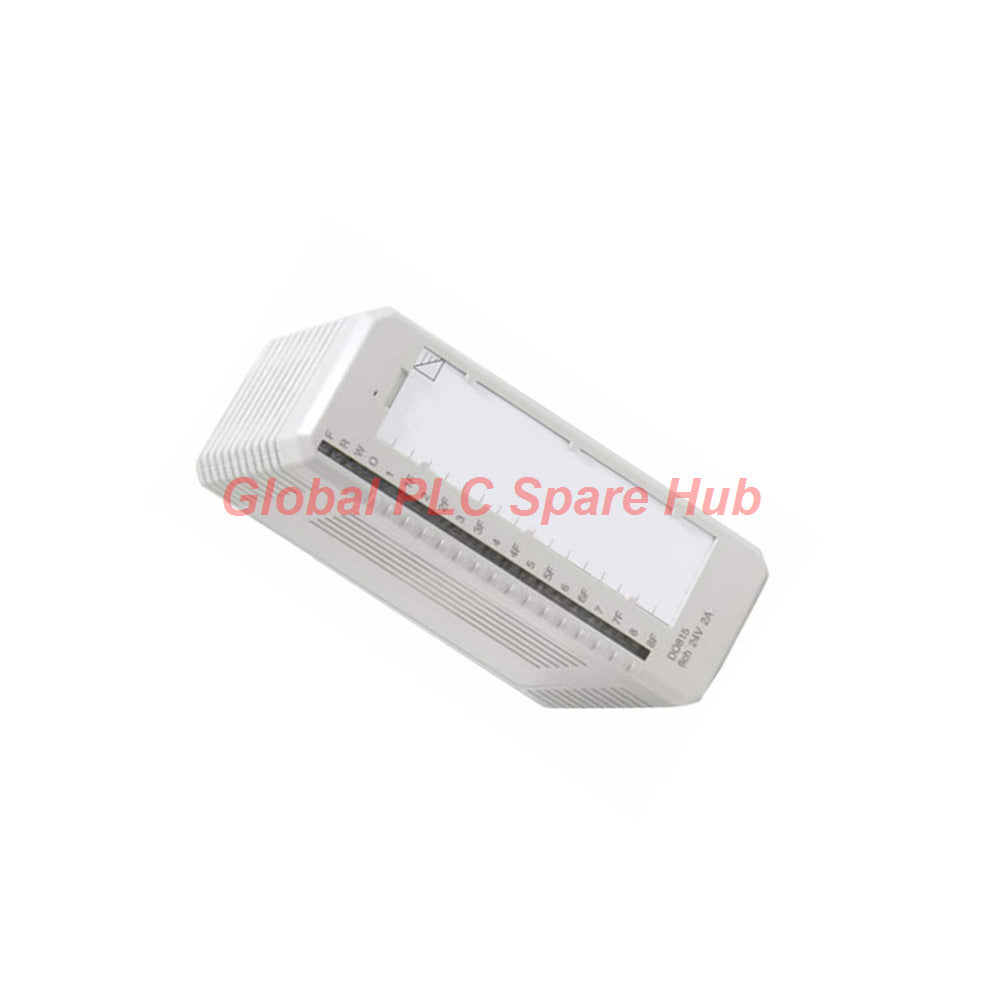

DO815 S800 I/O Digital Output Module ABB 8-Channel Card
Manufacturer: ABB
Product No.: DO815
Condition： In stock
Product Type: Digital Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Output Architecture Overview
The DO815 operates as an advanced 8-channel 24 VDC digital output module designed for the ABB S800 I/O ecosystem. This DO815 card employs high-side drivers featuring current-limiting protection, open-load detection, and integrated inductive load suppression for high-reliability automation tasks.
Technical Specification Matrix
| Manufacturer | ABB |
| Model / Article Number | DO815 / 3BSE013258R1 |
| Series / Module Type | S800 I/O Digital Output Module |
| Output Voltage & Current | 10 to 30 V DC (10-32 V range), 2.0 A continuous per channel at 24 V |
| Channel Grouping | 8 channels split into 2 individually isolated groups of 4 |
| Modulebus Power Consumption | 120 mA typical (max 150 mA) at +5 V DC; 0 mA at +24 V DC |
| Operating Temperature | 0 degrees Celsius to +55 degrees Celsius |
| Keying Code & MTU | Keying code AA; compatible with TU810, TU812, TU814, TU830 |
Commercial Terms and Logistics
- Factory Warranty: Full 12-month structural and functional integrity coverage
- Fulfillment Schedule: 24 to 48 hour dispatch window from warehouse
- Global Courier Partners: Express delivery options via FedEx, UPS, and DHL
Target Equipment and Application Scenarios
- Actuates solenoid valves, pneumatic control banks, and heavy-duty industrial relays.
- Drives industrial indicator lamps and filament loads up to 10W safely.
- Deploys within marine propulsion control systems certified by ABS, BV, DNV, and LR.
- Operates inside hazardous chemical processing skids requiring ATEX Zone 2 compliance.
Comprehensive Diagnostic Capabilities
- Real-time supervision flags short-circuits to ground/supply, overloads, and undervoltage states.
- Open-load detection identifies broken actuator wiring during active signal transmission.
- Front-panel LED array displays system faults, run mode, warnings, OSP status, plus individual channel status and channel-wise errors.
Global PLC Spare HUB's Insight
Field engineers frequently encounter nuisance tripping when driving inductive solenoids without adequate suppression. Global PLC Spare HUB recommends utilizing the built-in inductive load suppression modes and configuring fault-latching appropriately for critical safety shutoff loops. Pairing the DO815 with matched terminal units like the TU814V1 ensures clean power distribution and prevents voltage sag across high-current output states.
Frequently Asked Questions
What happens to the outputs if communication with the controller is lost?
The Output Set Point (OSP) feature automatically forces outputs to a predefined safe state upon detecting a communication error.
Can the output fault operation modes be customized for different applications?
Yes, the module supports both automatic reset mode and fault latching mode to handle fault recovery according to plant safety requirements.
What is the maximum permissible field cable run length for this module?
The card maintains proper signal distribution and loop stability over field cable lengths up to 600 meters (656 yards).
How are the output channels protected against electrical faults?
Each channel utilizes a short-circuit and overload-protected high-side driver with built-in thermal current limiting.
What environmental protection rating applies to harsh industrial settings?
The unit features G3 corrosion protection per ISA-S71.04 and holds an IP20 enclosure rating under IEC 60529.
