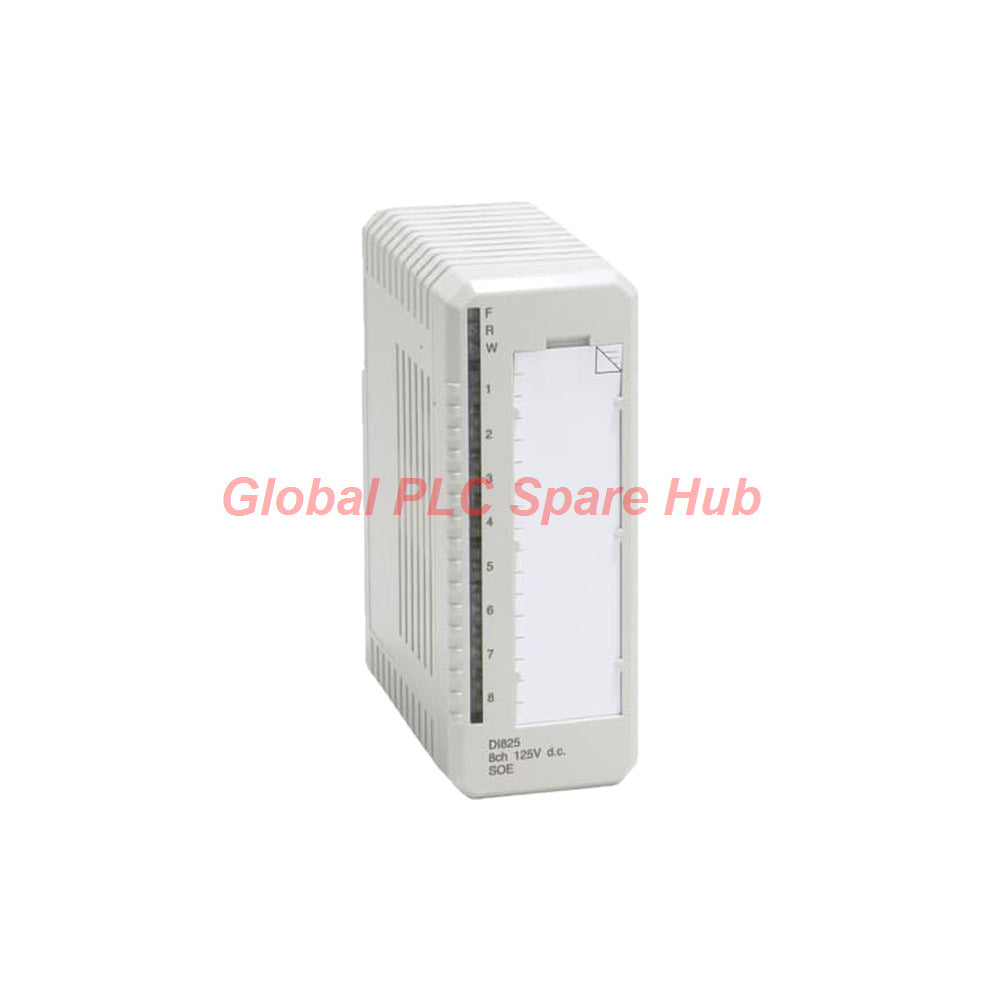

DI825 ABB Advant S800 Isolated Input Unit 3BSE036373R1
Manufacturer: ABB
Product No.: DI825
Condition： In stock
Product Type: Digital Input Module
Product Origin: SE
Payment: T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
System Architecture and Functional Overview
The DI825 (Article Number: 3BSE036373R1) is an advanced 8-channel digital input module engineered specifically for the ABB S800 I/O platform. Operating at a nominal 125V d.c., this module provides individually isolated channels equipped with built-in Sequence of Event (SOE) recording, optical isolation barriers, and dedicated voltage supervision capabilities.
Technical Parameters and Specifications
| Manufacturer / Brand | ABB / S800 I/O Series |
| Model / Part Number | DI825 (3BSE036373R1) |
| Module Type | Digital Input Module |
| Input Channels | 8 channels, current sinking, individually isolated |
| Signal Voltage Range | State "0": 0 to 20 V | State "1": 71 to 156 V (Nominal 125V) |
| Input Impedance & Current | 41.5 kΩ impedance; 3.0 mA input current at 125V |
| Sequence of Events (SOE) | Supported (0.4 ms resolution, -0.25 to 1.0 ms accuracy) |
| Compatible MTUs | TU811, TU813, TU831, TU839, TU851 (Keying Code: AB) |
| Power Dissipation | 4.9 W maximum |
| Modulebus Power Draw | Max 90 mA at +5 VDC (0 mA at +24 VDC) |
Physical Mounting and Installation Guidelines
- Mount the DI825 module onto compatible S800 ModuleTermination Units (MTUs) such as TU811V1, maintaining the AB keying code alignment.
- Ensure vertical mounting ambient temperatures do not exceed 55°C (or 40°C when using compact MTUs) to prevent internal thermal buildup.
- Route field cabling up to 600 meters (656 yards) while adhering to standard S800 EMC shielding and grounding practices.
- Verify that field supply voltages remain within the 71V to 156V operating window to ensure reliable logic state "1" detection.
Advanced Diagnostics and Voltage Supervision
- Channel 1 operates as a dedicated process voltage supervision input for channels 2 through 4, while Channel 8 supervises channels 5 through 7.
- Loss of supervisory voltage on monitoring channels triggers immediate channel error flags, warning LEDs, and ModuleBus fault reporting.
- Front-panel diagnostic LEDs provide instant visual status for Fault (F), Run (R), Warning (W), and individual channel states.
Compatibility and Environmental Hardening
- Fully compatible with ABB S800 hardware racks and control networks using standard ModuleBus communication.
- Coated to meet ISA-S71.04 G3 harsh corrosive environment standards for maximum longevity in industrial plants.
- Complies with EN 61010-1 electrical safety and EN 61000-6-4 / EN 61000-6-2 EMC industrial immunity specifications.
Logistics and Warranty Terms
- Backed by a dependable 12-month warranty covering material defects and electronic calibration performance.
- Expedited international delivery coordinated through premier global logistics carriers including FedEx, UPS, and DHL.
- Guaranteed order preparation and rapid dispatch within 24-48 hours of verification.
Target Equipment and Typical Application Scenarios
- High-voltage electrical substation automation and protective relay trip monitoring systems.
- Power generation turbine control panels requiring precise 125V DC digital status feedback.
- Critical process manufacturing plants demanding high-integrity Sequence of Event (SOE) timestamping.
Global PLC Spare HUB's Insight and Field Experience
Automation engineers integrating the DI825 module must pay close attention to the voltage supervision wiring configuration; failing to tie supply power into designated supervision channels 1 or 8 will result in persistent warning flags on the ModuleBus. Field experience indicates that utilizing proper MTU keying (Code AB) during initial mechanical installation prevents accidental insertion into mismatched 24V or 230V base units, protecting internal current-limiting components from overvoltage stress.
Frequently Asked Questions
Q: What specific function do Channels 1 and 8 serve beyond standard digital signal acquisition?
A: Channels 1 and 8 double as dedicated process voltage supervision inputs, monitoring group voltage health for channels 2-4 and 5-7 respectively.
Q: Can the DI825 module be installed on any standard S800 Module Termination Unit (MTU)?
A: No, the module requires compatible MTUs such as TU811, TU813, TU831, TU839, or TU851 featuring matching AB keying codes.
Q: What troubleshooting steps apply if a persistent warning LED illuminates on the module front panel?
A: Check the process voltage connected to supervision channels 1 and 8, inspect field wiring for voltage sag below 71V, and read the error register via the ModuleBus.
Q: Does the DI825 support hot-swapping or insertion under power within the S800 rack?
A: Yes, S800 I/O modules support ModuleBus communication hot insertion, allowing replacement without powering down the entire node.
Q: What selection guidance applies when choosing filter times for noisy 125V DC industrial environments?
A: Select software-configurable digital filter times up to 100 ms to eliminate high-frequency contact bounce and induced electrical transients.
