TWDNOZ232D Schneider Electric Twido RS232 Communication Module Interface

Global PLC Spare HUB's Insight

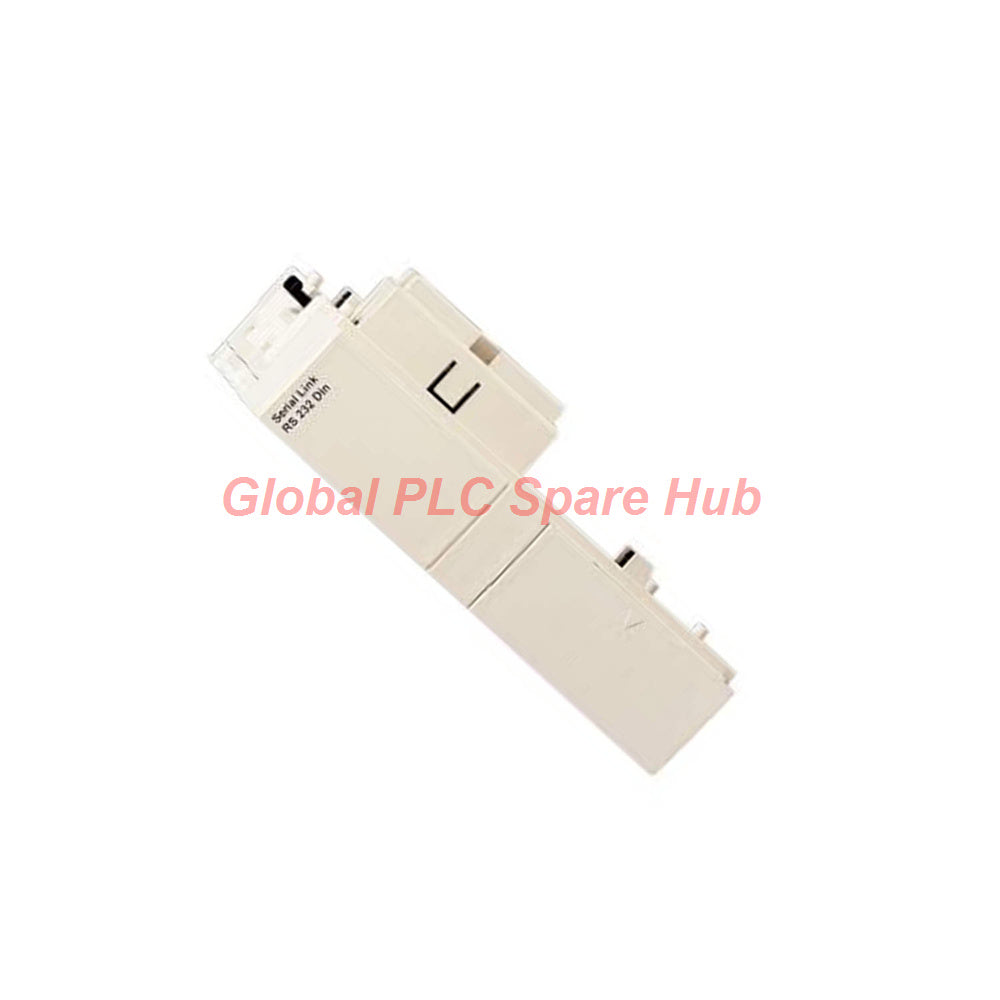

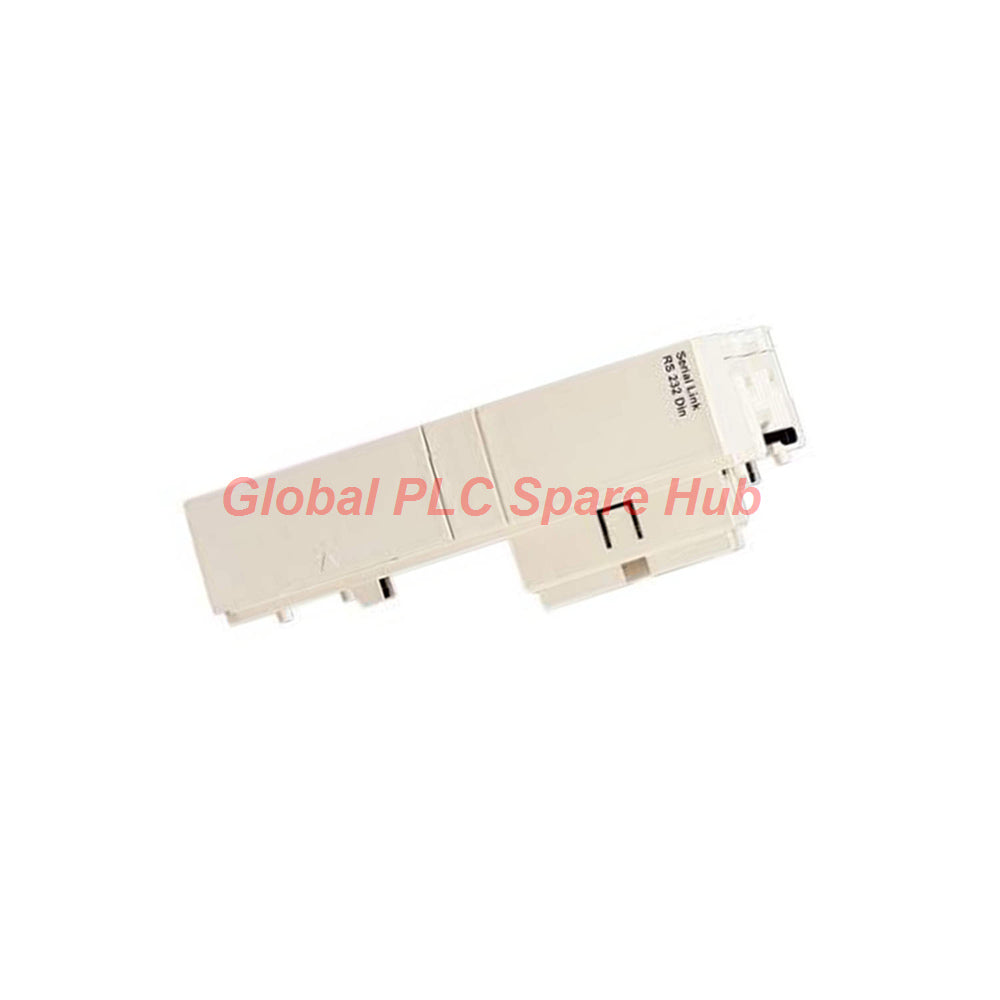

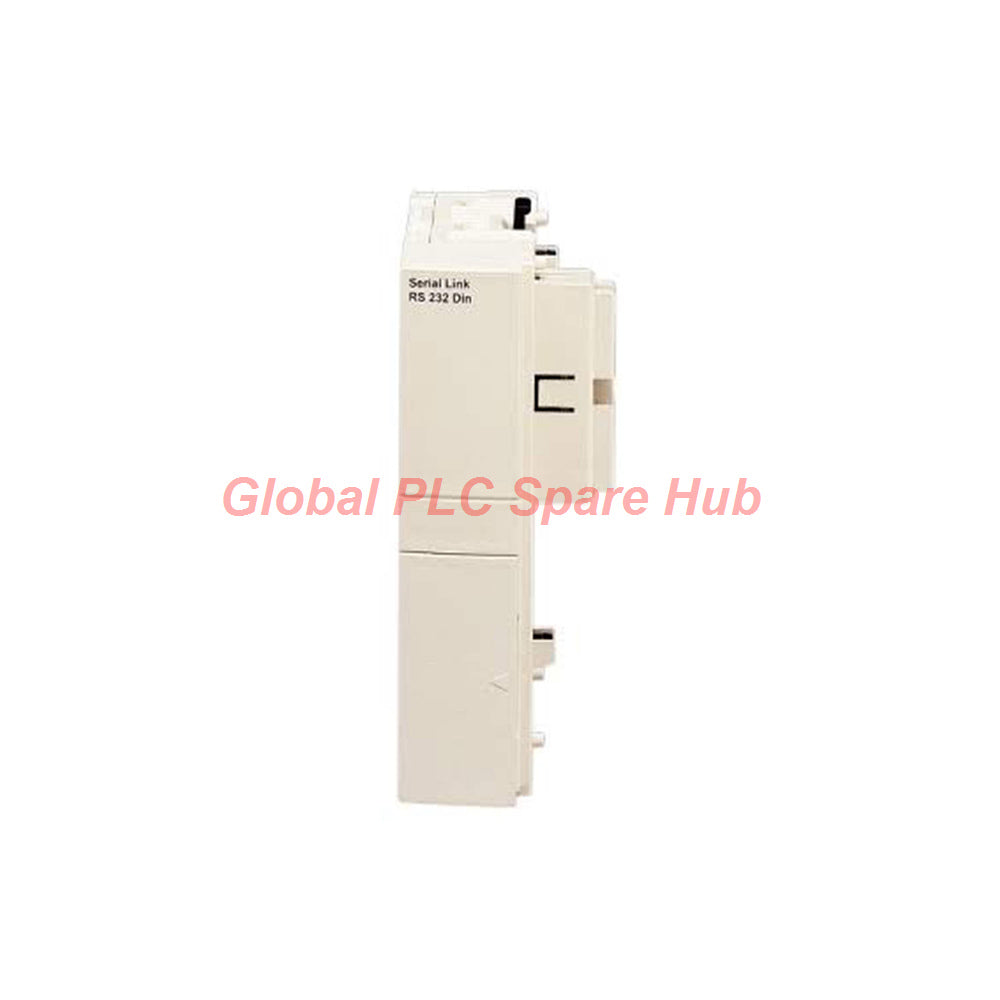

The Schneider Electric TWDNOZ232D functions as a dedicated hardware expansion interface for the Twido modular automation series. It establishes point-to-point RS232C physical layer signaling via an 8-pin mini-DIN connection. This option board expands the localized networking capabilities of modular CPUs without increasing the footprint of the main rail assembly. It supports raw character mode messaging as well as Modbus RTU protocols for direct hardware interfacing.

This communication option fits modular controllers handling localized data transactions. It is ideal for linking PLCs with alphanumeric operator panels, barcode scanners, weight indicators, and serial industrial printers. It also allows legacy dial-up modems to establish remote monitoring links with field hardware.

Product Overview

The Schneider Electric TWDNOZ232D is a plug-in serial interface module that provides an extra communication port. It mounts directly onto compatible modular base controllers. The unit features an integrated level converter to adapt logic-level signals into standard RS232C voltages through a secure 8-pin mini-DIN receptacle.

Technical Specifications

• Brand: Schneider Electric
• Model: TWDNOZ232D
• Series: Twido Communication
• Module Type: Serial Link Interface Adapter Module
• Communication Port Support: RS232C
• Electrical Interface: 1 Integrated Serial Port
• Physical Receptacle: Mini-DIN
• Pin Configuration: 8 Pins
• Signal Lines Supported: RXD, TXD, RTS, CTS, DTR, DSR, GND
• Data Isolation: Non-isolated serial link
• Transmission Modes: Modbus Master/Slave (RTU/ASCII), Character Mode
• Hardware Sub-Category: Separate Parts / Accessory Module
• Physical Mounting Location: Dedicated option slot on modular controller

Hardware System Compatibility

• Integrates seamlessly with the TWDLMDA20DUK modular base CPU.
• Provides full protocol compliance for the TWDLMDA40DUK high-density controller.
• Snaps directly into the designated slot of the TWDLMDA40DTK processor.
• Expands the communication capability of the TWDLMDA20DRT relay hybrid module.
• Supports full serial functionality when paired with the TWDLMDA20DTK hardware platform.

Installation and Hardware Guide

• Isolate all system electrical power sources before handling the option board hardware.
• Remove the protective slot cover from the front face of the modular base controller.
• Align the multi-pin backplane connection header with the internal motherboard receptacle.
• Press the module evenly until the plastic retaining clips engage fully into the housing.
• Route the 8-pin mini-DIN interface cable away from high-voltage motor supply conductors.

Commissioning and Diagnostics

• Configure the secondary port properties within the TwidoSuite hardware configuration matrix.
• Define parameters including baud rate, data bits, parity, stop bits, and protocol assignment.
• Map communication status bits within the application program to track transaction health.
• Check the TX/RX activity through the status monitoring window of the programming software.
• Verify cable shielding integrity if communication timeouts or frame errors occur.

Shipping, Logistics, and Warranty

• Shipping Methods: Global priority courier dispatch via FedEx, UPS, and DHL.
• Dispatch Timeframe: Package ready for carrier handoff within 24 to 48 hours.
• Package Dimensions: 2.95 x 4.13 x 4.92 inches (7.5 x 10.5 x 12.5 cm).
• Net Component Weight: 0.085 kg (2.99 ounces).
• Total Gross Weight: 138.0 grams (4.87 ounces).
• Package Contents: 1 x TWDNOZ232D interface adapter block and standard installation notes.
• Warranty Period: 12 months comprehensive hardware replacement coverage.

Compliance and Certifications

• UL Listed Industrial Control Equipment
• CSA Certified System Component
• CE Compliant

Frequently Asked Questions

Does this adapter module provide electrical galvanic isolation between the PLC and the peripheral device?

No, this interface module features a non-isolated serial link, meaning signal grounds are common with the controller logic chassis.

Can I use a standard 3-wire RS232 cable to connect to this mini-DIN port?

Yes, but you must configure your communication software to use no handshake, or jumpers must bridge hardware flow lines on the peripheral end.

What is the maximum cable distance allowed for communication through this port?

Following strict RS232C engineering standards, the total physical cable run must not exceed 15 meters (50 feet) to ensure signal reliability.

Can I install this interface module into a compact style base controller instead of a modular one?

No, this specific form factor matches the dedicated internal expansion slots found exclusively on the modular style base processors.

Why is the programming software unable to find the second port after I insert the option board?

You must manually add the option module to your hardware configuration tree in TwidoSuite and download the updated configuration to the CPU.

Selection and Buying Guide

• Confirm that your base processor model appears on the verified modular compatibility list before purchasing.
• Select this model if your peripheral hardware requires true RS232C voltage swings and handshaking signals.
• Choose the alternative RS485 module instead if your system demands multi-drop networking across longer distances.
• Verify that you have an original 8-pin mini-DIN custom cable or matching terminal breakdown adapter for easy wiring.
• Check that your main controller has an open option slot available before planning your network expansion.
