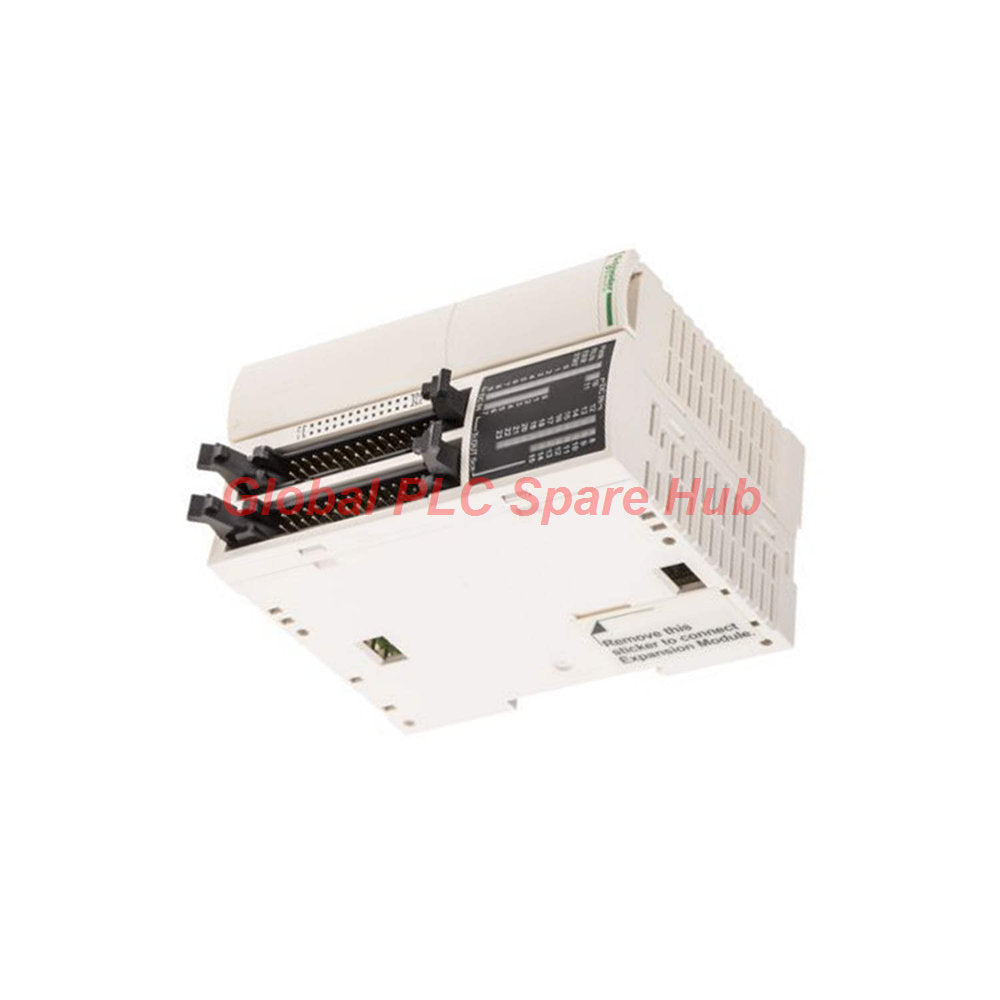

TWDLMDA40DTK Schneider Electric Twido Modular Controller

Engineering Overview: The Schneider Electric TWDLMDA40DTK

The TWDLMDA40DTK is a sophisticated modular base controller within the Schneider Electric Twido ecosystem. Engineered for demanding industrial environments, this unit integrates extensive I/O capacity with advanced control logic. It serves as a powerful central processing unit for complex machine sequences requiring precise PWM, PLS, and PID loops. The TWDLMDA40DTK supports up to 7 expansion modules, offering exceptional scalability for growing facility automation needs.

Technical Performance Specifications

• Model Identification: TWDLMDA40DTK
• System Power: 24VDC supply (19W power consumption including 4 expansions)
• Discrete Capacity: 24 Inputs (Sink/Source) and 16 Transistor Source Outputs
• Analog Precision: 1 integrated input (0-10V) with 9-bit resolution
• Instruction Speed: 1ms per 1K instructions (0.5ms system overhead)
• Motion & Counting: 2 x 20kHz (32-bit) channels, 2 x 7kHz PWM/PLS positioning channels
• Memory & Logic: Internal RAM for 3000 instructions; expandable to 6000 instructions via 64K cartridge
• Connectivity: Non-isolated RS485 (Modbus/ASCII) via mini DIN port
• Physical Interface: HE-10 connector architecture for high-density wiring

Global PLC Spare HUB's Insight

Our technical team identifies the TWDLMDA40DTK as the ideal bridge for systems migrating toward more complex motion control. Unlike basic fixed controllers, this Twido modular unit thrives in scenarios requiring high-speed pulse outputs and closed-loop PID regulation. It is a robust choice for engineers maintaining legacy production lines that demand reliable transistor switching and scalable I/O configurations.

Diagnostic Capabilities & Integration

• Fault Identification: Dedicated ERR LED and I/O status indicators allow for immediate loop-level diagnostics.
• System Monitoring: Integrated STAT and PWR LEDs provide real-time health snapshots of the controller logic.
• Compatibility: Perfectly suited for HE-10 cabling standards, simplifying installation in space-constrained control panels.
• Deployment Scope: Optimized for material handling, robotic integration, high-speed bottling lines, and temperature control loops.

Warranty and Logistics

• Quality Assurance: Every TWDLMDA40DTK includes a 12-month professional warranty.
• Global Distribution: We utilize FedEx, UPS, and DHL to ensure your components arrive rapidly.
• Shipping SLA: All orders are dispatched within 24-48 business hours.

Professional FAQ

Q: What is the benefit of the HE-10 connector compared to standard screw terminals?
A: The HE-10 interface supports high-density, rapid-connect cabling, which significantly reduces cabinet wiring time and human error during complex system builds.

Q: How does the 9-bit analog resolution impact my PID control performance?
A: 9-bit resolution provides sufficient granularity for standard process variables, such as pressure or position feedback, ensuring stable output transitions in simple PID loops.

Q: Is it possible to use this model for high-speed pulse train output (PTO)?
A: Yes, the TWDLMDA40DTK supports two channels of PWM/PLS output at 7 kHz, making it capable of controlling basic stepper or servo drive interfaces.

Q: How should I manage the memory backup if the unit is powered off for extended periods?
A: The internal lithium battery maintains data for 30 days. For long-term storage or critical data logging, we recommend purchasing a 64K memory cartridge to secure your program.

Q: Selection Guide: When should I choose the TWDLMDA40DTK over a compact fixed-I/O model?
A: Select this modular unit when your project demands more than 16 I/O, requires advanced motion functions like PWM, or expects future expansion beyond the base unit's capacity.
