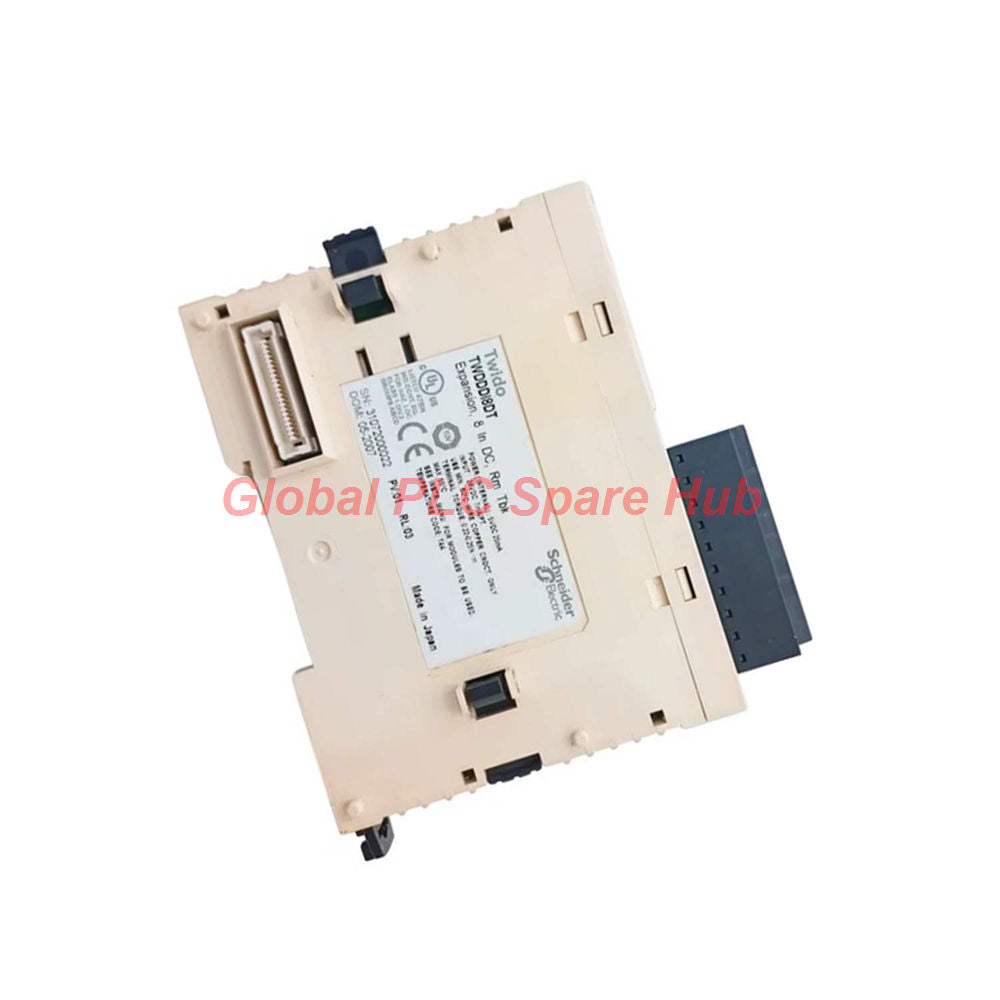

TWDDDI8DT Schneider Twido Digital Input Module 8-Channel 24VDC

Global PLC Spare HUB's Insight

The TWDDDI8DT is a fundamental building block for expanding signal acquisition in legacy Twido automation environments. Engineered for reliability, this module simplifies the integration of field sensors and limit switches into your PLC base unit. Our technical evaluation highlights its robust screw terminal design as a key advantage for vibration-prone industrial cabinets where secure, physical connectivity is paramount.

Engineering Specifications

• Model Identification: TWDDDI8DT
• Brand: Schneider Electric
• Series: Twido Controller Family
• Module Type: Digital Input Expansion
• Input Capacity: 8 Discrete Channels
• Input Voltage: 24V DC
• Connectivity: Removable Screw Terminal Block
• Hardware Weight: 0.37 lbs
• Package Quantity: 1 Unit

Industrial Application & Diagnostics

This module is ideal for distributed I/O setups in manufacturing lines, packaging machinery, and assembly automation. It serves as an interface for PNP/NPN sensors, emergency stops, and operator interface buttons.

• Diagnostic Capability: Each input channel features local LED status indicators, allowing engineers to verify signal state instantly without external meters.
• Error Isolation: The removable terminal block design permits field technicians to swap modules rapidly without rewiring, significantly reducing Mean Time to Repair (MTTR).

Logistics & Quality Assurance

• Rapid Fulfillment: All orders processed and dispatched within 24-48 hours.
• Global Carriers: Reliable transit via FedEx, UPS, and DHL.
• Warranty Protection: Backed by a comprehensive 12-month performance warranty.

Pro-Level FAQ & Integration Tips

Q: Can the TWDDDI8DT handle sinking and sourcing inputs simultaneously?

A: The module is designed for standard 24VDC logic. Ensure the common polarity matches your sensor configuration to avoid signal mismatch errors.

Q: How do I manage potential electrical noise on long sensor cable runs?

A: For cable runs exceeding 10 meters, we recommend using shielded twisted-pair cabling and ensuring a dedicated ground connection for the 24VDC power supply.

Q: Is the removable terminal block compatible with other Twido series modules?

A: While the pitch is standard, we highly recommend verifying the specific pinout configuration against the module label to prevent damage during installation.

Q: What should I look for if an input LED is flickering?

A: Flickering often indicates a voltage drop or a loose connection. Check terminal torque and verify the power supply stability before troubleshooting the logic program.

Q: Selection Guidance: When should I choose the TWDDDI8DT over an analog module?

A: Choose this digital module when your primary task is binary state detection (ON/OFF). For process control loops involving sensors like pressure or flow transmitters, use analog variants instead.
