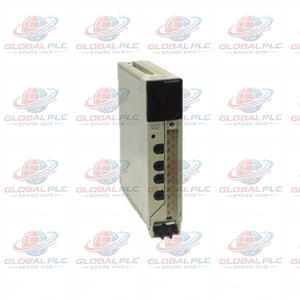

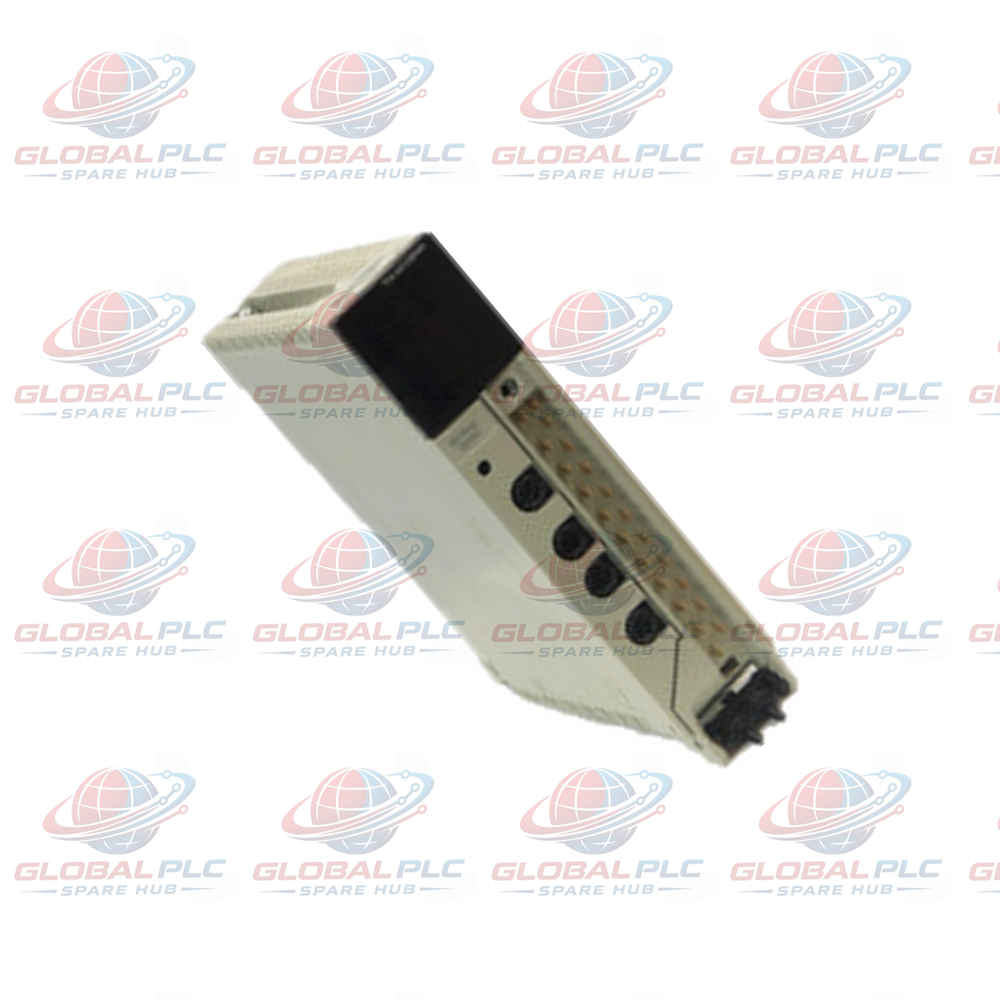

TSXDSY08T2 Schneider Modicon Premium Transistor Output Module

TSXDSY08T2 Output Architecture & Switching Dynamics

The TSXDSY08T2 is a specialized 8-point discrete transistor output module configured for source (PNP) operation within the Schneider Electric Modicon Premium automation ecosystem. Designed to control DC loads at 24 V DC with a 0.5 A output current per channel, this single-slot unit delivers rapid switching performance with a typical response time of 0.5 ms. It integrates robust channel-to-bus galvanic isolation rated at 1500 V AC dielectric strength alongside high-resistance leakage protection exceeding 10 megohms at 500 V DC.

Engineering Parameters & Power Matrix

• Brand & Model: Schneider Electric TSXDSY08T2
• Series Identification: Modicon Premium Discrete Output Module
• Channel Layout: 8 points organized in a single common group
• Switching Type: DC output, transistor, source (PNP) logic
• Voltage Specifications: 24 V DC field supply alongside 5 V DC backplane power
• Current Draw & Dissipation: 55 mA bus current @ 5 V DC; 1.0 W base power consumption plus active channel dissipation load
• Physical Footprint: Height 140 mm x Width 35 mm x Depth 80 mm, with a lightweight profile of 0.15 kg

Advanced Diagnostics & Circuit Protection

• Equipped with electronic overload and short-circuit protection featuring an automatic trip and reactivation mechanism.
• Front-panel status LEDs provide immediate optical feedback on individual output channel activation and fault states.
• IP20 panel protection standard safeguards internal terminals from accidental finger contact during active machine servicing.

Target Application Scenarios & Industrial Equipment

• High-Speed Actuator Control: Solenoid valves, DC relay coils, and indicator lamp arrays requiring sub-millisecond response times.
• Automated Assembly Machinery: Fast-cycling pick-and-place transfer systems and pneumatic clamping fixtures.
• Packaging & Sorting Lines: High-frequency sorting gates and diverter mechanisms demanding reliable PNP solid-state switching.

Global Logistics, Warranty, and Lifecycle Note

• Fulfillment & Shipping: Rapid worldwide dispatch within 24 to 48 hours using secure couriers including FedEx, UPS, and DHL.
• Warranty Assurance: Fully protected by a comprehensive 12-month replacement warranty covering workmanship and hardware integrity.
• Lifecycle Status: Officially classified as discontinued by the manufacturer, making verified spare inventory essential for legacy rack maintenance.

Global PLC Spare HUB's Insight

Field maintenance technicians working with legacy Modicon Premium racks often encounter inductive load spikes that trigger electronic overload trips on the TSXDSY08T2. To prevent nuisance tripping during heavy solenoid de-energization, engineers should always verify that flyback suppression diodes are properly installed across all external inductive loads. Additionally, monitoring terminal block torque during routine rack checkups ensures stable 24 V DC field power delivery across high-density output channels.

Frequently Asked Questions

Q: What is the specific channel grouping and logic configuration of the TSXDSY08T2 module?

A: The module features 8 transistor output channels organized into a single group of 8, operating with source (PNP) logic configuration.

Q: How does the electronic short-circuit protection behave when an external fault occurs?

A: The module automatically trips upon detecting an overcurrent or short-circuit condition, protecting internal circuitry until the fault is cleared and automatic reactivation occurs.

Q: What backplane and field supply voltages are required to power this discrete output unit?

A: It requires a 5 V DC backplane supply drawing 55 mA for internal logic, alongside a 24 V DC external field supply for the active output loads.

Q: What precautions should procurement teams take when sourcing replacement modules for discontinued racks?

A: Always confirm the exact part number (TSXDSY08T2) matches your hardware configuration profile to prevent slot-addressing errors and ensure proper connector wiring compatibility.

Q: Can this transistor output module drive high-inductive loads directly without external suppression?

A: While the module includes built-in protection features, adding external freewheeling or suppression diodes across inductive DC loads is strongly recommended to extend transistor service life.
