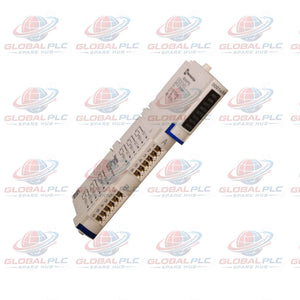

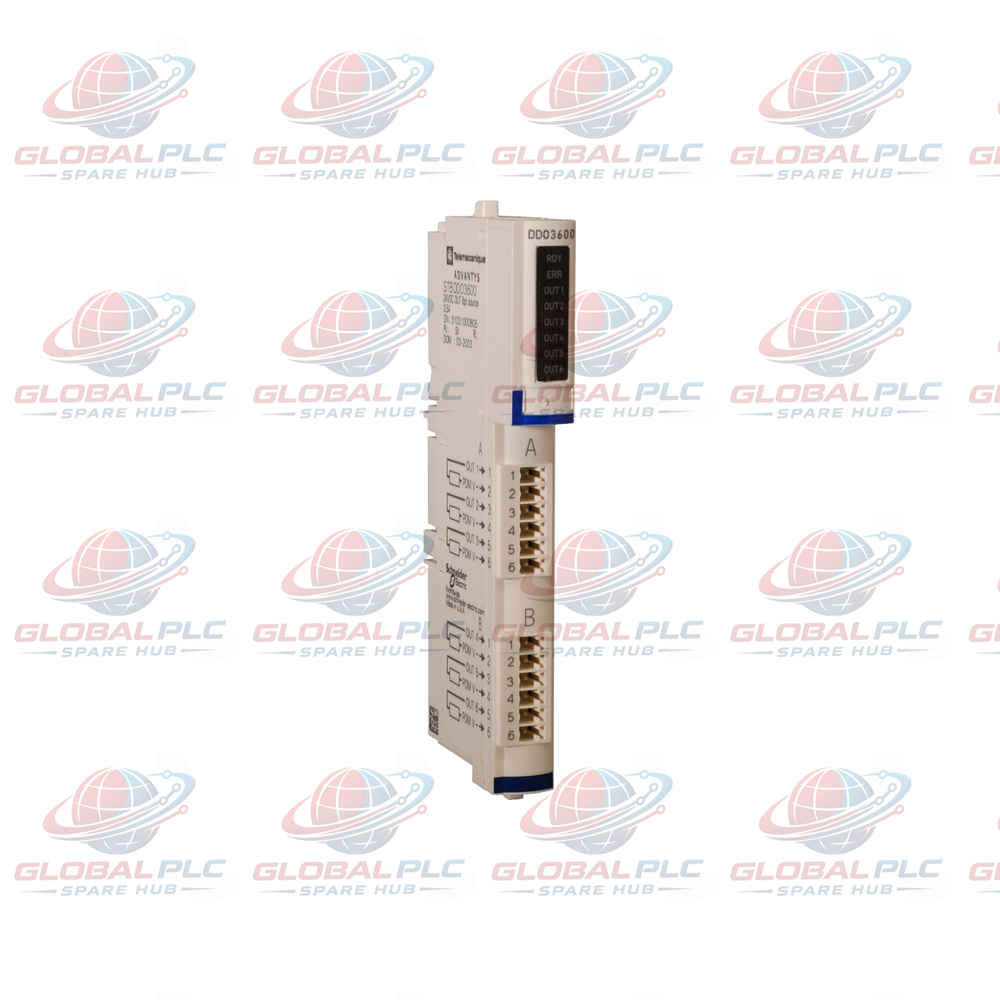

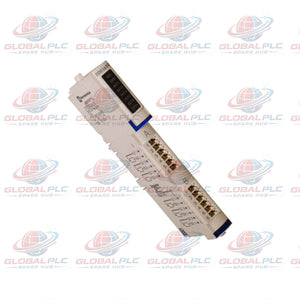

STBDDO3600 High Current Digital Output Module Schneider Advantys

STBDDO3600 Schneider Electric Advantys STB High-Current Digital Output Module Overview

The STBDDO3600 delivers high-density digital power control for demanding industrial automation applications.

This high-performance output module belongs to the versatile Advantys STB distributed I/O system family.

It provides reliable switching for heavy actuator loads, industrial relays, and hydraulic solenoids across automated lines.

Engineers deploy the STBDDO3600 to manage 6 high-current 24 V DC sourcing channels efficiently.

The unit supports full hot-swapping functionality to allow live module replacement without stopping active fieldbus communications.

Built-in overcurrent protection per two-channel group shields system electronics against short circuits and continuous thermal overloads.

The compact housing mounts directly onto standard STBXBA1000 baseplates to maximize panel space efficiency.

Technical Specifications

Parameter Category	Specification Details
Brand	Schneider Electric
Model Number	STBDDO3600
Product Series	Advantys STB Distributed I/O System
Module Type	High-current 6-channel discrete digital output module
Output Channels & Topology	6 digital channels, sourcing output configuration (PNP logic) arranged in 3 groups of 2 channels
Output Voltage Range	19.2 V DC to 30 V DC field power operating envelope
Output Current Rating	2 A max per channel at 30°C; thermal derating to 1 A max per channel at 60°C
Switching Response Time	715 µs off-to-on propagation delay; 955 µs on-to-off delay at 0.5 A current load
Backplane Bus Power Draw	70 mA maximum current draw at 5 V DC logic bus supply
Field-to-Bus Isolation	1500 V DC dielectric isolation barrier protecting internal system logic
Integrated Circuit Protection	Grouped electronic overcurrent protection monitored across each 2-channel group
Measurement & Response Range	Sub-millisecond high-speed actuation suitable for heavy-duty valve and motor starter control
Frequency & Resolution Performance	High-duty cycle switching capacity compliant with industrial power output execution standards
Operating Temperature Envelope	0°C to +60°C (32°F to 140°F) standard operational rating with current derating above 30°C
Storage & Transport Limits	-40°C to +85°C (-40°F to 185°F) non-operational ambient storage rating
Environmental Tolerances	5% to 95% non-condensing relative humidity tolerance; G3 harsh environment compliant
Noise Immunity & Interference Resistance	EN 61131-2 and IEC 61000-4 heavy industrial electromagnetic immunity certified
Enclosure Protection Rating	IP20 protection classification according to EN 60529 / IEC 529
Compatible Base & PDM	STBXBA1000 mounting base (13.9 mm width); STBPDT3100 24 V DC power distribution module
Dimensions & Weight	Standard slim STB profile; net weight: 0.114 kg (0.25 lb)

System Architecture & Interfaces

• High-Current Power Switching Core
• Six high-output sourcing channels supporting continuous loads up to 2 A per point under ambient conditions.
• Grouped architecture pairs output channels into three dual-channel power zones for optimized thermal dissipation.
• Rapid switching stages deliver under-millisecond latency for fast-acting hydraulic valve actuation.
• Bus Communication & Fault Shielding
• Low 70 mA backplane power consumption minimizes load on central island power supplies.
• 1500 V DC galvanic isolation protects backplane communication logic from external field short circuits.
• Live hot-swap architecture permits module replacement without powering down adjacent island cards.

Installation & Setup Guide

Mount the STBXBA1000 mounting base firmly onto a grounded 35 mm DIN rail inside your enclosure.

Install an STBPDT3100 power distribution module to supply clean 24 V DC high-current power across the bus.

Align the rear guide keys of the STBDDO3600 module with the baseplate connector slots.

Push the STBDDO3600 unit securely into the STBXBA1000 base until the retention latch snaps closed.

Wire 24 V DC actuator field connections directly to the removable terminal block on the baseplate.

Debugging & Maintenance Best Practices

Monitor front panel channel LEDs to verify active output commands and detect overcurrent channel trips.

Utilize hot-swap capability to replace damaged modules on live islands without interrupting active field networks.

Check ambient enclosure temperatures when driving loads above 1 A per channel to prevent thermal shutdown.

Inspect terminal block screw torque periodically to prevent contact resistance build-up under high-current operation.

System Compatibility & Certifications

Fully compatible with all Advantys STB Network Interface Modules including Modbus TCP, Ethernet/IP, and PROFIBUS.

Integrates directly into EcoStruxure Control Expert and Machine Expert software for rapid channel allocation.

Holds CE marking, UL listing, and CSA safety certifications for global industrial control compliance.

Typical Application Scenarios

Drives high-power hydraulic directional valves on heavy stamping presses and metal forming machinery.

Actuates 24 V DC heavy-duty motor starters and large contactor coils in automated material handling skids.

Controls industrial heating elements and heavy solenoids inside processing equipment and washdown stations.

Package List, Dispatch & Warranty Terms

• 1 x Schneider Electric STBDDO3600 Digital Output Module
• 1 x Factory Quality & Compliance Certificate
• Express Global Logistics: Fast dispatch within 24 to 48 hours via FedEx, UPS, or DHL.
• Warranty Protection: Includes a comprehensive 12-Month Warranty coverage plan.

Global PLC Spare HUB's Insight

Our technical team frequently sees the STBDDO3600 utilized in high-temperature panel environments driving heavy coils.

Field experience shows that thermal derating is often overlooked when upgrading from standard output modules.

In a recent plant service call, a customer reported intermittent trips on two channels of a newly commissioned rack.

Our engineers measured panel ambient temperatures exceeding 52°C while the module was driving 1.8 A loads continuously.

Because the channel rating drops to 1 A at 60°C, the thermal protection circuit was properly shutting down to prevent board damage.

Adding cabinet ventilation lowered ambient temperatures below 30°C, immediately restoring full 2 A load capacity without hardware replacement.

Selection & Purchasing Guide

Select the STBDDO3600 when your Advantys STB node requires switching high-current loads up to 2 A per channel.

Calculate your panel operating ambient temperature to ensure connected field loads fall within the thermal derating curve.

Verify that your setup includes an STBXBA1000 base and an STBPDT3100 power distribution module for complete assembly.

Frequently Asked Questions

Question: How does operating temperature affect the maximum continuous current output per channel?

Answer: Each channel delivers 2 A continuous current up to 30°C, which derates linearly down to 1 A at 60°C operating temperature.

Question: How is electronic overcurrent protection organized within the module architecture?

Answer: Protection is structured per group, where each electronic protection circuit monitors a pair of two adjacent channels.

Question: Can I hot-swap the STBDDO3600 module while the STB network island is active?

Answer: Yes, the module supports live hot-swapping without affecting backplane bus communications or adjacent operational modules.

Question: What check should be performed if a single channel trips under high inductive load?

Answer: Verify that the total continuous draw remains under temperature limits and check field wiring for short circuit conditions.

Question: What carrier services are used to ship the STBDDO3600 module?

Answer: Orders are dispatched within 24 to 48 hours using express air services via FedEx, UPS, or DHL.
