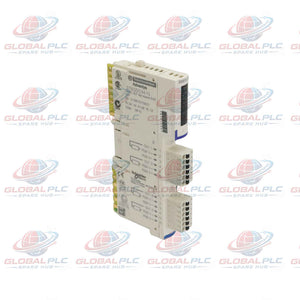

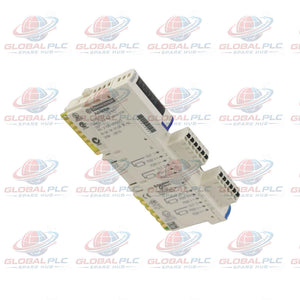

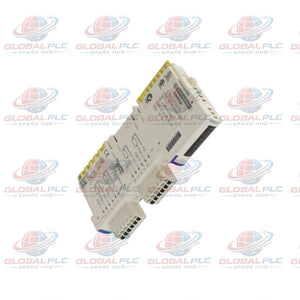

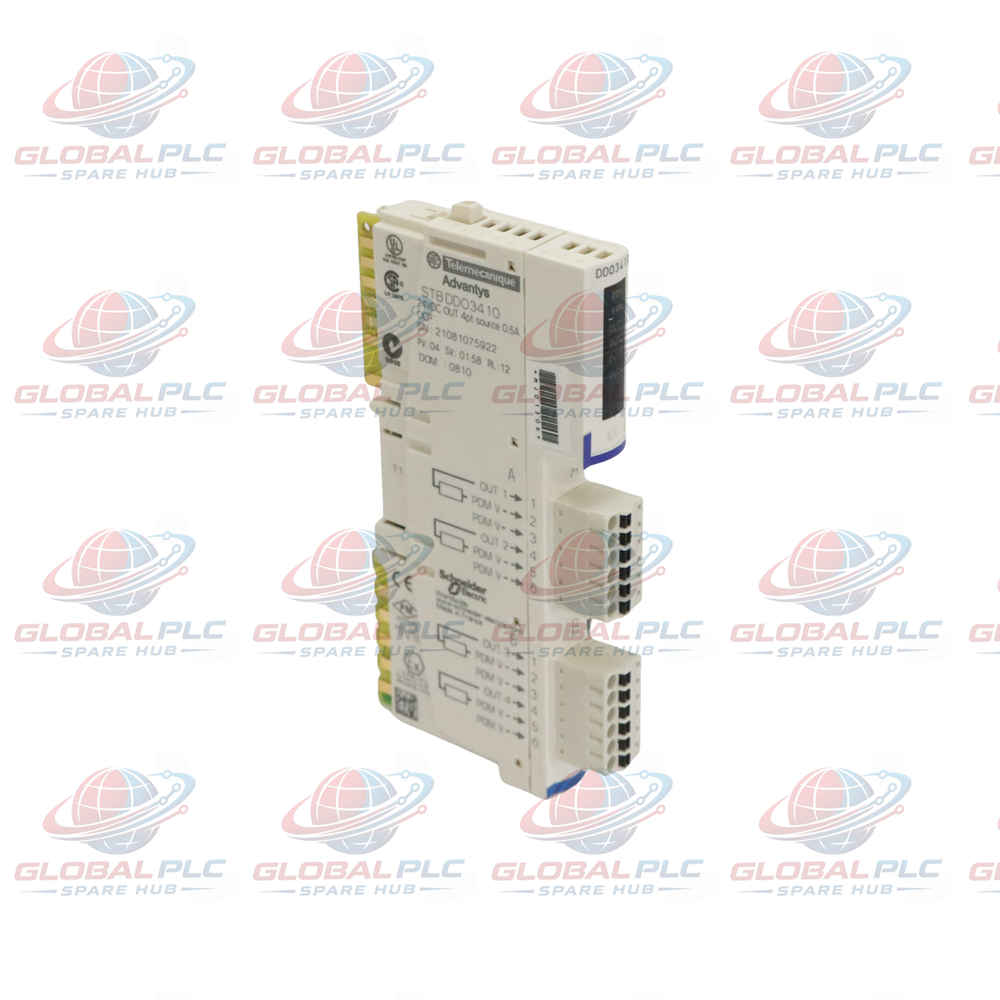

STBDDO3410 Advantys STB Schneider Electric 4-Channel DO Module

Core Architecture & Module Overview

The STBDDO3410 is a standard digital output module designed by Schneider Electric within the robust Advantys STB distributed I/O framework. Engineered to switch 24V DC field loads reliably, it features 4 source output channels capable of handling 0.5 A per channel. Built on a compact 13.9 mm STBXBA1000 base with IP20 enclosure protection, this module ensures dense cabinet integration and dependable actuation across industrial networks.

Technical Parameters & Electrical Specs

• Brand: Schneider Electric
• Model: STBDDO3410
• Series: Advantys STB
• Module Type: Standard digital output module
• Output Channels: 4 channels (source configuration)
• Signal Type & Rating: 24V DC, 0.5 A max output current per channel
• Switching Response Time: 560 µs (off-to-on) / 870 µs (on-to-off) at 0.5 A load
• Galvanic Isolation: 1500V DC field-to-bus isolation
• Internal Bus Consumption: 90 mA at 5V DC
• Associated PDM: STBPDT3100 (24V DC power distribution module)
• I/O Base Reference: STBXBA1000 (13.9 mm width)
• Hot Swapping: Fully supported

Engineering Deployment & Installation Steps

1. Base Plate Verification: Ensure the STBXBA1000 base unit is securely locked onto the DIN rail and paired with the correct STBPDT3100 PDM.
2. Module Seating: Align the STBDDO3410 with the base slot and gently press downward until the locking mechanism engages securely.
3. Field Termination: Connect actuator and load wiring to the corresponding spring or screw clamp terminals, verifying correct polarity for 24V DC source outputs.
4. Power Energization: Turn on the island power supply and verify that the module initializes without internal fault trips.

Maintenance Efficiency & Diagnostics

• Hot-Swap Replacement: Swap out a faulty STBDDO3410 unit live without disrupting network communication or shutting down unaffected island nodes.
• Diagnostic Indication: Front-face LED indicators provide clear visual tracking of individual channel actuation status and internal bus communication health.
• Overcurrent Protection: Built-in electronic overcurrent protection safeguards circuitry against short-circuits, auto-recovering once fault conditions clear.

System Compatibility & Compliance

• NIM Infrastructure: Integrates seamlessly into any Advantys STB island controlled via a Network Interface Module (Modbus, CANopen, Ethernet, Profibus).
• Quality Standards: Manufactured in compliance with rigorous industrial electrical safety guidelines.
• Warranty Terms: Backed by a full 12-month quality assurance warranty.

Global Logistics & Packaging

• Dispatch Window: Fast fulfillment and shipping within 24 to 48 hours.
• Global Carriers: Delivered securely through FedEx, UPS, and DHL.
• Package Contents: 1x STBDDO3410 module with protective terminal covers and documentation sheet.

Global PLC Spare HUB's Insight

When operating legacy Advantys STB islands, managing thermal dissipation in high-density control cabinets is essential. The STBDDO3410 handles inductive loads efficiently, but technicians should always verify that external flyback diodes are installed across relay coils to prevent cumulative wear on internal solid-state switches.

Application Environments & Equipment Suitability

• Target Equipment: Small solenoid valve manifolds, indicator pilot lights, interlock control relays, and small DC contactors.
• Industrial Sectors: Automated packaging machinery, material handling sorting systems, and water treatment skids.

Frequently Asked Questions (FAQ)

Question: What causes the STBDDO3410 output channel to trip into protection mode?

Answer: Overcurrent conditions, short-circuits on the load side, or excessive inductive kickback will trigger the built-in electronic protection. Check field wiring and ensure flyback suppression diodes are active.

Question: Can the STBDDO3410 drive AC loads directly?

Answer: No, this module is strictly engineered for 24V DC source applications. Attempting to switch AC loads will cause permanent internal damage.

Question: What guidelines should I follow when selecting replacement modules for an older Advantys STB node?

Answer: Always cross-reference the exact part number, verify the PDM power budget, and ensure your NIM firmware supports the specific module revision.

Question: How do I confirm that the STBDDO3410 is communicating correctly with the master PLC?

Answer: Inspect the status LEDs on both the Network Interface Module and the STBDDO3410 block to ensure solid green operational indicators without flashing error codes.

Question: Is specialized software required to configure a newly installed STBDDO3410?

Answer: The module is automatically recognized by the Advantys configuration software environment when mounted on a properly addressed island base.
