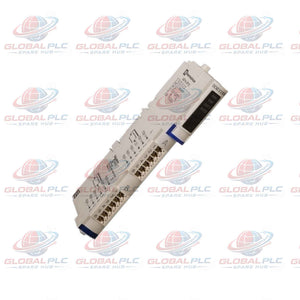

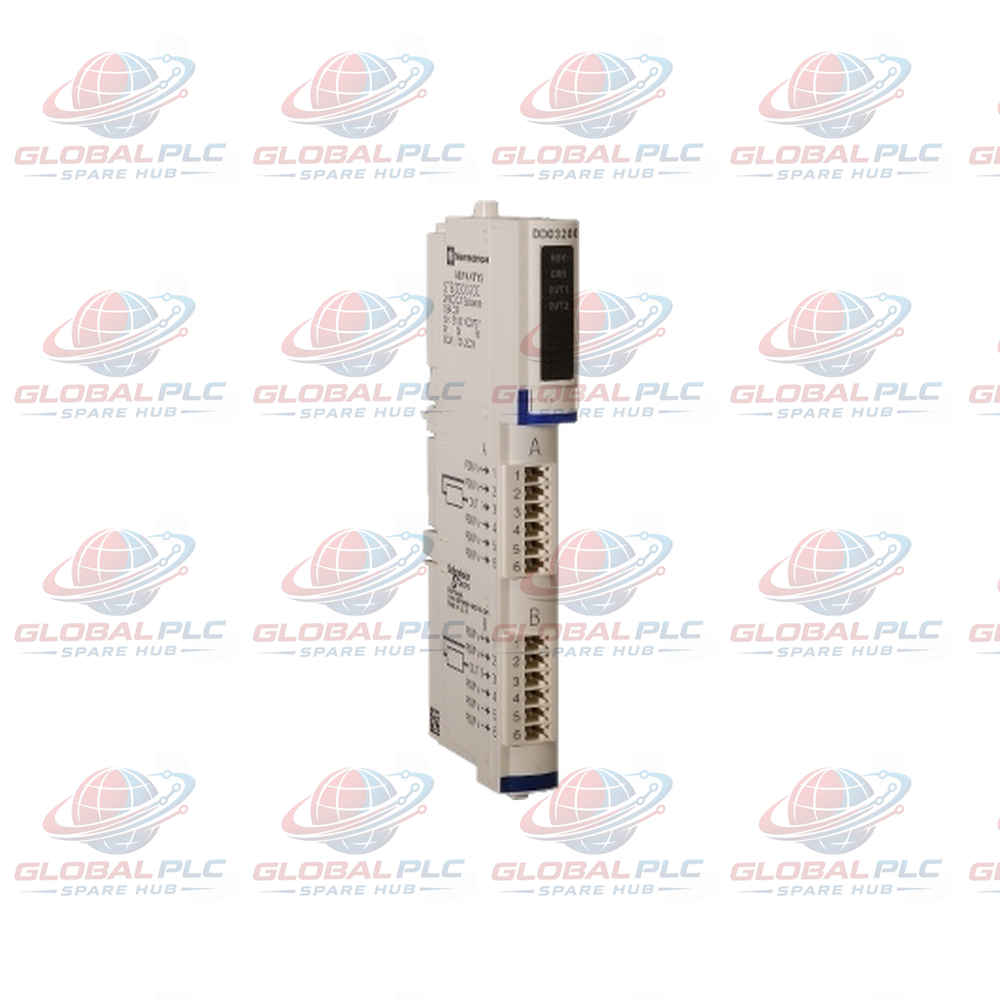

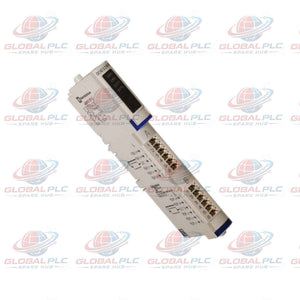

STBDDO3200 24V DC Digital Output Module Schneider Advantys

STBDDO3200 Schneider Electric Advantys STB Digital Output Module Overview

The STBDDO3200 provides precision digital control output for industrial automation sub-assemblies.

This compact digital output module belongs to the distributed Advantys STB modular I/O system family.

It drives discrete actuators, pilot solenoids, and signaling lamps across automated processing lines.

Engineers utilize the STBDDO3200 to switch 2 sourcing 24 V DC field loads efficiently.

The module supports full hot-swapping functionality to enable seamless replacement without interrupting backplane network operation.

Rugged internal isolation protects sensitive controller electronics against external short circuits and voltage surges.

The unit snaps directly onto standard STBXBA1000 I/O bases to optimize cabinet spatial density.

Technical Specifications

System Architecture & Interfaces

• Digital Output Control Subsystem
• Two independent 24 V DC sourcing channels supplying up to 0.5 A continuous current per output.
• Solid-state switching stages achieve 620 µs activation times for precise solenoid activation.
• Integrated varistor and RC network suppress inductive kickback spikes caused by magnetic coil de-energization.
• Bus Interface & Electronic Protection
• Low 60 mA backplane consumption preserves internal bus power for adjacent high-density modules.
• 1500 V DC field-to-bus galvanic isolation protects logic processors against severe field faults.
• Hot-swap capable backplane interface permits live module insertion without cycling main system power.

Installation & Setup Guide

Mount the STBXBA1000 mounting base securely onto a grounded 35 mm DIN rail inside the enclosure.

Connect an STBPDT3100 power distribution module to supply regulated 24 V DC power across the output bus.

Align the alignment tabs on the rear of the STBDDO3200 module with the baseplate receiver slot.

Push the STBDDO3200 firmly into place until the top locking mechanism engages with an audible click.

Connect field actuator wiring directly to the removable terminal block attached to the STBXBA1000 base unit.

Debugging & Maintenance Best Practices

Inspect front panel channel status LEDs to verify output command signals from the primary network interface.

Utilize live hot-swap capabilities to replace faulted hardware instantly without bringing down the entire fieldbus island.

Measure supply voltage across the power distribution module terminals if both channel outputs remain inactive under load.

Verify that field solenoid current ratings remain under 0.5 A per point to prevent triggering thermal overcurrent trips.

System Compatibility & Certifications

Fully compatible with all Advantys STB Network Interface Modules including Ethernet/IP, Modbus TCP, and CANopen variants.

Integrates directly into EcoStruxure Control Expert and Machine Expert programming environments for fast channel assignment.

Carries CE marking, UL listing, and CSA safety certifications for global industrial machine automation deployment.

Typical Application Scenarios

Controls dual pneumatic directional control valves on robotic pick-and-place transfer systems.

Actuates 24 V DC alarm strobes and audible beacons inside modular packaging line cells.

Drives solid-state relays and magnetic contactor coils in automated fluid pumping stations.

Package List, Dispatch & Warranty Terms

• 1 x Schneider Electric STBDDO3200 Digital Output Module
• 1 x Factory Quality Inspection Certificate
• Express Global Logistics: Fast dispatch within 24 to 48 hours via FedEx, UPS, or DHL.
• Warranty Protection: Includes a comprehensive 12-Month Warranty coverage plan.

Global PLC Spare HUB's Insight

Our automation engineering team frequently monitors field performance of the STBDDO3200 in high-cycle packaging cells.

Field experience indicates that inductive voltage spikes from unsuppressed valve coils cause frequent output diagnostic trips.

In a recent line audit, an operator reported that a channel on a newly commissioned island tripped repeatedly during high-speed indexing.

Our technicians inspected the cabinet and discovered an unsuppressed 24 V DC brake coil connected directly without a flyback diode.

Adding an external flyback diode reduced voltage ringing and restored stable switching without replacing the STBDDO3200 hardware.

Selection & Purchasing Guide

Select the STBDDO3200 when your control island requires high-speed 24 V DC sourcing output control for low-channel count field nodes.

Verify that the total connected load current does not exceed the 0.5 A per channel continuous rating.

Ensure your installation layout includes an STBXBA1000 baseplate and STBPDT3100 power module for correct mechanical assembly.

Frequently Asked Questions

Question: What type of output logic does the STBDDO3200 digital module utilize?

Answer: The module uses 24 V DC sourcing logic (PNP type), providing positive potential directly to the field actuator load.

Question: How does internal overcurrent protection handle field short circuits?

Answer: Electronic protection circuit switches off the affected channel output when current exceeds safe operating limits, preventing hardware burnout.

Question: Can I replace an active STBDDO3200 unit while the rest of the STB island remains powered?

Answer: Yes, full hot-swapping support allows safe module removal and installation without interrupting communication on adjacent modules.

Question: What causes output channels to switch off rapidly after receiving an execution command?

Answer: Excessive field load current above 0.5 A or shorted field wiring triggers the internal electronic overcurrent trip mechanism.

Question: How quickly will my STBDDO3200 module ship once payment is confirmed?

Answer: Orders are processed immediately and dispatched within 24 to 48 hours via express carriers including FedEx, UPS, and DHL.
