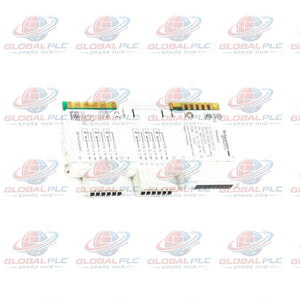

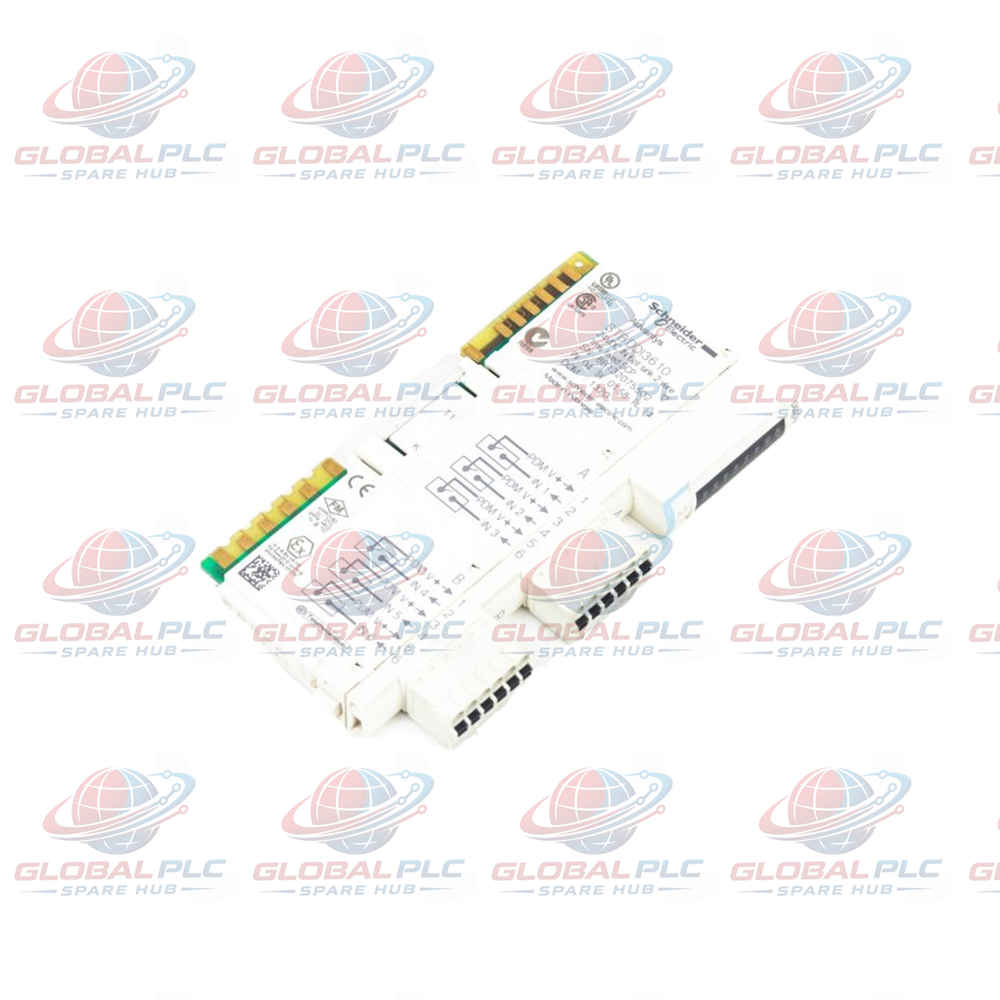

STBDDI3610 Schneider Advantys STB Digital Input Module Spare

STBDDI3610 Modular Architecture & Signal Acquisition

The STBDDI3610 functions as a compact 6-channel standard digital input module engineered for the Schneider Electric Advantys STB distributed I/O island system. Designed to process 24V DC signals in compliance with IEC/EN 61131-2 Type 1 standards, this module features a fixed 1 ms response time and supports configurable positive or negative input logic. It mounts seamlessly onto an STBXBA1000 I/O base (13.9 mm width) and interfaces with the STBPDT3100 power distribution module (PDM).

Technical Parameters & Electrical Profile

• Brand & Model: Schneider Electric STBDDI3610
• Series Identification: Advantys STB Digital Input Module
• Channel Configuration: 6 channels configured for sink, 2-wire operation
• Signal Compatibility: 24V DC field input with adjustable polarity logic
• Bus Power Consumption: 60 mA drawn @ 5V DC backplane current
• Field Termination: Accepts 0.5 to 1.5 square millimeters wire gauges
• Physical Footprint: Lightweight profile weighing 0.112 kg with IP20 enclosure protection

Advanced Diagnostics & Hot-Swap Capabilities

• Supports full hot-swapping functionality, enabling replacement on an active bus without cycling island power.
• Built-in channel-level diagnostic indicators offer instant visual confirmation of input status and signal integrity.
• Robust 1500V DC field-to-bus galvanic isolation protects internal control logic from electrical noise transients.

Target Application Scenarios & Equipment Suitability

• Distributed Modular Machinery: Decentralized machine frames requiring compact island-based sensor signal collection.
• Material Handling Conveyors: Multi-zone sorting lines utilizing 24V DC proximity switches and photoelectric sensors.
• Packaging & Assembly Cells: Automated stations demanding rapid 1 ms response times for precise part-detection feedback.

Global Logistics, Warranty, and Lifecycle Note

• Fulfillment & Shipping: Express global dispatch within 24 to 48 hours via reliable international carriers including FedEx, UPS, and DHL.
• Warranty Protection: Backed by a full 12-month replacement warranty covering hardware integrity and craftsmanship.
• Lifecycle Status: Officially discontinued by the manufacturer, with Schneider Electric recommending migration paths toward the modern Modicon X80 range.

Global PLC Spare HUB's Insight

Field commissioning technicians integrating the STBDDI3610 into legacy Advantys STB islands must pay close attention to base bus power distribution budgets. Because the module draws 60 mA from the 5V DC backplane bus, expanding high-density islands requires verifying that the PDM (STBPDT3100) and power supply units are not overloaded. Additionally, ensuring secure ferrule crimping on 0.5-1.5 mm² field wires prevents intermittent contact issues during high-vibration machine cycles.

Frequently Asked Questions

Q: Can the STBDDI3610 module be replaced while the Advantys STB island is fully powered and operational?

A: Yes, the module fully supports hot-swapping, allowing maintenance personnel to replace a faulty unit on the active bus without shutting down the entire control island.

Q: What specific I/O base and power distribution module are required for proper mechanical and electrical mounting?

A: The unit mounts onto an STBXBA1000 I/O base (13.9 mm width) and relies on the STBPDT3100 PDM for 24V DC field power distribution.

Q: How is the input logic polarity configured for the six digital channels?

A: The input logic can be configured for either positive or negative polarity depending on the sensor wiring requirements of your application.

Q: What key factors should procurement specialists verify when sourcing discontinued Advantys STB spares?

A: Always check that the exact article code (STBDDI3610) and associated base plate parts match your existing system inventory to maintain correct bus addressing and wiring compatibility.

Q: What type of sensor connections are supported by this 6-channel input architecture?

A: The module is designed to process 2-wire sink input signals operating within a 24V DC voltage range, conforming to IEC/EN 61131-2 Type 1 specifications.
