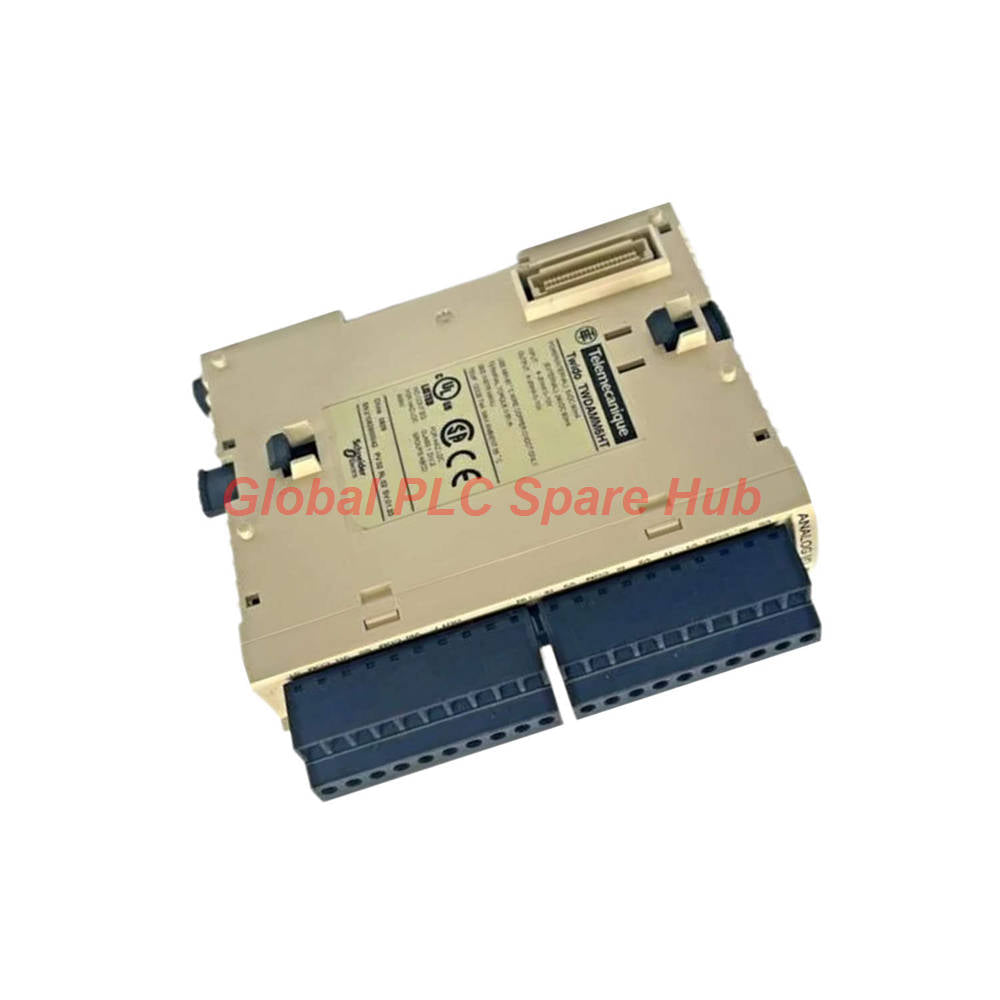

Schneider Twido TWDAMM6HT Analog I/O Module 4In 2Out 24VDC

Product Overview

The Schneider Electric Twido TWDAMM6HT is a high-performance analog mixed I/O expansion module. Engineers use this compact module to expand the capabilities of Twido programmable logic controllers. It provides precise interface capabilities between the PLC and analog field devices. The module accepts four analog inputs and delivers two analog outputs. It supports standard industrial voltage and current signals. This module ensures reliable data acquisition and accurate control in compact automation systems.

Global PLC Spare HUB's Insight

The Schneider Electric Twido TWDAMM6HT provides an efficient solution for small-scale processes requiring mixed analog signals. Our engineering team values its dual-signal versatility and high-resolution 12-bit conversion. This combination eliminates the need for separate input and output cards. The design optimizes panel space and reduces hardware costs. The module utilizes a removable screw terminal block to simplify wiring tasks. It delivers stable performance under fluctuating industrial temperatures. This module integrates seamlessly into legacy Twido control systems.

Technical Specifications

• Brand: Schneider Electric
• Model: TWDAMM6HT
• Product Series: Twido
• Module Type: Analog Input / Output Mixed Module
• Rated Supply Voltage: 24 V DC
• Supply Voltage Limits: 20.4 V to 28.8 V DC
• Current Consumption: 60 mA at 5 V DC, 80 mA at 24 V DC
• Analog Input Number: 4 channels
• Analog Input Type: 4 to 20 mA differential current, 0 to 10 V non-differential voltage
• Analog Input Resolution: 12 bits
• Analog Input Impedance: Less than or equal to 250 Ohm for current, greater than or equal to 10000 Ohm for voltage
• Analog Output Number: 2 channels
• Analog Output Type: 4 to 20 mA current, 0 to 10 V voltage
• Analog Output Resolution: 12 bits
• Load Impedance: Less than or equal to 300 Ohm for current, greater than or equal to 2000 Ohm for voltage
• Load Type: Resistive load
• Conversion Time: 20 ms plus 1 controller cycle time
• Sampling and Acquisition Duration: 16 ms plus 1 controller cycle time
• Stabilization Time: 20 ms
• Measurement Error: Plus or minus 0.5 percent of full scale at 25 degrees Celsius
• Total Error: Plus or minus 1 percent of full scale for inputs, plus or minus 2 percent for outputs
• Non-Linearity: Plus or minus 0.4 percent of full scale for inputs, plus or minus 0.5 percent for outputs
• Repeat Accuracy: Plus or minus 0.5 percent of full scale
• Temperature Coefficient: Plus or minus 0.06 percent full scale per degree Celsius for inputs
• Output Ripple: Less than or equal to 1 LSB
• Cross Talk: Less than or equal to 2 LSB
• Common Mode Rejection: -50 dB
• Isolation Type: Photocoupler insulation between channels and internal logic
• Cable Requirement: Shielded twisted pair cable
• IP Degree of Protection: IP20
• Operating Ambient Temperature: 0 to 55 degrees Celsius
• Storage Ambient Temperature: -25 to 70 degrees Celsius
• Dielectric Strength: 800 V between I/O circuit and supply circuit

Compatible Equipment

• Twido Modular Base Controllers
• Twido Extreme Base Controllers
• Industrial Pressure Transmitters (4-20mA)
• Flow Control Valves and Actuators (0-10V / 4-20mA)
• Temperature Sensors with Analog Transducers

Installation Guide

• Disconnect all power sources before mounting the module.
• Snap the module securely onto a standard 35mm DIN rail.
• Connect the external 24V DC power supply to the designated terminals.
• Use shielded twisted-pair cabling for all analog signal connections.
• Ground the cable shields at a single point to prevent ground loops.
• Insert the wired removable screw terminal block into the module firmly.

Debugging and Maintenance

• Monitor the PLC controller status LEDs to verify module recognition.
• Check the external 24V DC supply if the module fails to communicate.
• Measure loop current using a calibrated multimeter during commissioning.
• Verify input configuration matching in the programming software environment.
• Tighten terminal screws periodically to prevent loose connections from vibration.
• Use the removable terminal block to replace modules quickly without rewiring.

Diagnostic Capabilities

• The module detects signal over range via the controller software.
• Internal logic monitors cross-talk interference levels between adjacent channels.
• Hardware status tracking flags external power supply failures instantly.
• Configuration mismatch errors trigger precise fault codes in the PLC.

Typical Application Scenarios

• Variable frequency drive speed control via 0-10V signaling.
• Water treatment plant flow monitoring using 4-20mA sensors.
• Level control systems in chemical processing tanks.
• Air handling unit temperature regulation in HVAC systems.

Certification and Standards

• CE Marking compliant
• UL Listed
• CSA Certified

Shipping, Packaging, and Warranty

• Packaging List: One Schneider Electric TWDAMM6HT module, installation instruction sheet.
• Package Weight: 0.180 kg
• Package Dimensions: 70 mm x 95 mm x 125 mm
• Shipping Policy: Dispatch occurs within 24 to 48 hours from order confirmation.
• Express Couriers: Available via FedEx, UPS, and DHL worldwide express.
• Warranty Terms: Includes a 12-month comprehensive warranty coverage period.

Procurement Guide

• Verify your specific channel count requirements before purchasing this module.
• Ensure your system loop impedance matches the specified module limits.
• Select shielded twisted-pair cables to guarantee signal integrity during installation.
• Confirm your base PLC firmware version supports this expansion module.

Frequently Asked Questions

Can I mix current and voltage signals on the inputs?

Yes. The four input channels accept either 4-20mA or 0-10V signals depending on wiring.

What type of cable must I use for wiring?

You must use shielded twisted-pair cabling to protect analog signals from noise.

How does the removable terminal block benefit maintenance?

It allows module replacement without disconnecting individual field wires, saving valuable time.

What happens if the external 24V DC supply drops below 20.4V?

The module enters a fault state and stops processing analog signal conversions.
