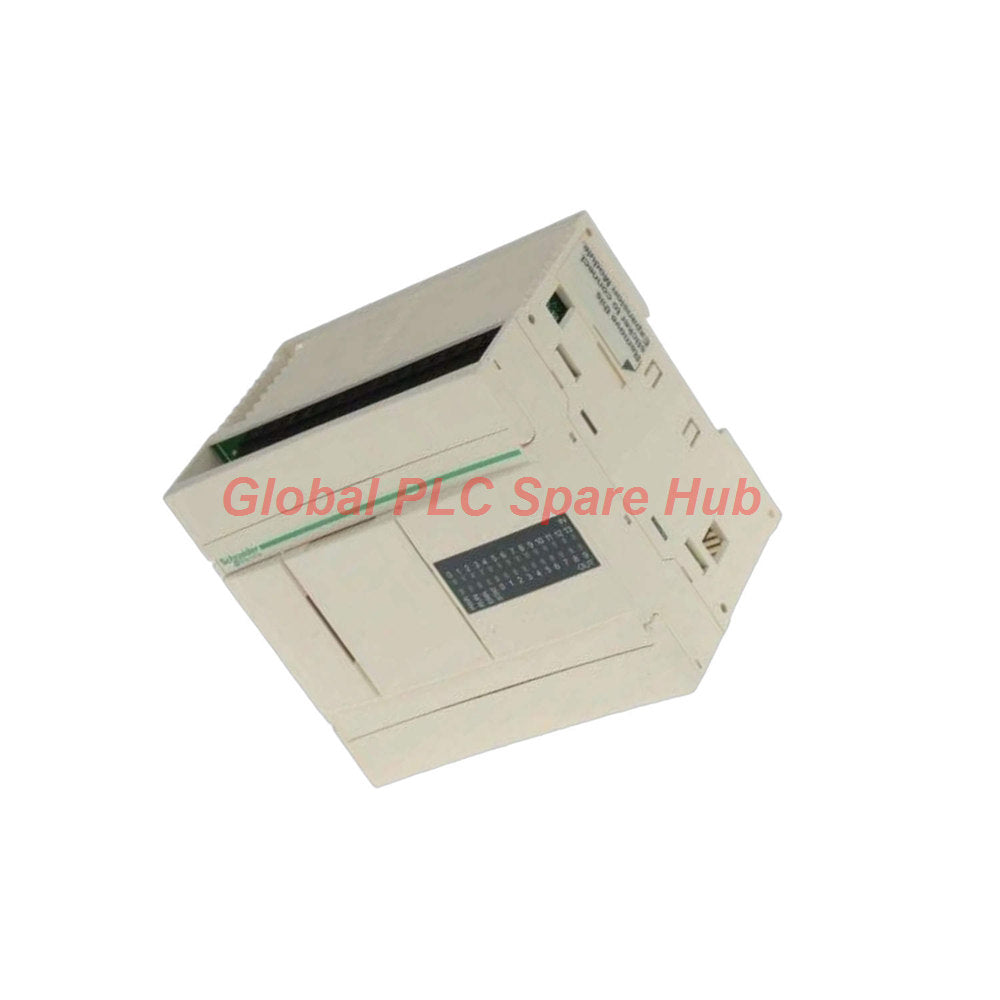

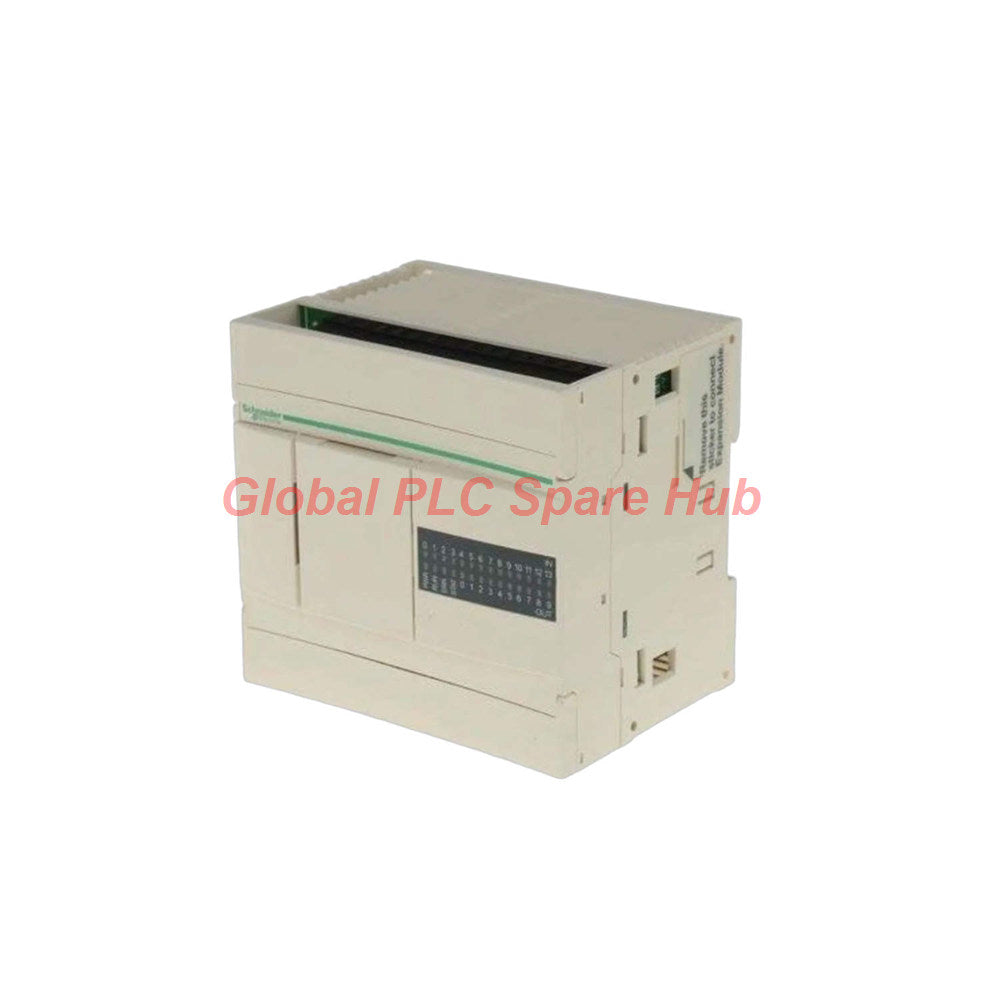

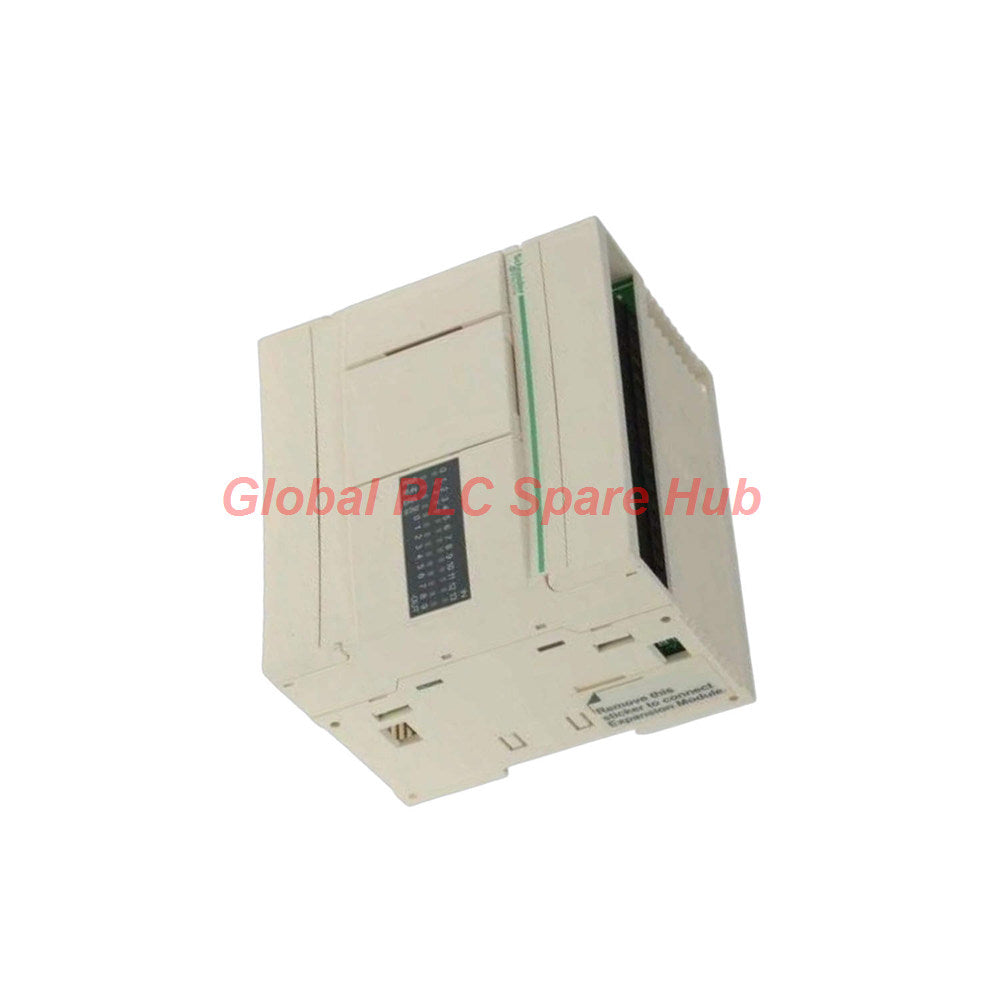

Schneider Electric TWDLCAA16DRF Twido Compact Controller Base

Global PLC Spare HUB's Insight

The Schneider Electric TWDLCAA16DRF belongs to the reliable Twido compact controller series. This controller provides a highly efficient footprint for localized automation tasks. It integrates internal RAM backup for up to 10 years via lithium battery protection. Engineers appreciate the built-in serial link that supports Modbus RTU/ASCII master/slave configurations.

This module suits standalone machinery, compact conveyor lines, pump control systems, and commercial HVAC machinery. It fits perfectly into control panels requiring optimized spacing without compromising processing power.

Product Overview

The Schneider Electric TWDLCAA16DRF is an extendable compact base controller designed for commercial and industrial applications. It operates on a universal AC power supply. The unit manages 16 integrated discrete I/O channels within a single space-saving housing. It allows modular expansion for flexible system adaptation.

Technical Specifications

• Brand: Schneider Electric
• Model: TWDLCAA16DRF
• Series: Twido Compact
• Module Type: Base PLC Controller
• Rated Supply Voltage: 100 to 240 V AC
• Supply Voltage Limits: 85 to 264 V AC
• Network Frequency: 50/60 Hz (47 to 63 Hz limits)
• Discrete Input Count: 9 Channels
• Discrete Input Voltage: 24 V DC (Sink or Source logic)
• Input Voltage Limits: 20.4 to 28.8 V DC
• Input Impedance: 2100 Ohm (I0.0-I0.1), 3400 Ohm (I0.2-I0.8)
• Discrete Output Count: 7 Channels (Relay outputs)
• Load Current Capacity: 2 A at 240 V AC or 30 V DC
• Mechanical Durability: 20,000,000 electrical cycles
• Inrush Current: 35 A maximum
• Power Consumption: 22 VA at 100 V, 31 VA at 264 V
• Program Capacity: 2000 instructions
• Execution Speed: 1 ms per 1K instructions
• System Overhead: 0.5 ms
• Memory Structure: Internal RAM for 3000 words, 128 counters, 128 internal bits, 64 timers
• Counting Inputs: 1 channel at 20 kHz (32 bits), 3 channels at 5 kHz (16 bits)
• Analog Adjustment: 1 built-in potentiometer (0 to 1023 range)
• Insulation Resistance: Greater than 10 MOhm at 500 V DC between terminals and earth
• Dielectric Strength: 1500 Vrms for 1 minute

Environment and Durability

• Operating Temperature: 32 to 131 degF (0 to 55 degC)
• Storage Temperature: -13 to 158 degF (-25 to 70 degC)
• Relative Humidity: 30% to 95% non-condensing
• IP Protection Rating: IP20
• Operating Altitude: 0 to 6561 feet (0 to 2000 meters)
• Vibration Resistance: 1 gn from 57 to 150 Hz on symmetrical DIN rail
• Shock Resistance: 15 gn for 11 ms
• Immunity to Microbreaks: 10 ms time duration

Installation and Hardware Guide

• Mount the unit directly onto a 35mm symmetrical DIN rail.
• Alternatively, utilize the optional panel fixing kit for surface mounting.
• Connect field wiring using the integrated non-removable screw terminal blocks.
• Ensure proper grounding via the designated GND terminal on the bottom block.
• Maintain vertical clearance around the module to facilitate natural convection cooling.

Commissioning and Maintenance

• Configure the program architecture using TwidoSuite or TwidoSoft programming software.
• Utilize the integrated mini-DIN serial port for direct PC communication.
• Monitor system states using the functional green PWR and RUN indicators.
• Troubleshoot internal processing using the red ERR fault LED.
• Track field wiring signals via the individual I/O status indicators.

System Compatibility

• Connects directly to Twido digital and analog expansion I/O modules.
• Accepts optional memory cartridges or real-time clock plug-in boards.
• Interfaces with Modbus RTU and ASCII communication networks over RS485.
• Integrates with local HMI panels via serial link adapters.

Diagnostics and Fault Detection

• The red ERR LED flashes to signal application configuration faults.
• The red ERR LED stays solid during hardware internal failures.
• Integrated I/O LEDs reveal state mismatches between logic and field devices.
• Internal registers track watchdog status and real-time execution errors.

Shipping, Logistics, and Warranty

• Shipping Methods: Express delivery via FedEx, UPS, and DHL.
• Dispatch Timeframe: Orders ship within 24 to 48 hours from order confirmation.
• Package Dimensions: 4.1 x 4.3 x 4.9 inches (10.5 x 11.0 x 12.5 cm).
• Gross Weight: 13.2 ounces (375 grams).
• Package Contents: 1 x TWDLCAA16DRF base unit with installation documentation.
• Warranty Period: 12 months comprehensive hardware warranty.

Compliance and Certifications

• UL Certification
• CSA Certification
• CE Marking

Frequently Asked Questions

What happens to the program during an extended power outage?

The controller uses an internal lithium battery to backup RAM data for up to 10 years.

Can I expand the I/O capacity of this compact module?

Yes, you can connect standard Twido expansion modules to increase total system channel counts.

What causes the ERR LED to illuminate continuously?

A solid red ERR light indicates an internal hardware module fault or catastrophic system failure.

Does this unit support floating-point math operations?

No, the internal RAM architecture supports integer math, double words, counters, and timers only.

Can the RS485 serial link operate in full-duplex mode?

No, the built-in mini-DIN connection operates strictly in half-duplex mode up to 38.4 kbit/s.

Selection and Buying Guide

• Verify your local control voltage matches the 100 to 240V AC power input spec.
• Count your field devices to ensure 9 inputs and 7 outputs meet system requirements.
• Choose this relay output model if your field actuators operate on mixed voltages.
• Select transistor output models instead if your application requires high-speed pulse width modulation.
• Order an external memory cartridge if you require portable program transferring capabilities.
