SCB110-S0 Yokogawa SCB110 Series Wiring Check Adapter

SCB110-S0 | Yokogawa Digital Input Wiring Check Adapter

The SCB110-S0 is a Yokogawa wiring check adapter designed for digital input circuit diagnostics. It supports defective short-circuit detection while the system accepts ON signals under ISA Standard G3 conditions. Unlike a standard digital input module, the SCB110 focuses on wiring verification and fault identification. Engineers can use it when commissioning digital input circuits or investigating abnormal input states in industrial control systems.

01 | Product Identity and Engineering Function

Manufacturer	Yokogawa
Model	SCB110-S0
Product Series	SCB110
Product Type	Wiring Check Adapter for Digital Input
Primary Function	Wiring checks and defective short-circuit detection during ON-signal acceptance
Environmental Reference	ISA Standard G3, as stated in the model description
Suffix Configuration	Standard type; fixed suffix value 0

02 | Configuration Breakdown

Code Segment	Definition	Engineering Interpretation
SCB110	Wiring Check Adapter for Digital Input	Supports digital input wiring checks and defective short-circuit detection while accepting ON signals.
-S	Standard type	Identifies the standard product configuration.
0	Always 0	Fixed suffix value in the specified model code.
Complete Model	SCB110-S0	Identifies the complete adapter configuration for ordering and replacement verification.

Selection note: Match the complete model code before ordering. Do not interpret the fixed suffix value as a selectable electrical or environmental option.

03 | Diagnostic Role and Fault Investigation

The SCB110-S0 supports wiring verification in digital input circuits. Its stated function addresses defective short-circuit detection while the system accepts ON signals.

• Short-circuit investigation: Supports checks for defective short-circuit conditions affecting digital input wiring.
• Commissioning verification: Helps engineers investigate wiring problems before handing a control system over to operations.
• Abnormal ON-state analysis: Provides a wiring-check function relevant to unexpected or persistent ON indications.
• Maintenance troubleshooting: Supports structured fault investigation when input behavior differs from the field contact state.
• Signal integrity review: Helps direct attention toward field wiring and circuit conditions before unnecessary module replacement.

The supplied product information does not specify diagnostic codes, detection thresholds, response time, or independent fault annunciation. Confirm these details in the applicable Yokogawa documentation before designing a diagnostic procedure.

04 | Compatible Equipment and Application Scenarios

The adapter is intended for digital input wiring-check applications. Confirm the supported Yokogawa system and connection arrangement before integrating it into an existing installation.

Application Area	Typical Engineering Use
DCS digital input circuits	Investigate wiring faults affecting field contact signals.
Process equipment status monitoring	Check input wiring when equipment status disagrees with field observations.
Valve and actuator feedback	Investigate unexpected limit-switch indications during commissioning or maintenance.
Pump and motor auxiliary contacts	Review input circuit integrity when running-status feedback appears inconsistent.
Industrial interlock circuits	Support wiring checks when permissive or interlock inputs behave unexpectedly.

Compatibility precautions

• Verify that the target Yokogawa digital input system supports the SCB110 adapter.
• Check the applicable system manual for terminal assignments, cable requirements, and installation restrictions.
• Do not assume compatibility with every Yokogawa input module based on the product name alone.
• Confirm whether the existing system requires additional interface hardware or specific wiring accessories.

05 | Field Troubleshooting Workflow

When a digital input remains ON after the field device changes state, follow a controlled investigation sequence.

1. Verify the field device: Check the contact position and confirm the expected operating state.
2. Inspect the circuit: Look for damaged insulation, unintended bridging, loose terminals, and incorrect connections.
3. Review the input indication: Compare the physical contact state with the controller's reported state.
4. Check adapter suitability: Confirm that the installed wiring arrangement matches the adapter's supported application.
5. Perform the prescribed wiring check: Follow Yokogawa's approved procedure for the relevant hardware configuration.
6. Document the result: Record the affected channel, observed state, wiring findings, and corrective action.

Practical example: A valve limit switch opens, but the DCS continues to report an ON state. An engineer first verifies the switch mechanically. The engineer then inspects terminal bridges and cable insulation. The wiring check helps investigate a possible short circuit before replacing the input module. Always follow the site's isolation and electrical safety procedures. Do not disconnect live circuits unless the approved procedure explicitly permits that operation.

06 | Global PLC Spare HUB Review

From a maintenance perspective, the SCB110-S0 addresses an important troubleshooting challenge: distinguishing a field wiring defect from a genuine equipment state. A persistent ON indication does not automatically prove an input module failure. A short circuit, incorrect terminal connection, or damaged cable can produce misleading field feedback. Engineers should verify the field device, wiring path, interface arrangement, and controller indication before replacing hardware. This approach can reduce unnecessary component changes and shorten fault-isolation time. For replacement projects, record the full adapter code and existing connection arrangement. These details help prevent ordering errors and improve commissioning consistency.

07 | Installation and Maintenance Considerations

• Before installation: Verify the adapter model and confirm system-level compatibility.
• During wiring: Follow the manufacturer's terminal and connection instructions.
• During commissioning: Test the applicable input circuit under the approved procedure.
• During troubleshooting: Compare field-device status with the controller's reported input state.
• During routine maintenance: Inspect cable insulation, terminal security, and evidence of accidental bridging.
• After corrective work: Repeat the prescribed verification and document the final circuit condition.

The supplied specifications do not establish dimensions, weight, supply voltage, connector type, or mounting method. Consult the official documentation before preparing a mechanical or electrical installation plan.

08 | Environmental and Compliance Notes

The product description references ISA Standard G3. Confirm the exact environmental requirements and applicable installation conditions in the manufacturer's documentation. The supplied information does not identify a certification number, hazardous-area approval, ingress-protection rating, or specific operating temperature range. Do not treat the ISA G3 reference as proof of unrelated certifications.

09 | Packaging, Shipping, and Warranty

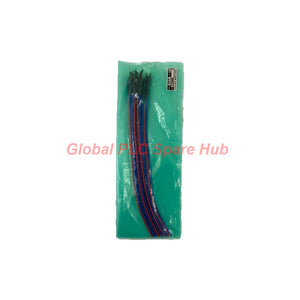

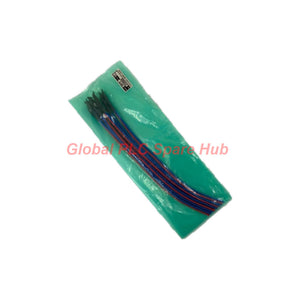

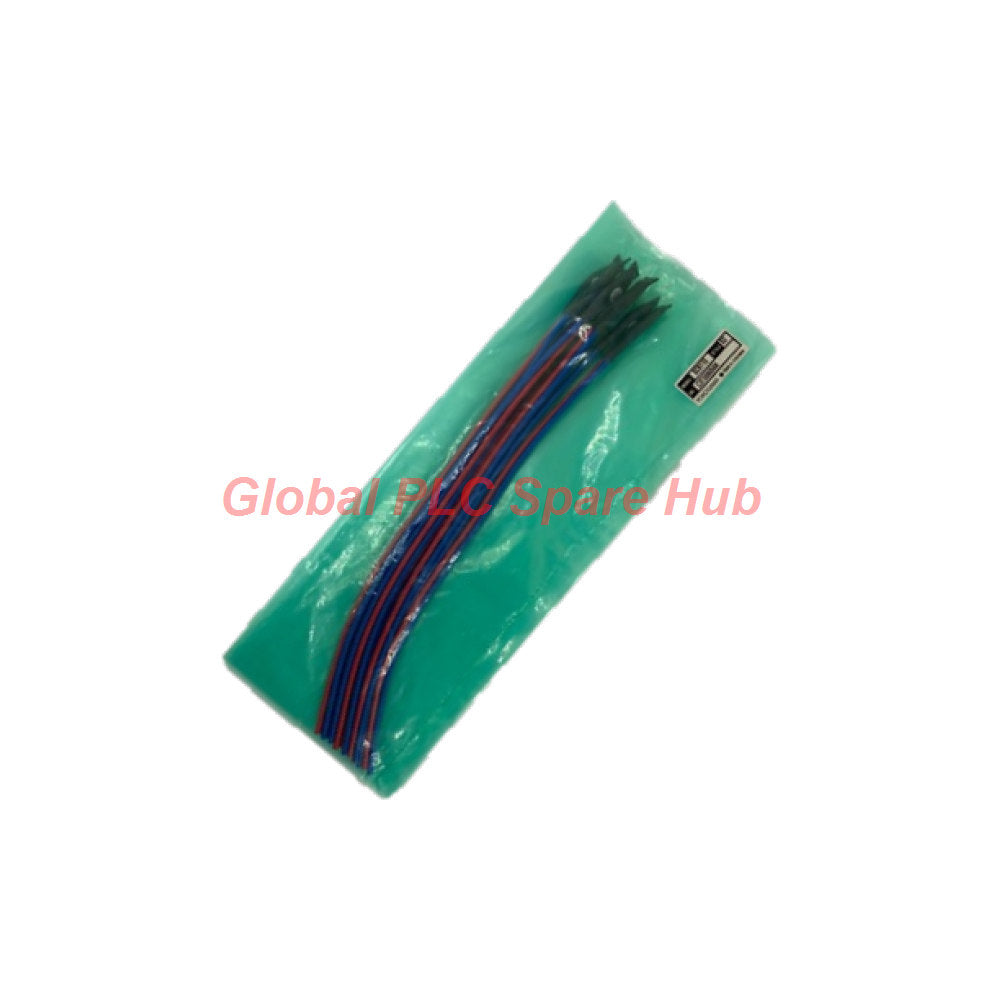

• Product supplied: Yokogawa SCB110-S0 wiring check adapter.
• Accessories: Confirm included cables, connectors, and mounting hardware against the quotation.
• Shipping options: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch target: Typically 24–48 hours after order confirmation, subject to stock and payment verification.
• Warranty: 12 months, subject to the seller's written warranty terms.
• Order verification: Provide the full model code and required quantity when requesting a quotation.

Contact Global PLC Spare HUB to confirm availability, packaging contents, dispatch timing, and warranty coverage before ordering.

10 | Frequently Asked Questions

Q1. Why can a digital input show ON even when the field device appears inactive?

Possible causes include shorted conductors, incorrect terminal bridges, cable insulation damage, or a defective contact. Verify the physical contact and wiring path before concluding that the input hardware has failed.

Q2. Should I replace the digital input module when a wiring fault appears?

Not immediately. First inspect the field circuit and perform the prescribed wiring checks. Replace the module only after the investigation identifies a hardware fault or excludes external wiring problems.

Q3. What information helps confirm whether this adapter fits my existing system?

Provide the host system model, digital input module model, current adapter code, connection details, and the relevant wiring diagram. These details help verify the correct interface and supported installation.

Q4. Can the SCB110-S0 independently identify the exact location of a short circuit?

The supplied description confirms defective short-circuit detection, but it does not establish precise fault-location capability. Check the applicable manual for detection logic, diagnostic indications, and the limits of fault localization.

Q5. What should maintenance teams record after completing a wiring check?

Record the affected channel, field device, original symptom, inspection findings, corrective action, and final functional test. Consistent records help identify recurring wiring problems and support future maintenance decisions.

Request Pricing and Compatibility Confirmation

Need a Yokogawa SCB110-S0 wiring check adapter for a DCS maintenance project or digital input fault investigation? Contact Global PLC Spare HUB with your model number, host system details, quantity, and delivery destination. Our team can help review configuration requirements and confirm available shipping options.
