ADV161-P50 Yokogawa ADV161 24V DC Digital Input Module 64-Point

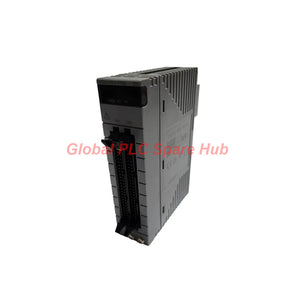

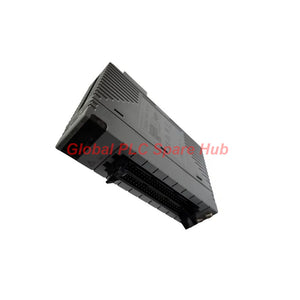

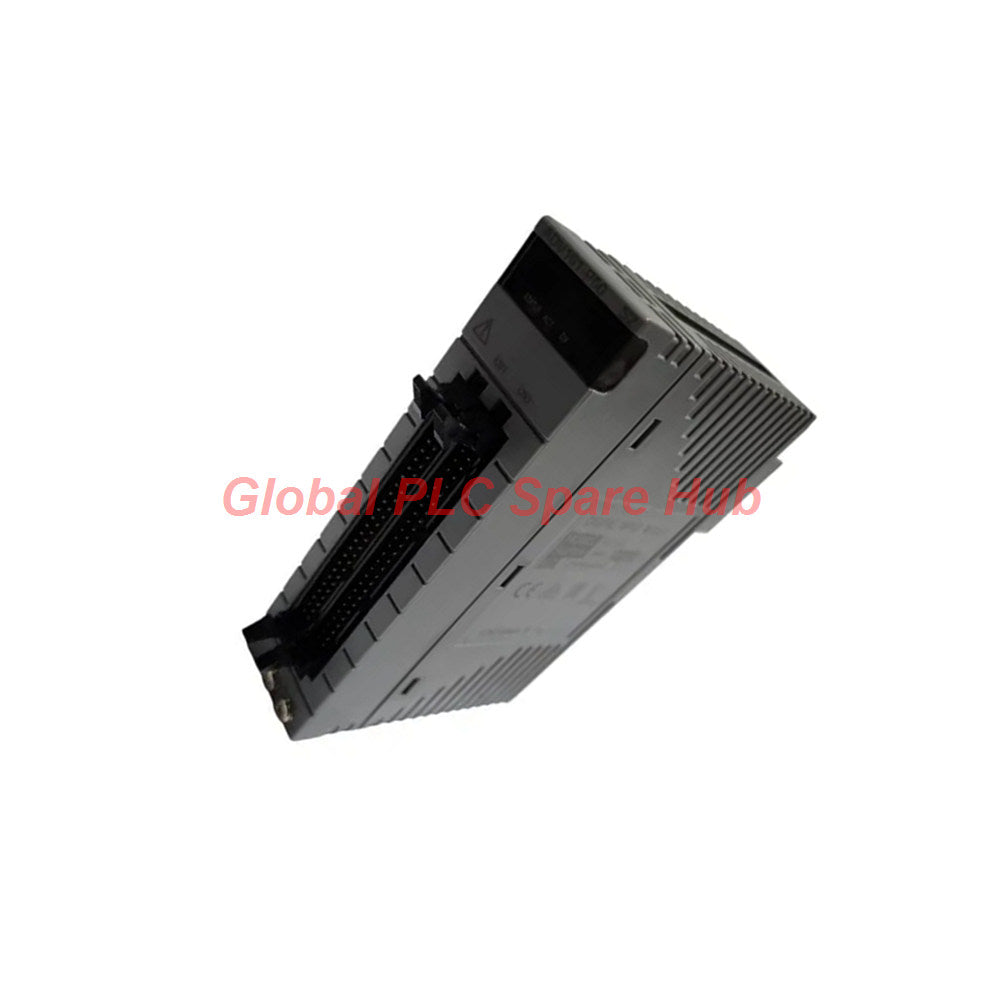

Yokogawa ADV161-P50 Digital Input Module

The Yokogawa ADV161-P50 is a 64-channel digital input module for 24 V DC status monitoring and pushbutton edge counting. It supports sink/source input signals and provides separate response characteristics for status and pushbutton functions.

Its 8 ms status-input response supports fast state acquisition. For pushbutton inputs, the module detects ON periods of at least 20 ms and supports cycles up to 25 Hz.

1. Configuration Breakdown — Model and Suffix

Complete order code: ADV161-P50

2. Electrical and Signal Specifications

3. Isolation and External Connection

• Input-to-system withstand voltage: 2 kV AC for 1 minute.
• Common-to-common withstand voltage: 500 V AC for 1 minute.
• Common grouping: One common per 16 input channels.
• Connection options: Dedicated AKB337 cable or MIL connector cable.

Check the cabinet wiring plan and terminal arrangement before selecting the external cable. The supplied specifications identify the cable types but do not provide connector pin assignments.

4. Functional Configuration

• Status input: Acquires ON/OFF states from field contacts or compatible 24 V DC signals.
• Pushbutton input: Counts pushbutton edges. Verify the actual pulse duration and switching frequency against the module limits.
• Sink/source wiring: Confirm the field-device output topology and common wiring before installation.

5. Suitable Equipment and Applications

The ADV161-P50 is suited to control-system cabinets that require dense discrete input acquisition, subject to confirmation of the host system and I/O compatibility.

• Machine and process status monitoring, including limit switches and auxiliary contacts.
• Operator pushbutton acquisition where edge-counting is required.
• Equipment permissive and interlock status collection.
• Distributed field-contact monitoring in industrial control panels.
• Retrofit projects replacing a compatible 64-channel digital input module.

Before ordering for a Yokogawa system, verify the installed I/O node, module slot, system revision, and approved cable arrangement. The supplied information does not identify a specific compatible controller or node.

6. Diagnostics and Commissioning Checks

1. Input does not turn ON: Measure the field voltage at the module input. Confirm it reaches the 20 V DC ON threshold and does not exceed 30 V DC.
2. Input remains ON: Check whether the signal falls to 5 V DC or less in the OFF state. Inspect leakage current and field-device wiring.
3. Missed pushbutton counts: Check that each ON pulse lasts at least 20 ms and the switching cycle stays within 25 Hz.
4. Intermittent signals: Inspect terminal connections, cable continuity, common grouping, and the field-device contact condition.
5. Unexpected channel behavior: Verify sink/source configuration and confirm the correct common is used for each 16-channel group.

These checks are based on the module’s stated electrical limits. The supplied data does not specify onboard diagnostic indicators, fault codes, or diagnostic software functions.

7. Global PLC Spare HUB's Insight

When selecting this module, distinguish ordinary state acquisition from pushbutton edge counting. The stated 8 ms response applies to status inputs; pushbutton counting has a separate 20 ms minimum ON-detection requirement.

For a replacement, compare the full ADV161-P50 code rather than matching only the ADV161 base model. Confirm the no-status-display configuration, lack of explosion protection, host-system support, and cable type. Also review the 16-channel common arrangement to prevent wiring mismatches during commissioning.

8. Ordering, Warranty, and Shipping

• Product: Yokogawa ADV161-P50 digital input module
• Condition: New and original, in factory packaging
• Warranty: 12 months
• Shipping carriers: FedEx, UPS, or DHL
• Dispatch: Typically within 24–48 hours after order confirmation and stock verification

Contact Global PLC Spare HUB with your model code, required quantity, and system details to confirm availability and compatibility before purchase.

9. Frequently Asked Questions

Q1. Can the ADV161-P50 count short pushbutton pulses?

A. The specified minimum ON detection time is 20 ms. Pulses shorter than this are outside the stated detection requirement, so confirm the signal duration before using it for counting.

Q2. What should be checked when replacing an existing 64-channel input module?

A. Confirm the complete model suffix, host I/O node compatibility, input voltage range, sink/source wiring, common grouping, and external cable. Matching channel count alone is not sufficient.

Q3. Can this module accept a 30 V DC field signal continuously?

A. The maximum allowable input voltage is 30.0 V DC. For normal operation, use the rated 24 V DC signal and verify that field transients do not exceed the limit.

Q4. How should the 64 inputs be divided during cabinet wiring?

A. The module has one common per 16-channel group. Plan four groups and verify each group’s common connection and isolation requirements against the system wiring documentation.

Q5. Is the ADV161-P50 suitable for hazardous-area installation?

A. The “5” suffix specifies no explosion protection. Do not select it for a hazardous-area requirement unless the complete installation design provides an independently approved protection method.
