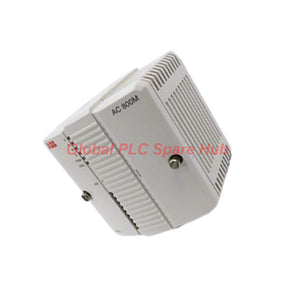

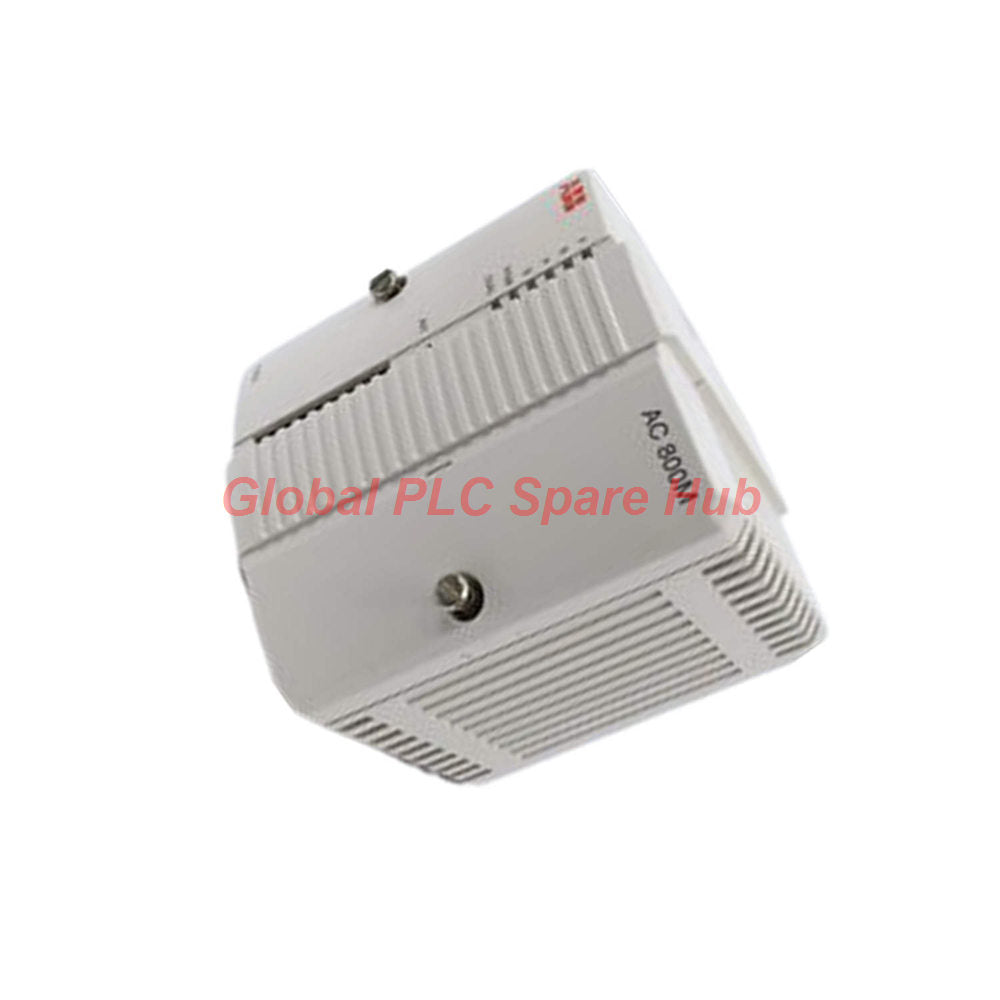

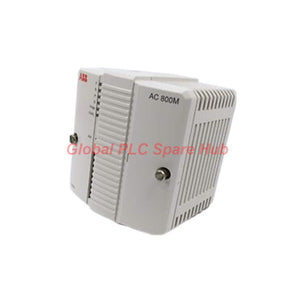

PM862K01 ABB 3BSE076940R1 Processor Module Spare
Manufacturer: ABB
Product No.: PM862K01
Condition： In stock
Product Type: Processor Module
Product Origin: SE
Payment: T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
**Product Overview and Architecture**
The **ABB** **AC 800M** controller utilizes the **PM862K01** CPU board (**3BSE076940R1**). This high-performance module integrates the microprocessor, RAM, real-time clock, and diagnostic LEDs. An onboard INIT push button allows fast hardware resets. A dedicated CompactFlash interface supports reliable local data storage. The base plate provides two RJ45 Ethernet ports for control networks and two RJ45 serial ports for configuration tools.
**Technical Specifications**
Engineered for industrial environments, the **PM862K01** module delivers robust processing metrics:
- Brand: **ABB**
- Series: **AC 800M**
- Model: **PM862K01**
- Article Number: **3BSE076940R1**
- Processor Type: MPC866
- Clock Frequency: 67 MHz
- RAM Memory: 32 MB (23.521 MB available for application)
- Execution Performance: 0.18 ms per 1000 boolean operations
- Power Supply: 24 V DC (19.2 to 30 V DC range)
- Power Dissipation: 5.1 W typical, 8.6 W maximum
**Installation, Commissioning and Maintenance**
- DIN rail mounting utilizes a unique slide and lock mechanism.
- Base plates feature unique Ethernet addresses for hardware identification.
- Diagnostic LEDs offer immediate visual status checks.
- Hot-swappable redundancy options minimize system downtime.
- Built-in backup lithium batteries preserve system data.
**Compatibility and Certifications**
| Parameter | Specification |
|---|---|
| System Compatibility | System 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards |
| Environmental Protection | IP20 Class protection, G3 corrosion resistance |
| Certifications | ISA Secure, CE, DNV-GL Marine, cULus Zone 2 |
| EMC Standards | EN 61000-6-4 and EN 61000-6-2 compliance |
**Global PLC Spare HUB Insight and Field Experience**
**Global PLC Spare HUB** technical engineers frequently deploy the **PM862K01** controller in large-scale continuous process plants. In a recent refinery upgrade, replacing legacy controllers with the **AC 800M** **PM862K01** architecture reduced logic scan times by 25 percent. Field teams recommend verifying firmware revisions prior to hot-swap integration to ensure seamless redundancy switchover within the 10 ms threshold.
**Typical Applications and Diagnostics**
- Distributed Control Systems (DCS) for oil and gas refineries.
- Large-scale industrial automation and manufacturing lines.
- Power generation turbine management and safety monitoring.
- Event queue management supporting up to 3000 events per OPC client.
- Real-time clock synchronization with 1 ms precision across controllers.
**Logistics, Packaging and Warranty**
- Express courier delivery via FedEx, UPS, and DHL.
- Order dispatch within 24 to 48 hours globally.
- Secure anti-static industrial packaging prevents transit damage.
- Comprehensive 12-month quality warranty on all hardware units.
**Frequently Asked Questions and Buying Guidance**
Q: Does the **PM862K01** support CPU redundancy?
A: Yes, the controller supports full CPU redundancy, including communication interfaces and S800 I/O modules, for maximum plant availability.
Q: What software is required to program this controller?
A: You can configure the module using the 800xA control builder, starting from version 6.0.2 and Compact Control Builder 6.0.0-1.
Q: How do I select the right base plate for installation?
A: Ensure you pair the **PM862K01** with the compatible TP830 base plate, which holds the unique hardware Ethernet address label.
