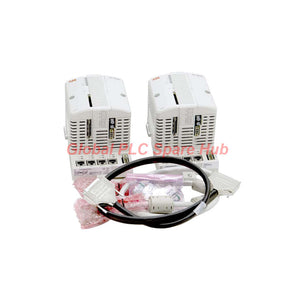

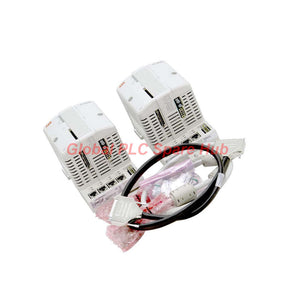

PM861AK01 System 800xA Classic Controller ABB PLC Module

Product Overview

Welcome to the technical evaluation of the PM861AK01 controller, part of the renowned ABB System 800xA series. Engineered for reliable industrial control systems, this central processing unit manages complex automation tasks with high precision. It features robust built-in redundancy options and standardized communication interfaces to optimize plant operations. Global PLC Spare HUB provides expert insights for engineers seeking dependable hardware solutions.

Technical Specifications

• Brand: ABB
• Model: PM861AK01
• Series: System 800xA
• Processor Type: MPC860
• Clock Frequency: 48 MHz
• RAM Memory: 16 MB total, 7.155 MB available for application
• Flash Memory: 2 MB for firmware storage
• Performance: 0.23 ms per 1000 boolean operations
• Power Supply: 24V DC (19.2 to 30 V DC)
• Power Consumption: Typ. 250 mA, Max. 430 mA
• Power Dissipation: Typ. 6.0 W, Max. 10.3 W
• Communication Ports: Two RJ45 Ethernet ports (CN1, CN2) supporting MMS and IAC; two RS-232C serial ports (COM3, COM4)
• Operating Temperature: +5 °C to +55 °C (+41 °F to +131 °F)
• Storage Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
• Relative Humidity: 5 to 95 % non-condensing
• Protection Class: IP20 according to EN 60529
• Corrosion Protection: G3 compliant to ISA 71.04
• Dimensions: Width 196 mm, Height 119 mm, Depth 135 mm
• Weight: 1200 g including base plate

Installation Guide

• Mount the unit securely on a standard DIN rail using the slide and lock mechanism.
• Attach the TP830 base plate ensuring proper alignment of the Ethernet address label.
• Connect the redundant power supply to the designated terminals within the 19.2 to 30 V DC range.
• Link the CN1 and CN2 Ethernet ports to the switched 100Mbit/s control network backbone.
• Verify module status via front-facing LED indicators before software configuration.

Commissioning and Maintenance Convenience

• Use the INIT push button on the CPU board for hardware reset procedures.
• Configure applications efficiently using the 800xA control builder software environment.
• Perform step-by-step system expansions leveraging modular CEX-Bus architecture.
• Diagnose faults rapidly using built-in diagnostic LEDs and event queues up to 3000 entries per OPC client.

Compatibility Statement

• Fully compatible with S800 I/O subsystems and Modulebus expansions.
• Supports CPU redundancy configurations utilizing BC810 for sectioned CEX-Bus layouts.
• Integrates seamlessly with standard PROFIBUS DP and Ethernet communication protocols.

Certification Information

• CE Mark: Yes
• Electrical Safety: EN 50178, IEC 61131-2, UL 508
• Hazardous Location: UL 60079-15
• Marine Approvals: ABS, BV, DNV-GL, LR for PM861AK01
• Emission and Immunity: EN 61000-6-4, EN 61000-6-2

Package List and Warranty Terms

• 1 x ABB PM861AK01 CPU Module
• 1 x TP830 Base Plate
• 1 x Installation and Safety Instruction Leaflet
• Warranty: Comprehensive 12-month warranty coverage included.
• Shipping Logistics: Fast dispatch within 24-48 hours via FedEx, UPS, or DHL.

Typical Application Scenarios

• Large-scale continuous process manufacturing plants requiring high availability.
• Marine and offshore vessel automation systems needing certified rugged controllers.
• Power generation and distribution substations demanding strict industrial EMC compliance.

Global PLC Spare HUB's Insight

Field experience shows that implementing a redundant PM861AK01 setup significantly minimizes downtime during critical controller switches. For example, in a chemical processing plant migration project, utilizing a pair of these units with a sectioned CEX-bus ensured seamless switchover times under 10 ms. Engineers should routinely verify battery voltage and clean optical Modulebus connections during scheduled plant turnarounds to maintain optimal performance.

Frequently Asked Questions

Q: What is the maximum switch-over time in a redundant configuration for the PM861AK01?

A: The maximum switch-over time in a redundant setup is 10 ms.

Q: How many applications can run simultaneously per controller?

A: The controller supports up to 32 applications per unit.

Q: Can the PM861AK01 operate without cabinet enclosures?

A: Yes, it features IP20 class protection, making it suitable for industrial environments without requiring additional enclosed housing.

Q: What is the recommended shipping turnaround time for ordering this spare part?

A: Orders are processed for rapid dispatch within 24 to 48 hours utilizing reliable couriers like FedEx, UPS, and DHL.

Q: What should an engineer check if the controller fails to synchronize on the Control Network?

A: Verify that the 100Mbit/s switched Ethernet backbone is properly connected and that CN1 and CN2 ports match the MMS and IAC protocol configuration settings.
