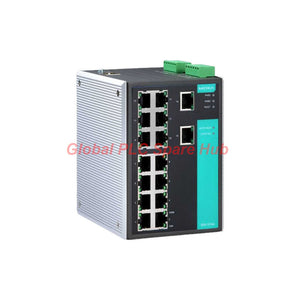

Moxa EDS-516A-MM-SC Managed Ethernet Switch Series

Product Introduction

Engineered for robust industrial networking, the Moxa EDS-516A-MM-SC belongs to the advanced EDS-516A Series managed industrial Ethernet switch lineup. This high-performance device delivers dependable data transmission across harsh operational environments, combining fourteen 10/100BaseT(X) ports with two multi-mode SC optical fiber ports.

Industrial automation engineers rely on this managed switch to maintain resilient ring topologies, secure VLAN configurations, and precise packet prioritization. Its IP30-rated metal housing, dual redundant power inputs, and wide operating temperature range ensure continuous uptime in factory automation, substation control, and intelligent transportation systems.

Global PLC Spare HUB Review: Integrating the EDS-516A-MM-SC into legacy plant networks minimizes packet loss during heavy traffic surges. Field commissioning engineers frequently pair this switch with distributed control systems to isolate broadcast storms without disrupting critical Modbus TCP polling loops.

Technical Specifications

Core Hardware Specifications

• Brand: MOXA
• Manufacturer Part Number: EDS-516A-MM-SC
• Series: EDS-516A Series
• Total Ports: 16
• Copper Ports: 14 x 10/100BaseT(X) RJ45
• Fiber Ports: 2 x 100BaseFX multi-mode with SC connectors
• Switch Type: Managed Ethernet Switch
• Housing Material: Metal with IP30 ingress protection rating

Performance and Electrical Parameters

• Supply Voltage: 24 VDC nominal (12 to 45 VDC operating range)
• Input Current: 0.44 A at 24 VDC
• Packet Buffer Size: 2 Mbits
• MAC Table Size: 8 K entries
• Priority Queues: 4 hardware queues per port
• VLAN Capacity: Up to 64 VLANs simultaneously (VID 1 to 4094)

Environmental & Physical Tolerances

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5% to 95% non-condensing
• Dimensions: 94 x 135 x 142.7 mm
• Weight: 1586 g (3.50 lb)

Compliance & Certifications

• Safety Standards: EN 62368-1, UL 60950-1, UL 508
• EMC & EMI: EN 55032/35, CISPR 32, FCC Part 15B Class A
• EMS Immunity: IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), IEC 61000-4-6 (CS)
• Hazardous Locations: ATEX, Class I Division 2
• Environmental Testing: IEC 60068-2-6 (Vibration), IEC 60068-2-27 (Shock), IEC 60068-2-31 (Freefall)
• Maritime Certification: DNV approved
• MTBF: 247,676 hours via Telcordia (Bellcore) standards

Installation, Commissioning & Maintenance

• Mounting Options: Secure the device directly onto standard DIN-rails or utilize optional panel mounting kits for bulkhead installations.
• Console Access: Configure initial IP parameters via the 10-pin RJ45 serial console port utilizing standard RS-232 settings (115200, n, 8, 1).
• Hardware Redundancy: Connect dual independent power sources to the removable 6-contact terminal blocks to prevent power failure downtime.
• Ring Configuration: Utilize top-panel DIP switches to quickly assign Turbo Ring master, coupler, or reserve roles without accessing software menus.

Compatibility, Diagnostics & Industrial Protocols

• Network Protocols: Fully supports IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree, and proprietary Turbo Ring v1/v2 for sub-20ms recovery times.
• Automation Protocols: Native integration support for EtherNet/IP and Modbus TCP industrial control frameworks.
• Diagnostic Tools: Real-time port mirroring, IGMP snooping, RMON statistics groups, and comprehensive Syslog reporting.
• Security Standards: Enhanced protection via HTTPS/SSL, SSH, RADIUS, TACACS+, and port lock functions.

Shipping, Logistics & Warranty Terms

• Fulfillment Speed: Orders are processed and dispatched within 24 to 48 hours.
• Global Couriers: Express delivery available via FedEx, UPS, and DHL.
• Warranty Coverage: Backed by a comprehensive 12-month warranty covering manufacturing defects.

Frequently Asked Questions

What recovery time does the Turbo Ring protocol achieve on the EDS-516A-MM-SC?

The embedded Turbo Ring and Turbo Ring v2 protocols achieve fault recovery times of under 20 milliseconds with a network capacity of up to 250 switches.

Can this switch handle heavy electrical noise in substations?

Yes. The unit meets rigorous industrial EMC standards, including IEC 61000-4 surge, EFT, and ESD protection, making it ideal for high-interference electrical environments.

How do I reset the device to factory default settings?

You can restore factory defaults by accessing the web-based management interface, utilizing the command-line utility via the serial console, or toggling designated configuration scripts.

What is the recommended approach for selecting multi-mode fiber patch cables?

Global PLC Spare HUB's Insight: Always match the modal bandwidth of your optical patch cords to the 100BaseFX multi-mode SC ports. For runs exceeding 2 kilometers, verify optical power budgets to prevent receiver saturation.
