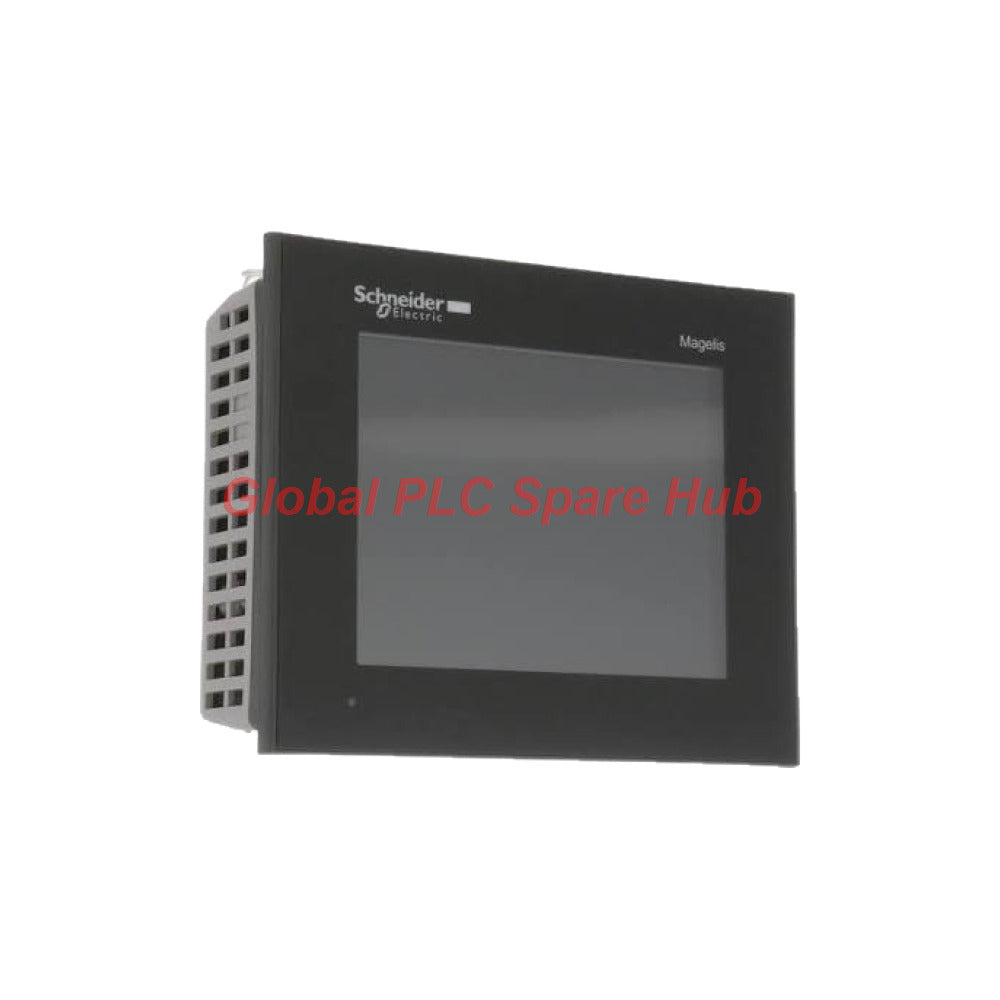

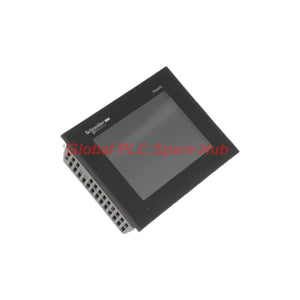

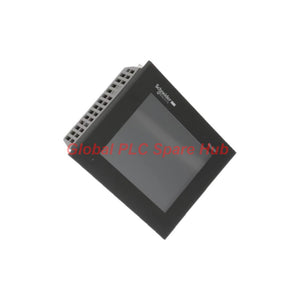

Magelis GTO HMIGTO2310 Schneider Touchscreen Operator Interface

Magelis GTO HMIGTO2310 Schneider Touchscreen Operator Interface

Manufacturer: Schneider Electric
Product No.: HMIGTO2310
Condition： In stock
Product Type: Touchscreen Operator Interface
Product Origin: FR
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Overview

The HMIGTO2310 Magelis GTO advanced touchscreen panel by Schneider Electric delivers reliable operator interface control. Engineers choose this compact 5.7-inch color display for demanding industrial automation environments.

Technical Specifications

Parameter Category	Specification Detail
Display & Resolution	5.7-inch TFT LCD, 320 x 240 pixels QVGA, 65536 colors, brand: Schneider Electric, model: HMIGTO2310
Touch Panel & Durability	Resistive film, 1024 x 1024 touch zone, 1,000,000 cycles
Electrical Parameters	24 V DC rated voltage, 10.5 W max power consumption
Temperature Range	0 °C to 55 °C operating, -20 °C to 60 °C storage
Environmental Tolerance	IP65 front panel, NEMA 4X, 10 to 90 percent relative humidity
Anti-Interference Capability	IEC 61000-4-2 level 3 electrostatic discharge resistance

Installation Guide

Mount the unit flush into your industrial control cabinet panel.
Use the four included screw clamps to secure the housing firmly.
Maintain natural convection airflow around the unit enclosure.
Connect the 24 V DC external power source to the designated terminals.

Commissioning and Maintenance Convenience

Configure the device easily using Vijeo Designer software version 6.1 or higher.
Monitor system status through clear front-panel LED indicators.
Replace the internal lithium RAM backup battery safely when needed.
Access local data logs quickly via the integrated SD card slot.

Compatibility Description

Communicate seamlessly with major programmable controllers across your factory floor.
Connect via Modbus, Modbus TCP, or Uni-TE protocols for Schneider Electric systems.
Integrate third-party automation hardware from Siemens, Mitsubishi, Omron, and Rockwell Automation.
Utilize RS232C and RS485 serial links for robust data transmission.

Certification Information

Comply with global industrial safety standards including CE, C-Tick, cULus, and KCC.
Meet EN 61131-2 and IEC 61000-6-2 electromagnetic compatibility regulations.
Deploy safely indoors with NEMA 4X front panel environmental ratings.

Packing List and Warranty Terms

Receive one HMIGTO2310 operator terminal unit in secure industrial packaging.
Includes four mounting screw clamps and power supply connectors.
Enjoy complete peace of mind with a comprehensive 12-month quality warranty.

Shipping and Logistics

We ship orders rapidly within 24 to 48 hours of confirmation.
Choose reliable global courier services including FedEx, UPS, and DHL.
Receive tracking numbers promptly to monitor your delivery status.

Typical Applications and Diagnostic Capabilities

Apply this interface in manufacturing assembly lines and material handling systems.
Monitor real-time machine alarms and operational status codes instantly.
Detect communication faults using dedicated COM2 and SD card status LEDs.
Analyze runtime performance logs stored directly on external SD memory cards.

Global PLC Spare HUB Insight

Our engineers frequently deploy the HMIGTO2310 in packaging machinery upgrades. One recent retrofit replaced an aging CRT screen with this modern QVGA display. The bright TFT backlight significantly improved operator visibility in dim plant areas. Commissioning took under two hours using existing Vijeo Designer project files.

Frequently Asked Questions and Buying Guide

Q: What programming software supports this operator panel?

A: Vijeo Designer software version 6.1 or higher is required for project configuration.

Q: Can this terminal connect to Siemens programmable controllers?

A: Yes, it supports Siemens MPI protocols via the integrated RS485 port.

Q: How should buyers select between GTO models?

A: Consider your screen size requirements, communication port needs, and environmental constraints. For assistance choosing the exact part number for your industrial application, contact our sales engineering team for a custom quote.
