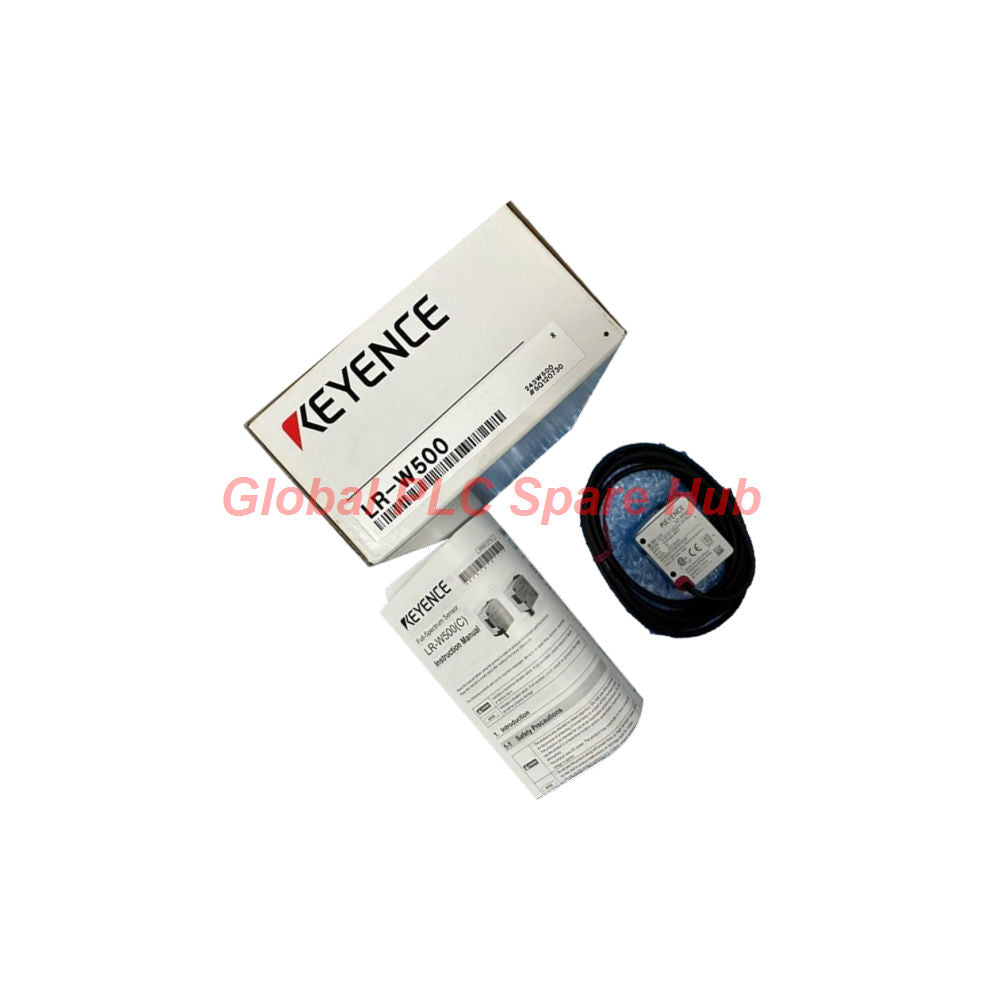

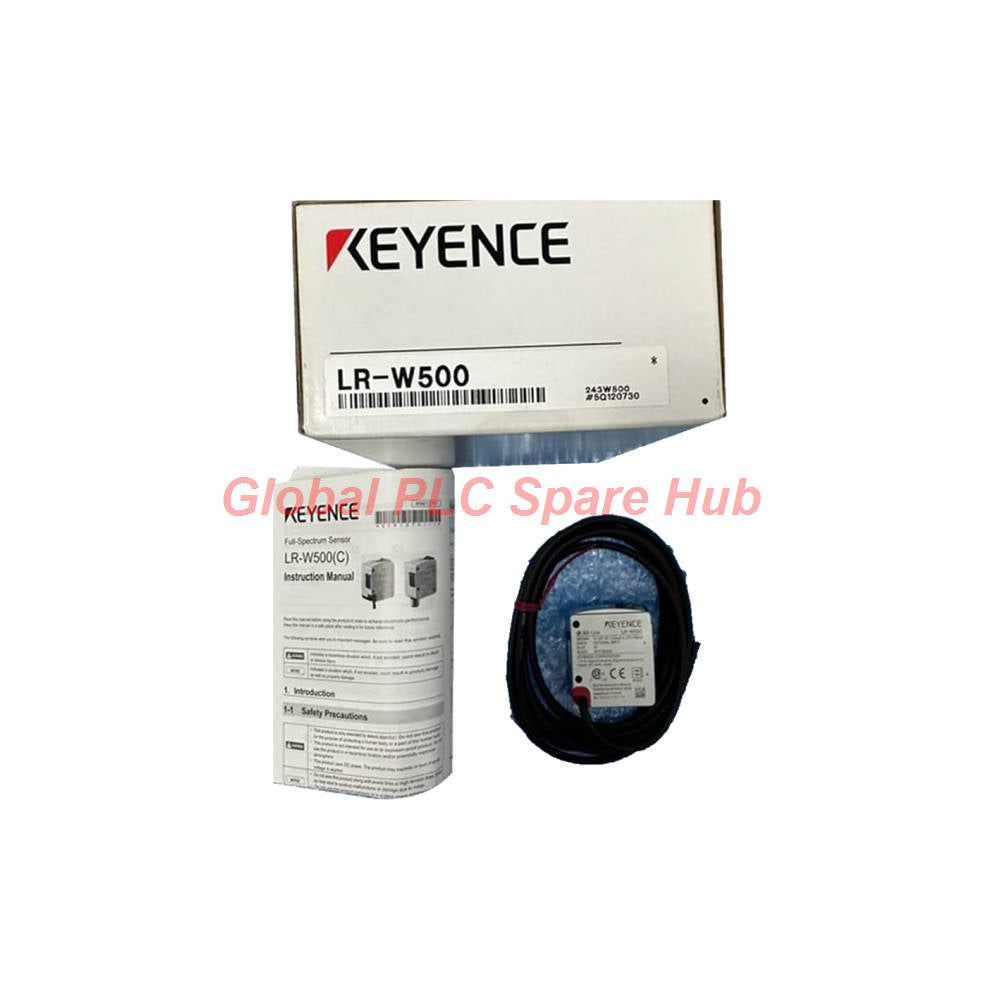

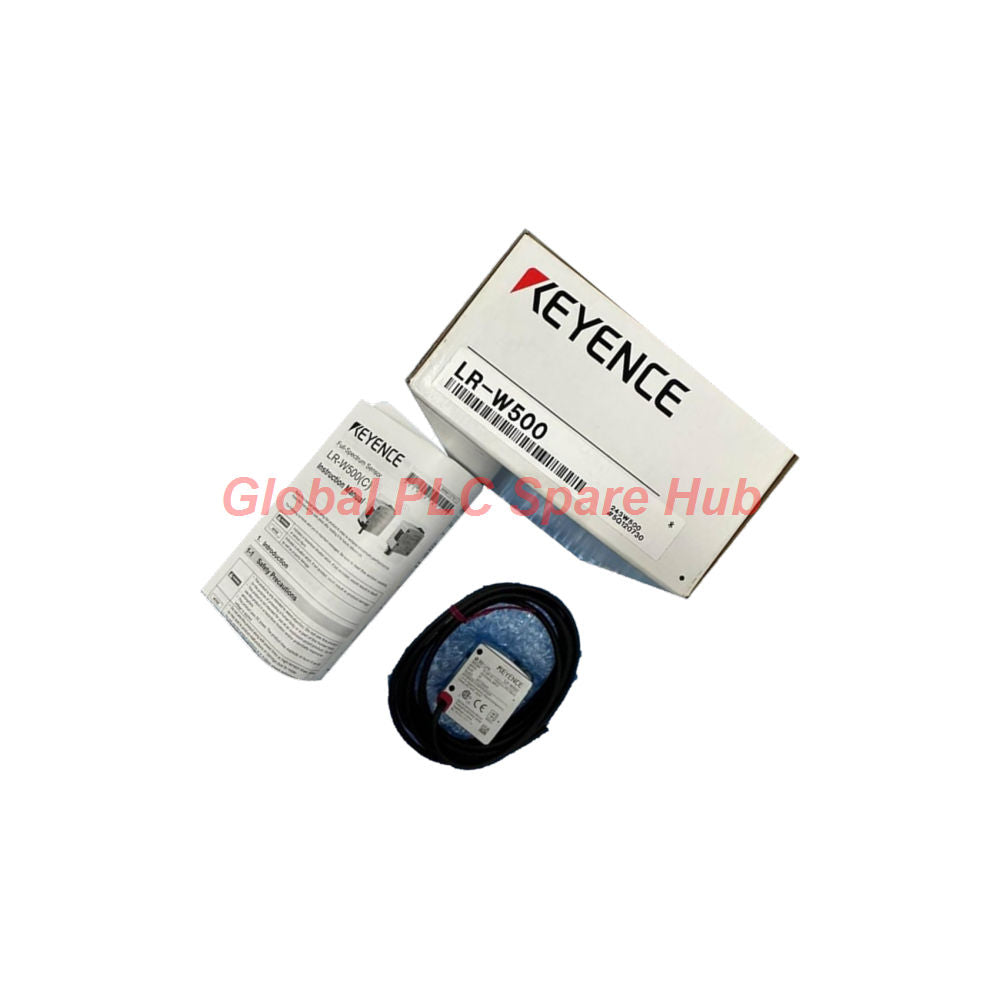

LR-W500 Keyence Photoelectric Sensor | LR-W Series Cable Type Optical Sensor

Product Overview & Core Architecture

The LR-W500 engineered by Keyence represents an advanced optical sensing solution within the LR-W Series. Designed as a robust 2m cable type photoelectric sensor, it leverages a high-intensity white LED light source to deliver stable distance and color contrast detection across a 30 mm to 500 mm operating range. Its variable spot architecture ensures precise target illumination, making it an essential component for high-speed industrial sorting and quality verification tasks.

Comprehensive Technical Specifications

Mechanical Installation & Alignment Guidelines

• Surface Mounting: Secure the LR-W500 casing using appropriate brackets, ensuring the zinc die-cast housing remains grounded to mitigate electrical noise.
• Spot Adjustments: Utilize the triiron tetraoxide-coated iron dial to focus the spot diameter according to your target distance (100 mm to 500 mm).
• Interference Mitigation: When installing units in close proximity, activate the mutual interference reduction function by setting alternate frequencies for up to 2 units.
• Cable Management: Route the integrated 2m PVC cable away from high-voltage power lines to prevent electromagnetic coupling on external tuning inputs.

Diagnostic Capabilities & Maintenance Protocols

• Output Status Feedback: Monitor the built-in multi-color display indicators to instantly verify switching states and threshold stability during live operations.
• Ambient Interference Filtering: The optical system automatically compensates for background interferences up to 10,000 lux for incandescent lighting and 20,000 lux for sunlight.
• Surge & Reverse Protection: Built-in safeguards protect against power supply surges, reverse power connections, and output overcurrent conditions.
• Lens Care: Periodically wipe the scratch-resistant PMMA lens cover with an antistatic cloth to prevent dust accumulation from degrading spot intensity.

System Compatibility & Compliance Standards

• Controller Integration: Fully compatible with standard industrial automation PLCs and controllers supporting NPN or PNP open collector logic.
• External Inputs: Supports remote tuning and transmission OFF functions via low-current short-circuit activation (≤ 1 mA NPN / ≤ 2 mA PNP).
• Industrial Directives: Conforms to rigorous environmental protection standards and international quality frameworks.

Logistics, Packaging & 12-Month Warranty

• Global Courier Network: Fast dispatch via trusted international carriers including FedEx, UPS, and DHL.
• Fulfillment Window: Orders are processed and dispatched within 24 to 48 hours.
• Protective Packaging: Enclosed in custom-molded industrial packaging to prevent mechanical shock during transit.
• Warranty Coverage: Backed by a full 12-month commercial and manufacturing defect warranty.

Industrial Equipment & Application Scenarios

• Packaging Lines: Verifying label presence and package alignment on high-speed conveyor belts.
• Automotive Assembly: Detecting colored components and verifying correct part seating within robotic work cells.
• Electronics Manufacturing: Monitoring small-part placement and surface anomalies on printed circuit board production lines.

Selection Guidelines & Engineering Best Practices

• Evaluate Target Reflectivity: Select the LR-W500 when your application demands stable detection across varying surface colors and textures within a half-meter window.
• Match Response Times: Choose faster response settings (200 μs) for high-speed tracking or longer settings for stable integration with mechanical counters.
• Verify Power Budgets: Ensure your power supply safely accommodates the dual-voltage current thresholds of the LR-W Series unit.

Global PLC Spare HUB's Insight

Field Engineering Perspective: Commissioning optical sensors in harsh manufacturing environments often introduces false triggers caused by ambient light fluctuations or minor vibrations. Automation engineers at Global PLC Spare HUB rely on the LR-W500 because its adjustable spot diameter and robust IP67 zinc housing maintain signal integrity where standard plastic sensors degrade. By properly tuning the mutual interference reduction mode on adjacent lines, facilities can eliminate cross-talk entirely without sacrificing response speed.

Frequently Asked Questions (FAQ)

Question:
How do I configure the mutual interference reduction function on the LR-W500?

Answer:
You can prevent cross-talk between adjacent sensors by assigning alternate operation frequencies through the device configuration settings when mounting two units close together.

Question:
What precautions should be taken when adjusting the spot diameter?

Answer:
Use the dedicated iron spot adjustment dial carefully, ensuring you do not over-torque the mechanism while aligning the beam to match your exact target distance between 30 mm and 500 mm.

Question:
Can the external input line handle remote teaching operations?

Answer:
Yes, the external input supports remote tuning and transmission OFF functions, requiring a short-circuit current of 1 mA or less for NPN configurations.

Question:
What steps resolve fluctuating output signals under high ambient sunlight conditions?

Answer:
While the sensor tolerates up to 20,000 lux of sunlight, installing an external physical shade or reorienting the sensing angle away from direct glare helps stabilize readings.

Question:
Why is proper cable routing critical for this 2m cable type model?

Answer:
Routing the integrated PVC cable away from high-voltage AC lines prevents induced electrical noise from affecting the sensitive NPN/PNP control outputs and external input triggers.
