IS200WETAH1AAA GE Mark VIe Wind Turbine PCB Circuit Board Module

Global PLC Spare HUB's Insight:

High-inertia wind turbine excitation and control architectures demand exceptional circuit density and precise voltage regulation to survive harsh grid transients. The GE IS200WETAH1AAA (also referenced as IS200WETAH1A) printed circuit board serves as a core processing and power conditioning node within the Mark VIe distributed control ecosystem. Field service engineers frequently rely on its array of over a hundred voltage regulators, auxiliary daughterboards like the IS210BPPBH2C, and integrated TP test points to isolate feedback loop anomalies before minor ripples escalate into costly turbine trips.

Engineering Architecture & Board Layout

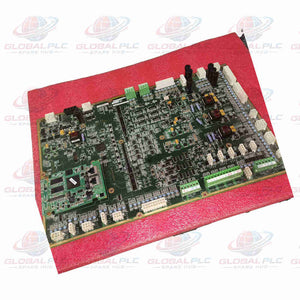

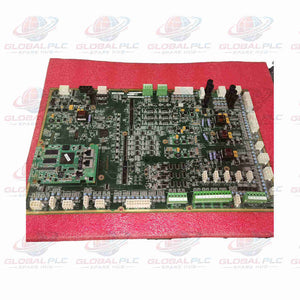

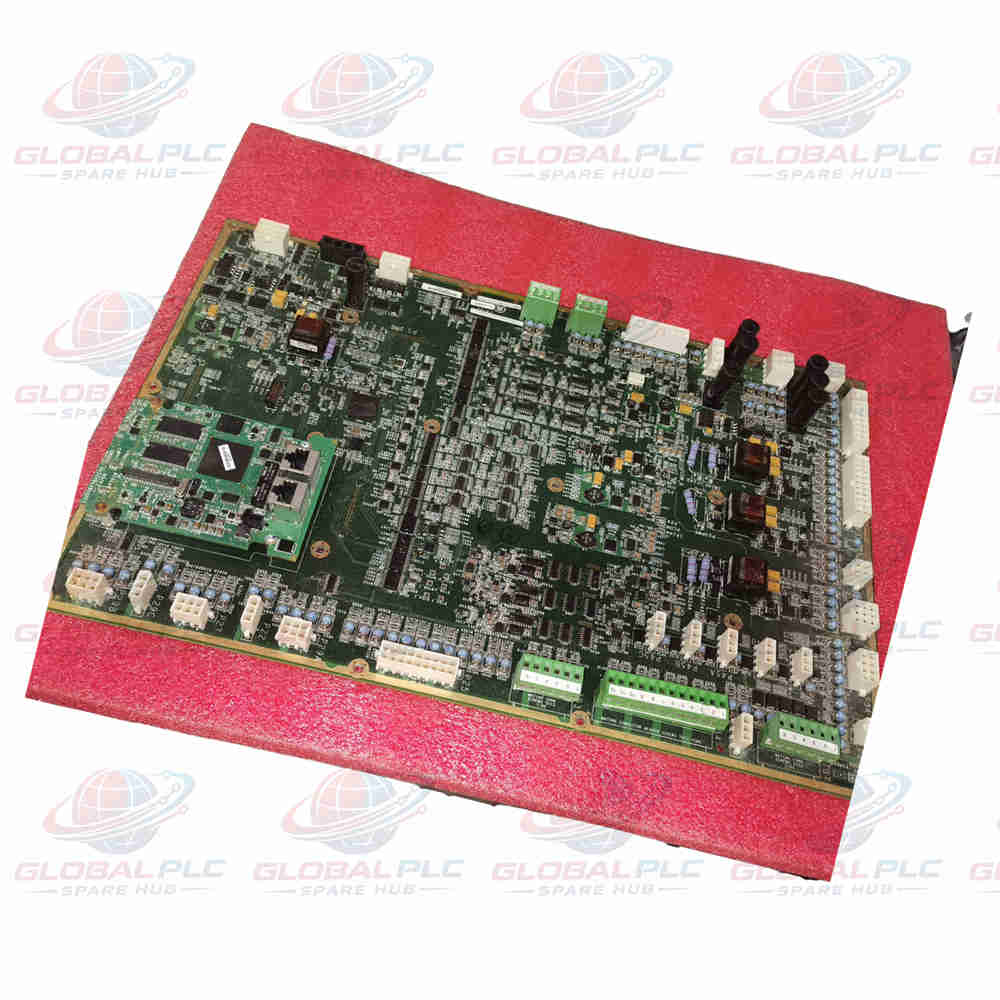

As an advanced component of the GE Mark VIe system, the IS200WETAH1AAA board is densely packed with hundreds of surface-mounted passive and active components. Structural layout features include exposed copper grounding strips along all four board edges with factory-drilled mounting holes, complemented by an attached auxiliary board labeled IS210BPPBH2C.

Component Breakdown & Hardware Topology

• Circuit Protection: Equipped with seven onboard surface fuses ensuring critical circuit isolation.
• Inductive & Power Elements: Features four high-grade transformers, multiple coil inductors, and over one hundred parallel-aligned voltage regulators that automatically adjust resistance via feedback loops.
• Test & Termination Infrastructure: Integrates twenty-five TP test points, six sturdy terminal strips, and over forty-five plugs/connectors (including multi-position blocks ranging from two to twenty positions, vertical male pin connectors, and specialized conductive trace connectors like P4 and P5).

Diagnostic Features & Maintenance Integration

• Built-In Software Diagnostics: Fully compatible with Mark VIe programmable software tools designed for real-time limit checking and preventive maintenance routines.
• Signal Tracing: Multiple shared reference designators (such as P29A, P29B, and P29C) simplify wire-mapping and loop verification during commissioning.
• Feedback Stability: Continuous voltage regulation loops maintain a rock-solid output voltage despite fluctuating input loads.

Target Equipment & Typical Application Scenarios

• Primary Industry Verticals: Primarily deployed in wind energy generation farms, alongside heavy thermal, hydro, nuclear, and oil & gas turbine management systems.
• Control Platform: Designed explicitly for integration into GE Mark VIe turbine control racks.

Logistics, Shipping & Warranty Guarantee

• Fulfillment Speed: Rapid dispatch within 24-48 hours from order confirmation.
• Global Courier Network: Safely delivered worldwide using trusted premium carriers including FedEx, UPS, and DHL.
• Warranty Protection: Fully covered by a comprehensive 12-month warranty against any structural or manufacturing defects.

Frequently Asked Questions (FAQ)

Question: What specific role does the auxiliary board IS210BPPBH2C play when attached to the main assembly?

Answer: The auxiliary board acts as an integrated sub-module that assists in signal routing and local power conditioning to support the primary processing functions of the main circuit board.

Question: Why are the voltage regulators arranged in long parallel lines near the board edges?

Answer: This geometric layout optimizes thermal dissipation across the copper-edged ground planes and ensures uniform feedback-loop response times for stabilizing dynamic loads.

Question: What initial checks should a technician perform if a turbine rack throws an excitation fault linked to this card?

Answer: Verify all multi-position plug connections (paying special attention to shared designator ports like P29A/B/C) and measure voltages across the twenty-five dedicated TP test points to check feedback loop integrity.

Question: Is this circuit board restricted strictly to wind turbine installations?

Answer: While widely recognized for wind energy applications due to load variability, the underlying Mark VIe hardware architecture is fully rated for gas, oil, hydro, and thermal facilities.

Question: What factors should guide my purchasing decision when sourcing a replacement board?

Answer: Ensure your exact hardware revision matches the exact part number string (IS200WETAH1AAA) and verify that the auxiliary daughterboard identifier matches your existing rack specifications.
