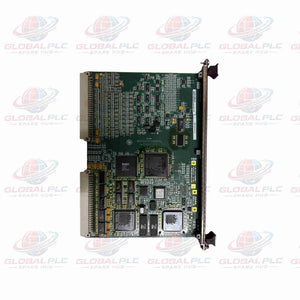

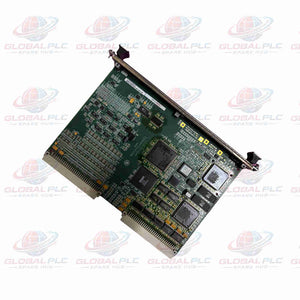

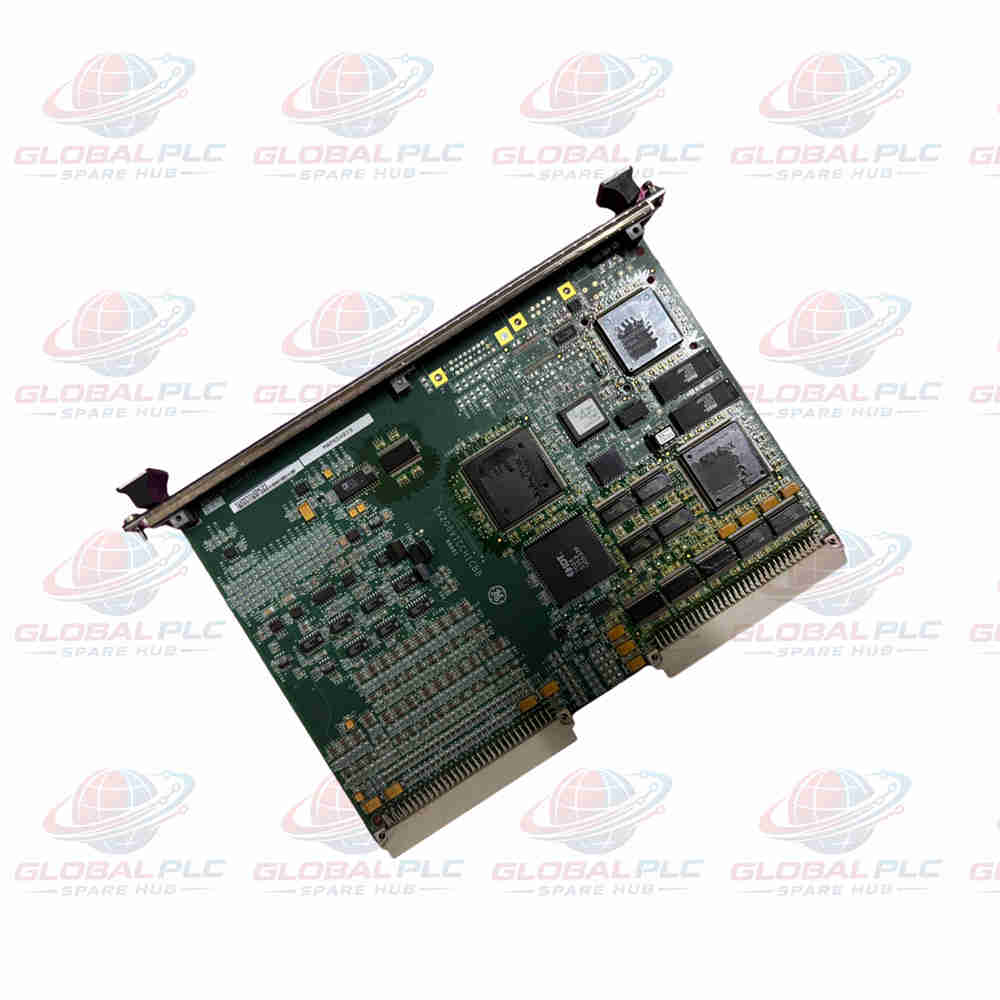

IS200VTCCH1CBB GE Mark VI Thermocouple Processor Board 12-Channel Module

IS200VTCCH1CBB GE Mark VI Thermocouple Processor Board 12-Channel Module

The IS200VTCCH1CBB (VTCC) acts as a high-precision Thermocouple Processor Board engineered by General Electric for the Mark VI Speedtronic control architecture. This subsystem processes multi-channel temperature inputs from industrial gas and steam turbine configurations, converting raw millivolt signals via an internal 16-bit A/D converter.

Global PLC Spare HUB's Insight & Field Experience

During turbine control retrofits in high-vibration gas compressor stations, control engineers frequently observe signal fluctuation caused by thermal EMF gradients across terminal blocks. Our engineering team deployed the IS200VTCCH1CBB within a triple modular redundant (TMR) Mark VI VME rack configuration to monitor critical exhaust gas temperatures.

We noted that proper calibration of the dual cold junction (CJ) reference devices on the TBTC terminal board is vital. When thermocouples run near the maximum allowable distance of 300 meters (984 feet), maintaining twisted-pair shielding and leveraging the board's high-frequency noise suppression prevents common-mode voltage spikes from triggering false channel errors.

Technical Specifications Matrix

Engineering Parameter	Specification Metric
Manufacturer & Series	General Electric (GE) Mark VI
Model / Part Number	IS200VTCCH1CBB (VTCC)
Supported Thermocouple Types	E, J, K, S, and T types
Millivolt Input Span	-8 mV to +45 mV
Analog-to-Digital Conversion	16-bit resolution
Microprocessor Architecture	AMD-K6 300 MHz
Common Mode Voltage Limit	+5 Volts
Thermal Operating Range	-30 to +65 °C
Physical Dimensions & Build	8.26 cm width × 4.19 cm; Surface Mount Technology

Hardware Installation Protocol

• Power down the VME processor rack completely before handling sensitive printed circuit boards.
• Slide the IS200VTCCH1CBB board carefully into the designated slot, pressing the top and bottom levers manually to seat edge connectors securely.
• Fasten the captive screws at the upper and lower edges of the front panel to ensure proper chassis grounding.
• Verify that molded plug cables connecting the DTTC or TBTC terminal boards are locked into place.

Commissioning & Operational Convenience

• Software-driven linearization routines automatically process individual thermocouple curves without manual resistor tuning.
• Dual cold junction devices calculate compensating averages automatically, falling back to safe default values if one sensor drifts out of range.
• Filtered calibration references perform automated zero-voltage tuning to maintain long-term measurement accuracy.

System Compatibility & Hardware Integration

• Specifically designed for integration within GE Mark VI Speedtronic turbine management racks.
• Interfacing seamlessly with TBTC (simplex or TMR) and DTTC DIN-rail terminal boards.
• Upward compatible with gas, steam, and wind turbine automated drive assemblies.

Industrial Standards & Directives

• Instruction Manual Reference: GEH-6421V / GEH-6421
• Country of Origin: United States
• Compliance: Surface Mount Technology standards with protective conformal PCB coating.

Logistics, Packaging & Warranty Terms

• Dispatch Speed: Rapid 24-48 hour fulfillment window.
• Global Shipping Partners: Secure priority transport via FedEx, UPS, and DHL.
• Package Contents: One IS200VTCCH1CBB thermocouple processor board and technical reference documentation.
• Warranty Guarantee: Robust 12-month operational reliability warranty.

Recommended Equipment & Application Scenarios

• Heavy-duty industrial gas turbine control skids and compressor stations.
• Steam turbine auxiliary monitoring and exhaust temperature logging nodes.
• Power generation plant distributed control and protection systems.
• Multi-channel industrial thermal acquisition loops requiring high common-mode rejection.

Diagnostics & Fault Management Capabilities

• Real-time voting monitoring flags signals that deviate from median values by more than preset limits in TMR setups.
• Automatic exclusion removes out-of-limit hardware channels from active scans to protect downstream logic.
• Front-panel status LEDs and software registers track board health and conversion errors via GEH-6421.

Engineering FAQ & Troubleshooting Guide

Question: How does the processor board compensate for ambient temperature variations at the terminal blocks?

Answer: The system uses dual cold junction (CJ) reference devices mounted on the terminal board, averaging their values to apply accurate cold junction compensation.

Question: What happens if a thermocouple signal deviates significantly in a TMR configuration?

Answer: When a signal varies from the voted median value beyond configured limits, the system identifies the discrepancy and triggers a fault to isolate the channel.

Question: Why are some thermocouple types unsupported when using this specific board group?

Answer: The VTCCH1 group variant is optimized for standard gas turbine ranges (-8 mV to +45 mV), supporting E, J, K, S, and T types, whereas extended groups support additional B, N, and R types.

Question: How can I troubleshoot intermittent temperature spiking over long field runs?

Answer: Verify that field cable resistance remains under 450 ohms for the 300-meter maximum span, check high-frequency noise suppression shielding, and inspect terminal block grounding.

Question: What should I evaluate when sourcing replacement processor boards for legacy Mark VI systems?

Answer: Always confirm the exact part number match (IS200VTCCH1CBB), check revision history levels, and verify terminal board compatibility (TBTC or DTTC).

Purchasing Guidance & Engineering Advice

When maintaining legacy GE Mark VI turbine control architecture, sourcing fully tested processor boards ensures seamless rack communication and prevents costly turbine downtime. Always verify your terminal board model (simplex vs. TMR) before integrating replacement modules.
