IS200TBCIH1BBC GE Contact Input Board | Mark VI Terminal

Product Overview

The General Electric IS200TBCIH1BBC operates as a high-density contact input terminal board within premium automation environments. This robust printed circuit board acts as the primary physical termination interface for critical turbine supervision networks. It functions natively within the legacy Mark VI control system lineup. The module also extends operational utility into modern Mark VIe control migration setups. It accepts field discrete signals and routes clean digital telemetry directly to VME rack processing architectures. By anchoring field-level safety loops, this card ensures continuous monitoring of high-speed industrial turbine operations.

Technical Specifications

• Model Number: IS200TBCIH1BBC
• Brand Manufacturer: General Electric (GE)
• Control Series: Mark VI / Mark VIe Subsystems
• Module Classification: Contact Input Terminal Board
• Input Channel Capacity: 24 discrete dry contact inputs

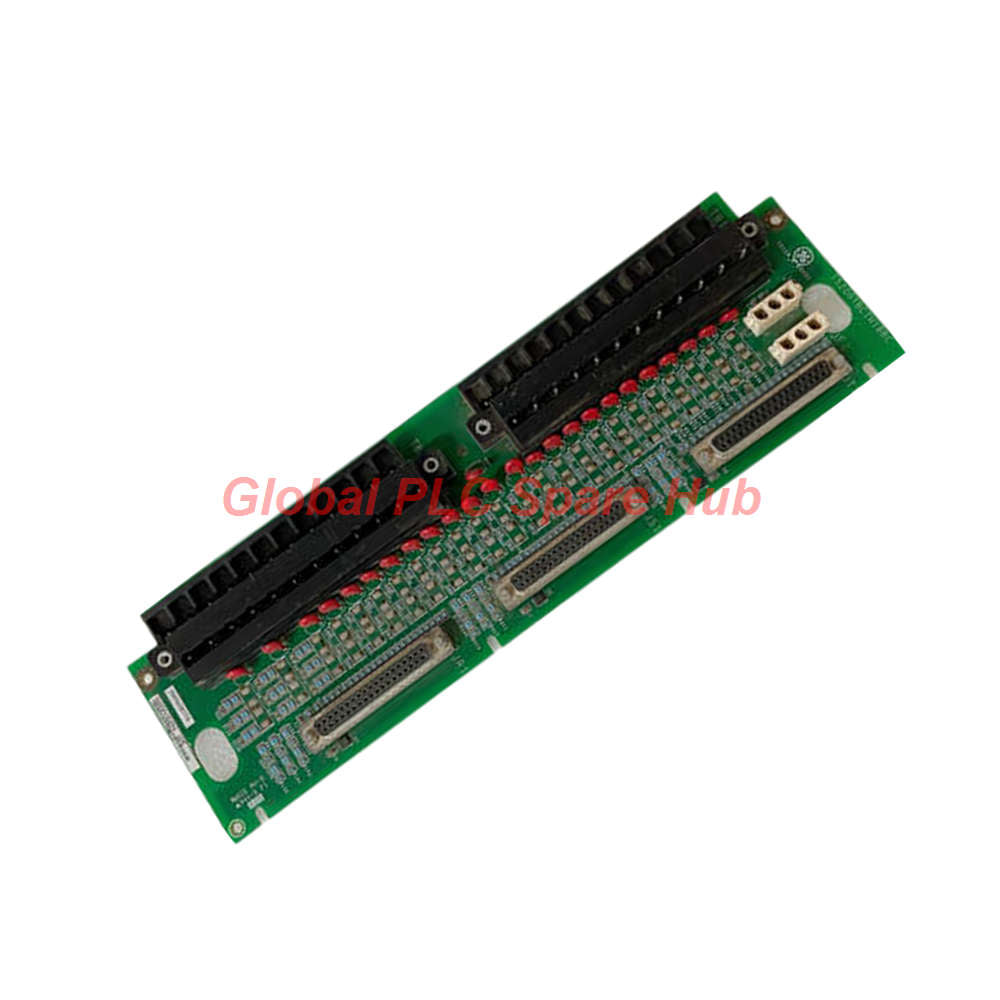

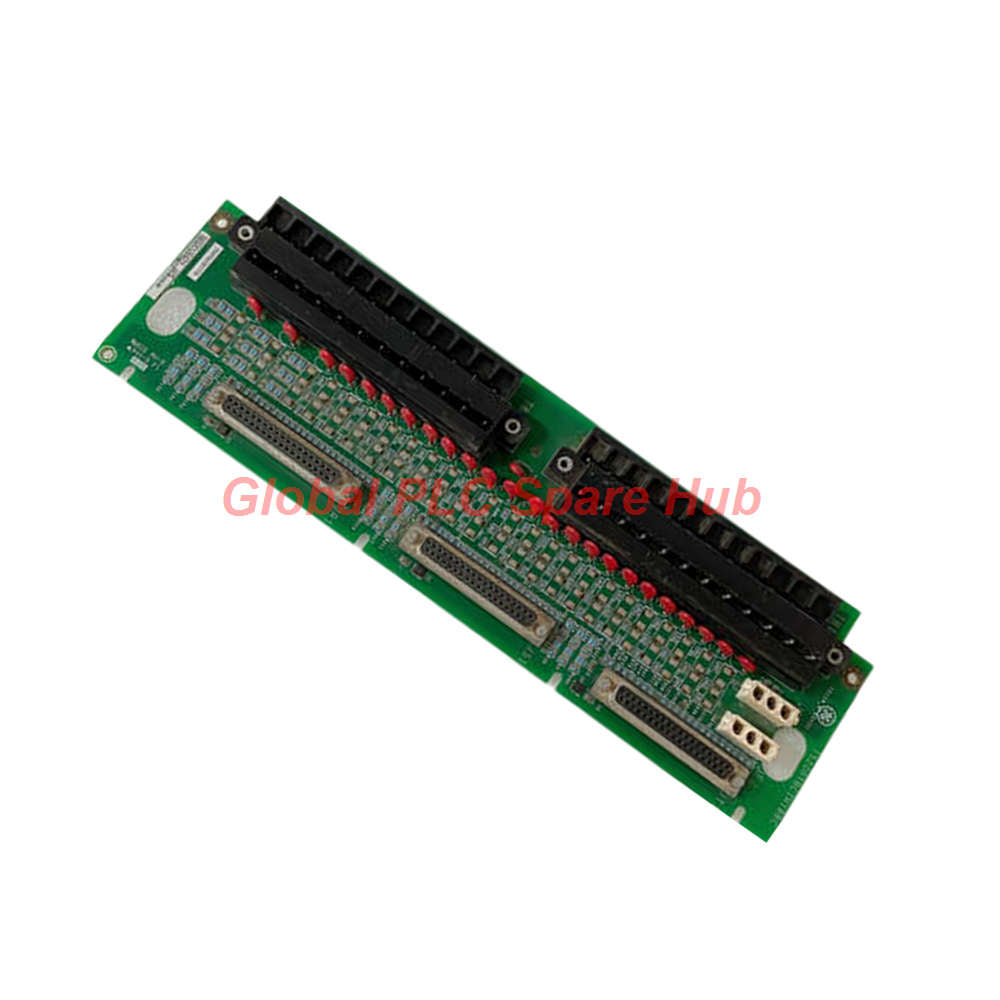

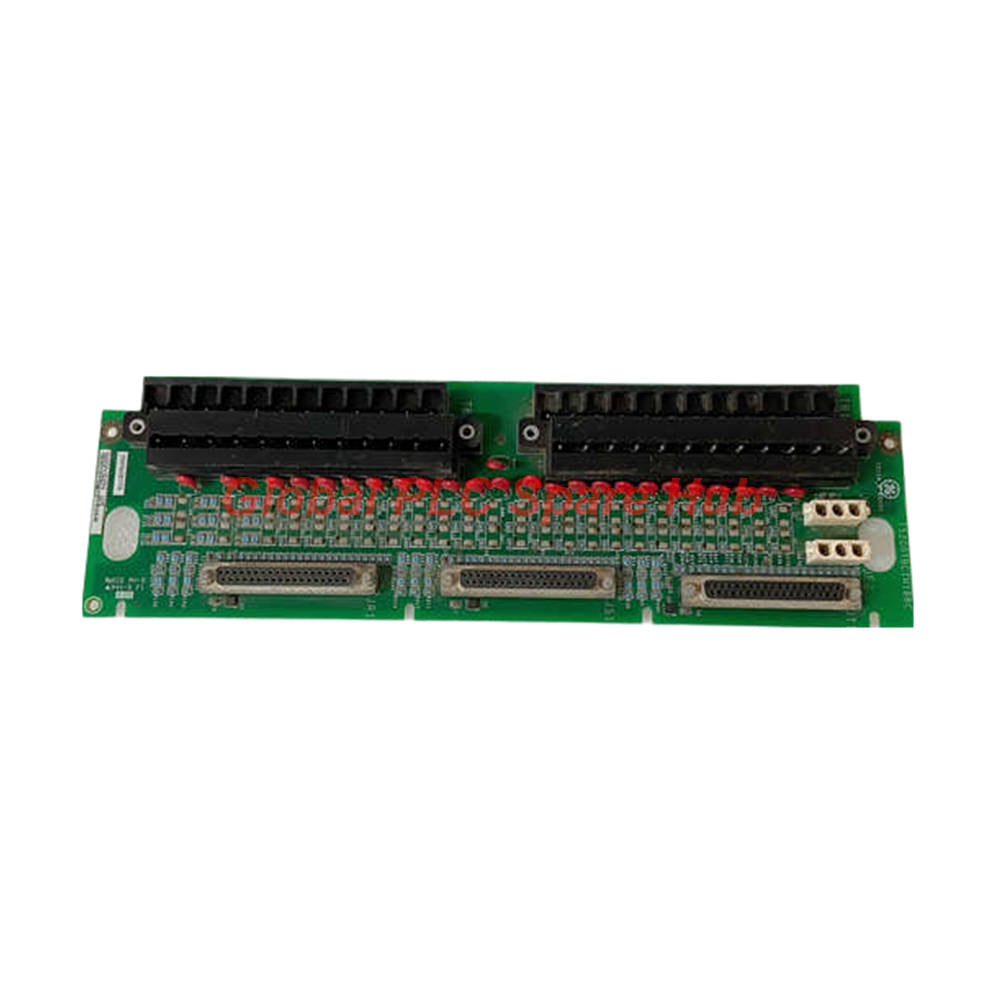

• Terminal Block Configuration: Two heavy-duty black barrier strips housing 48 total silver metal screw terminals
• Excitation Voltage Inlets: Dual 3-port white plugs labeled JE1 and JE2 for dedicated external DC power routing
• Hardware Interconnects: Three silver-and-black jack connectors supporting molded cable plugs or localized I/O packs
• Suppression Hardware Array: 25 inline circular red noise-attenuation capacitors aligned alongside the barrier blocks
• Operating Temperature Limits: Performance certified from -30 to +65 °C
• Physical Dimensions: Measures 33.02 cm height by 10.16 cm width
• System Redundancy Support: Configurable for simplex, dual, or full Triple Modular Redundant structural layouts
• Manufacturing Origin: Manufactured in the United States of America

Equipment Suitability & Industrial Applications

The IS200TBCIH1BBC serves as an essential termination layer for heavy industrial rotating machinery. It interfaces perfectly with GE frame-size gas turbines and utility-scale steam turbine power generation assemblies. Engineers deploy this card inside main generator control panels. It monitors limit switches, breaker aux contacts, and trip-lever statuses. The board links field sensors directly with VCCC or VCRC processor boards. These processor boards reside inside the central VME control racks.

Diagnostics & Protective Architecture

• High-Frequency Noise Suppression: Employs twenty-five dedicated red capacitors to filter line-side electromagnetic interference from field contacts.
• Transient Voltage Safeguards: Incorporates onboard surge protection circuitry to shield internal processing logic from external spikes.
• Redundancy Verification: Provides structural path testing across JR1, JR2, and JR3 jacks to verify multi-channel telemetry tracking.
• Localized Logic Monitoring: Features independent integrated circuits adjacent to connector ports for point-of-termination signal processing.

Global PLC Spare HUB's Insight

From an execution standpoint, the IS200TBCIH1BBC board highlights the excellent hardware reliability typical of GE design philosophy. Moving the dry contact excitation voltage through independent JE1 and JE2 plugs isolates field ground faults from logic controllers. The heavy barrier terminal blocks provide reliable mechanical bite. This configuration avoids wire pull-out risks common with standard pluggable terminal modules. For facilities running TMR setups, this card provides reliable hardware voter paths. It successfully prevents single-point component failures from causing accidental turbine trips.

Shipping, Warranty, & Commercial Terms

• Hardware Condition: Available strictly as brand-new, unused factory-original surplus with pristine termination traces.
• Warranty Protection: Backed by an extensive 12-month all-inclusive commercial replacement warranty.
• Global Logistics: Dispatched via tier-one express logistics carriers, including FedEx, UPS, and DHL.
• Order Processing Speed: Stocked units clear processing for global transit within 24-48 hours of order confirmation.
• Storage Preservation: Packaged in static-shielding bags inside secure containers to protect delicate onboard capacitors.

Frequently Asked Questions

How does this terminal board adapt between Simplex and Triple Modular Redundant system architectures?

Simplex systems utilize only the JR1 connector path, whereas TMR configurations employ all three connectors simultaneously to distribute signals.

What specific field contact types are compatible with the terminal inputs on this board?

The inputs accept 24 dry field contacts, which require external DC excitation power routed via the JE1 and JE2 inlets.

What step is necessary when installing this module into a newer system environment?

Technicians mounting the board onto side brackets must connect Ethernet lines and initiate a firmware download to ensure compatibility.

How do the integrated circuits positioned near the jack connectors assist with maintenance diagnostics?

These specialized components handle local trace logic processing, allowing the main controller to quickly identify channel communication faults.

Can field wiring be managed on this card without upgrading the existing termination infrastructure?

Yes, the 48 barrier-type screw terminals accommodate standard ring or spade lugs directly without external conversion blocks.

Procurement & Selection Guidance

Make sure the bill of materials calls for IS200TBCIH1BBC to avoid firmware mismatches when identifying a replacement module. Verify that your enclosure space accommodates the physical profile of 33.02 cm by 10.16 cm perfectly. Label all field wiring tracks from 1 to 48 prior to removing the faulty board. Ensure your DC excitation source matches the exact voltage parameters specified in your primary turbine control manual before energizing the new assembly.
